LVWIT Black LED Recessed Light 4 Inch Instruction Manual

Introduction

This instruction manual provides detailed guidance for the installation, operation, and maintenance of your LVWIT Black LED Recessed Light 4 Inch. Please read these instructions carefully before installation and retain them for future reference. This product is designed for indoor use and offers adjustable color temperature and dimming capabilities to suit various lighting needs.

Product Features

• High Performance: Provides full brightness of 700 Lumens at 3000K when dimmer is at 100%. Dimmable range from 5% to 100%. Features 80+ Ra color rendering index for strong color restoration.
• Energy Efficient: Utilizes LED technology, replacing an 85 Watt downlight with only 6 Watts of energy, achieving 90% energy savings.
• 5-IN-1 Color Selectable: Offers five color temperature options: 2700K (warm white), 3000K (warm white), 4000K (natural light), 5000K (daylight), and 6000K (cool white). Easily switch between colors using the toggle switch on the fixture.
• Quick Installation: Designed for straightforward installation in under 3 minutes.
• Reliable Safety: Features a lifespan of 20,000 hours and comes with a 3-year warranty.

What's in the Box

• LVWIT Black LED Recessed Lights (6 units)
• E26 Conversion Kits (6 units)
• Mounting Hardware
• Instruction Manual

Setup and Installation

Safety First: Always turn off the power at the circuit breaker before beginning any electrical installation.

1. Measure Your Can Size: Ensure your existing recessed can is 4 inches. Remove the light's trim or LED module, then measure across the opening of the inside of the housing at the widest point.


Image: Steps to measure the internal diameter of a recessed light housing to ensure compatibility with the 4-inch LED light.

2. Select Color Temperature: Before installation, use the toggle switch on the side of the LED recessed light to select your desired color temperature (2700K, 3000K, 4000K, 5000K, or 6000K).


Image: Visual representation of various color temperatures (2700K to 6000K) suitable for different room types like bedroom, kitchen, hallway, study, and living room.

3. Screw E26 Adapter: Screw the E26 adapter into the existing light bulb socket within your recessed can.
4. Connect with TP24 Connector: Connect the TP24 connector from the LED recessed light to the E26 adapter.
5. Push Up Can Lights: Gently push the LED recessed light into the can. The spring buckles will secure it firmly against the ceiling. Ensure all wires are tucked neatly inside the can.


Image: Step-by-step visual guide for quick installation, including screwing in the E26 adapter, connecting the TP24 connector, and pushing the light into the can.

Installation Video Guide

Video: This video demonstrates the easy installation process of the LVWIT LED Recessed Light, showing how to connect the E26 adapter and secure the light into the existing can.

Video: An official video from LVWIT showcasing the installation of their LED Recessed Lights with the E26 Conversion Kit, highlighting the simplicity of the process.

Operating Instructions

Color Temperature Selection

The LVWIT LED Recessed Light offers five selectable color temperatures. Use the small toggle switch located on the side of the light fixture to choose between 2700K, 3000K, 4000K, 5000K, and 6000K. This allows you to customize the ambiance of your room, from warm and cozy to bright and energetic.

Dimming Functionality

This recessed light is dimmable from 5% to 100% brightness. To utilize the dimming feature, ensure you have a compatible dimmer switch installed. The light will maintain its selected color temperature across the entire dimming range.

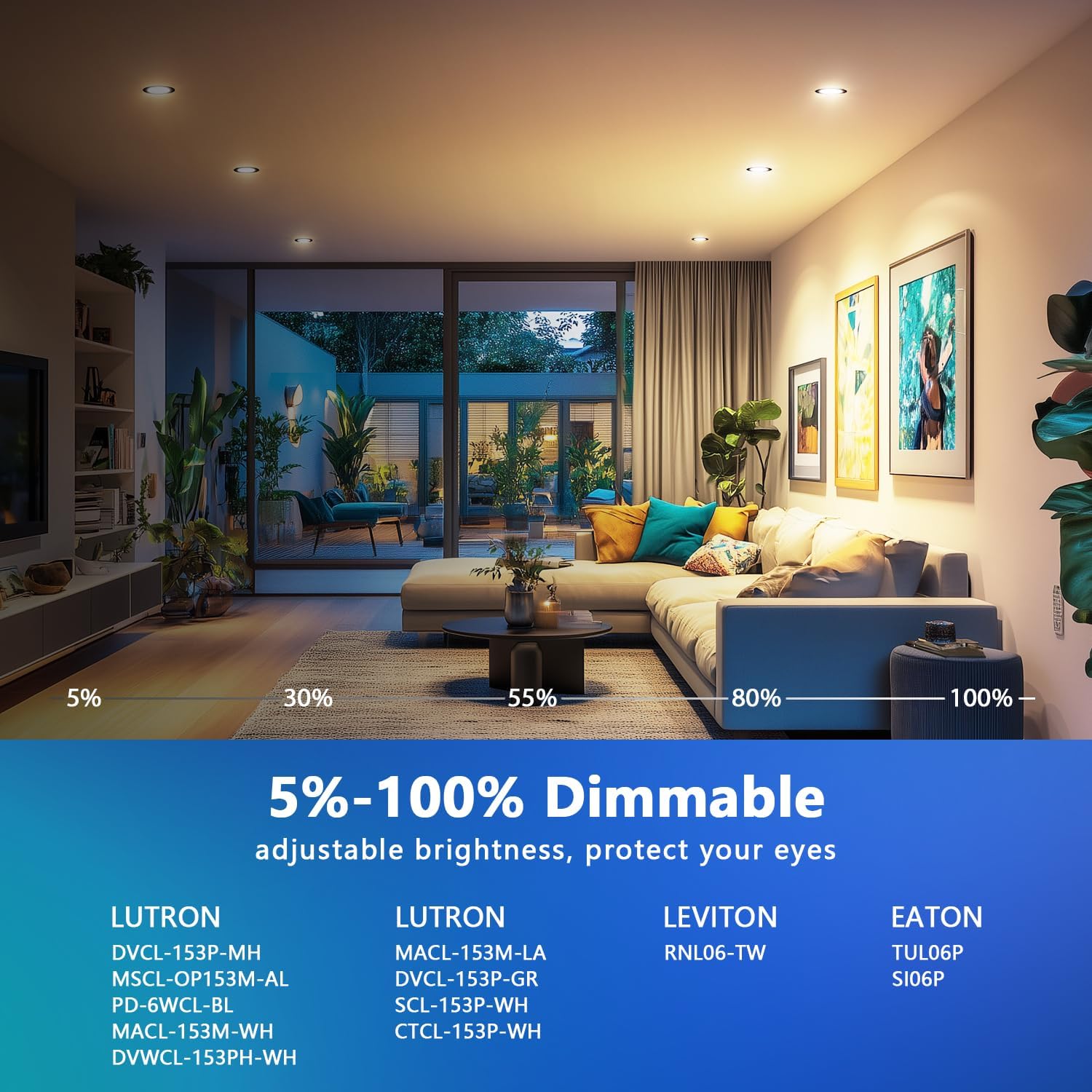

Image: A visual demonstration of the 5%-100% dimmable range of the recessed lights, designed to protect your eyes and adjust brightness.

Color Temperature Selection Video

Video: This video illustrates the 5-color selectable feature of the LVWIT LED Recessed Light, showing how to easily change the color temperature to suit different environments.

Maintenance

To ensure optimal performance and longevity of your LVWIT LED Recessed Light, follow these simple maintenance guidelines:

• Cleaning: Disconnect power before cleaning. Use a soft, dry cloth to wipe the surface of the light. Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or electrical components.
• Inspection: Periodically check the light fixture for any signs of damage or loose connections. If any issues are found, consult a qualified electrician.
• Bulb Replacement: This LED fixture is designed for a long lifespan (20,000 hours) and does not require traditional bulb replacement. If the light stops functioning, it may indicate a need for replacement of the entire unit.

Troubleshooting

If you encounter any issues with your LVWIT LED Recessed Light, please refer to the following common troubleshooting steps:

• Light Not Turning On:
  • Check the circuit breaker to ensure power is supplied to the fixture.
  • Verify that the light switch is in the 'ON' position.
  • Ensure the E26 adapter is securely screwed into the socket and the TP24 connector is properly seated.
• Light Flickering:
  • Confirm that your dimmer switch is compatible with LED lighting. Incompatible dimmers can cause flickering.
  • Check for loose wiring connections.
• Incorrect Color Temperature:
  • Ensure the color temperature toggle switch on the fixture is set to your desired setting.
• Dimming Issues:
  • Verify that the dimmer switch is functioning correctly and is compatible with LED lights.
  • The light is designed to dim from 5% to 100%. If it's not dimming within this range, check the dimmer's specifications.

If these steps do not resolve the issue, please contact LVWIT customer support for further assistance.

Specifications

Warranty and Support

Your LVWIT Black LED Recessed Light 4 Inch comes with a 3-YEAR warranty, ensuring reliable safety and performance. If you encounter any technical issues or require service support, please do not hesitate to contact LVWIT customer service. We are committed to providing a satisfying solution within 24 hours.

For support, please refer to the contact information provided with your product packaging or visit the official LVWIT store on Amazon: LVWIT Store.
