LAUSAINT HOME 10'x20' Outdoor Patio Gazebo Instruction Manual

1. Introduction

Thank you for choosing the LAUSAINT HOME 10'x20' Outdoor Patio Gazebo. This manual provides essential information for the safe assembly, operation, and maintenance of your gazebo. Please read these instructions carefully before beginning assembly and retain them for future reference.

Important Safety Information

Always assemble the gazebo on a stable, level surface. Secure the gazebo to the ground using the expansion bolts provided, especially if it will be used in windy conditions. Do not exceed the weight limit of 250lbs on the roof frame. Be cautious when handling the mosquito nettings and waterproof curtains to prevent damage or accidents. Always follow the manufacturer's instructions for proper assembly, use, and maintenance.

2. Product Features

The LAUSAINT HOME 10'x20' Outdoor Patio Gazebo is designed for durability and comfort, offering a versatile outdoor shelter solution. Key features include:

• Long-term Reliability: Constructed with upgraded materials for enhanced longevity and performance.
• Upgraded Quality: Features a galvanized iron frame capable of resisting winds up to level 7. The roof frame supports up to 250 lbs. Expansion bolts are included for concrete floor stability.
• New 2025 Enhancements: Includes hooks on the roof for hanging decorations and cowhide buckles on the fabric for easier storage.
• Fade and UV-Resistant Fabric: Made from 1500mm water-resistant polyester fabric with UPF 50+, blocking 99.99% of harmful UV rays.
• Ventilated Double Roof: Designed for improved airflow and features netting between the tops to deter mosquitoes.
• Multipurpose Design: Equipped with mosquito netting and zippered waterproof curtains for insect protection and privacy. Four corner D-rings allow for securing with wind ropes or hanging decorations.

Figure 2.1: Gazebo features for ventilation, mosquito protection, and privacy.

Figure 2.2: Water leakage holes on the roof prevent accumulation and increase stability.

Figure 2.3: Integrated hanging hooks on the roof support up to 44 lbs for decorations.

Figure 2.4: Double roof with nettings for air circulation and mosquito deterrence.

Figure 2.5: Convenient elastic buckles and thickened square tube frame for enhanced durability.

3. Components List

Before assembly, ensure all components are present. The product is delivered in two separate packages. Refer to the packing list included with your gazebo for a complete itemized list. Key components include:

• Galvanized Iron Frame (various poles and connectors)
• Main Canopy Fabric
• Upper Canopy Fabric (for double roof)
• Mosquito Nettings (with zippers)
• Privacy Curtains (with zippers)
• Expansion Bolts (12 pieces)
• Stakes (12 pieces)
• Wind Ropes (4 pieces)
• Assembly Hardware (screws, washers, nuts, Allen wrench)

Figure 3.1: Expansion bolts and other anchoring hardware for secure installation.

4. Setup and Assembly Instructions

Assembly typically requires two or more adults. Follow the step-by-step instructions provided in the separate assembly guide included with your product. Below are general guidelines:

1. Preparation: Choose a stable, level surface for assembly. Clear the area of any obstructions. Unpack all components and verify against the packing list.
2. Frame Assembly: Connect the main frame poles according to the diagrams in your assembly guide. Ensure all connections are secure before proceeding.
3. Roof Frame Assembly: Assemble the roof frame structure. This typically involves connecting smaller poles to form the upper support for the canopy.
4. Canopy Installation: Carefully spread the main canopy fabric over the assembled roof frame. Ensure it is properly aligned and secured at all attachment points. Install the upper canopy for the double roof, ensuring the netting is correctly positioned.
5. Leg Installation: Attach the legs to the main frame. Lift the structure with assistance and secure the legs.
6. Anchoring: Secure the gazebo to the ground using the provided expansion bolts for concrete surfaces or stakes and wind ropes for soft ground. Proper anchoring is crucial for stability, especially in windy conditions.
7. Curtains and Netting: Install the mosquito nettings and privacy curtains onto the dual tracks. Ensure they can slide freely.

Figure 4.1: Fully assembled gazebo providing a shaded outdoor living space.

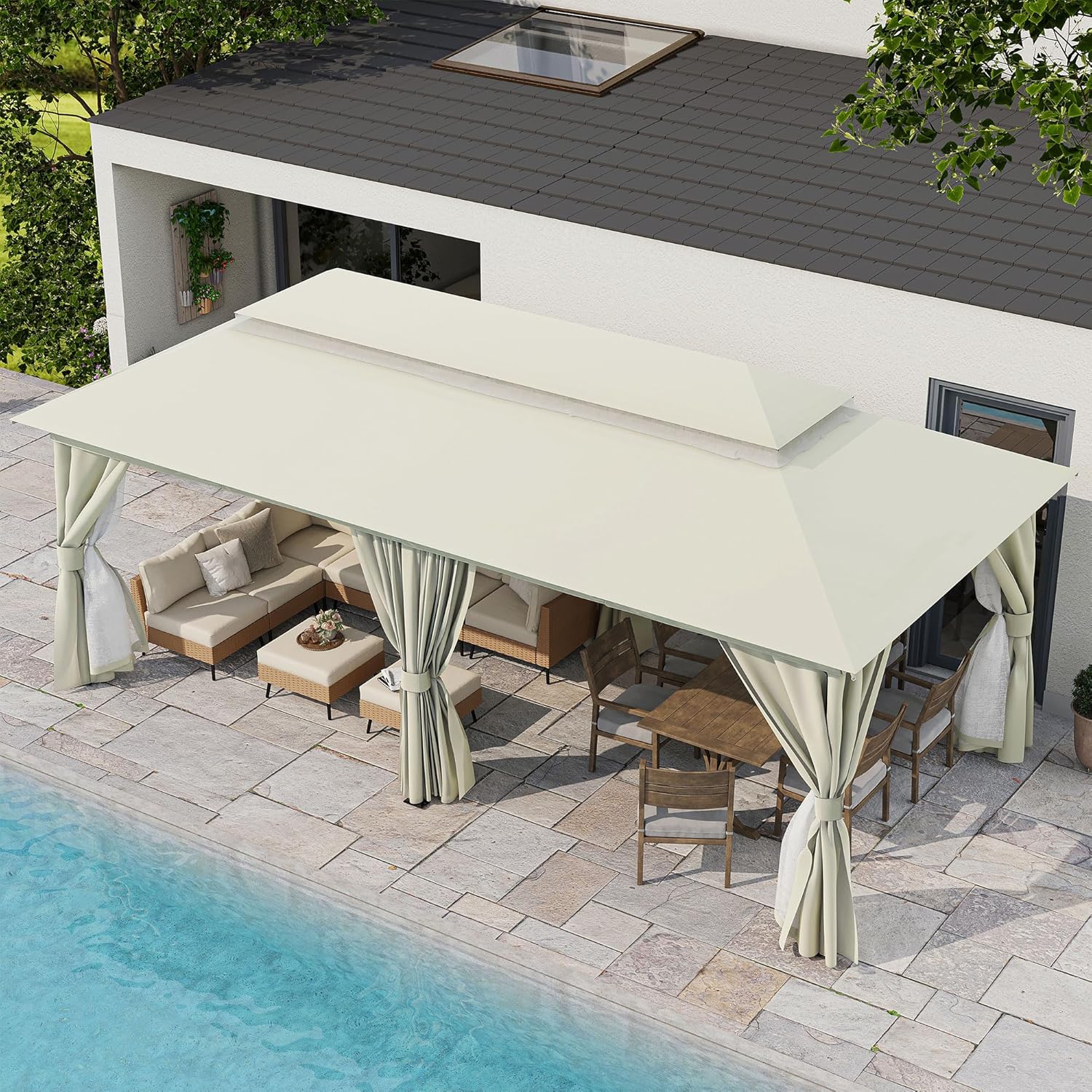

Figure 4.2: Gazebo installed on a patio next to a pool, demonstrating its large coverage.

Figure 4.3: Product dimensions for planning your installation space.

5. Operating Instructions

Your gazebo is designed for ease of use and adaptability to various outdoor conditions.

• Mosquito Nettings: The integrated mosquito nettings can be zipped closed to provide protection from insects. When not in use, they can be tied back using the elastic buckles.
• Privacy Curtains: The waterproof privacy curtains can be drawn and zipped closed for privacy or protection from light rain and sun. They can also be tied back when not needed. The dual-track system allows independent operation of nettings and curtains.
• Decoration Hooks: Utilize the integrated hooks on the roof frame to hang lights, fans, or other lightweight decorations. Ensure the total weight does not exceed 44 lbs.
• Wind Ropes: In anticipation of strong winds, use the provided wind ropes and stakes to further secure the gazebo.

6. Maintenance

Regular maintenance will extend the life and appearance of your gazebo.

• Cleaning Fabric: Clean the canopy, nettings, and curtains with mild soap and water. Do not use harsh chemicals or abrasive cleaners. Allow to air dry completely before storage.
• Cleaning Frame: Wipe the galvanized iron frame with a damp cloth to remove dirt and debris. Inspect for any signs of rust or damage.
• Seasonal Care: For prolonged periods of non-use or during severe weather conditions (heavy snow, strong winds), it is recommended to remove the canopy fabric to prevent damage and extend its lifespan. Store fabric in a dry, protected area.
• Hardware Check: Periodically check all bolts, screws, and anchoring points to ensure they remain tight and secure.

7. Troubleshooting

Here are solutions to common issues you might encounter:

• Gazebo Instability: Ensure all frame connections are tight. Verify that the gazebo is properly anchored to the ground using all provided expansion bolts, stakes, and wind ropes. Re-check the levelness of the installation surface.
• Water Accumulation on Roof: Ensure the canopy is taut and correctly installed to allow water to drain towards the water leakage holes. Clear any debris from the water leakage holes.
• Difficulty Installing Canopy: The canopy is designed to fit snugly for optimal performance. If installation is difficult, ensure the frame is fully assembled and square. It may require two people to stretch the fabric evenly over the frame.
• Curtains/Nettings Not Sliding Smoothly: Check the dual tracks for any obstructions or debris. Ensure the zippers are not snagged and are properly aligned.

8. Specifications

9. Warranty and Support

For warranty information, product support, or to order replacement parts, please contact LAUSAINT HOME customer service. Refer to the contact details provided in your product packaging or visit the official LAUSAINT HOME website.
