1. Introduction and Overview
Thank you for purchasing the COMFEE Electric Pot 3L. This appliance is designed to provide convenient and safe hot water for various uses, featuring adjustable water dispensing, multiple temperature settings for keeping warm, and a reboil function. Please read this manual thoroughly before use to ensure proper operation and to maximize the lifespan of your product.
Image 1.1: The COMFEE Electric Pot, showcasing its sleek design and highlighting key features such as 4-stage keep warm setting, reboil mode, 3.0L large capacity, auto-lock, and anti-tip water leakage prevention.
2. Safety Precautions
To prevent injury or damage, always follow these basic safety precautions:
- Do not immerse the appliance, cord, or plug in water or other liquids.
- Ensure the voltage indicated on the appliance matches your local power supply before connecting.
- Always place the electric pot on a stable, flat, heat-resistant surface, away from edges.
- Do not operate the appliance if the cord or plug is damaged, or if the appliance malfunctions or has been damaged in any way.
- Keep out of reach of children. The auto-lock function helps prevent accidental dispensing.
- The appliance features anti-tip water leakage prevention and dry-boil protection for enhanced safety.
- The magnetic plug is designed to detach easily if the cord is accidentally pulled, preventing the pot from tipping over.
- Do not overfill the pot beyond the maximum fill line to avoid boiling water overflow.
- Always unplug the appliance when not in use and before cleaning.
3. Product Components
Familiarize yourself with the main parts of your COMFEE Electric Pot:
- Main Unit (Pot Body)
- Lid with dispensing button and control panel
- Water Level Indicator
- Power Cord (Magnetic Plug)
- 360° Rotatable Base
Image 3.1: A detailed front view of the COMFEE Electric Pot, showing the water level indicator, dispensing spout, and control panel on the lid.
4. Setup
- Unpacking: Carefully remove the electric pot and all accessories from the packaging. Retain packaging for future storage or transport.
- Initial Cleaning: Before first use, wipe the exterior with a damp cloth. Fill the pot with water to the MAX line, boil, and then discard the water. Repeat this process 2-3 times to remove any manufacturing residues.
- Placement: Place the electric pot on a stable, flat, and dry surface. Ensure there is enough space around the unit for ventilation.
- Connect Power: Attach the magnetic power cord to the appliance and then plug it into a standard AC100V 50/60Hz power outlet.
5. Operating Instructions
5.1. Water Dispensing
The electric pot offers adjustable water dispensing levels (I and II) to suit different needs, from single servings to multiple cups for guests.
- Ensure the pot is filled with water and powered on.
- Place your cup or container under the dispensing spout.
- Press the dispensing button on the control panel. The auto-lock feature requires you to press and hold the unlock button first, then press the dispense button.
- Release the button when the desired amount of water is dispensed.
Image 5.1: A user demonstrating the water dispensing function, showing how to press the button to release hot water into a cup.
5.2. Keep Warm Function (Temperature Selection)
The pot features a 4-stage keep warm function, allowing you to maintain water at optimal temperatures for various beverages.
- After boiling, the pot will automatically enter keep warm mode.
- Use the temperature selection buttons on the control panel to choose your desired temperature: 70°C, 80°C, 90°C, or 98°C.
- The selected temperature will be maintained until manually changed or the unit is powered off.
Image 5.2: The control panel of the electric pot, illustrating the temperature selection options for the keep warm function, with examples of suitable uses for each temperature (e.g., 98°C for instant ramen, 90°C for tea, 70°C for milk).
5.3. Reboil Mode
The reboil mode quickly brings water back to boiling temperature, useful when you need hot water immediately or after a long period in keep warm mode.
- Press the 'Reboil' button on the control panel.
- The water will quickly heat up to boiling point.
- Once boiled, the pot will return to the previously selected keep warm temperature.

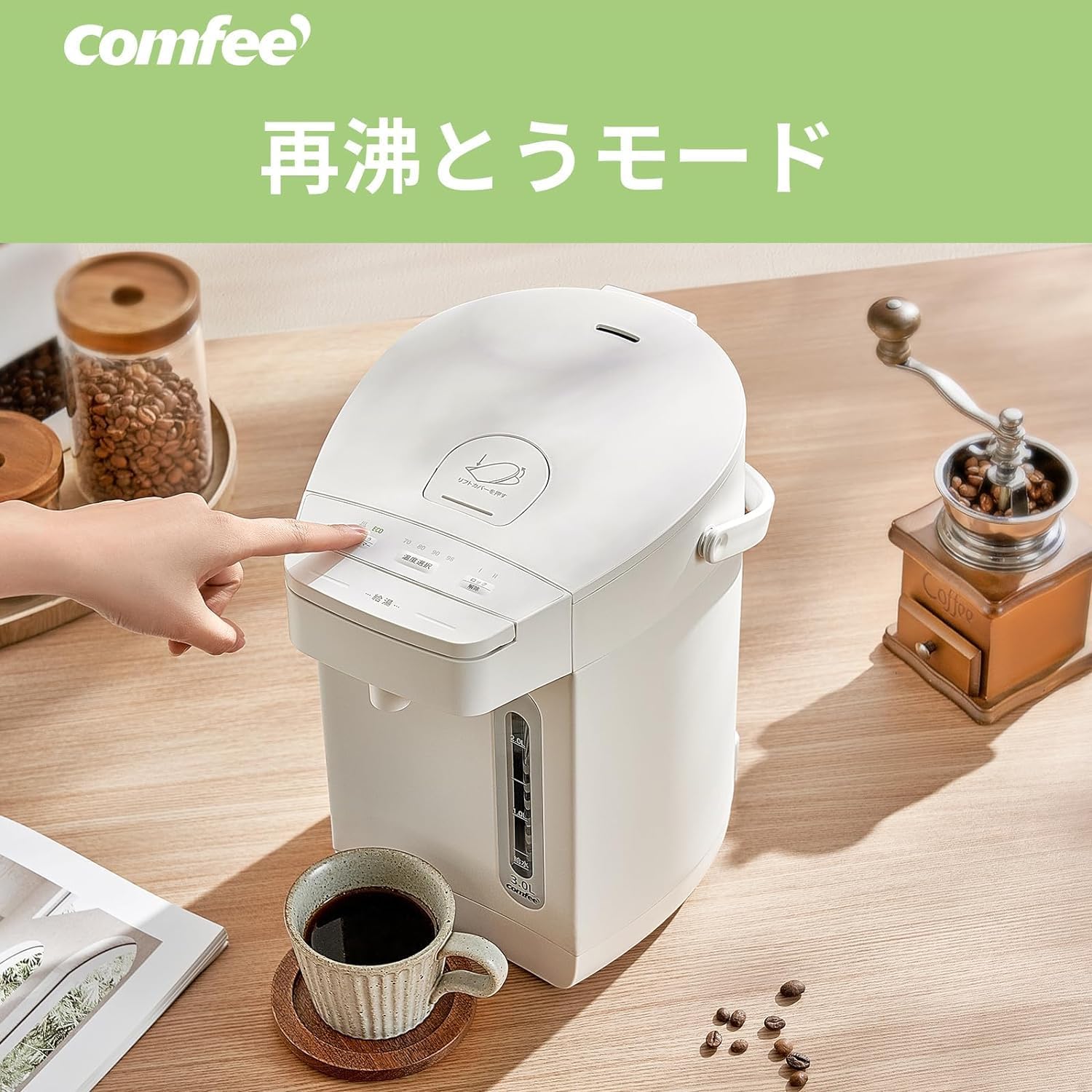

Image 5.3: A user activating the reboil mode on the electric pot, indicating the quick heating capability for immediate hot water.
5.4. ECO Mode
For energy saving, the ECO mode automatically turns off the power if there is no operation for 8 hours. This helps conserve energy when the pot is not actively used for extended periods.
6. Maintenance and Cleaning
Regular cleaning ensures hygiene and extends the life of your electric pot.
- Exterior Cleaning: Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or immerse the unit in water.
- Interior Cleaning (Descaling): Over time, mineral deposits (scale) may build up inside the pot. To descale, use a commercial descaling agent suitable for electric kettles/pots, or a mixture of water and white vinegar/citric acid. Follow the product instructions for descaling. Rinse thoroughly after descaling.
- Lid and Spout: Clean the lid and dispensing spout regularly to prevent blockages.
- Always ensure the appliance is unplugged and cooled down before cleaning.
7. Troubleshooting
If you encounter issues with your electric pot, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Pot does not turn on. | Not plugged in; power outage; magnetic plug not properly connected. | Check power cord connection; ensure outlet has power; re-attach magnetic plug firmly. |
| Water not dispensing. | Auto-lock engaged; low water level; dispensing button not pressed correctly. | Press and hold unlock button before dispensing; refill water; ensure button is fully pressed. |
| Water not heating. | Dry-boil protection activated; insufficient water. | Add water; unplug and allow to cool before restarting. |
| Unusual noise during operation. | Mineral deposits (scale) inside the pot. | Descale the pot as per maintenance instructions. |
If the problem persists after trying these solutions, please contact customer support.
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | CKW-30SW07A1 |
| Capacity | 3.0 Liters |
| Power Supply | AC100V, 50/60Hz |
| Rated Power Consumption | 700W |
| Product Dimensions (L x W x H) | 27.9 x 21.5 x 30.9 cm (10.98 x 8.46 x 12.17 inches) |
| Product Weight | 2.39 kg (5.27 lbs) (including power cord) |
| Color | White |
| Other Functions | Keep Warm Function, Dry-boil Protection |
| Included Components | Power Cord |
Image 8.1: Diagram showing the precise dimensions of the COMFEE Electric Pot: 308.5mm height, 214.5mm depth, and 278.5mm width.
9. Warranty and Support
This product comes with a 1-year manufacturer's warranty from the date of purchase.
Important Note: During product inspection before shipping, water flow is confirmed, so a small amount of water may remain in the product. This is not a used item, but a new, unopened product. We appreciate your understanding.
If you experience any initial defects or have any questions, please feel free to contact us. Our contact information (email address and phone number) is provided in the instruction manual included with your product. We are committed to providing excellent after-sales service, including exchanges, warranty support, and general assistance.
