Pooboo Multi-Functional Power Cage P43 Instruction Manual

1. Introduction

This manual provides essential information for the safe and effective use of your Pooboo Multi-Functional Power Cage, Model P43. This robust home gym equipment is designed to support a wide range of strength training exercises, including squatting, lat pulldowns, cable crossovers, and more. Please read this manual thoroughly before assembly and operation to ensure proper usage and to maximize your workout experience.

2. Safety Information

Your safety is paramount. Adhere to the following guidelines to prevent injury and ensure safe operation of the equipment:

• Consult a physician before starting any exercise program.
• Read and understand all instructions in this manual before assembly and use.
• Inspect the equipment for loose, worn, or damaged parts before each use. Do not use if any components are compromised.
• Ensure all bolts, nuts, and connections are securely tightened before and during use.
• Maintain a clear area around the equipment during use.
• Do not exceed the maximum weight capacity of 2000 lbs for the squat rack and 1000 lbs for the pulley system.
• Use proper lifting techniques and exercise form to avoid injury.
• Keep children and pets away from the equipment during operation.

3. Package Contents

The Pooboo P43 Multi-Functional Power Cage is shipped in two packages to minimize transit damage. Carefully unpack all components and verify against the following list:

• Main Frame Components
• Standard Accessories:
  • 2 x J Hooks
  • 2 x Safety Spotter Arms
  • 2 x Dip Bars
  • 2 x Cable Grip Handles
  • 1 x Lat Pulldown Bar
  • 1 x Row Bar
  • 1 x Row Low Foot Board
  • 1 x 360° Landmine Attachment
  • 4 x Plate Storage Pins
  • 4 x Band Pegs
• Additional Accessories (Included with P43 Model):
  • 1 x Pair of LAT Training Handles (including 5 handle grips)
  • 1 x Standard Olympic Barbell
  • 1 x Barbell Pad
  • 1 x Ankle Strap
• Assembly Hardware (bolts, washers, nuts)
• Assembly Instructions Manual

Figure 1: All included attachments for the Pooboo P43 Multi-Functional Power Cage.

4. Setup and Assembly

Assembly of the Pooboo P43 Power Cage requires careful attention to detail. While the directions are clear, the process can take approximately 6 hours. It is recommended to have at least two people for assembly.

1. Preparation: Clear a spacious area for assembly. Lay out all components and hardware, verifying against the package contents list.
2. Frame Assembly: Begin by assembling the main uprights and crossbeams according to the provided assembly instructions. Ensure all bolts are finger-tightened initially.
3. Pulley System Installation: Install the precision pulley system, ensuring cables are routed correctly and bearing pulleys operate smoothly.
4. Attachment Points: Secure all attachment points for J-hooks, safety spotter arms, dip bars, and other accessories.
5. Final Tightening: Once the entire structure is assembled, systematically tighten all bolts and nuts using appropriate tools. Do not overtighten, but ensure all connections are firm and secure.
6. Stability Check: Gently shake the assembled cage to ensure it is stable and does not wobble. Re-check any loose connections if instability is detected.

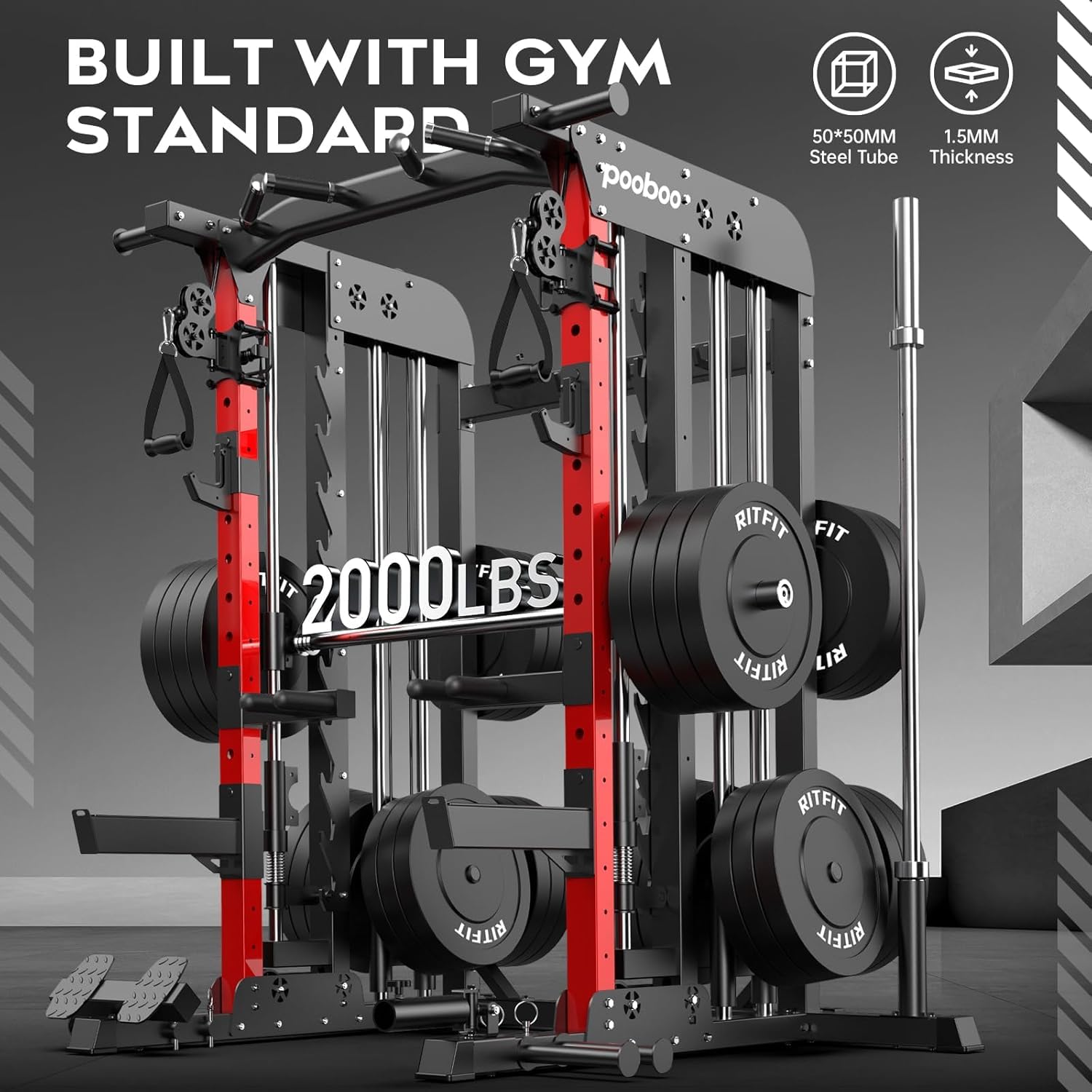

Figure 2: Fully assembled Pooboo P43 Multi-Functional Power Cage.

5. Operating Instructions

The Pooboo P43 Power Cage offers a versatile platform for a comprehensive full-body workout. Familiarize yourself with its components and their functions:

5.1 Key Features and Components

Figure 3: Detailed view of Pooboo P43 Power Cage components.

• J Hooks: Used to hold barbells for squats, bench presses, and other exercises. Insert into the 16-level height holes on the uprights.
• Safety Spotter Arms: Provide a safety catch for barbells during heavy lifts. Position them below your lowest squat or bench press point.
• Dip Bars: Attach to the uprights for performing dips, targeting triceps and chest.
• Wide/Narrow Pull-Up Bars: Integrated at the top for various grip pull-ups and chin-ups.
• Dual Pulley Systems: Features bearing pulleys and durable PU wire rope for smooth, silent operation. Supports up to 1000 lbs.
• 360° Landmine: Allows for rotational exercises with an Olympic barbell, such as landmine rows and presses.
• Plate Storage Pins: Keep your weight plates organized and add stability to the cage.
• Band Pegs: Used for resistance band training, adding variable resistance to lifts.

5.2 Cable Crossover System

Figure 4: Cable crossover system diagram.

The dual pulley cable crossover system allows for independent movement and a wide range of exercises. Attach the desired handle (cable grip handles, lat pulldown bar, row bar) to the cable ends. Adjust the pulley height as needed for different exercises.

5.3 Exercise Examples

The P43 Power Cage facilitates a diverse workout regimen:

• Strength Training: Squats, Bench Presses, Deadlifts (with safety spotters), Overhead Presses.
• Cable Exercises: LAT Pulldowns, Cable Flys, Cable Rows, Bicep Curls, Tricep Extensions, Face Pulls.
• Bodyweight Exercises: Pull-ups, Chin-ups, Dips.
• Specialized Exercises: Landmine Movements (rows, presses, twists).

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your Pooboo P43 Power Cage:

• Daily: Wipe down the equipment with a damp cloth after each use to remove sweat and dust.
• Weekly: Inspect all bolts, nuts, and connections for tightness. Re-tighten as necessary.
• Monthly: Check cables and pulleys for any signs of wear, fraying, or damage. Ensure pulleys rotate freely and quietly. Lubricate moving parts of the pulley system if squeaking or stiffness occurs, using a silicone-based lubricant.
• Annually: Conduct a thorough inspection of the entire frame for any structural damage, cracks, or rust. The environmentally friendly rust-proof paint provides protection, but touch-ups may be needed if scratches occur.

7. Troubleshooting

If you encounter issues with your Pooboo P43 Power Cage, refer to the following common problems and solutions:

• Equipment Wobbles: Ensure the cage is placed on a flat, level surface. Check and tighten all assembly bolts and nuts.
• Noisy Pulley System: Inspect cables for proper routing and ensure they are not rubbing against any part of the frame. Lubricate pulleys with a silicone-based spray. Check for any debris obstructing pulley movement.
• Attachments Not Fitting: Verify that you are using the correct attachment for the intended slot. Ensure no debris is blocking the insertion points.
• Difficulty Adjusting J-Hooks/Safety Arms: Ensure the pins are fully retracted before attempting to move the attachments. Check for any obstructions in the height adjustment holes.

If problems persist, contact customer support for assistance.

8. Specifications

9. Warranty and Support

Pooboo is committed to providing quality products and customer satisfaction.

• Warranty: Your Pooboo P43 Multi-Functional Power Cage comes with a 1-year warranty covering the frame and accessories from the date of purchase.
• Customer Support: If you have any questions, require assistance with assembly, operation, or troubleshooting, please contact our dedicated customer support team. We aim to respond and assist within 12 hours.

Please retain your proof of purchase for warranty claims.
