1. Introduction
Thank you for choosing the Olucia Elena Modern Rectangular Ceiling Spot Light. This manual provides essential information for the safe installation, operation, and maintenance of your new lighting fixture. Please read these instructions carefully before installation and retain them for future reference.

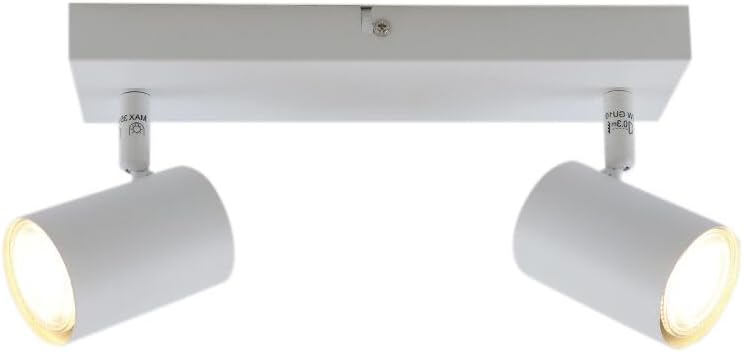

Image 1.1: The Olucia Elena Modern Rectangular Ceiling Spot Light, featuring two adjustable white cylindrical spot heads mounted on a rectangular white base, with both lights illuminated.
2. Safety Information
- Always disconnect the power supply at the main circuit breaker before attempting any installation, maintenance, or bulb replacement.
- Installation should be performed by a qualified electrician or a competent person in accordance with local electrical codes and regulations.
- Ensure the voltage supply (220-240V) matches the requirements of the fixture.
- Do not exceed the maximum wattage of 35 Watt per GU10 bulb.
- This fixture is rated IP20, meaning it is protected against solid objects larger than 12.5mm but has no protection against water. It is suitable for dry indoor locations only.
- Do not cover the fixture with any material. Ensure adequate ventilation around the light source.
- If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
3. Package Contents
Please check that all components are present and undamaged before beginning installation:
- 1x Olucia Elena Ceiling Spot Light Fixture (Model 1060053)
- 1x Mounting Bracket
- Mounting Hardware (screws, wall plugs)
- Instruction Manual
Note: Light bulbs (GU10) are not included and must be purchased separately.
4. Specifications
| Feature | Specification |
|---|---|
| Brand | Olucia |
| Model Number | 1060053 |
| Dimensions (L x W x H) | 26 cm x 8 cm x 14.6 cm |
| Weight | 1 kg |
| Color | White |
| Material | Metal |
| Style | Modern |
| Number of Light Sources | 2 |
| Lamp Holder Type | GU10 |
| Max. Wattage per Bulb | 35 Watt |
| IP Rating | IP20 |
| Dimmable | Yes (dimmer not included) |
| Connection Voltage | 220-240V |
| Energy Label | A to G (depending on light source) |
| EAN Number | 8719933738615 |
5. Setup and Installation
Follow these steps carefully to install your ceiling spot light. If you are unsure, consult a qualified electrician.
- Prepare for Installation:
- Turn off the main power supply at the circuit breaker to prevent electrical shock.
- Ensure the mounting surface is clean, dry, and capable of supporting the fixture's weight.
- Attach Mounting Bracket:
- Remove the mounting bracket from the fixture base.
- Position the mounting bracket on the ceiling at the desired location and mark the drill holes.
- Drill holes and insert appropriate wall plugs (if necessary).
- Securely attach the mounting bracket to the ceiling using the provided screws.
Image 5.1: The underside of the fixture's rectangular base, revealing the central mounting bracket and the electrical wiring terminals (N, L, and Earth) for connection.
- Electrical Connection:
- Connect the household electrical wires to the terminals on the fixture. Typically, the blue wire connects to 'N' (Neutral), the brown/black wire to 'L' (Live), and the green/yellow wire to the Earth symbol.
- Ensure all connections are tight and secure.
- Mount the Fixture:
- Carefully align the fixture base with the attached mounting bracket.
- Secure the fixture to the mounting bracket using the screws provided, ensuring it is firmly in place.
- Install GU10 Bulbs:
- Insert GU10 bulbs (not included) into the lamp holders by pushing them in and twisting clockwise until secure. Do not exceed 35W per bulb.
Image 5.2: A close-up view of one cylindrical spot head, illustrating the internal GU10 lamp holder where the bulb is inserted.
- Restore Power:
- Once installation is complete, restore power at the main circuit breaker.
- Test the light fixture to ensure it functions correctly.
6. Operating Instructions
The Olucia Elena Ceiling Spot Light is designed for straightforward operation:
- Turning On/Off: Use your standard wall switch to turn the light fixture on or off.
- Adjusting Spot Heads: The cylindrical spot heads can be individually rotated and tilted to direct light to your desired area. Gently adjust the heads by hand.
- Dimming Function: If you have installed dimmable GU10 bulbs and connected the fixture to a compatible dimmer switch (not included), you can adjust the light intensity.

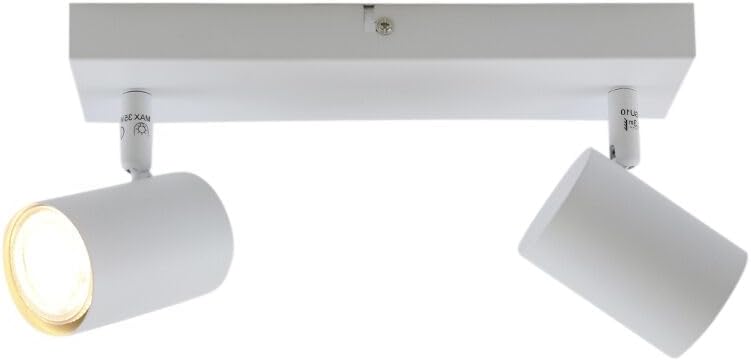

Image 6.1: The Olucia Elena ceiling spot light, demonstrating the adjustability of one of its cylindrical spot heads, angled downwards to direct light.
7. Maintenance
Regular maintenance will help prolong the life and appearance of your light fixture:
- Cleaning: Ensure the power is off before cleaning. Wipe the fixture with a soft, dry, or slightly damp cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish.
- Bulb Replacement: Always turn off the power supply and allow bulbs to cool completely before attempting to replace them. To replace a GU10 bulb, gently push it in and twist counter-clockwise to remove. Insert the new bulb by pushing it in and twisting clockwise until secure.
- Inspection: Periodically check the fixture for any signs of damage or loose connections. If any issues are found, disconnect power and consult a qualified electrician.
8. Troubleshooting
If you encounter issues with your Olucia Elena Ceiling Spot Light, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power supply Faulty bulb Loose wiring connection | Check circuit breaker and wall switch. Replace bulb with a new, working GU10 bulb. Turn off power, check wiring connections (consult electrician if unsure). |
| Light flickers | Loose bulb Incompatible dimmer (if applicable) Faulty bulb | Ensure bulb is securely twisted into the socket. Ensure dimmer is compatible with GU10 LED/halogen bulbs. Replace bulb. |
| Dimming not working | Non-dimmable bulbs Incompatible dimmer switch | Ensure you are using dimmable GU10 bulbs. Verify dimmer switch is compatible with the bulbs and fixture. |
If the problem persists after attempting these solutions, please contact customer support or a qualified electrician.
9. Warranty and Support
The Olucia Elena Modern Rectangular Ceiling Spot Light (Model 1060053) comes with a two-year warranty from the date of purchase, covering manufacturing defects and material faults under normal use. This warranty does not cover damage caused by improper installation, misuse, accidents, or unauthorized modifications.
For warranty claims, technical support, or any questions regarding your product, please contact your retailer or Olucia customer service with your proof of purchase and model number.
