1. Product Overview
The Voluas Stainless Steel Wireless Cat Water Fountain Model 309A provides a continuous supply of fresh, filtered water for your pets. Featuring a cordless design, multiple operating modes, and a robust filtration system, it is designed for convenience and pet health.
Image: The Voluas Stainless Steel Wireless Cat Water Fountain, showcasing its sleek design and water flow.
Key Features:
- Wireless Design: Eliminates the need for power cords near the fountain, reducing potential hazards and allowing flexible placement.
- Three Water Supply Modes: Offers Sensor Mode, Timing Mode, and Power Mode to suit different pet behaviors and energy saving preferences.
- 4-Layer Vertical Filtration: Ensures thorough purification of water, removing impurities and odors.
- High-Capacity Battery: Integrated 4200mAh rechargeable battery provides extended operation.
- Easy to Clean: Detachable components and a wireless pump simplify cleaning and maintenance.
- Quiet Operation: Designed for minimal noise, ensuring a peaceful environment.
2. Setup Guide
Follow these steps to assemble and prepare your Voluas Cat Water Fountain for first use.
2.1 Unpacking and Component Check
Carefully remove all components from the packaging. Verify that all included items are present:
- Stainless Steel Water Basin
- Water Pump Module (with motion sensor)
- Filter Tray
- Filter Element
- Pre-Filter Sponge
- Type-C Charging Cable
- Cleaning Brush
- User Manual
2.2 Assembly Instructions
- Clean Components: Wash the stainless steel basin, filter tray, and pump module thoroughly with water. Do not submerge the pump module's electronic parts (battery compartment) in water.
- Install Pre-Filter Sponge: Place the pre-filter sponge onto the water pump intake.
- Install Filter Element: Insert the filter element into the filter tray. Ensure it is seated correctly.
- Place Pump and Filter Tray: Position the water pump module into the designated slot in the stainless steel lid. Then, place the filter tray with the filter element into the lid, ensuring it aligns with the pump's water outlet.
- Assemble Lid: Carefully place the assembled lid onto the stainless steel water basin.
- Fill with Water: Fill the water basin with clean water up to the MAX fill line. Do not overfill.
- Initial Charge: Before first use, fully charge the fountain using the provided Type-C cable. The charging port is located on the pump module. A full charge ensures optimal battery performance.
Image: A cat drinking from the Voluas wireless fountain, illustrating its cordless design and ease of use.
3. Operating Instructions
The Voluas Cat Water Fountain offers three distinct operating modes to cater to your pet's needs and conserve battery life.
3.1 Selecting Operating Modes
The mode selection button is located on the top of the pump module. Press the button to cycle through the modes.
- Sensor Mode: When a pet is detected within the sensor's range (approximately 140 degrees), the fountain will activate and dispense water for 30 seconds. This mode is ideal for battery conservation and encouraging pets to drink when they approach.
- Timing Mode: The fountain operates for 15 seconds, then pauses for 15 minutes. This cycle repeats automatically, providing intermittent fresh water.
- Power Mode (Continuous Flow): The fountain provides a continuous flow of water without interruption. This mode requires the Type-C cable to be plugged in for constant power. It is not recommended for battery-only operation due to rapid battery depletion.

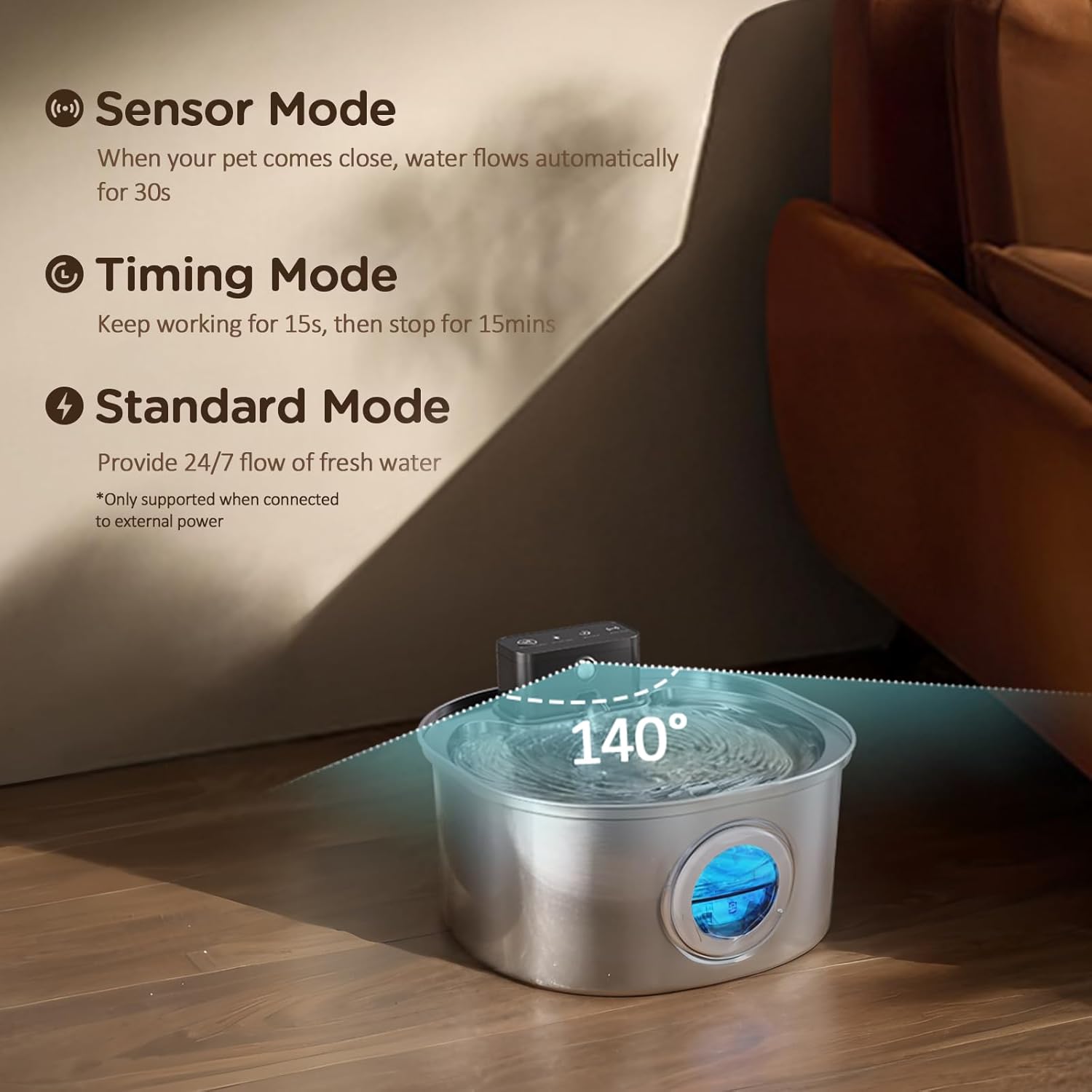

Image: Visual representation of the fountain's three operating modes: Sensor, Timing, and Standard (Power) mode.
3.2 Battery Management
The fountain is equipped with a 4200mAh rechargeable battery, offering extended use without constant charging.
- Battery Life: A full charge can last up to 40 days, depending on the selected operating mode and frequency of use. Sensor Mode provides the longest battery life.
- Charging: Use the provided Type-C cable to charge the fountain. The charging indicator light on the pump module will show charging status.
- Low Battery Indicator: The fountain will indicate a low battery level (e.g., via a flashing light or reduced water flow) when charging is required.

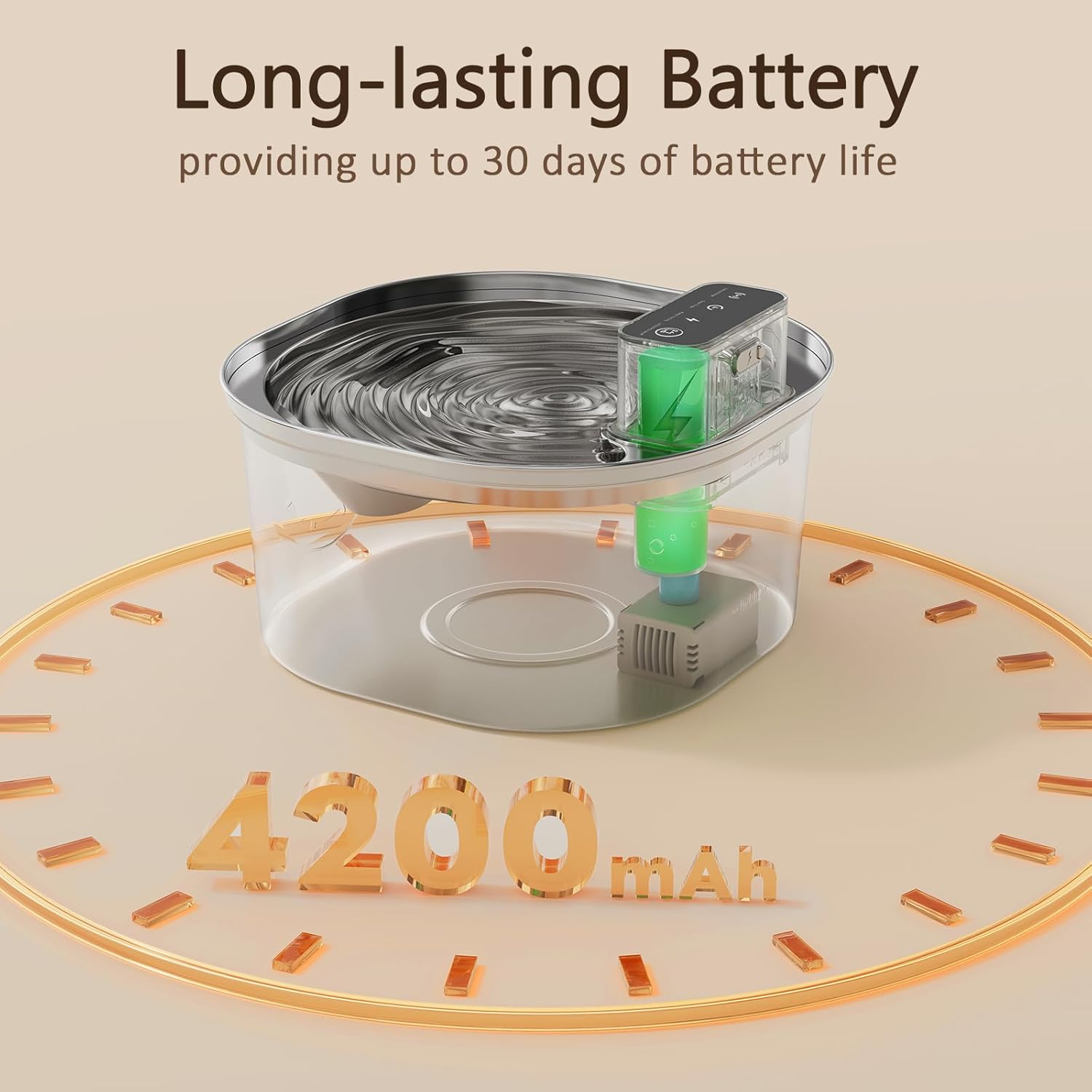

Image: An illustration highlighting the 4200mAh long-lasting battery capacity of the fountain.
4. Maintenance and Cleaning
Regular cleaning and filter replacement are crucial for maintaining water quality and extending the life of your fountain.
4.1 Disassembly for Cleaning
- Power Off: Ensure the fountain is turned off and unplugged if connected to external power.
- Remove Lid: Lift the stainless steel lid from the water basin.
- Remove Pump Module: Carefully detach the water pump module from the lid. Note: The battery is not waterproof. Always remove the pump module before cleaning the basin or lid with water.
- Remove Filter Tray and Filter: Take out the filter tray and remove the filter element and pre-filter sponge.
Image: An exploded diagram showing the easy disassembly of the fountain's components, including the stainless steel basin, battery, upgraded filter, water pump, and pre-filter sponge.
4.2 Cleaning Instructions
- Stainless Steel Basin and Lid: Wash with mild soap and water. Rinse thoroughly to remove all soap residue.
- Water Pump: Disassemble the pump as per its instructions (if applicable) and clean any debris or hair from the impeller and pump housing using the provided brush. Do not submerge the electronic parts of the pump module.
- Filter Tray: Wash with mild soap and water.
- Pre-Filter Sponge: Rinse thoroughly with water. Replace if heavily soiled or damaged.
4.3 Filter Replacement
The fountain utilizes a 4-layer vertical filtration system for optimal water purification.
Image: A detailed diagram illustrating the 4-layer vertical filtration system, including PP Cotton, Ion Resin, Activated Carbon, and Pre-filter sponge.
- Filter Element: The filter element needs to be replaced regularly, typically every 2-4 weeks, depending on water quality and pet usage. Replace it more frequently if you have multiple pets or notice reduced water flow or odors.
- Pre-Filter Sponge: The pre-filter sponge should be rinsed weekly and replaced every 1-2 months, or when visibly dirty.
- Replacement Process: Discard the old filter element and pre-filter sponge. Rinse the new filter element under running water before placing it into the filter tray. Reassemble the fountain as described in Section 2.2.
5. Troubleshooting
Refer to this section for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Fountain not dispensing water | Low battery; Pump clogged; Water level too low; Incorrect mode selected. | Charge the battery; Clean the pump and impeller; Refill water to MAX line; Check mode selection. |
| Weak water flow | Filter clogged; Pump partially clogged; Low water level. | Replace filter; Clean pump; Refill water. |
| Unusual noise from pump | Pump impeller obstructed by hair/debris; Low water level. | Clean the pump impeller; Ensure water level is sufficient. |
| Water has an odor or is cloudy | Filter needs replacement; Fountain needs cleaning. | Replace filter element; Thoroughly clean all fountain components. |
| Motion sensor not activating | Sensor obstructed; Sensor mode not selected; Battery low. | Ensure sensor is clear; Select Sensor Mode; Charge battery. |
6. Product Specifications
- Model: ZZVL-309A
- Material: Stainless Steel
- Water Capacity: 3.2 Liters (108 oz)
- Battery: 4200mAh Rechargeable (Built-in)
- Operating Modes: Sensor, Timing, Power (Continuous)
- Product Dimensions: 8.5"L x 8.5"W x 4.5"H
- Item Weight: 1.8 pounds
- Included Components: Water Fountain, Filter, Pre-Filter Sponge, Type-C Cable, Cleaning Brush, User Manual
- Manufacturer: VOLUAS
- Color: Silver
- Target Audience: Cats, Small Animals
- Specific Uses: Indoor
Image: The fountain's transparent water tank illustrating its 3.2L (108oz) capacity, designed to reduce refilling frequency.
Image: A graphic illustrating the ultra-quiet operation of the Voluas fountain at 25 dB, compared to a library (45 dB) and a whisper (30 dB).
7. Warranty and Support
7.1 Warranty Information
The Voluas Stainless Steel Wireless Cat Water Fountain Model 309A comes with a 1-year warranty for the water pump from the date of purchase. This warranty covers manufacturing defects under normal use. Please retain your proof of purchase for warranty claims.
The warranty does not cover damage caused by misuse, neglect, unauthorized repairs, or normal wear and tear of consumable parts like filters.
7.2 Customer Support
For any questions, technical assistance, or warranty claims, please contact Voluas customer support:
- Email: support@voluas.com
- Website: Visit the official Voluas website for FAQs and additional resources.
When contacting support, please provide your product model (309A) and a detailed description of the issue.
