PYY Commercial Soup Kettle User Manual

Important Safety Instructions

Please read all instructions carefully before using the PYY Commercial Soup Kettle. Retain this manual for future reference.

• Always ensure the appliance is placed on a stable, level, heat-resistant surface.
• Do not immerse the main unit (electrical components) in water or any other liquid.
• Keep out of reach of children and pets.
• Do not operate the appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• Use only manufacturer-recommended attachments.
• Exercise extreme caution when moving an appliance containing hot food or liquids.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not use outdoors.
• Do not let the power cord hang over the edge of a table or counter, or touch hot surfaces.
• Ensure the water level in the outer pot does not exceed the maximum fill line to prevent overflow during heating.
• The exterior of the soup kettle is designed to stay cool, but the inner pot and lid will be hot. Use caution when handling.

Product Overview

The PYY Commercial Soup Kettle is designed for efficient and stable warming of various foods. It features a durable construction and user-friendly design.

Components

• Main Unit: The outer casing housing the heating element and temperature control.
• Inner Pot: Detachable 304 food-grade stainless steel pot for holding food.
• Lid: Flip lid design with a slot for a ladle.
• Temperature Control Knob: For adjusting the desired temperature.
• Heat Indicator Light: Illuminates when the heating element is active.
• Non-Slip Rubber Feet: Provides stability during use.

Key Features

• Large Capacity: 13.4QT / 3.4GAL / 12.7L capacity, suitable for large gatherings and commercial use.
• Uniform & Stable Warming: Utilizes a water bath (bain-marie) technology to maintain consistent food temperature.
• Precise Temperature Control: Adjustable from 95°F to 185°F (35°C-85°C).
• Durable Construction: Heat-resistant paint finish exterior and 304 food-grade stainless steel inner pot.
• User-Friendly Design: Flip lid, ladle slot, and detachable inner pot for easy cleaning.

Product Visuals

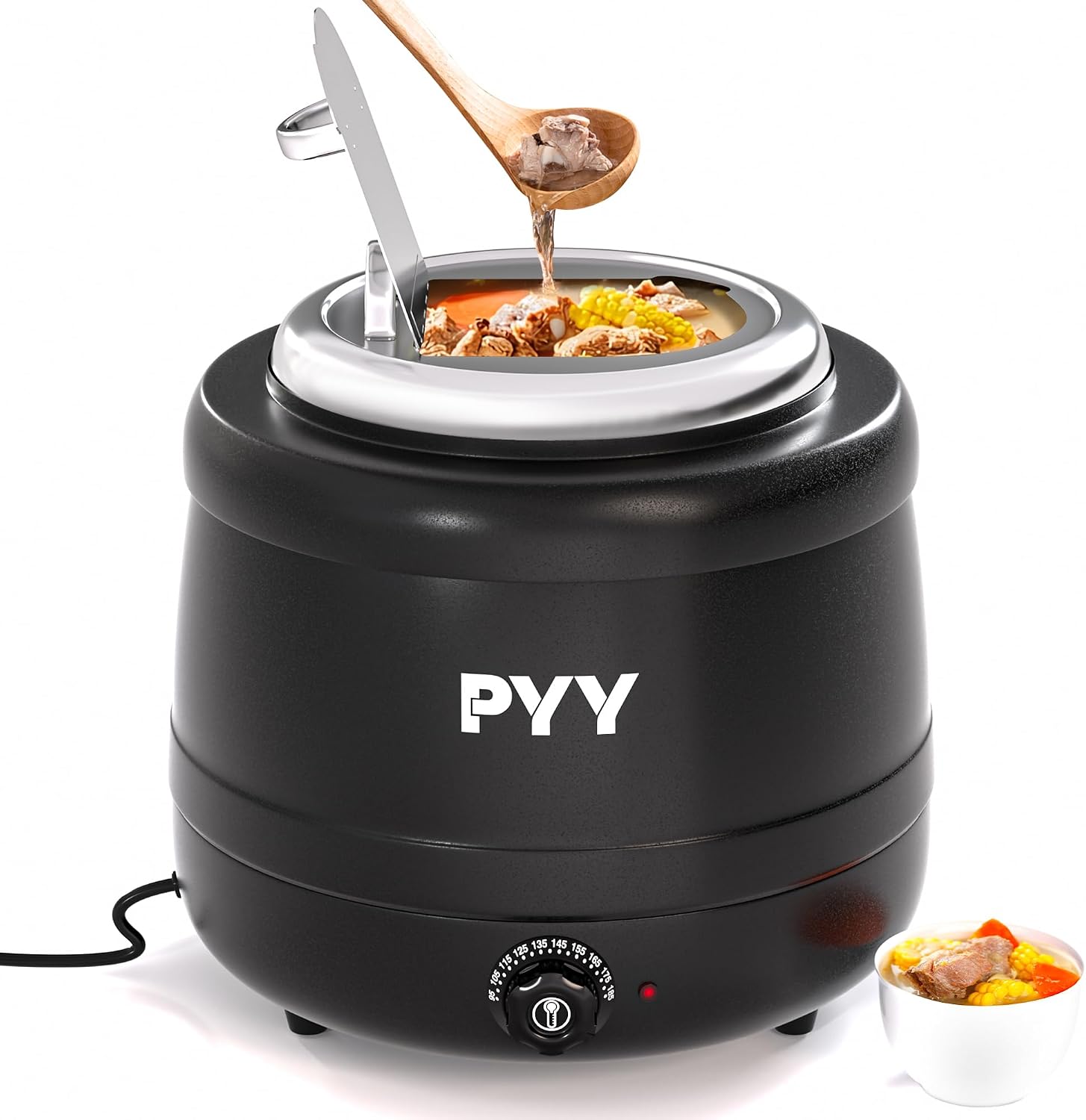

Figure 1: The PYY Commercial Soup Kettle in black, shown with a ladle serving soup from the inner pot. The temperature control knob is visible at the base.

Figure 2: Illustration of the soup kettle's large capacity, indicating 13.39 Quarts / 3.3 Gallons and a maximum water level of 1.57 inches for the outer pot.

Figure 3: Diagram illustrating the uniform warming mechanism of the soup kettle, showing heat circulation around the inner pot and the temperature range of 95-185°F (35-85°C) with a heat indicator light.

Figure 4: Multiple PYY soup kettles showcasing their versatility for holding various recipes such as sauce, soup, porridge, and stew, suitable for commercial needs.

Figure 5: Close-up view of the soup kettle emphasizing its user-friendly design, including the integrated flip cover, soup ladle slot lid design, and non-slip rubber feet.

Figure 6: Detailed product dimensions: 14.4 inches width, 15.5 inches height, with the inner pot measuring 11.1 inches in diameter and 8 inches in height.

Figure 7: Examples of the PYY Commercial Soup Kettle being used in different commercial environments such as buffets, parties, restaurants, and hotels.

Product Video

Setup

1. Unpack: Carefully remove all components from the packaging. Retain packaging for future storage or transport.
2. Clean: Before first use, wash the detachable inner pot and lid with warm, soapy water. Rinse thoroughly and dry completely. Wipe the exterior of the main unit with a damp cloth.
3. Placement: Place the soup kettle on a stable, level, and heat-resistant surface, away from walls or other appliances to ensure proper ventilation.
4. Fill Outer Pot: Pour water into the outer pot (the space between the heating element and the inner pot) up to the indicated maximum fill line. Do not overfill. This water creates the bain-marie for even heating.
5. Insert Inner Pot: Place the clean, dry inner pot into the outer pot.
6. Add Food: Fill the inner pot with the soup, stew, or other food you wish to warm. Do not overfill the inner pot.
7. Connect Power: Plug the power cord into a standard 110V-120V/60Hz electrical outlet.

Operating Instructions

1. Power On: After setup, ensure the unit is plugged in.
2. Set Temperature: Turn the temperature control knob to your desired temperature setting. The range is 95°F to 185°F (35°C-85°C). For most soups, a setting between 140°F and 160°F (60°C-71°C) is recommended to maintain serving temperature.
3. Heating Indicator: The heat indicator light will illuminate when the heating element is active. It will cycle on and off as the appliance maintains the set temperature.
4. Preheating: Allow sufficient time for the water in the outer pot to heat up and transfer heat to the inner pot. This may take 20-30 minutes depending on the initial temperature of the food and water.
5. Serving: Use the integrated flip lid and ladle slot for convenient serving.
6. Monitoring Water Level: Periodically check the water level in the outer pot, especially during extended use. If the water level drops significantly, unplug the unit, allow it to cool slightly, and carefully add more water up to the max fill line.
7. Power Off: When finished, turn the temperature control knob to the "OFF" position and unplug the unit from the electrical outlet.

Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the life of your soup kettle.

1. Disconnect Power: Always unplug the soup kettle from the power outlet and allow it to cool completely before cleaning.
2. Remove Inner Pot and Lid: Carefully remove the inner pot and lid.
3. Clean Inner Pot and Lid: Wash the stainless steel inner pot and lid with warm, soapy water. For stubborn food residue, soak them for a few minutes before scrubbing with a non-abrasive sponge. Rinse thoroughly and dry completely. These parts are dishwasher safe.
4. Clean Outer Pot (Water Bath Area): Drain any remaining water from the outer pot. Wipe the interior of the outer pot with a damp cloth. For mineral deposits or scale buildup, use a descaling solution suitable for kitchen appliances or a mixture of vinegar and water. Rinse thoroughly with a damp cloth and dry.
5. Clean Exterior: Wipe the exterior of the main unit with a soft, damp cloth. Do not use abrasive cleaners or scouring pads, as they may damage the finish.
6. Storage: Ensure all parts are completely dry before reassembling or storing the soup kettle. Store in a cool, dry place.

Troubleshooting

If you encounter any issues, please refer to the following table before contacting customer support.

Specifications

Warranty and Support

PYY offers a one-year warranty for this Commercial Soup Kettle. This warranty covers defects in materials and workmanship under normal use.

For technical support, warranty claims, or any inquiries regarding your PYY Commercial Soup Kettle, please contact our customer service team. Refer to your purchase documentation for specific contact details or visit the official PYY website.

We are committed to providing professional one-on-one technical support to ensure your satisfaction.
