Doripel Guarda Roupa Solteiro New Recife

1. Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your Doripel Guarda Roupa Solteiro New Recife. This wardrobe is designed for single use, featuring 4 doors, 2 drawers, and ample storage space. Constructed from high-quality MDF, it offers durability and a modern design to optimize your room's space.

2. Safety Information

• Always assemble the wardrobe on a clean, flat, and soft surface to prevent scratches.
• Ensure all hardware is securely tightened before use. Periodically check and re-tighten fasteners.
• Do not overload shelves or drawers. Distribute weight evenly.
• For stability, it is recommended to secure the wardrobe to a wall using appropriate anti-tip hardware (not included, but highly recommended for safety, especially in homes with children).
• Keep small parts and assembly tools out of reach of children.

3. Package Contents

Before beginning assembly, verify that all components are present and undamaged. If any parts are missing or damaged, contact Doripel customer support.

• MDF panels for structure, doors, drawers, and shelves.
• 4 Door hinges.
• 2 Sets of telescopic drawer slides.
• Door handles.
• Assembly hardware (screws, dowels, cam locks, etc.).
• Back panel.
• Instruction manual (this document).

Tools Required (not included): Phillips head screwdriver, Hammer, Measuring tape, Level.

4. Setup and Assembly

Assembly is required for this product. Follow the steps carefully. It is recommended to have two people for assembly.

4.1 Internal Structure and Dimensions Overview

This diagram illustrates the internal layout and key dimensions of the wardrobe, including shelf heights, drawer positions, and overall measurements. The wardrobe measures 200cm in height, 122cm in width, and 47cm in depth.

4.2 Assembly Steps

1. Unpack and Identify Parts: Carefully remove all components from the packaging. Lay them out and compare them with the parts list in your separate assembly guide (usually included in the box) to ensure everything is present.
2. Assemble the Base: Connect the bottom panel to the side panels using the provided hardware (dowels, cam locks, and screws). Ensure the base is stable and square.
3. Install Drawer Slides: Attach the drawer slides to the designated side panels of the wardrobe structure according to the assembly guide. Ensure they are level and correctly oriented.
4. Assemble Drawers: Construct the two drawers by connecting the front, back, and side panels. Install the remaining drawer slide components onto the assembled drawers.
5. Attach Shelves: Insert the fixed shelves into their designated slots. For adjustable shelves, use the shelf pins provided.
6. Install Back Panel: Secure the back panel to the wardrobe structure using small nails or screws. Ensure the wardrobe is square before fastening the back panel completely.
7. Attach Doors: Mount the hinges to the doors and then attach the doors to the wardrobe side panels. Adjust hinges as needed to ensure proper door alignment and smooth operation.
8. Install Handles: Attach the door and drawer handles.
9. Insert Drawers: Carefully slide the assembled drawers onto their respective slides.
10. Final Check: Verify that all connections are secure, doors open and close smoothly, and drawers slide freely.

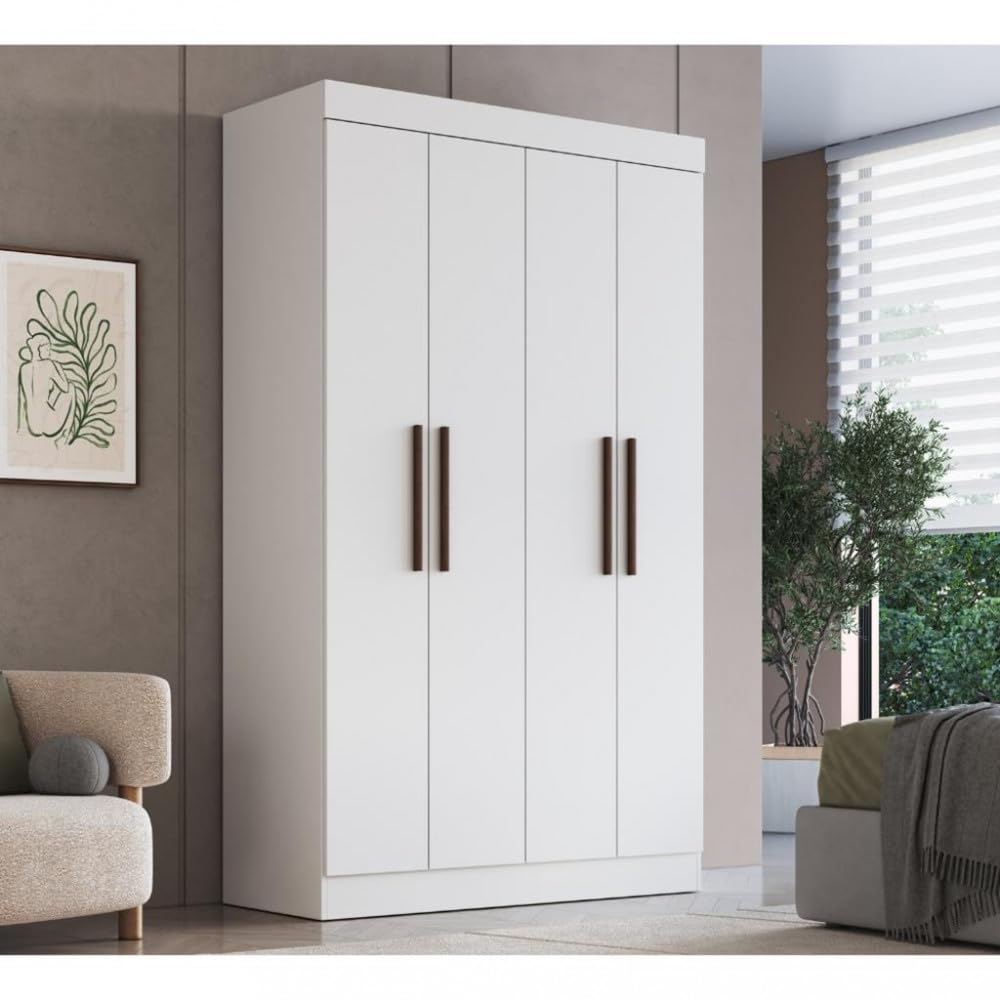

This image shows the exterior of the assembled Doripel New Recife wardrobe, featuring its four doors and two vertical handles.

5. Operating Instructions

The Doripel New Recife wardrobe is designed for straightforward use.

• Doors: Gently pull the handles to open the four hinged doors. Push to close. Avoid slamming the doors to prevent damage to hinges and the wardrobe structure.
• Drawers: Pull the handles to open the two drawers. The telescopic slides ensure smooth operation. Push firmly but gently to close until fully seated.
• Shelves: Utilize the three internal shelves for folded clothing, accessories, or other items. Distribute weight evenly across the shelves.
• Hanging Rod: The wardrobe includes a hanging rod for garments that require hanging.

6. Maintenance

Proper care will extend the life and appearance of your wardrobe.

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid abrasive cleaners, harsh chemicals, or excessive moisture, which can damage the MDF finish. Dry immediately with a clean cloth.
• Hardware: Periodically check all screws, bolts, and fasteners to ensure they remain tight. Re-tighten as necessary to maintain structural integrity.
• Hinges and Slides: If doors or drawers become stiff, a small amount of silicone-based lubricant can be applied to the hinges and telescopic slides.
• Sunlight Exposure: Avoid prolonged exposure to direct sunlight, which can cause fading or discoloration of the finish.

7. Troubleshooting

• Doors are misaligned or do not close properly: Check hinge adjustments. Most hinges allow for minor adjustments using a screwdriver to align the doors horizontally, vertically, and in depth. Ensure the wardrobe is level.
• Drawers are stiff or do not slide smoothly: Ensure the drawer slides are correctly installed and aligned. Check for any obstructions in the slides. A small amount of lubricant can help.
• Wardrobe feels wobbly: Ensure all assembly hardware is fully tightened. Verify that the wardrobe is on a level surface. If possible, secure the wardrobe to the wall using anti-tip hardware.
• Scratches or minor damage: For small scratches, a furniture repair pen or touch-up paint matching the wardrobe's finish can be used.

8. Specifications

9. Warranty Information

This product comes with a supplier warranty of 3 months from the date of purchase. This warranty covers manufacturing defects. Please retain your proof of purchase for any warranty claims. The warranty does not cover damage resulting from improper assembly, misuse, neglect, accidents, or normal wear and tear.

10. Support

For further assistance, missing parts, or warranty claims, please contact your retailer or Doripel customer service. Have your product model number (New Recife) and proof of purchase ready when contacting support.
