Snenblume Heavy Duty Pop Up Canopy (10 x 20) US-DP036SW Instruction Manual

1. Introduction

This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your Snenblume Heavy Duty Pop Up Canopy (10 x 20), model US-DP036SW. Please read these instructions carefully before setup and retain for future reference.

2. Safety Information

Important Safety Warning:

• Always secure the canopy with the provided ground pegs and stability ropes. This is crucial, especially in windy or rainy conditions, to prevent damage or injury.
• Do not use this canopy in severe weather conditions or high winds exceeding 30 mph (48 km/h). Disassemble and store the canopy during such conditions.
• Ensure all frame connections are fully engaged and locked before use.
• Keep children and pets away from the canopy during assembly and disassembly.
• Avoid placing heat sources or open flames near the canopy fabric.

3. Package Contents

Before beginning assembly, verify that all components are present:

• Instant Folding Frame
• Canopy Top Fabric
• Sidewalls (6 total, including 2 with windows)
• Storage Bag
• Stakes & Ropes
• Weight Bags (empty, for filling with sand or other ballast)

4. Setup Instructions

The Snenblume Pop Up Canopy features an intuitive design for quick assembly. It is recommended that two or more people assist with the setup process.

1. Step 1: Expand the Frame
   Place the folded frame in the desired location. With a person at each end, gently pull the frame outwards until it is partially expanded.
2. Step 2: Attach the Canopy Top
   Drape the canopy top fabric over the partially expanded frame. Secure the corners and edges of the fabric to the frame using the integrated Velcro fasteners. Ensure the fabric is centered and taut.
3. Step 3: Adjust the Height
   Lift each leg of the frame and press the thumb press button (see Figure 2) to unlock the leg. Extend the leg to your desired height setting (2.6m, 2.65m, or 2.7m) and ensure the button locks securely into place. Repeat for all legs.
4. Step 4: Install Sidewalls (Optional)
   Attach the sidewalls to the canopy frame using the Velcro fasteners. The sidewalls include two panels with windows.
5. Step 5: Secure the Canopy
   Fill the provided weight bags with sand or other suitable ballast and attach them to the canopy legs. Use the included stakes and ropes to anchor the canopy to the ground, especially in outdoor conditions.

5. Operating Instructions

Your Snenblume canopy is designed for versatile outdoor use, offering protection and adjustable features.

5.1 UV Protection and Waterproofing

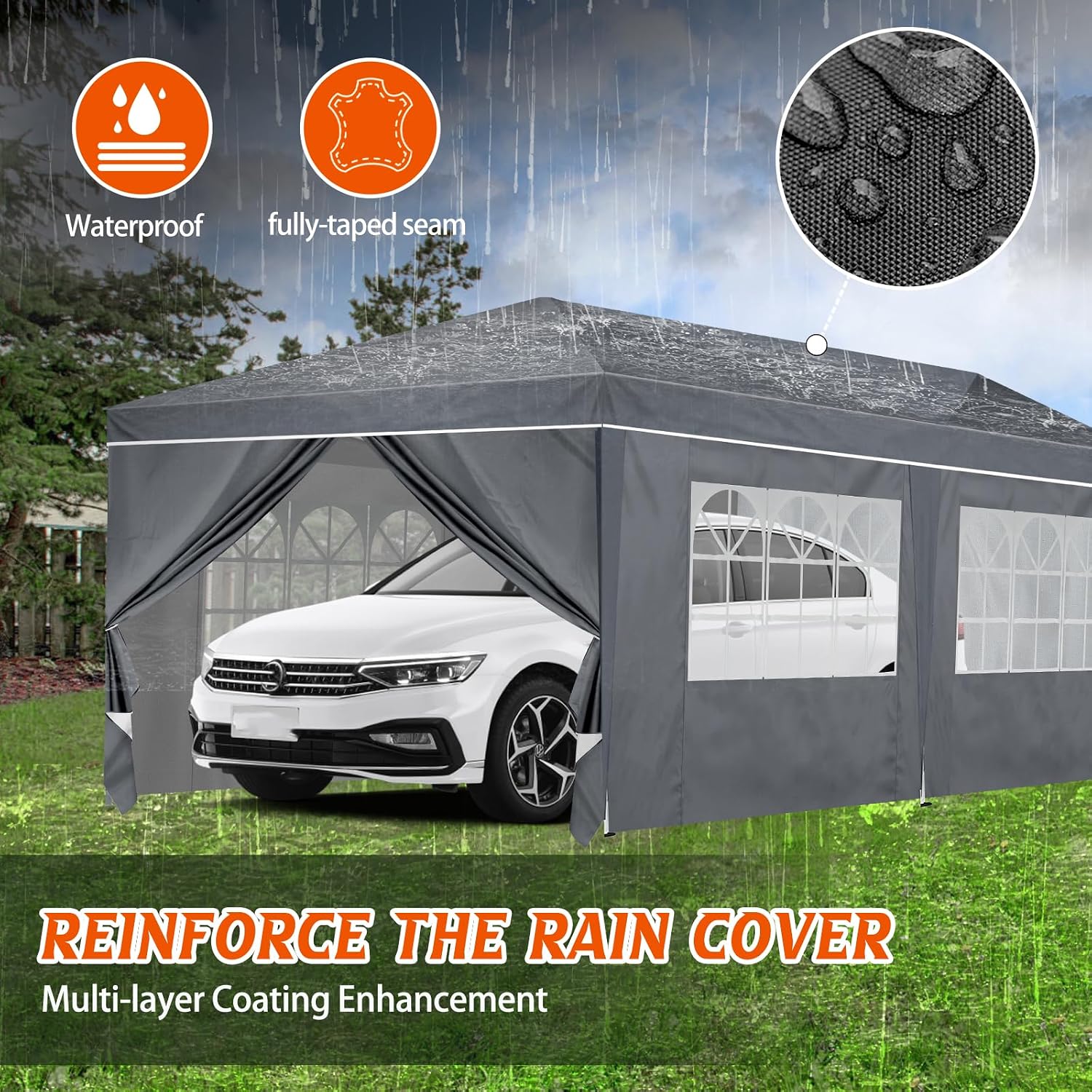

The canopy top is constructed from high-quality 210D silver-coated Oxford fabric, providing superior UV protection by shielding from 99% of harmful UV rays. The fabric is also waterproof, ensuring protection from rain. The design includes a multi-layer coating enhancement for reinforced rain cover performance.

5.2 Adjustable Heights

The canopy offers three adjustable height settings: 2.6 meters (8.5 feet), 2.65 meters (8.7 feet), and 2.7 meters (8.9 feet). Adjust the height as needed for various events or to accommodate different ground levels by using the thumb press buttons on each leg.

5.3 Sidewalls

The six included sidewalls provide additional protection from wind and rain. Two of the sidewalls feature windows, allowing for natural light while maintaining shelter. These can be attached or removed as required for your specific event or weather conditions.

6. Maintenance

Proper maintenance will extend the lifespan of your Snenblume canopy.

6.1 Cleaning

• Fabric: Clean the canopy fabric with mild soap and water. Do not use harsh detergents or abrasive cleaners, as these can damage the UV coating and waterproofing. Rinse thoroughly and allow to air dry completely before storage.
• Frame: Wipe the metal frame with a damp cloth to remove dirt and debris. Ensure the frame is dry before folding and storing to prevent rust.

6.2 Storage

Once your event is over, the canopy conveniently folds down into a compact size. Store the canopy in the included storage bag in a dry, cool place, away from direct sunlight and extreme temperatures. Ensure all components are clean and dry before storage to prevent mold, mildew, or rust.

7. Troubleshooting

This section addresses common issues you might encounter with your canopy.

• Canopy is unstable: Ensure all legs are fully extended and locked. Verify that ground pegs are securely inserted and stability ropes are taut and anchored. Use the provided weight bags, filled with ballast, on each leg. Always adhere to the safety warnings regarding wind conditions.
• Water pooling on canopy top: Ensure the canopy fabric is taut and evenly distributed over the frame. Adjust the height settings if necessary to create proper tension and allow water runoff.
• Difficulty expanding/collapsing frame: Ensure no fabric or debris is caught in the frame joints. Apply gentle, even pressure. If the frame is stiff, check for any bent components. Do not force the frame.
• Frame damage: If any part of the frame appears bent or broken, discontinue use immediately to prevent further damage or injury. Contact customer support for assistance.

8. Specifications

9. Warranty and Support

For warranty information or customer support regarding your Snenblume Heavy Duty Pop Up Canopy, please refer to the documentation included with your purchase or contact Snenblume customer service directly. Contact details are typically available on the product packaging or the brand's official website.
