SKRT Foldable Mobility Scooter User Manual

1. Introduction

Thank you for choosing the SKRT Foldable Mobility Scooter. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new mobility device. Please read it thoroughly before first use and keep it for future reference.

This 4-wheel powered device is designed for adults and seniors, offering enhanced mobility and independence. Its lightweight and portable design, coupled with a quick-folding mechanism, makes it ideal for travel and easy storage.

Image: The SKRT Foldable Mobility Scooter in its grey color variant, showcasing its compact and modern design.

2. Safety Information

Your safety is paramount. Always adhere to the following guidelines:

• Read the Manual: Familiarize yourself with all controls and features before operating.
• Weight Limit: Do not exceed the maximum weight capacity of 300 lbs.
• Terrain: While designed for various terrains, exercise caution on uneven surfaces, steep slopes, or slippery conditions. The scooter features automatic speed control on steep slopes and rollover protection.
• Braking: The electro-mechanical brake engages quickly when the accelerator is released. Always ensure clear path ahead.
• Visibility: Utilize the LED strip light and headlight for improved visibility, especially in low-light conditions.
• Children and Pets: Keep children and pets away from the scooter during operation and charging.
• Storage: Store the scooter in a dry, safe place away from extreme temperatures.

3. Components Overview

3.1 Central Control Panel

The user-friendly central control panel provides easy access to all essential functions:

Image: A detailed view of the scooter's control panel, highlighting the speedometer, battery charge indicator, speed gear knob, horn button, and LED headlights button.

• Speedometer: Displays current speed.
• Battery Charge Indicator: Shows remaining battery life.
• Speed Adjustment Knob: Allows selection between different speed gears (e.g., 'turtle' for slower, 'rabbit' for faster).
• Horn Button: Activates the scooter's horn.
• LED Headlights Button: Turns the front LED lights on/off.
• Safe Accelerator: Pull the right or left handle to move; release for an immediate stop.

3.2 Other Key Components

• Padded Seat with Adjustable Armrests: Provides comfort during use (16.5 x 13.4 inches).
• Storage Bag: Located beneath the seat, with a maximum load capacity of 4.4 lbs.


Image: A close-up view illustrating the convenient storage bag positioned beneath the scooter's seat.

• Solid, Puncture-Free Rubber Tires: 9-inch front and 10-inch rear tires for smooth navigation.
• 300W Brushed Motor: Provides reliable power for various terrains.
• Rear Anti-Tilt Wheels: Enhance stability, especially when reversing.

4. Setup

4.1 Unfolding the Scooter

The SKRT Mobility Scooter comes pre-assembled and requires no complex setup. Simply unfold it for immediate use:

1. Place the scooter on a flat, stable surface.
2. Locate the folding mechanism release lever (usually near the base of the tiller or seat).
3. Gently pull the tiller upwards until it locks into its upright position.
4. Ensure the seat is securely unfolded and locked in place.
5. Adjust the armrests to your preferred height.

Video: This video demonstrates the simple unfolding process of the SKRT Foldable Mobility Scooter, showing how to quickly prepare it for use.

4.2 Initial Charging

Before first use, fully charge the scooter's battery:

1. Locate the charging port on the scooter.
2. Connect the charger cable to the port and plug the charger into a standard electrical outlet.
3. Allow approximately 7 hours for a full charge. The battery indicator on the control panel will show charging status.
4. Once fully charged, disconnect the charger.

5. Operating Instructions

5.1 Starting and Driving

1. Insert the key into the ignition and turn it to the 'ON' position.
2. Adjust the speed using the speed adjustment knob on the control panel.
3. To move forward, gently pull the right accelerator handle. To move backward, gently pull the left accelerator handle.
4. Release the accelerator handles to engage the electro-mechanical brake and stop the scooter.
5. Use the horn button as needed to alert others.
6. Press the LED Headlights Button to activate the front lights for visibility.

5.2 Folding for Transport and Storage

The scooter's quick-folding mechanism allows for easy transport and compact storage:

1. Ensure the scooter is turned off.
2. Fold down the armrests.
3. Locate the folding release mechanism (opposite of unfolding).
4. Gently push the tiller downwards until the scooter folds into its compact form.
5. The lightweight design makes it easy to lift and store in a car trunk or small space.

Image: The scooter in its folded state, illustrating its compact dimensions of 40 inches in length and 21 inches in height, making it easy to store.

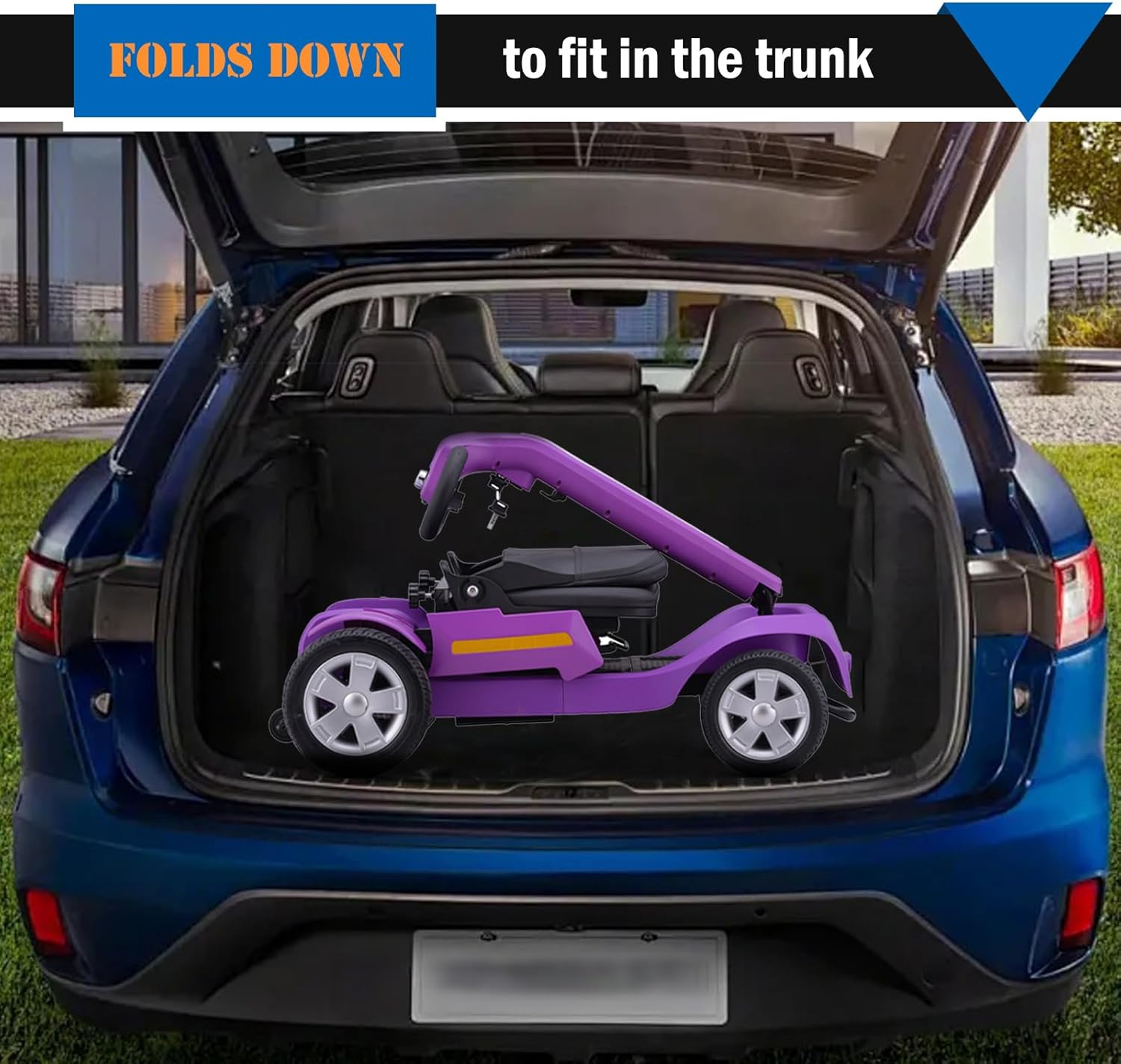

Image: The folded SKRT Mobility Scooter easily fitting into the trunk of a car, demonstrating its portability for travel.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your scooter:

• Battery Care: Always fully charge the battery after each use. Avoid completely draining the battery. If storing for an extended period, charge the battery at least once a month.
• Cleaning: Wipe down the scooter with a damp cloth. Do not use abrasive cleaners or spray water directly onto electrical components.
• Tires: Although puncture-free, regularly inspect tires for any damage or debris.
• Connections: Periodically check all electrical connections and cables for wear or looseness.
• Storage: Store the scooter in a cool, dry place.

7. Troubleshooting

Refer to the table below for common issues and their solutions:

If you encounter issues not listed here or if solutions do not resolve the problem, please contact SKRT customer support.

8. Specifications

Key technical specifications for your SKRT Foldable Mobility Scooter:

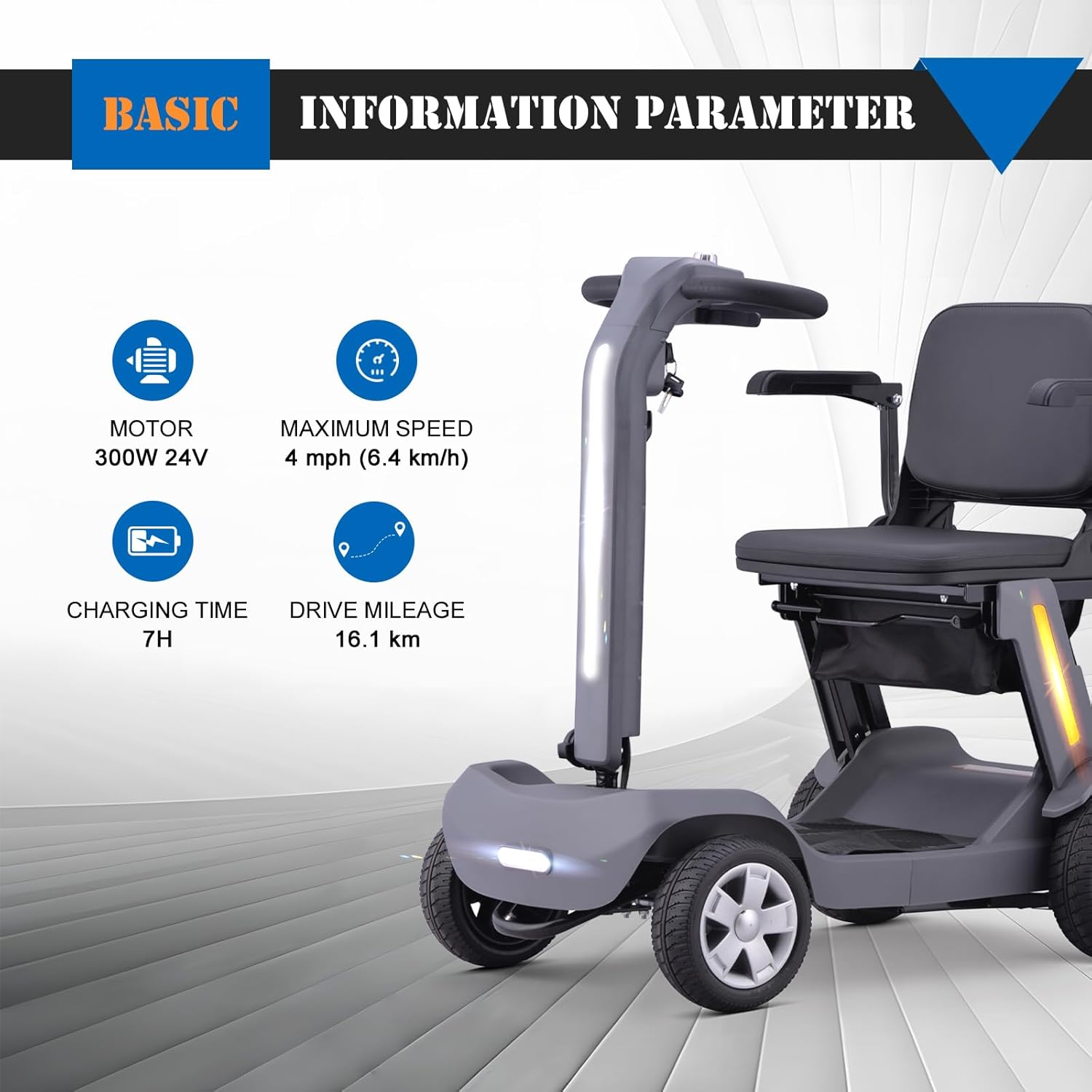

Image: An infographic detailing the scooter's basic parameters including motor power, maximum speed, charging time, and drive mileage.

Image: The overall dimensions of the scooter (40 inches deep, 23 inches wide, 38 inches high) shown with a person seated, illustrating its size and capacity.

9. Warranty and Support

For warranty information, product support, or to purchase replacement parts, please contact SKRT customer service. Refer to your purchase documentation for specific warranty terms and contact details.
