Introduction
Thank you for choosing the VGR V-103 8-in-1 Multi Grooming Kit. This versatile grooming tool is designed to provide a comprehensive solution for your face, hair, and body grooming needs. Featuring a powerful motor, durable stainless steel blades, and a range of attachments, this kit ensures precise and comfortable grooming. Please read this manual carefully before use to ensure proper operation and maintenance.
Image: The VGR V-103 Multi Grooming Kit, showcasing the main trimmer unit and all included attachments and accessories neatly arranged.
Safety Information
For your safety and to ensure proper operation, please observe the following precautions:
- Always unplug the trimmer before cleaning or changing attachments.
- Keep the trimmer away from water sources when not in use or during charging.
- Do not use the trimmer on infants or children.
- Exercise caution when using blade attachments to avoid injury.
- Always follow the recommended cleaning and maintenance procedures outlined in this manual.
- Do not attempt to repair the device yourself. Contact customer support for assistance.
Package Contents
The VGR V-103 Multi Grooming Kit includes the following items:
- Main Trimmer Unit
- Hair Clipper Head
- Detail Trimmer Head
- Precision Trimmer Head
- Design Trimmer Head
- Nose Trimmer Head
- Beard Shaver Head
- Body Shaver Head
- Body Trimmer Head
- 9 Cutting Guide Combs (1mm, 3mm, 5mm, 7mm for detail trimmer; 3mm, 6mm, 9mm, 12mm, 15mm for hair clipper; Left/Right ear taper)
- USB Type-C Charging Cable
- Oil Bottle
- Hair Comb
- Cleaning Brush
- Travel Pouch
- Storage Base
Image: A detailed view of the various trimmer heads, guide combs, and maintenance tools included in the VGR V-103 kit.
Product Features
- 8-in-1 Versatility: Designed for trimming and styling face, hair, body, and private parts.
- High-Performance Motor: Patented motor provides powerful yet low-noise operation.
- Stainless Steel Blades: High-carbon, self-sharpening blades for precision cutting and long-lasting durability.
- IPX6 Waterproof: Fully washable design allows for comfortable wet or dry shaving and easy cleaning under running water.
- Long Battery Life: Rechargeable 1200 mAh Lithium-Ion battery offers up to 180 minutes of running time on a 1.5-hour charge.
- LED Display: Clearly shows remaining battery charge status.
- USB Type-C Charging: Convenient and universal charging.
- Ergonomic Design: Soft-touch grip for comfortable and easy control.
- Travel-Friendly: Includes a travel pouch for portability and a storage base for organization.

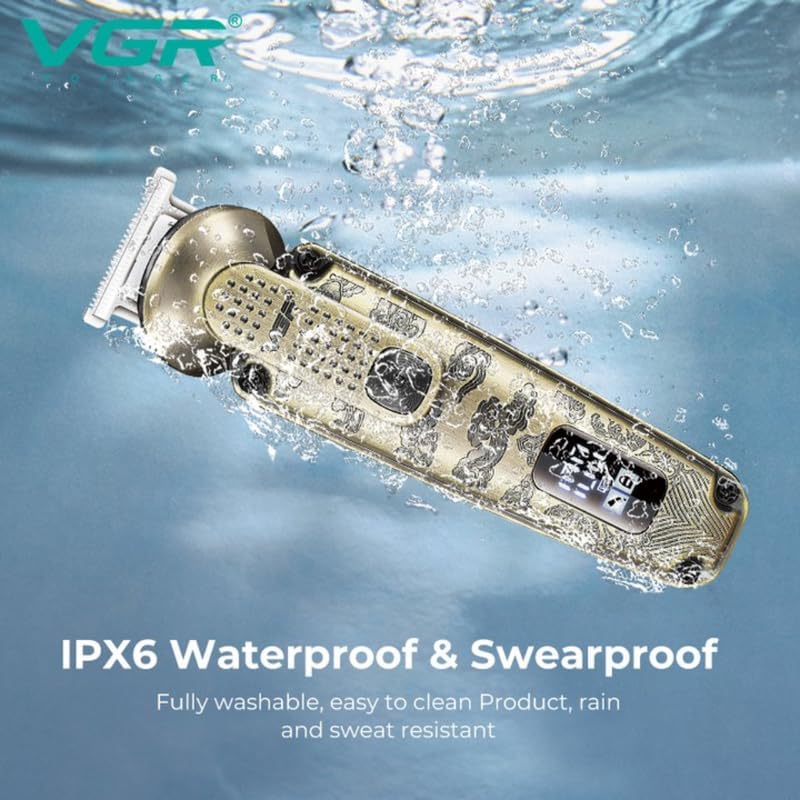

Image: The VGR V-103 trimmer shown under running water, highlighting its IPX6 waterproof capability for easy cleaning.
Setup
- Initial Charging:
Before first use, fully charge the trimmer. Connect the USB Type-C cable to the charging port on the trimmer and plug the other end into a compatible USB power adapter (not included). The LED display will indicate charging status. A full charge takes approximately 1.5 hours and provides up to 180 minutes of runtime.
- Attaching/Detaching Trimmer Heads:
To attach a trimmer head, align the head with the main unit and press firmly until it clicks into place. To detach, gently push the head upwards or press the release button (if available) and pull it off.
- Attaching Guide Combs:
Select the desired guide comb for your chosen trimmer head. Slide the comb onto the trimmer head until it securely locks. Ensure the comb is firmly attached before use.

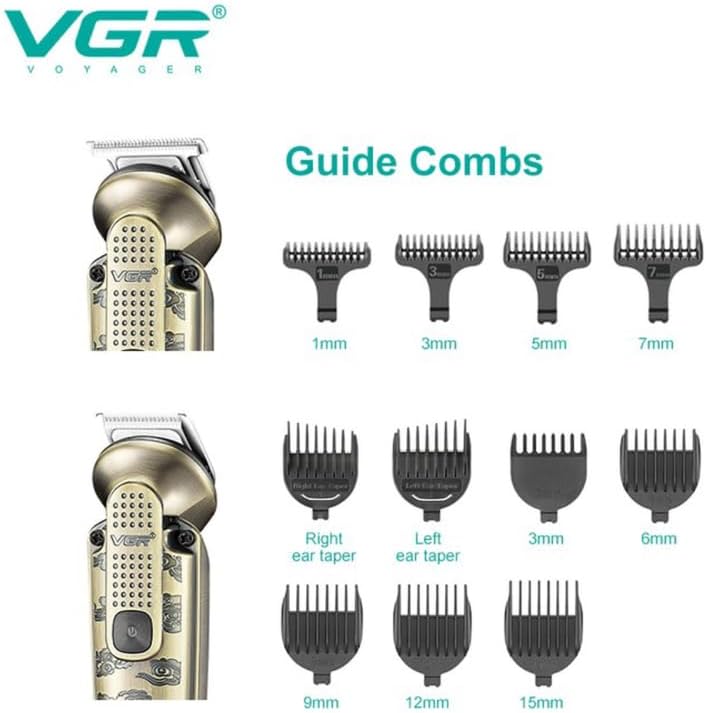

Image: A visual representation of the various guide combs included with the VGR V-103, showing different cutting lengths for hair and beard trimming.
Operating Instructions
Ensure the trimmer is charged and the desired attachment is securely in place before operation.
- Turning On/Off:
Press the ON/OFF switch to power on the trimmer. Press it again to turn off the device.
- Using Different Trimmer Heads:
- Hair Clipper/Beard Trimmer: Use with appropriate guide combs (3mm, 6mm, 9mm, 12mm, 15mm) for desired hair length. Move the trimmer against the direction of hair growth for an even cut.
- Detail Trimmer: Ideal for precise lines, edges, and intricate designs. Use with 1mm, 3mm, 5mm, 7mm guide combs for stubble or short beard styles.
- Precision Trimmer: For fine detailing and shaping around the beard, mustache, and sideburns.
- Design Trimmer: For creating patterns and unique styles in hair.
- Nose Trimmer: Gently insert the trimmer head into the nostril or ear canal. Move it slowly to trim unwanted hair. Do not insert too deeply.
- Beard Shaver/Body Shaver: For a close shave on facial hair or body hair. Hold the shaver flat against the skin and move in short, controlled strokes.
- Body Trimmer: For general body hair trimming. Use with or without guide combs depending on desired length.
Image: A collage demonstrating the various applications of the VGR V-103 grooming kit, including precision trimming, detail trimming, body shaving, nose trimming, hair clipping, design trimming, and body trimming.
Maintenance
Regular cleaning and maintenance will ensure optimal performance and extend the lifespan of your VGR V-103 grooming kit.
- Cleaning the Trimmer Heads:
After each use, turn off and unplug the trimmer. Detach the trimmer head. Use the included cleaning brush to remove any loose hairs from the blades and the inside of the head. Since the device is IPX6 waterproof, you can rinse the trimmer head and the main unit under running water. Ensure all parts are completely dry before reattaching or storing.
- Oiling the Blades:
Periodically, apply a small drop of the included lubricating oil to the blades of the trimmer heads. Turn on the trimmer for a few seconds to allow the oil to distribute evenly. This helps maintain blade sharpness and smooth operation.
- Storage:
Store the trimmer and all accessories in the provided travel pouch or the storage base when not in use. Keep it in a dry place, away from direct sunlight and extreme temperatures.
Image: The VGR V-103 trimmer and its various heads neatly stored in the included charging and organization base.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Trimmer does not turn on. | Battery is depleted. | Charge the trimmer fully. |
| Trimmer runs slowly or pulls hair. | Blades are dirty or not oiled. Battery is low. | Clean and oil the blades. Ensure the trimmer is fully charged. |
| Attachments do not fit securely. | Incorrect attachment or not properly aligned. | Ensure the correct head is selected and align it properly before pressing firmly until it clicks. |
| Trimmer makes unusual noise. | Blades may be obstructed or require oiling. | Clean the blades thoroughly and apply oil. If the issue persists, contact customer support. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | V-103 |
| Brand | VGR |
| Power Source | Battery Powered (Rechargeable Lithium Ion) |
| Battery Capacity | 1200 mAh |
| Charging Time | Approx. 1.5 hours |
| Running Time | Up to 180 minutes |
| Blade Material | Stainless Steel |
| Waterproof Rating | IPX6 (Fully Washable) |
| Product Dimensions | 23 x 15.5 x 6.3 cm |
| Item Weight | 720 Grams |
| Special Features | Dry Shave, Portable, Rechargeable, USB Charging, LED Display |
Warranty and Support
The VGR V-103 Multi Grooming Kit comes with a 12-month quality warranty from the date of purchase.
If you encounter any issues or are not satisfied with this product, please do not hesitate to contact our customer service. Our team is committed to providing a satisfactory resolution within 24 hours.
For support, please refer to the contact information provided with your purchase or visit the official VGR website.
