Introduction
Thank you for choosing the Thunelec U9 Wireless Earbuds. These earbuds are designed to provide a superior audio experience with advanced features such as Bluetooth 5.4 connectivity, Active Noise Cancellation (ANC), Environmental Noise Cancellation (ENC), Transparency Mode, and a convenient full-color touch screen on the charging case. This manual will guide you through the setup, operation, and maintenance of your new earbuds to ensure optimal performance and longevity.

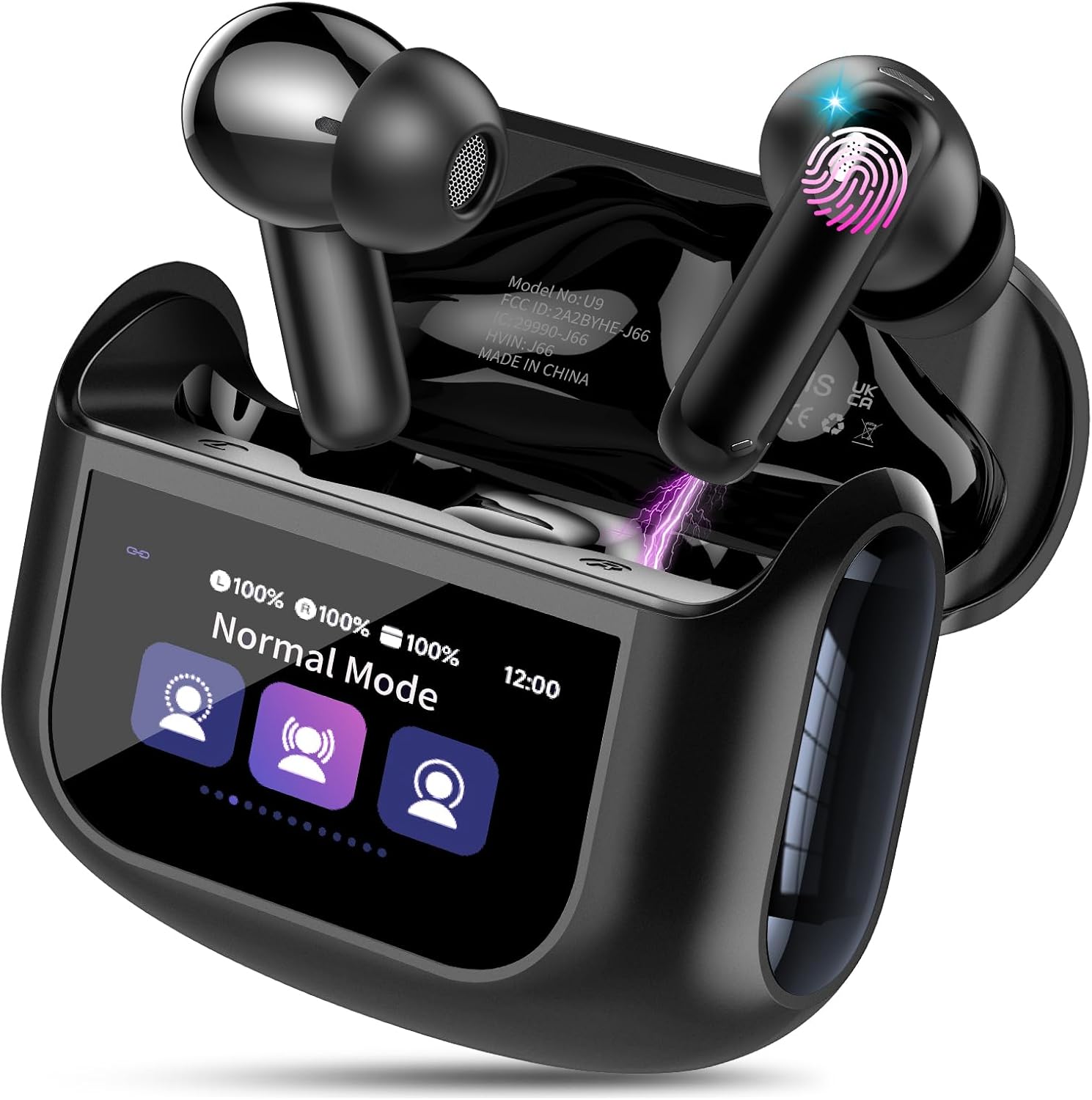

Figure 1: Thunelec U9 Wireless Earbuds and Smart Charging Case
Getting Started
Package Contents
Please check the package to ensure all items are present:
- Wireless Earbuds x 2
- Charging Case x 1
- Instruction Manual x 1
- Type C Charging Cable x 1
- Eartips (S / M / L)
Figure 2: Package Contents and Wide Compatibility
Initial Charging
Before first use, fully charge the earbuds and the charging case. The charging case has a built-in battery that provides up to 40 hours of additional playtime, while the earbuds offer 6-8 hours on a single charge. A full charge for the case takes approximately 1.5 hours via the USB-C port.
- Place the earbuds into the charging case.
- Connect the Type-C charging cable to the charging port on the case and a power source.
- The touch screen on the case will display the charging status.
Figure 3: Charging and Battery Life Overview
Pairing with Your Device
The Thunelec U9 earbuds utilize Bluetooth 5.4 for a stable and efficient connection. They support one-step pairing for quick setup.
- Open the charging case. The earbuds will automatically enter pairing mode.
- On your device (smartphone, tablet, laptop), enable Bluetooth.
- Search for "U9" in the list of available Bluetooth devices and select it to connect.
- Once connected, the touch screen on the case will show the connection status.
Figure 4: Enhanced Bluetooth 5.4 Technology
Comfortable Fit
For optimal sound quality and comfort, choose the eartips that best fit your ear canal. The U9 earbuds feature an ergonomic angle and are ultralight (3.8g per earbud) for a secure and comfortable fit during various activities.
- Experiment with the included S, M, and L eartips to find the best seal.
- Gently insert the earbuds into your ears and twist slightly to ensure a snug fit.
Figure 5: Secure and Comfortable Fit with Various Eartips
Using Your Earbuds
Touch Screen Controls
The Thunelec U9 charging case features an intuitive full-color touch screen, allowing you to control various functions directly from the case without needing your phone.
- Screen Lock: Swipe to unlock the screen.
- Play Music: Navigate to the music control interface to play, pause, skip tracks, and adjust volume.
- Volume Control: Adjust the playback volume directly from the screen.
- Light Level: Adjust the screen brightness.
- Language Switch: Change the display language.
- Find My Earphone: Activate a sound on the earbuds to locate them if misplaced.
- Time Display: View current time and date.

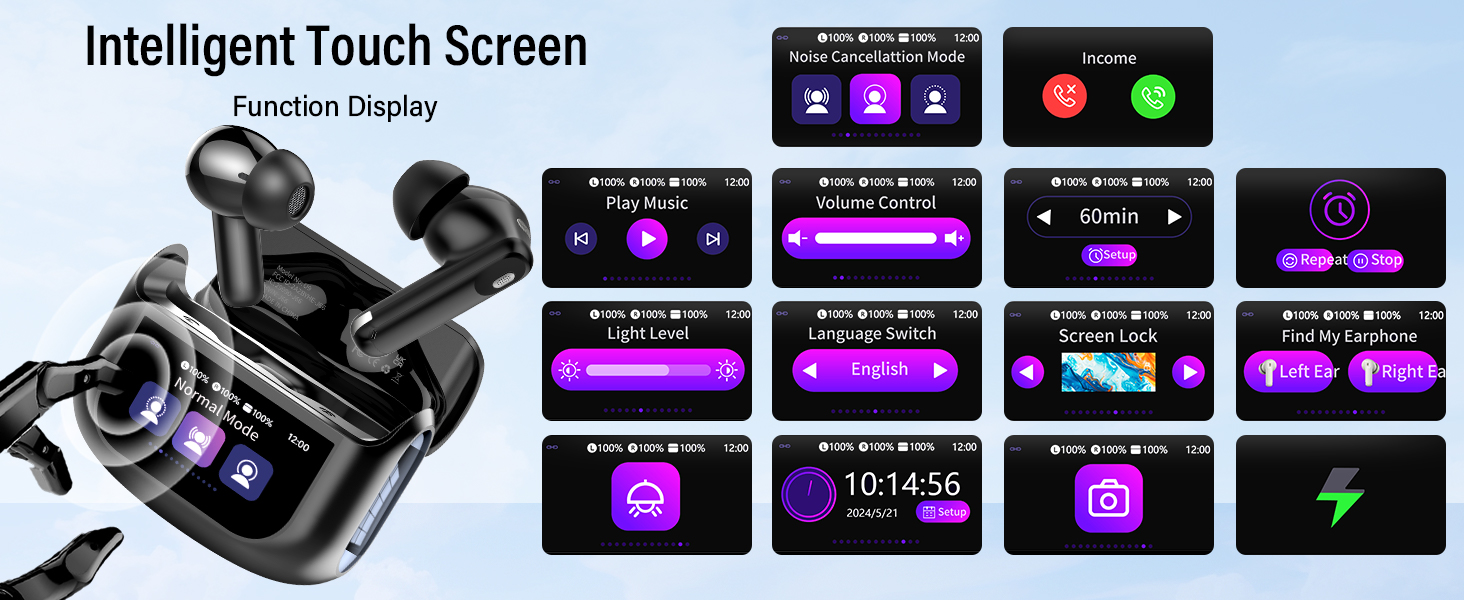

Figure 6: Intelligent Touch Screen Function Display
Audio Modes: ANC, ENC, and Transparency
The U9 earbuds offer versatile noise control options:
- Active Noise Cancellation (ANC): Effectively reduces external noise by up to 45dB, creating a quiet environment for immersive listening.
- Environmental Noise Cancellation (ENC): Enhances call clarity by filtering out ambient noise during phone conversations.
- Transparency Mode: Allows you to hear your surroundings clearly without removing the earbuds, improving safety and convenience.
Switch between modes using the touch screen on the case or the touch controls on the earbuds (refer to Smart Touch Control section).

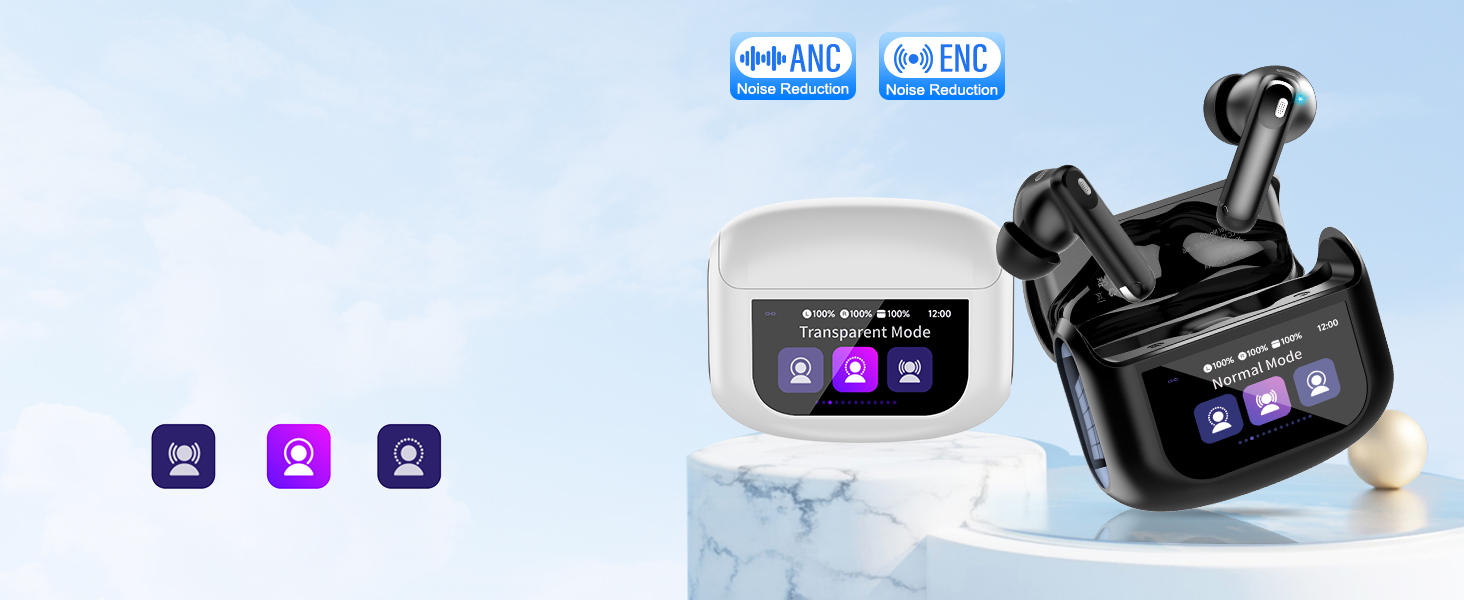

Figure 7: Noise Reduction, Transparency Mode, and 3D Spatial Audio
EQ Modes
Customize your listening experience with 5 built-in music modes:
- Normal
- Jazz
- Rock
- Pop
- Classics
These modes can be selected via the touch screen on the charging case to match your audio preference.
Figure 8: 3D Spatial Audio and Built-in EQ Modes
Smart Touch Control
The earbuds feature touch-sensitive controls for convenient management of calls and music playback, allowing you to keep your mobile phone in your pocket.
- Long press L/R for 2s: Last Song / Next Song
- Click 2 times: Play/Pause
- Click 3 times: ANC mode switching (Normal, ANC, Transparency)
- Click L 3 times: Activate Voice Assistant
- Click 1 time: Answer the call
- Long press 2s: Hang Up Calls or Reject Calls
Note: Volume control can only be operated on the screen and mobile phone.

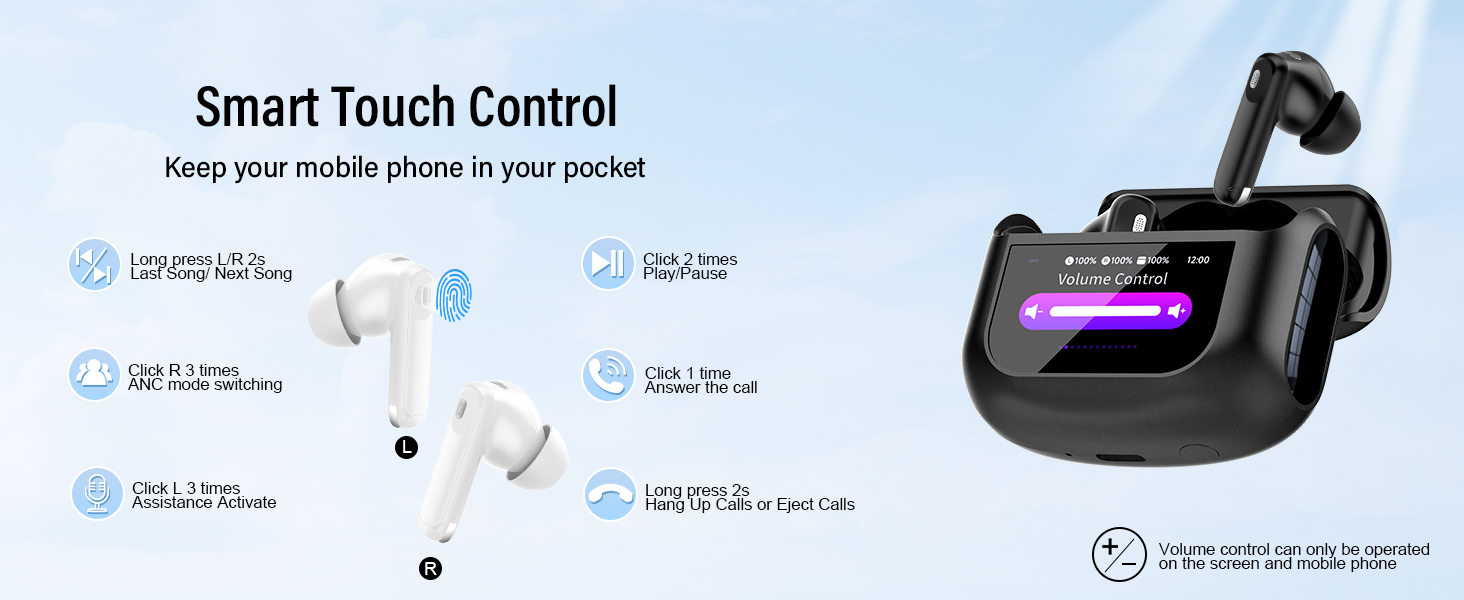

Figure 9: Smart Touch Control Functions
Care and Maintenance
Cleaning
Regular cleaning helps maintain the performance and hygiene of your earbuds.
- Use a soft, dry, lint-free cloth to wipe the earbuds and charging case.
- For eartips, remove them and clean with mild soap and water, then dry thoroughly before reattaching.
- Avoid using abrasive materials, alcohol, or chemical cleaners.
Water Resistance (IPX7)
The Thunelec U9 earbuds are IPX7 waterproof, meaning they can withstand immersion in water up to 1 meter for 30 minutes. This makes them suitable for workouts and outdoor activities, but they are not designed for swimming or prolonged submersion.
- Ensure the charging port is dry before charging.
- Do not expose the charging case to water, as it is not waterproof.
Figure 10: IPX7 Waterproof Rating for Earbuds
Storage
When not in use, store the earbuds in their charging case to protect them and ensure they remain charged.
- Store in a cool, dry place away from extreme temperatures.
- Avoid prolonged exposure to direct sunlight.
Troubleshooting Guide
If you encounter any issues with your Thunelec U9 earbuds, please refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Earbuds not pairing | Bluetooth off on device; earbuds not in pairing mode; interference. | Ensure Bluetooth is on. Place earbuds in case, close, then open to re-enter pairing mode. Move closer to device. |
| No sound or low volume | Volume too low; earbuds not properly seated; connection issue. | Adjust volume on device and case. Re-seat earbuds. Reconnect Bluetooth. |
| Touch screen unresponsive | Screen locked; temporary software glitch. | Swipe to unlock the screen. Place earbuds in case, close, then open to reset. |
| Poor call quality | Microphone obstructed; environmental noise. | Ensure microphone is clear. Activate ENC mode for clearer calls. |
| Earbuds not charging | Charging cable issue; dirty charging contacts. | Check cable and power source. Clean charging contacts on earbuds and case with a dry cotton swab. |
Product Specifications
| Feature | Detail |
|---|---|
| Brand | Thunelec |
| Model Number | U9 |
| Wireless Communication Technology | Bluetooth 5.4 |
| Battery Life (Earbuds) | 8 Hours (single charge) |
| Battery Life (with Charging Case) | Up to 48 Hours |
| Charging Time | 1.5 Hours (case) |
| Water Resistance Rating | IPX7 (earbuds only) |
| Noise Cancellation | ANC/ENC Noise Cancelling, Transparency Mode |
| EQ Modes | 5 Built-in Modes |
| Audio Driver Type | Dynamic Driver |
| Frequency Range | 50Hz - 5kHz |
| Earpiece Shape | Rounded tips |
| Material | Carbon Fiber |
| Item Weight | 6.7 ounces |
| Package Dimensions | 3.46 x 3.19 x 1.34 inches |
Warranty and Customer Support
Warranty Information
Thunelec products are manufactured to the highest quality standards. This product is covered by a limited warranty from the date of purchase. Please refer to the warranty card included in your package for specific terms and conditions.
Customer Support
For any questions, technical assistance, or warranty claims, please contact our customer support team:
- Email: support@thunelec.com (example)
- Website: Thunelec Official Store
Our support team is available to assist you with any inquiries regarding your Thunelec U9 Wireless Earbuds.
