1. Introduction
This manual provides essential information for the safe installation, operation, and maintenance of your FIREGAS FGS-USD66Y60AC 24-inch Wall Mount Range Hood. Please read these instructions thoroughly before installation and use, and retain them for future reference.
2. Safety Information
Always follow basic safety precautions when using this appliance to reduce the risk of fire, electric shock, or injury. Ensure the power supply is disconnected before any installation or maintenance. Installation must comply with all local codes and standards. This appliance is for household use only.
3. Package Contents
- 24 inch Range Hood in stainless steel
- 3-Prong Plug
- Air damper
- Screw pack
- Charcoal filter (for ductless installation)
- Grease filter
- Aluminum flexible duct (for ducted installation)
- Chimney
- Mounting bracket
- User manual
- Installation template
4. Setup and Installation
The FIREGAS FGS-USD66Y60AC range hood offers versatile installation options, supporting both ducted and ductless configurations. The adjustable chimney accommodates ceiling heights between 7.5 and 8.5 feet.
4.1 Mounting the Range Hood
Use the provided mounting bracket and screw pack to securely attach the range hood to the wall. Ensure the mounting location is structurally sound to support the appliance's weight. An installation template is included to assist with accurate placement.

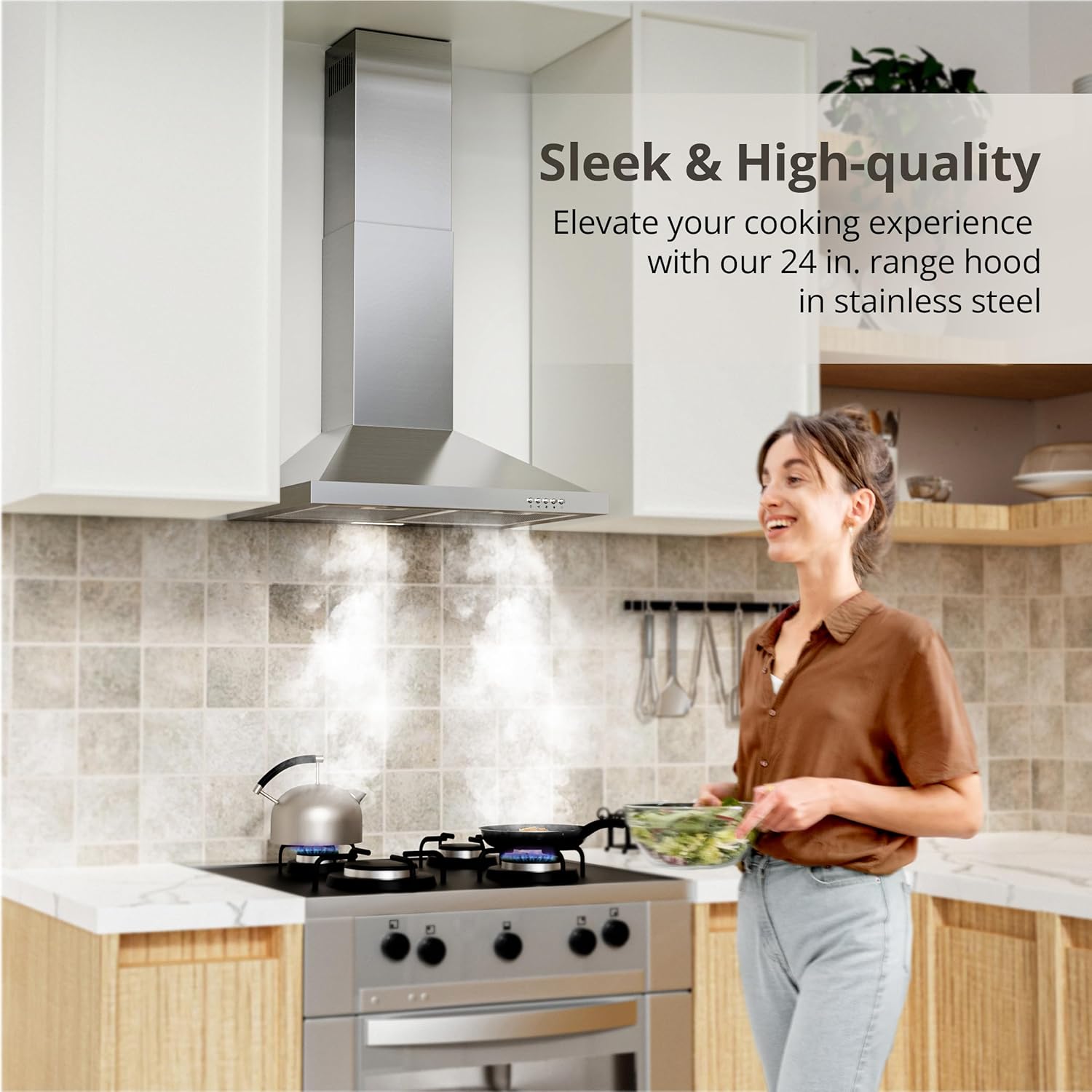

Image: Installed FIREGAS 24-inch Range Hood, highlighting its modern aesthetic.
4.2 Ducted vs. Ductless Configuration
For ducted installation, connect the aluminum flexible duct to the air outlet and vent it to the outside. For ductless (recirculating) installation, ensure the charcoal filters are properly installed to purify the air before recirculating it into the kitchen.
Image: Illustration of ducted and ductless installation methods.
4.3 Dimensions
Refer to the diagram below for detailed product dimensions to ensure proper fit and clearance in your kitchen space.
Image: Detailed dimensions of the range hood.
5. Operating Instructions
The range hood features intuitive push-button controls for easy operation of the fan speeds and lighting.
Image: User-friendly push button controls.
5.1 Fan Speed Control
Press the fan speed buttons to select from three different settings: Low, Medium, and High. The Low speed is suitable for light cooking, Medium for moderate cooking, and High for heavy cooking or frying to effectively remove smoke and odors.
Image: Fan speed settings for various cooking needs.
5.2 LED Lighting
Press the light button to turn the integrated LED lights on or off. These 2-watt LED lights provide soft, warm illumination for your cooking area, enhancing visibility and ambiance.
Image: Integrated LED lighting for enhanced visibility.
6. Maintenance
Regular maintenance ensures optimal performance and longevity of your range hood.
6.1 Cleaning Grease Filters
The aluminum grease filters are removable and dishwasher-safe for easy cleaning. Regularly clean the filters to maintain effective grease capture and airflow.
Image: Removable aluminum mesh grease filters.
6.2 Replacing Charcoal Filters
For ductless installations, the charcoal filters (model: CC110) should be replaced periodically. To purchase replacements, search for B08GZC6172 on Amazon.
7. Troubleshooting
- No Power: Check if the power cord is securely plugged into an outlet and if the circuit breaker is tripped.
- Weak Suction: Ensure filters are clean and not clogged. Verify that the ductwork (if ducted) is free of obstructions.
- Excessive Noise: Check for loose parts or obstructions in the fan. Ensure the range hood is securely mounted.
- Lights Not Working: Check if the light button is pressed. If individual lights are out, they may need replacement.
8. Specifications
| Feature | Specification |
|---|---|
| Brand | FIREGAS |
| Model Number | FGS-USD66Y60AC |
| Product Dimensions | 18.3 x 23.6 x 37.9 inches |
| Item Weight | 19.51 pounds |
| Material | Aluminum, Stainless Steel |
| Air Flow Capacity | 450 Cubic Feet Per Minute (CFM) |
| Noise Level | 45-58 Decibels (dB) |
| Mounting Type | Wall Mount |
| Ventilation Type | Convertible (Ducted/Ductless) |
| Number of Speeds | 3 |
| Controls Type | Push Button |
| Light Source Type | LED |
| Wattage | 85 watts |
| Filter Type | Charcoal, Grease Filter |
| Certification | ETL |
9. Warranty and Support
For warranty information and customer support, please refer to the documentation included with your product or contact FIREGAS customer service. Keep your purchase receipt for warranty claims.
