Introduction
Thank you for choosing the Prestige Infrared Cooker 2000W, Model PR81538. This appliance is designed for efficient and safe cooking with its advanced features and user-friendly touch controls. Please read this manual thoroughly before operating the cooker to ensure proper use, optimal performance, and to prevent any potential hazards.
Important Safety Instructions
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury.
- Hot Surface: The cooking surface will become hot during and after use. Do not touch the hot surface directly. Use pot holders or oven mitts.
- Electrical Safety: Ensure the power supply matches the voltage requirements (220-240V, 50-60Hz). Do not immerse the cooker, cord, or plug in water or other liquids.
- Overheat Protection: The cooker is equipped with an overheat protection system. If the temperature exceeds safe limits, the unit will automatically shut off.
- Child Lock: Activate the child lock feature to prevent accidental operation by children.
- Ventilation: Ensure adequate ventilation around the cooker. Do not block air vents.
- Placement: Place the cooker on a stable, heat-resistant, and level surface, away from flammable materials.
- Cookware: Use appropriate cookware. The cooker works with all types of cookwares.
- Unplug When Not in Use: Always unplug the appliance from the power outlet when not in use and before cleaning.
- Damage: Do not operate the cooker if it has a damaged cord or plug, or if it malfunctions or has been damaged in any manner. Contact customer support for assistance.

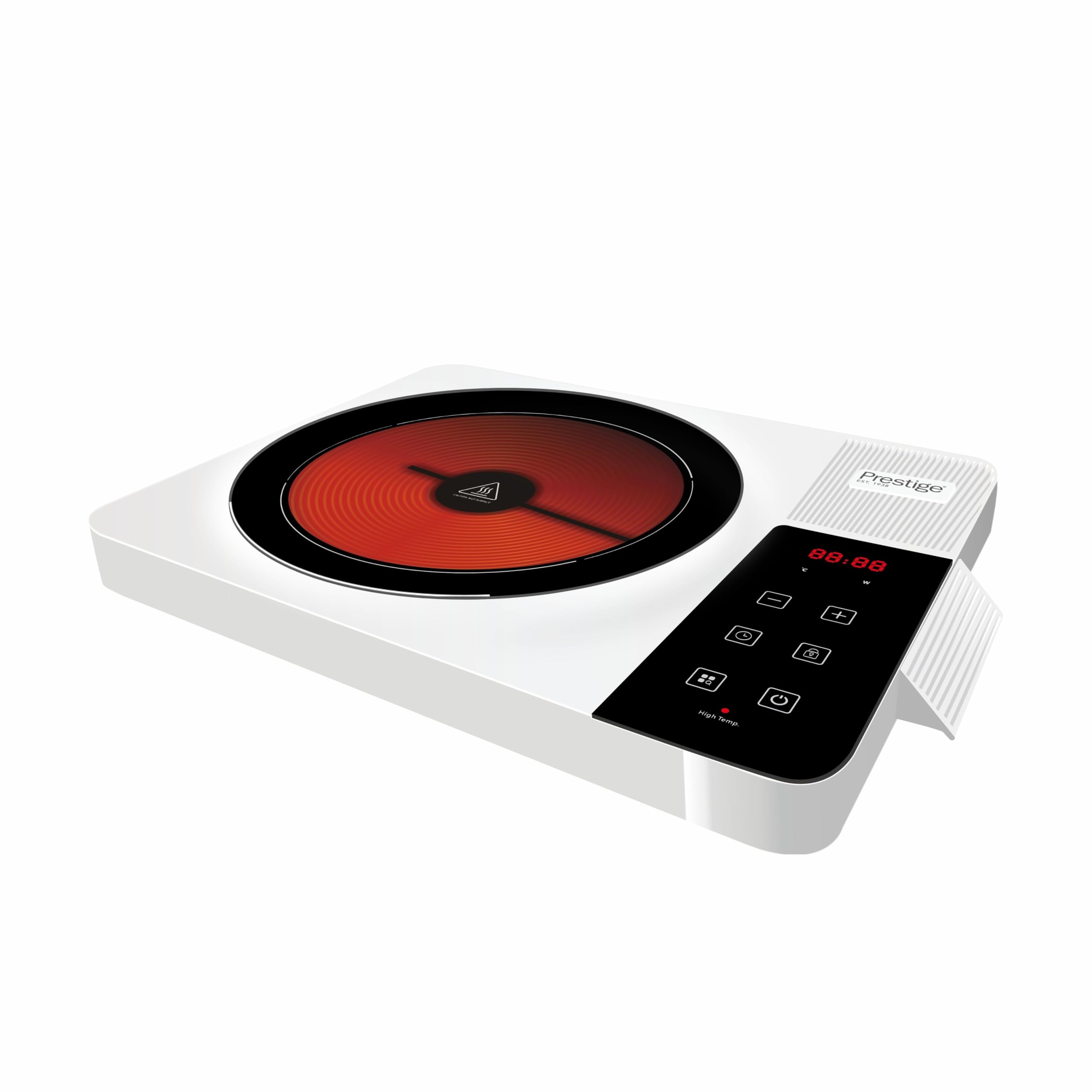

Product Components
Familiarize yourself with the main parts of your Prestige Infrared Cooker.
- Crystal Glass Plate: The primary cooking surface (25 cm diameter).
- Touch Control Panel: Digital interface for operating the cooker.
- Heating Element: Located beneath the crystal glass plate.
- Power Cord: For connecting to an electrical outlet.
Setup and First Use
- Unpack: Carefully remove the cooker from its packaging. Retain packaging for future storage or transport.
- Placement: Place the cooker on a flat, stable, and dry surface. Ensure there is at least 10-15 cm of clear space around all sides for proper ventilation.
- Clean: Wipe the crystal glass plate with a soft, damp cloth before first use. Ensure it is completely dry.
- Power Connection: Plug the power cord into a grounded electrical outlet (220-240V, 50-60Hz). The cooker will emit a beep, and the display will show standby mode.
Operating Instructions
The Prestige Infrared Cooker features intuitive touch controls for easy operation.
Basic Operation:
- Power On: Place appropriate cookware on the center of the crystal glass plate. Press the Power button to turn on the cooker. The display will light up.
- Adjust Power: Use the + and - buttons on the touch panel to select one of the 10 available power levels. Start with a lower setting and increase as needed.
- Timer Function: Press the Timer button to set a cooking duration. Use + and - to adjust the time. The cooker will automatically shut off when the timer expires.
- Child Lock: To activate the child lock, press and hold the Child Lock button for a few seconds. The display will indicate that the lock is active. Repeat to deactivate.
- Power Off: Press the Power button to turn off the cooker. The fan may continue to run for a short period to cool down the unit. Unplug the cooker from the wall socket after use.
Note: The cooker is designed for energy-efficient and radiation-free operation.
Care and Maintenance
Proper care ensures the longevity and optimal performance of your infrared cooker.
- Cleaning the Surface: After the cooker has cooled down completely, wipe the crystal glass plate with a soft, damp cloth and mild detergent. For stubborn stains, use a non-abrasive cleaner specifically designed for glass cooktops.
- Cleaning the Body: Wipe the exterior body with a soft, damp cloth. Do not use abrasive cleaners, scouring pads, or harsh chemicals.
- Do Not Immerse: Never immerse the cooker in water or any other liquid.
- Storage: When not in use for extended periods, ensure the cooker is clean and dry. Store it in a cool, dry place.
Troubleshooting
If you encounter any issues with your Prestige Infrared Cooker, refer to the following common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Cooker does not turn on. | Not plugged in; power outage; faulty outlet. | Check power cord connection; verify power supply; try a different outlet. |
| Cooker stops heating during operation. | Overheat protection activated; timer expired. | Allow the unit to cool down; check timer settings. |
| Display shows an error code. | Internal malfunction or sensor issue. | Turn off the cooker, unplug it, wait 5 minutes, then plug it back in and restart. If the error persists, contact customer support. |
| Uneven heating. | Cookware not centered or warped; incorrect power level. | Ensure cookware is centered and flat-bottomed; adjust power level. |
If the problem persists after trying these solutions, please contact Prestige customer support.

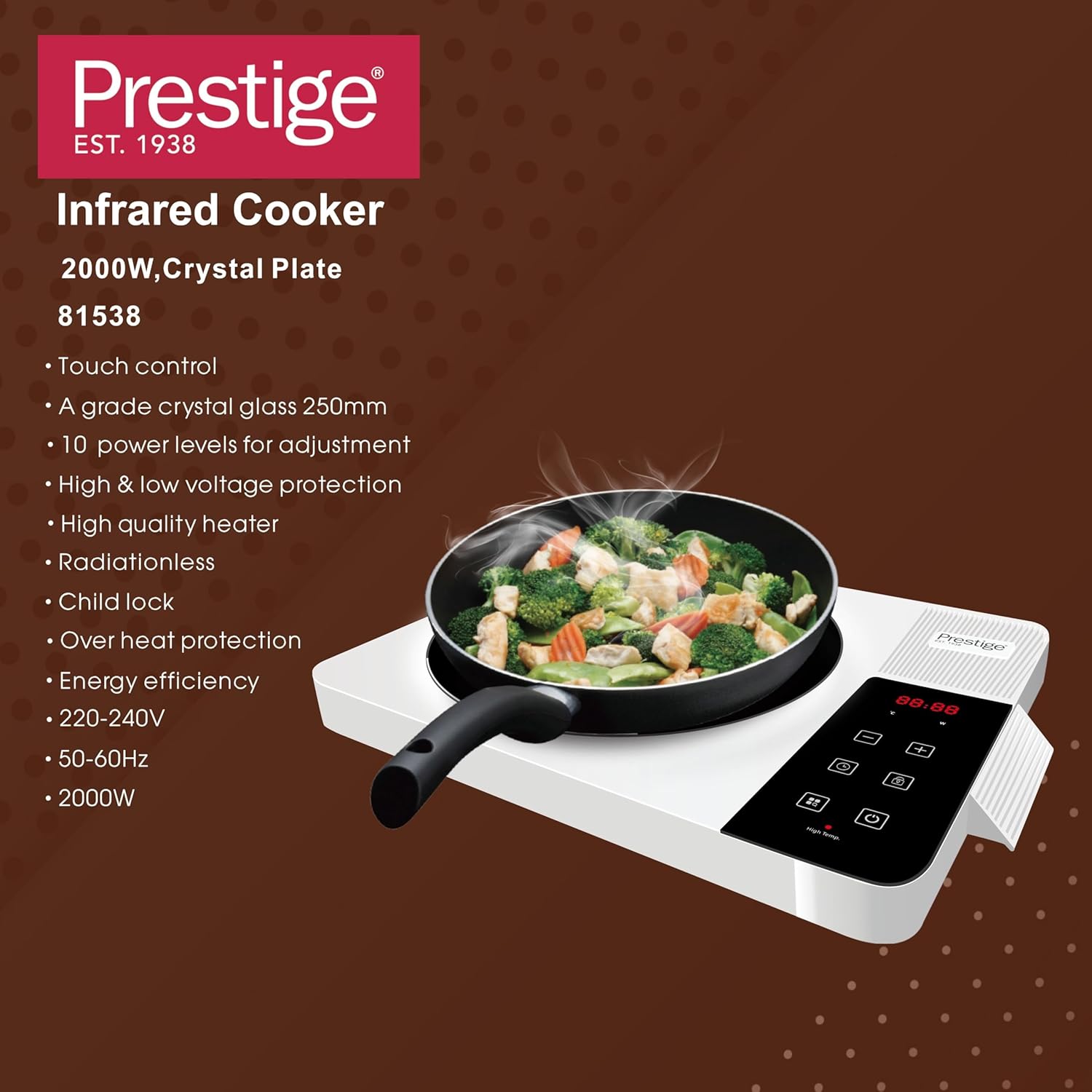

Specifications
| Feature | Detail |
|---|---|
| Brand | Prestige |
| Model Number | PR81538 |
| Power | 2000 Watts |
| Control Type | Touch Control |
| Cooking Surface Material | First-grade Crystal Glass (25 cm diameter) |
| Power Levels | 10 adjustable levels |
| Safety Features | Child Lock, Overheat Protection, High/Low Voltage Protection |
| Voltage | 220-240V |
| Frequency | 50-60Hz |
| Item Weight | 2.16 Kilograms |
| Dimensions (Shipping) | 41.8 x 32.4 x 8.6 cm |
Warranty and Support
Prestige products are manufactured to high-quality standards. For warranty information, please refer to the warranty card included with your product or visit the official Prestige website. Keep your purchase receipt as proof of purchase.
For technical support, service, or spare parts, please contact Prestige customer service through their official channels. Contact details can typically be found on the product packaging or the brand's official website.
