VENTY CozyPod Portable Plug-In Heater 500W Instruction Manual

Introduction

This manual provides essential information for the safe and efficient operation of your VENTY CozyPod Portable Plug-In Heater 500W. Please read all instructions carefully before use and retain this manual for future reference.

Safety Information

Your CozyPod heater is designed with safety in mind. To ensure safe operation, please observe the following:

• Always plug the heater directly into a wall outlet. Do not use extension cords or power strips.
• Ensure the heater is positioned in a way that does not block airflow.
• The heater is constructed with fire-retardant materials and complies with ETL safety standards.
• The exterior features a cool-touch design, but caution is advised, especially around the heating element.
• Equipped with an auto shut-off feature for enhanced safety.
• Keep flammable materials at least 3 feet (0.9 meters) away from the heater.
• Do not use in wet or damp locations, such as bathrooms, unless specifically designed for such environments.
• Supervise children and pets when the heater is in operation.

Product Overview

The VENTY CozyPod is a compact and portable plug-in heater designed for small spaces. It features a modern design with intuitive controls.

Key Features:

• Compact and Portable: Weighs under 2 lbs, ideal for small rooms, RVs, and office desks.
• Adjustable Plug: Features a 90-degree rotating plug for flexible positioning (vertical or horizontal).

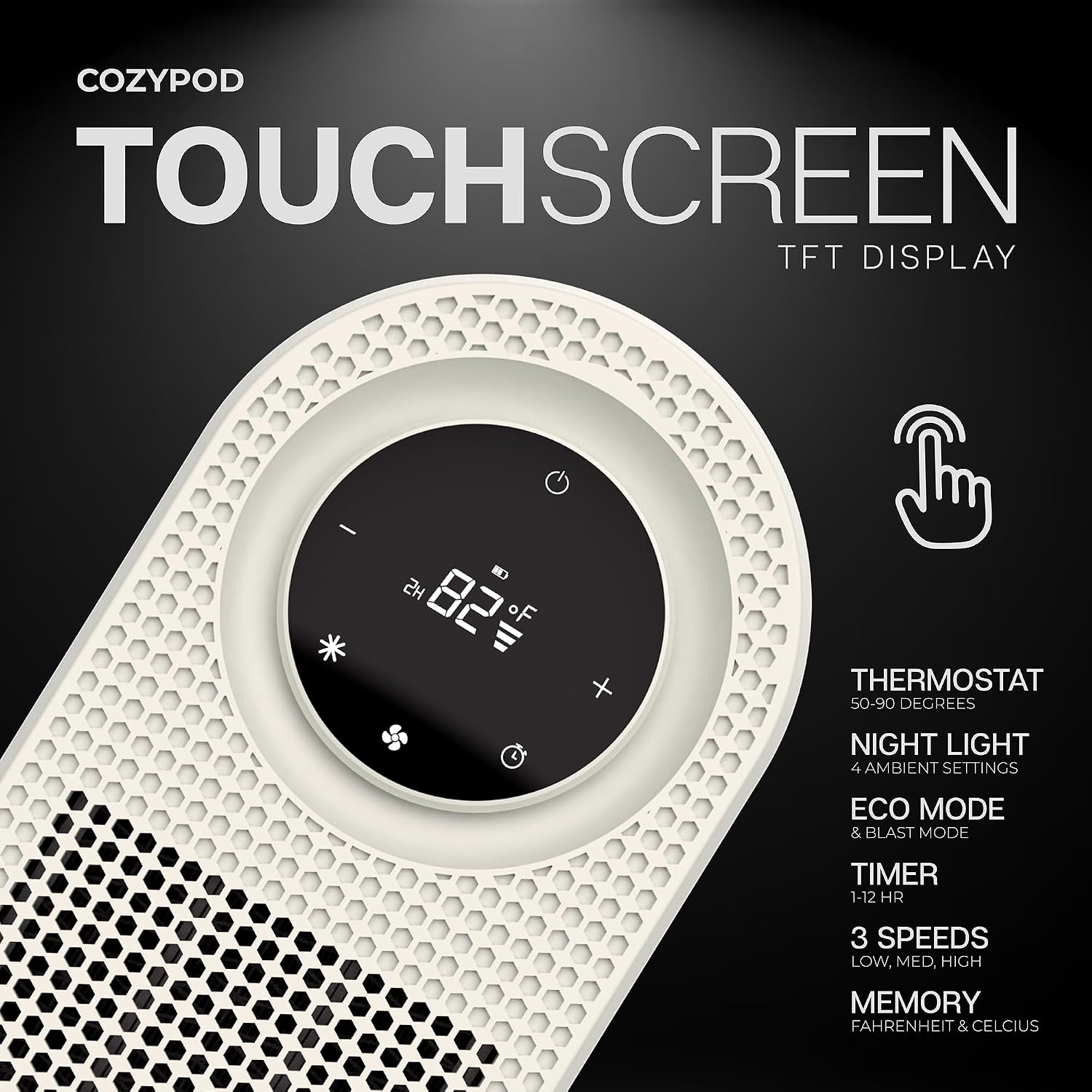

• LED Display: TFT touch display for easy temperature, timer, and night light adjustments.
• Remote Control: Apple Watch-inspired rechargeable remote for convenient operation from a distance.
• Energy Efficiency: Includes Eco Mode and a 12-hour timer to optimize energy usage.
• Night Light: Integrated LED night light with four brightness settings.
• Safety Features: Fire-retardant materials, ETL safety standards compliance, cool-touch exterior, and auto shut-off.

Setup

1. Unpacking: Carefully remove the CozyPod heater and its accessories from the packaging.
2. Plug Orientation: The heater features a 90-degree rotating plug. If the plug is not in the desired orientation (vertical or horizontal), gently press the button on the side of the plug and rotate it until it clicks into place.



3. Plug In: Insert the heater directly into a standard 120V AC wall outlet. Ensure it is securely plugged in.
4. Placement: Position the heater in a small room or personal space, ensuring adequate clearance from walls, furniture, and flammable materials. The heater is designed for spaces up to 150 sq ft.

Operating Instructions

Power On/Off:

• To turn on, press the power button on the heater's TFT touch display or on the remote control.
• To turn off, press the power button again. The fan may continue to run for a short period to cool down the heating elements.

Temperature Adjustment:

• Use the '+' and '-' buttons on the display or remote to set your desired temperature. The heater will maintain the set temperature.
• The maximum temperature setting is 85°F.

Fan Speeds/Modes:

• The CozyPod offers 3 fan speeds (Low, Medium, High) and an Eco Mode.
• Press the 'M' button (Mode) on the display or remote to cycle through the available modes.
• Eco Mode: In this mode, the heater will automatically adjust its operation to maintain the set temperature while minimizing energy consumption.

Timer Function:

• Activate the timer function by pressing the clock icon button on the display or remote.
• Adjust the timer duration up to 12 hours. The heater will automatically turn off once the set time has elapsed.

LED Night Light:

• The heater includes an LED night light with four brightness settings.
• Press the light bulb icon button to cycle through brightness levels or turn the night light off.

Remote Control:

• The remote control allows for convenient adjustment of all heater functions from a distance.
• The remote is rechargeable and designed to dock magnetically into the heater for wireless charging. No batteries are required for the remote.
• Ensure the remote is docked correctly for charging.

Maintenance

Regular maintenance helps ensure optimal performance and longevity of your CozyPod heater.

• Cleaning: Always unplug the heater and allow it to cool completely before cleaning. Use a soft, damp cloth to wipe the exterior surfaces. Do not use abrasive cleaners or allow water to drip into the interior.
• Storage: When not in use, store the heater in a cool, dry place. The included case provides protection during storage and transport.
• No User-Serviceable Parts: Do not attempt to open or repair the heater yourself. Refer to qualified service personnel for any repairs.

Troubleshooting

If your CozyPod heater is not operating as expected, please check the following common issues:

• Heater not turning on:
  • Ensure the heater is securely plugged into a working electrical outlet.
  • Check if the power button on the unit or remote has been pressed.
  • Verify that the safety auto shut-off has not been triggered (e.g., due to overheating or tipping). Unplug, wait a few minutes, and plug back in.
• No heat output:
  • Confirm the desired temperature setting is higher than the current room temperature.
  • Check if Eco Mode is active; it may cycle on and off to maintain temperature.
• Remote control not responding:
  • Ensure the remote is charged by docking it into the heater.
  • Check for any obstructions between the remote and the heater.

If problems persist, please contact customer support.

Specifications

Official Product Videos

Watch these official product videos from VENTY for visual guidance on using your CozyPod heater.

Warranty and Support

For warranty information or technical support, please contact VENTY customer service. Refer to the product packaging or the official VENTY website for contact details.
