1. Introduction
The CLEANmaxx Anti-Mite Vacuum Cleaner, Model 15176, is designed to effectively remove dust mites, allergens, and pet hair from various textile surfaces. This device combines powerful suction with vibration and UV-C light technology to provide a thorough cleaning, promoting a cleaner and healthier living environment, especially for those with allergies.
With a suction power of 10 kPa and up to 3000 vibrations per minute, the CLEANmaxx anti-mite vacuum gently dislodges mites and allergens, ensuring deep cleaning. The integrated UV-C light sterilizes surfaces without the need for harsh chemicals, offering protection against germs and bacteria. The device features a highly efficient 2-stage cyclonic filtration system with a washable HEPA 13 filter.
Image: The CLEANmaxx Anti-Mite Vacuum Cleaner targets mites, viruses, pet hair, and dust, helping to alleviate common allergy symptoms like sneezing, itching, and skin irritation.
2. Safety Instructions
- Read all instructions before use and retain for future reference.
- Ensure the power supply voltage matches the rating label on the appliance.
- Do not operate the appliance with a damaged cord or plug.
- Keep the appliance away from water and do not immerse it in liquids.
- This appliance is for household use only. Do not use outdoors or for commercial purposes.
- UV-C Light Safety: The UV-C light is designed to activate only when the appliance is in contact with a surface (angle less than 2.5 degrees). Do not look directly at the UV-C light. Keep the appliance away from children.
- Unplug the appliance from the power outlet before cleaning or performing maintenance.
- Do not vacuum liquids, hot ashes, sharp objects, or flammable/explosive materials.
- Avoid blocking the air vents during operation to prevent overheating.

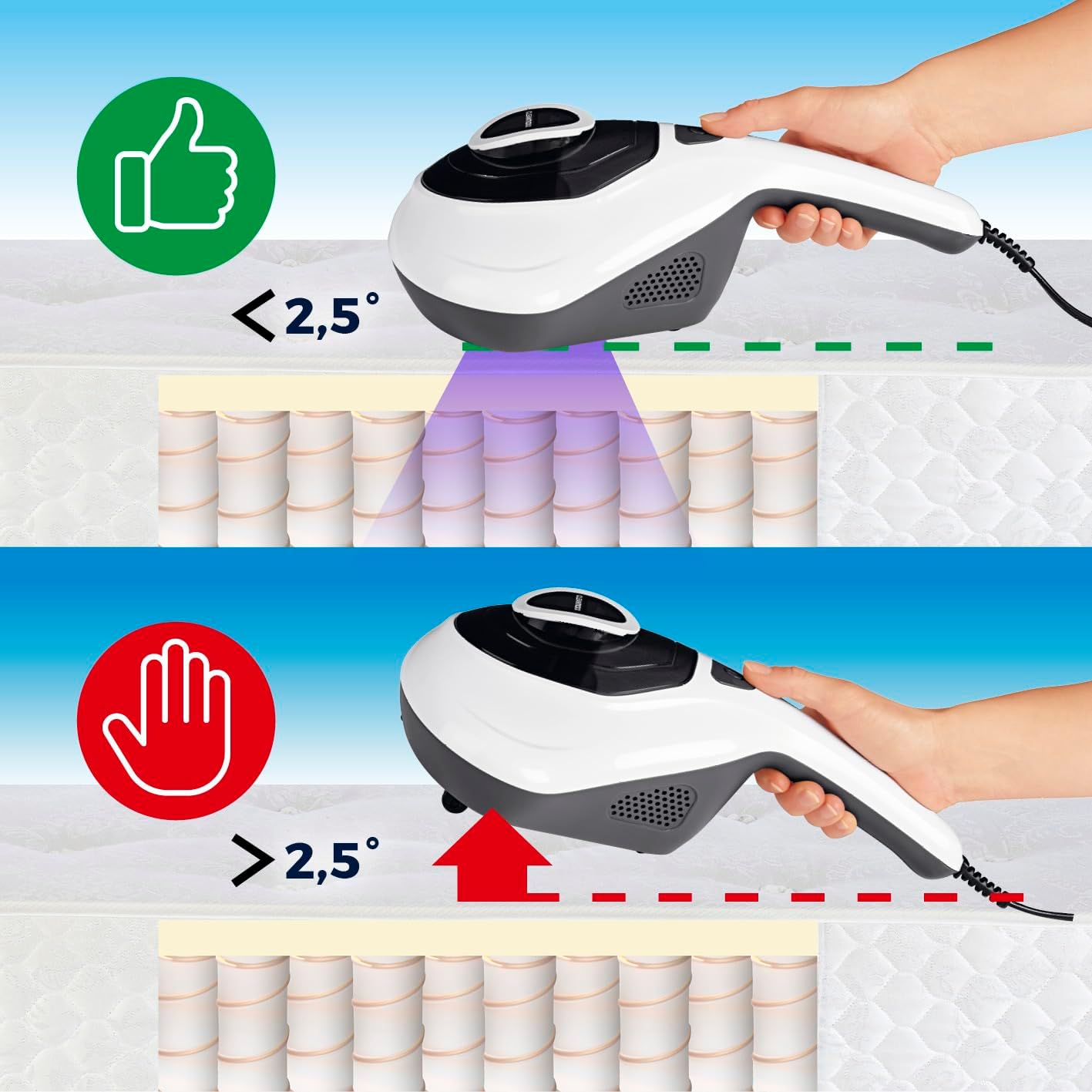

Image: The UV-C light safety feature ensures activation only when the device is in close contact with the surface, protecting users from direct exposure.
3. Product Overview
The CLEANmaxx Anti-Mite Vacuum Cleaner is a handheld device designed for deep cleaning of textiles. It features a powerful motor, a vibrating pad, and a UV-C lamp for comprehensive mite and allergen removal.
Image: The CLEANmaxx Anti-Mite Vacuum Cleaner, a compact and ergonomic handheld unit.
Key Components:
- Main Unit with Handle
- Power Button
- Vibrating Pad (underside)
- UV-C Lamp (underside)
- Suction Nozzle (underside)
- Dust Bin (removable)
- HEPA 13 Filter (inside dust bin)
- Power Cord (approx. 4 meters)
4. Setup
- Unpack the Device: Carefully remove the anti-mite vacuum cleaner and all accessories from its packaging.
- Inspect for Damage: Check the device for any visible damage. If damaged, do not use and contact customer support.
- Ensure Filter is Installed: The HEPA filter should be pre-installed in the dust bin. If not, refer to the 'Maintenance' section for proper installation.
- Connect to Power: Plug the power cord into a suitable electrical outlet. The device is now ready for use.
5. Operating Instructions
The CLEANmaxx Anti-Mite Vacuum Cleaner is suitable for mattresses, duvets, pillows, upholstered furniture, carpets, and pet beds.
- Power On: Press the power button located on the handle to turn on the device. The suction, vibration, and UV-C light will activate simultaneously.
- Positioning: Place the underside of the vacuum cleaner flat against the textile surface you wish to clean. Ensure the UV-C light is in contact with the surface for activation.
- Cleaning Motion: Move the vacuum cleaner slowly and evenly across the surface. The vibration function will dislodge mites and dust, while the UV-C light sterilizes, and the suction removes debris.
- Recommended Cleaning Pattern: For best results, clean in overlapping strokes, similar to mowing a lawn, to ensure all areas are treated.
Image: Demonstrate a systematic cleaning pattern for optimal coverage on textiles.
- UV-C Action: The UV-C light works to sterilize the surface, targeting germs and bacteria.
- Vibration Function: The vibrating pad helps to loosen deeply embedded dust mites and allergens from fabric fibers.
- Suction Power: The powerful suction then draws these dislodged particles into the dust bin.
Image: The UV-C light in action, sterilizing surfaces and targeting microscopic organisms.
Image: The vibration function effectively dislodges mites and allergens from deep within textile fibers.
Important Note: Some users have reported that the device may automatically switch off after approximately 6 minutes of continuous operation due to overheating. If this occurs, allow the device to cool down for a sufficient period before resuming use.
6. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your CLEANmaxx Anti-Mite Vacuum Cleaner.
- Emptying the Dust Bin: After each use, or when the dust bin is full, detach it from the main unit. Open the dust bin and empty its contents into a waste bin.
- Cleaning the HEPA Filter: The HEPA 13 filter is washable. Carefully remove the filter from the dust bin. Rinse it under running water until clean. Allow the filter to air dry completely (for at least 24 hours) before reinserting it into the dust bin. Do not use the device with a wet filter.
- Cleaning the Dust Bin: Wash the dust bin with mild soap and water if necessary. Ensure it is completely dry before reattaching it to the main unit.
- Cleaning the Main Unit: Wipe the exterior of the vacuum cleaner with a soft, damp cloth. Do not use abrasive cleaners or immerse the unit in water.
- UV-C Lamp Maintenance: Periodically check the UV-C lamp for dust or debris and gently wipe it clean with a dry cloth if needed.
Image: Steps for removing and cleaning the HEPA filter and dust bin.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Device does not turn on | Not plugged in; Power outlet fault; Damaged power cord | Check power connection; Try a different outlet; Contact customer support if cord is damaged. |
| Low suction power | Dust bin full; Filter clogged; Suction nozzle blocked | Empty dust bin; Clean/wash HEPA filter; Remove any blockages from the nozzle. |
| UV-C light not working | Device not in contact with surface; Lamp faulty | Ensure the device is pressed firmly against the surface (angle < 2.5 degrees); Contact customer support if lamp is faulty. |
| Device switches off during use | Overheating protection activated | Allow the device to cool down for at least 30 minutes before resuming operation. Ensure air vents are not blocked. |
| Unusual noise | Blockage in suction path; Loose component | Check for and remove any blockages; Contact customer support if noise persists. |
8. Specifications
| Brand | CLEANmaxx |
| Model Number | 15176 |
| Color | Black |
| Dimensions (L x W x H) | 34 x 28 x 12.5 cm |
| Weight | 1.8 Kilograms |
| Special Features | UV-C light, Vibration, HEPA 13 filter |
| Filter Type | Cyclonic filter with HEPA |
| Power Source | Electric cable |
| Cord Length | Approx. 4 meters |
| Recommended Surfaces | Upholstery, carpets, mattresses, pet beds |
| Form Factor | Handheld |
| Suction Power | 10 kPa |
| Vibrations | Up to 3000 per minute |
9. Warranty and Support
Information regarding specific warranty terms and spare parts availability for the CLEANmaxx Anti-Mite Vacuum Cleaner, Model 15176, is not provided in the product details. For warranty claims, technical support, or inquiries about spare parts, please contact your retailer or the manufacturer directly.
Always refer to your purchase documentation for specific warranty periods and conditions applicable to your region.
