1. Introduction
This manual provides essential instructions for the proper installation, maintenance, and troubleshooting of your ACTIVLIFE Outer Filter. This filter is designed for use with Same Dorado 55, Dorado 60, and Dorado 65 models, corresponding to MPN 1020950. Please read this manual thoroughly before installation and operation to ensure optimal performance and longevity of your equipment.
2. Product Overview
The ACTIVLIFE Outer Filter is a critical component designed to ensure clean airflow to your engine, protecting it from harmful contaminants. It is engineered to provide optimal performance and airflow for the specified Dorado models.

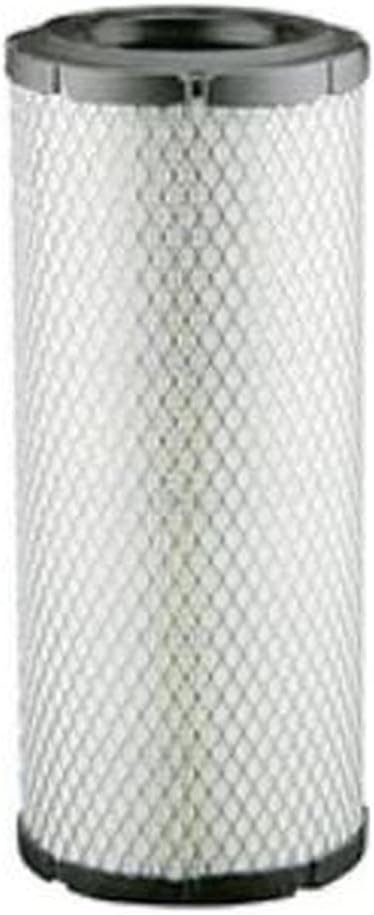

Figure 2.1: ACTIVLIFE Outer Filter. This image displays the cylindrical outer filter with a mesh exterior and dark grey end caps, designed for air filtration in agricultural machinery.
2.1 Key Features
- Designed for Same Dorado 55, Dorado 60, and Dorado 65 models.
- Ensures optimal engine performance and airflow.
- Compatible with MPN 1020950.
- Easy to install and maintain.
3. Safety Information
Always prioritize safety when working with machinery. Follow these guidelines:
- Ensure the engine is turned off and cooled down before attempting any installation or maintenance.
- Disconnect the battery to prevent accidental starting.
- Wear appropriate personal protective equipment (PPE), such as gloves and eye protection.
- Refer to your equipment's primary service manual for specific safety procedures related to your Dorado model.
4. Installation
Before installation, visually inspect the new filter to ensure it matches the dimensions and appearance of the filter being replaced. Confirm compatibility with MPN 1020950.
4.1 Required Tools
- Gloves
- Eye protection
- Basic hand tools (as required by your specific Dorado model's air filter housing)
4.2 Installation Steps
- Prepare the Equipment: Turn off the engine and allow it to cool completely. Disconnect the battery.
- Locate Air Filter Housing: Identify the air filter housing on your Same Dorado 55, 60, or 65. Consult your equipment's service manual if needed.
- Open Housing: Carefully unlatch or unscrew the clamps/bolts securing the air filter housing cover.
- Remove Old Filter: Gently pull out the old outer filter. Be careful not to dislodge any debris into the air intake system.
- Clean Housing: Wipe the inside of the air filter housing with a clean, damp cloth to remove any dust or debris. Ensure no moisture remains before installing the new filter.
- Install New Filter: Insert the new ACTIVLIFE Outer Filter (MPN 1020950) into the housing, ensuring it seats properly and securely. The filter should fit snugly without force.
- Close Housing: Reattach the air filter housing cover and secure it with the clamps/bolts. Ensure a tight seal to prevent unfiltered air from entering the engine.
- Final Check: Reconnect the battery. Start the engine and check for any unusual noises or warning indicators.
5. Maintenance
Regular maintenance of your ACTIVLIFE Outer Filter is crucial for maintaining engine efficiency and extending its lifespan.
5.1 Inspection Schedule
- Routine Check: Inspect the outer filter every 50 operating hours or monthly, whichever comes first.
- Heavy Use: In dusty or harsh conditions, inspect the filter more frequently.
- Replacement: Replace the outer filter annually or when signs of significant clogging or damage are observed, even if it appears clean.
5.2 Cleaning the Filter
While some outer filters can be cleaned, it is generally recommended to replace them for optimal performance. If cleaning is necessary (e.g., in an emergency or for temporary use), follow these steps:
- Remove the filter as described in the installation section.
- Gently tap the filter against a hard surface to dislodge loose dirt. Do not use compressed air, as this can damage the filter media.
- Inspect the filter for tears, holes, or damage. If damaged, replace it immediately.
- Reinstall the filter.
Note: Cleaning may reduce the filter's efficiency and lifespan. Replacement is always the preferred option for maintaining peak engine performance.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Reduced Engine Power | Clogged or dirty air filter. | Inspect and replace the outer filter. |
| Increased Fuel Consumption | Restricted airflow due to a dirty filter. | Replace the outer filter. |
| Engine Misfires or Runs Rough | Severely clogged filter or improper installation. | Check filter installation. Replace if clogged. |
| Visible Damage to Filter | Physical impact or wear and tear. | Replace the filter immediately to prevent engine damage. |
If troubleshooting steps do not resolve the issue, consult a qualified service technician or refer to your equipment's comprehensive service manual.
7. Specifications
- Product Type: Outer Air Filter
- Brand: ACTIVLIFE
- Compatible Models: Same Dorado 55, Dorado 60, Dorado 65
- Part Number (MPN): 1020950
- Material: High-quality filtration media with protective mesh
- Dimensions: (Please refer to visual inspection and your equipment's manual for exact dimensions to ensure fit)
8. Warranty and Support
For information regarding warranty coverage, product support, or to purchase replacement parts, please contact your ACTIVLIFE retailer or visit the official ACTIVLIFE website. Ensure you have your product details, including the part number (1020950), available when seeking support.
Note: Improper installation or maintenance not in accordance with this manual may void your product warranty.
