Introduction
This manual provides detailed instructions for the safe and efficient use of your roborock F25 XT Cordless Wet Dry Vacuum Cleaner. The roborock F25 XT is designed for comprehensive floor cleaning, featuring powerful suction, tangle-free operation, and advanced self-cleaning capabilities. Please read this manual thoroughly before operating the device and retain it for future reference.
1. Setup
1.1 Unpacking and Assembly
Carefully unpack all components from the packaging. Assembly is quick and simple, typically taking less than two minutes.
Included Components:
- roborock F25 XT Vacuum Cleaner
- Charging Dock
- Power Cable
- Cleaning Brush
- Additional Washable Filter
- Floor Cleaning Solution (250ml)
- User Manual
1.2 Charging the Device
Before first use, ensure the device is fully charged. Place the vacuum cleaner on the charging dock and connect the power cable to a suitable power outlet. The charging indicator will provide status updates.
2. Operating Instructions
2.1 Powering On and Cleaning Modes
Press the power button to turn on the vacuum cleaner. The roborock F25 XT offers multiple cleaning modes to suit various needs:
- Eco Mode: For light cleaning and extended battery life (up to 60 minutes).
- Suction Mode: For dry vacuuming.
- Auto Mode: Automatically adjusts suction and water flow based on dirt detection.
- Max Mode: For stubborn dirt and maximum cleaning power.
2.2 Intelligent Features
- Powerful Suction: Experience an impressive 20,000 Pa suction power for effective cleaning of various messes, including pet accidents, spills, and everyday dirt.
- Tangle-Free Dual Scraper System: The innovative dual scraper system, certified by SGS and TUV, ensures systematic, spotless cleaning without hair entanglement. A flat blade controls water, and a comb design captures hair efficiently. For more details, refer to the SGS certification.
- 180-Degree Flat Design: The vacuum can recline completely flat, allowing effortless cleaning under furniture and in hard-to-reach areas. Suction power remains consistent even in the flat position.
- 70-Degree Swivel Head & AI-Assisted Wheels: The cleaning head rotates 70 degrees for easy navigation around obstacles. AI-assisted wheels provide smooth gliding across all surfaces, making cleaning less strenuous.
- Intelligent Dirt Detection (DirTect Sensor): An intelligent sensor automatically detects the level of dirt and adjusts suction power accordingly, ensuring optimal cleaning performance every time.

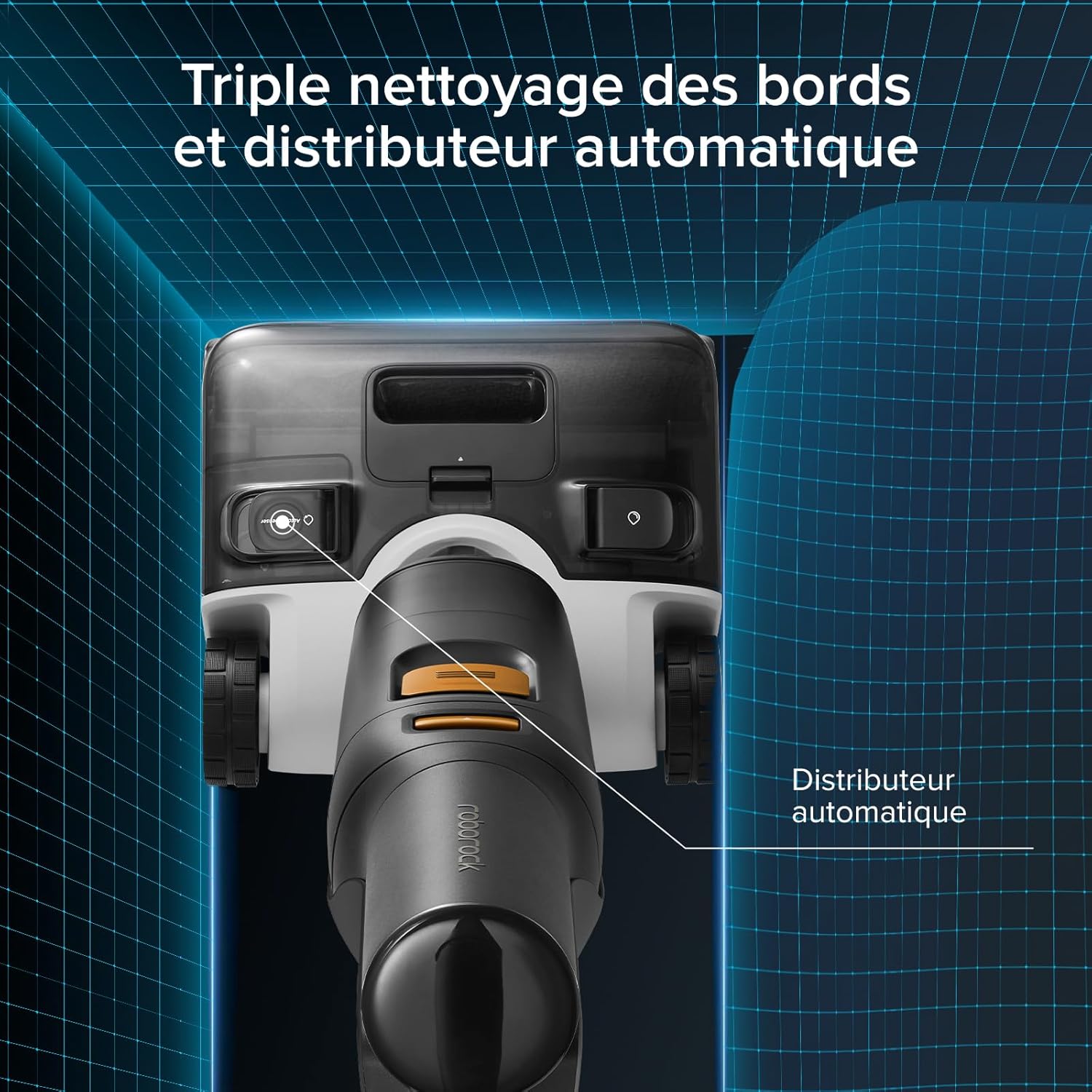

- Triple Edge Cleaning: The design allows for cleaning right up to edges, with less than 0.76 mm clearance, perfect for baseboards, stairs, and corners.
- Automatic Detergent Dispenser: The device automatically dispenses cleaning solution adaptively based on floor stains, ensuring effective cleaning without manual intervention.
2.3 Roborock App Integration
Customize your cleaning experience and monitor device status through the Roborock application. The app provides control over cleaning modes, settings, and maintenance reminders.
3. Maintenance
3.1 High-Temperature Self-Cleaning
The roborock F25 XT features an automatic high-temperature self-cleaning cycle at 90°C. This process effectively removes grease and dirt from the roller brush. Bidirectional brush rotation ensures a thorough clean.
3.2 90°C Hot Air Drying
After self-cleaning, the device offers two drying modes for the roller brush:
- Fast Drying: Dries the brush in 5 minutes.
- Silent Drying: Dries the brush in 20 minutes, with reduced noise.
This hot air drying system ensures the roller is thoroughly and evenly dried, preventing odors and reducing manual effort.
3.3 Filter Cleaning
The roborock F25 XT is equipped with a washable HEPA filter. Regularly clean the filter according to the instructions in the app or the full user manual to maintain optimal suction performance.
4. Troubleshooting
This section provides solutions to common issues you might encounter with your roborock F25 XT. For more detailed troubleshooting, please refer to the comprehensive user manual or the Roborock app.
4.1 Common Issues
- Device not powering on: Ensure the device is fully charged and properly seated on the charging dock. Check the power cable connection.
- Reduced suction power: Check if the water tanks are correctly installed. Clean the roller brush and the HEPA filter. Ensure there are no blockages in the suction path.
- Streaks on floor: Ensure the dirty water tank is not full. Perform a self-cleaning cycle. Use the recommended cleaning solution.
- Unusual noises: Check the roller brush for any foreign objects or hair entanglement. Ensure all components are correctly assembled.
5. Specifications
| Brand | roborock |
| Model Name | F25 XT |
| Model Number | F25 ACE EU |
| Color | F25 XT |
| Dimensions (L x W x H) | 26.16 x 24.13 x 109.98 cm |
| Item Weight | 4.67 Kilograms (10.3 Pounds) |
| Clean Water Tank Capacity | 740 Milliliters |
| Voltage | 120 Volts |
| Battery Runtime | Up to 60 minutes (Eco Mode), 40 minutes (Standard Mode) |
| Special Features | Washable filter, HEPA, Wet/dry, Cordless |
| Filter Type | High-efficiency filter |
| Surface Recommendation | Carpet, hard floor, bare floor |
| Power Source | Battery powered |
| Wireless | Yes |
| Country of Origin | China |
6. Warranty Information
Specific warranty details for the roborock F25 XT are not provided in the available product information. Please refer to the warranty card included with your product or visit the official roborock website for the most current warranty terms and conditions.
7. Support
For further assistance, technical support, or to purchase replacement parts, please visit the official roborock website or contact their customer service. You can also find more information and products at the roborock Amazon Store.
