1. Introduction
Welcome to the user manual for your new RCB D7 PRO Ultra Electric Scooter. This document provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your scooter. Please read this manual thoroughly before using the product and retain it for future reference.
2. Safety Information
Your safety is paramount. Operating an electric scooter carries inherent risks. Always adhere to local laws and regulations regarding electric scooter usage. Failure to follow these instructions may result in serious injury or property damage.
- Always wear a helmet and appropriate protective gear (knee pads, elbow pads, gloves) when riding.
- Do not ride under the influence of alcohol or drugs.
- Ensure all components are securely fastened and in good working order before each ride.
- Maintain a safe speed and distance from other vehicles and pedestrians.
- Avoid riding in adverse weather conditions (heavy rain, snow, ice) or on slippery surfaces.
- Do not perform stunts or sudden maneuvers.
- The maximum load capacity is 150 kg. Do not exceed this limit.
- Recommended age for use is adults.
3. Package Contents
Upon unpacking, please verify that all items listed below are present and in good condition:
- 1 x RCB D7 PRO Electric Scooter
- 1 x Charger
- 1 x User Manual (this document)
- 1 x Tool Kit
4. Product Overview
The RCB D7 PRO Ultra Electric Scooter is designed for performance and convenience, featuring a robust aluminum frame, powerful motor, and advanced safety features.
Figure 4.1: Overview of the RCB D7 PRO Ultra Electric Scooter, showcasing its design and key components.
4.1 Key Features
- Premium Version: Multifunction display, NFC start, electronic code lock, front lights, brake light, left/right turn signals, dual brake, dual suspension, and APP functionality for enhanced security and convenience.
- Powerful Motor: 500W nominal motor with a peak power of 1600W, enabling a maximum incline of 26% and a top speed of 25 km/h.
- High Capacity Battery: 27 Ah battery providing a range of 100-110 km, managed by an intelligent battery management system (BMS).
- Dual Braking and Suspension Systems: Ensures a safe and smooth ride on various terrains with front and rear disc brakes and dual shock absorbers.
- High-Performance Tires: 10-inch puncture-proof, self-repairing, anti-skid, and wear-resistant tires for excellent grip and stability.
- APP & Multifunction Display: Control the scooter via a dedicated app and monitor real-time information on the display, including speed, mode, battery level, lights, Bluetooth, and error codes.
- Foldable Design: Easily foldable for storage and transport, with 3 adjustable heights to suit different riders.
Figure 4.2: Visual representation of the scooter's key features including motor, suspension, range, tires, and turn signals.
5. Setup and Initial Use
5.1 Unfolding the Scooter
- Place the scooter on a flat surface.
- Release the folding latch located on the stem.
- Carefully lift the handlebar stem until it locks into the upright position. Ensure the locking mechanism is fully engaged.
- Adjust the handlebar height to your preference and secure it.
Figure 5.1: The scooter's foldable design allows for easy storage and transport, with adjustable height for rider comfort.
5.2 Initial Charging
Before your first ride, fully charge the scooter's battery. Refer to the 'Battery Information' section for detailed charging instructions.
6. Operating Instructions
6.1 Powering On/Off
Press and hold the power button on the control panel to turn the scooter on or off.
6.2 NFC Activation and Deactivation
The scooter features NFC for enhanced security and quick unlocking. You can register and remove NFC cards via the mobile application.
Video 6.1: This video demonstrates how to register and remove an NFC card using the mobile application for your RCB D7 PRO Ultra Electric Scooter. It shows the steps to open the app, add a vehicle, activate the main card, and then approach the NFC card to the control panel for registration. It also illustrates how to deactivate the main card to unregister it.
6.3 APP Connection and Multifunction Display
Connect your scooter to the dedicated mobile application for additional control and monitoring. The multifunction display provides real-time information.
Figure 6.2: The intelligent APP connection and NFC electronic lock enhance security and provide quick unlocking. The app supports multiple NFC cards for family use.

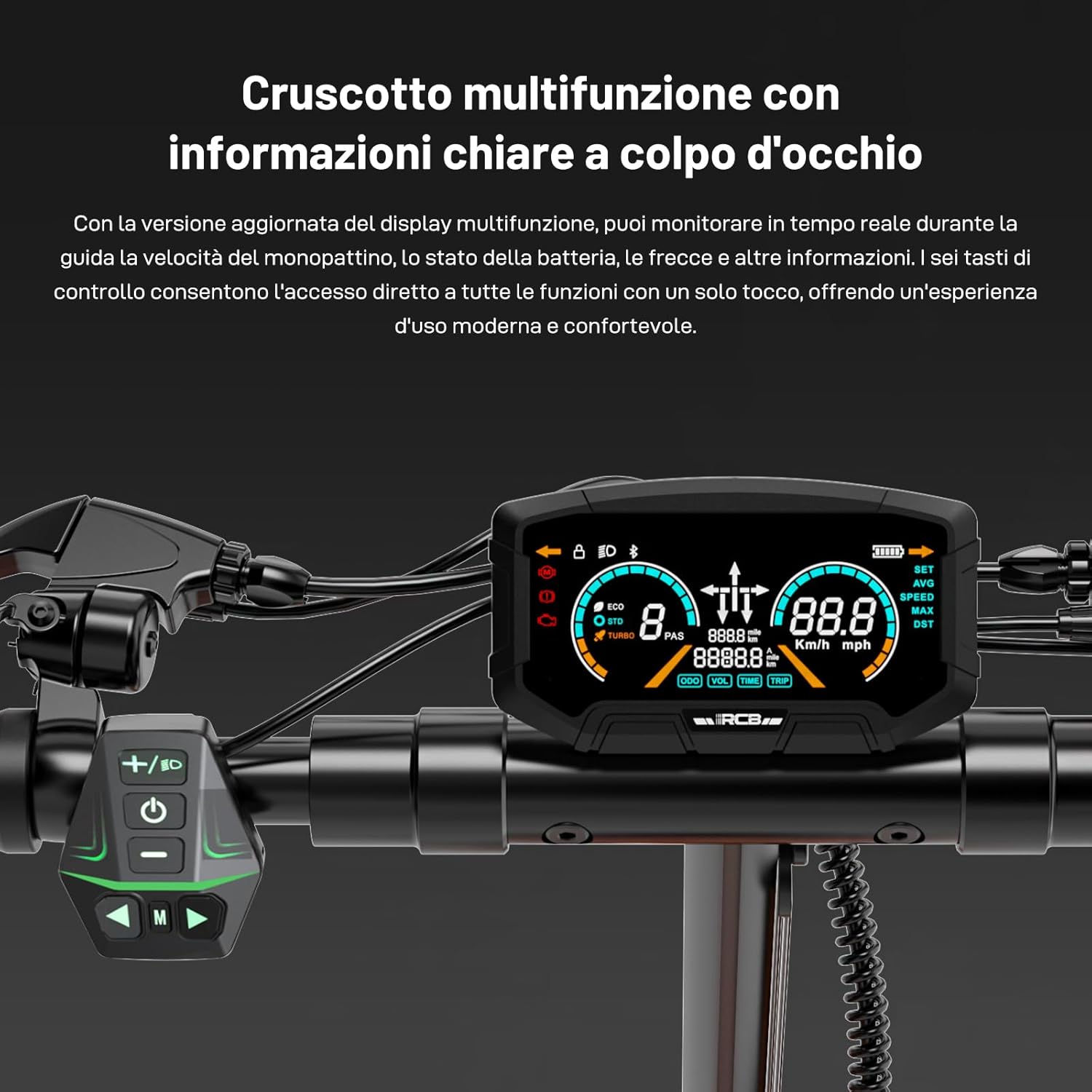

Figure 6.3: The updated multifunction display and 6-button control panel show speed, mode, battery level, lights, Bluetooth status, and error codes, offering a modern and comfortable user experience.
6.4 Speed Modes
The scooter offers 3 speed modes. Use the control panel to switch between modes according to your riding environment and preference.
6.5 Lights and Turn Signals
The scooter is equipped with a 4.6W bright headlight, a brake light, and left/right turn signals for visibility and safety.
Figure 6.4: Pressing the turn signal button activates the indicator to alert vehicles and pedestrians behind you, improving safety. The headlight can be turned on/off via the handlebar button or app, and the rear light activates automatically when the headlight is on. Rear lights also illuminate during braking for clear visibility.
6.6 Braking System
The dual braking system, featuring front and rear disc brakes, reduces braking distance and enhances riding safety.
Figure 6.5: The dual disc brake system provides reliable stopping power and increased safety.
7. Battery Information
7.1 Charging
Use only the provided charger. Connect the charger to the scooter's charging port, then plug it into a power outlet. The indicator light on the charger will show the charging status (e.g., red for charging, green for fully charged).
7.2 Battery Range and Care
The 27 Ah high-capacity battery provides a range of 100-110 km under optimal conditions. Actual range may vary based on factors such as rider weight, terrain, speed, and temperature. Low temperatures (e.g., winter) can reduce battery performance and range by 15-25%.
Figure 7.1: General range is measured in the absence of wind at 25°C, with a fully charged scooter, traveling at a constant speed of 15 km/h on a flat surface with a load of 75 kg. Low temperatures are a critical factor for battery performance; in cold conditions (e.g., winter), the scooter's range may decrease by 15-25%.
7.3 Intelligent Battery Management System (BMS)
The integrated BMS ensures safe and efficient battery usage by protecting against short circuits, overvoltage, overcurrent, abnormal temperature, double overcharge, and double over-discharge.
Figure 7.2: The intelligent battery management system provides efficient protection for a safe riding experience.
8. Maintenance
8.1 Tire Care
The 10-inch tires are puncture-proof and self-repairing. The gel lining immediately coats penetrating objects and seals holes in just 3 seconds, preventing permanent punctures up to 3mm.
Figure 8.1: Detailed view of the 10-inch self-repairing gel tires, designed for explosion-proof, self-healing, anti-skid, and wear-resistant performance.
8.2 Cleaning and Storage
The scooter has an IP54 rating, offering splash and dust protection. Clean the scooter with a damp cloth. Do not use high-pressure water jets. Store the scooter in a dry, cool place away from direct sunlight.
Figure 8.2: The IP54 water resistance rating provides splash and dust protection for safer riding in various conditions.
8.3 Frame and Suspension

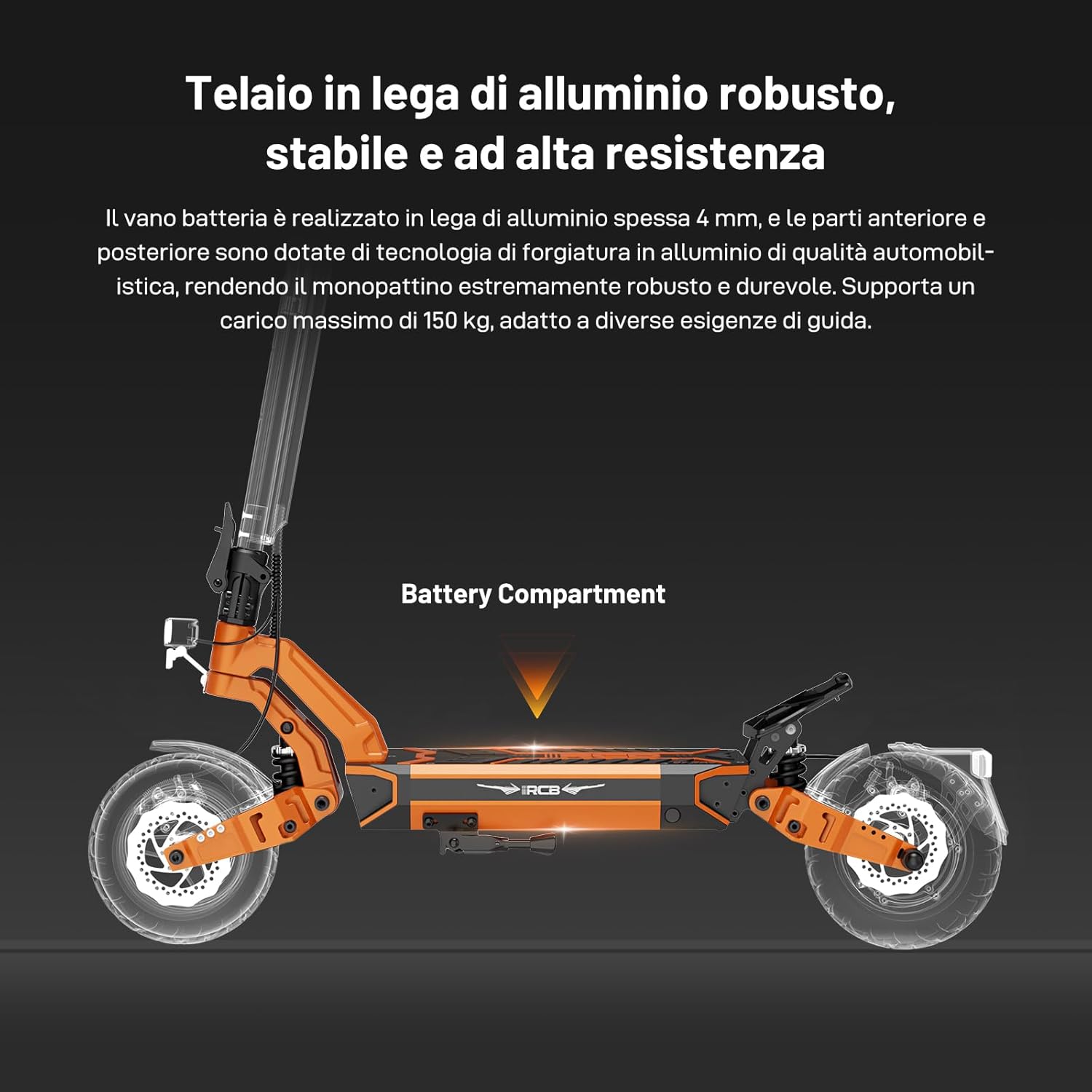

The robust aluminum alloy frame ensures stability and high resistance. The battery compartment is made of 4mm thick aluminum alloy, and the front and rear parts feature automotive-grade forged aluminum technology, making the scooter extremely robust and durable.
Figure 8.3: The robust, stable, and high-resistance aluminum alloy frame supports a maximum load of 150 kg.

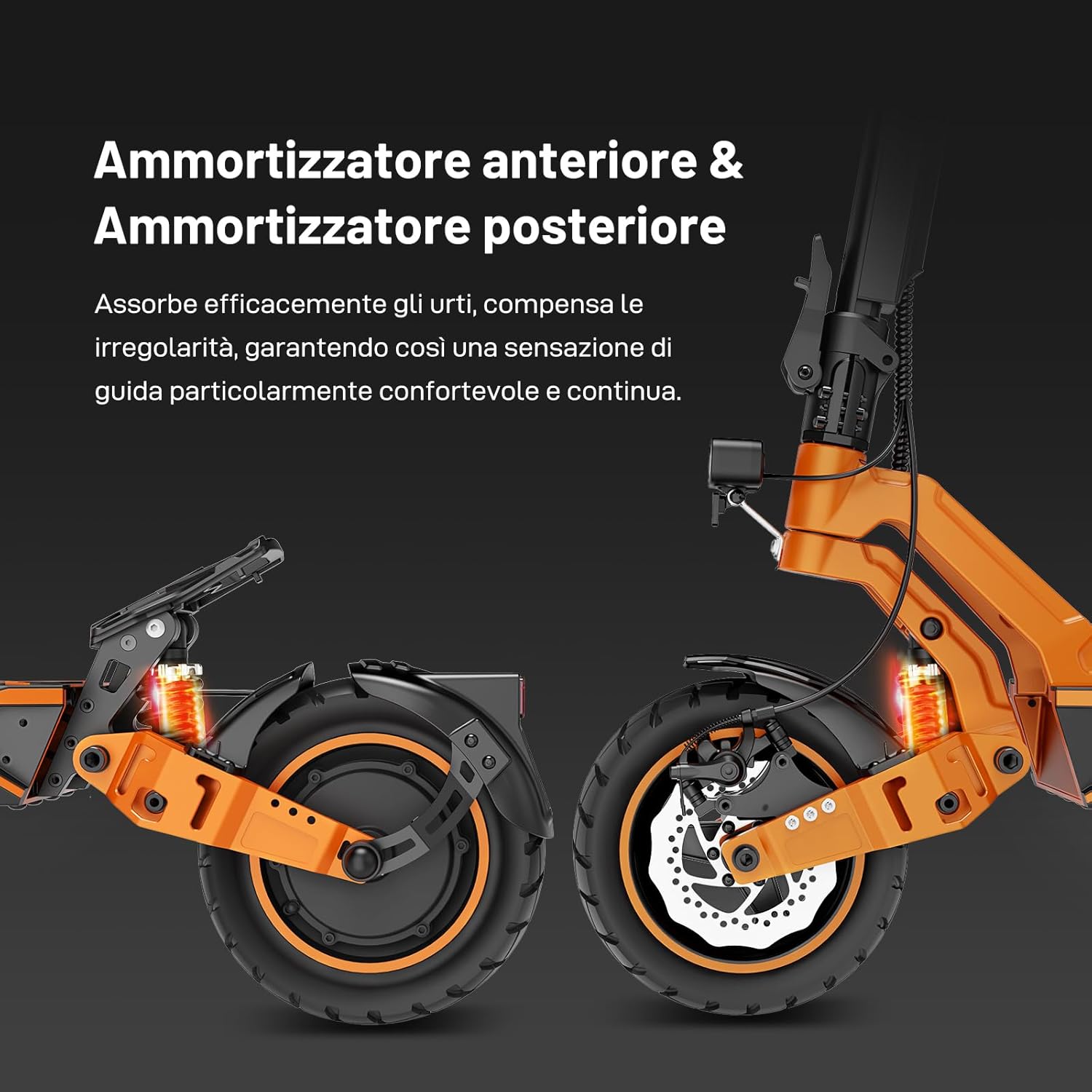

The dual front and rear shock absorbers effectively absorb impacts and compensate for unevenness, ensuring a comfortable and continuous riding experience.
Figure 8.4: The dual front and rear shock absorbers provide a particularly comfortable and continuous riding sensation.
9. Troubleshooting
If you encounter any issues with your RCB D7 PRO Ultra Electric Scooter, please refer to the following common troubleshooting steps. For more complex problems, consult the mobile application's error codes or contact customer support.
- Scooter does not power on: Ensure the battery is charged. Check all connections.
- Reduced range: Verify tire pressure. Consider external factors like temperature, terrain, and rider weight.
- Brakes not effective: Inspect brake pads and discs for wear. Adjust brake tension if necessary.
- Unusual noises: Check for loose parts or debris caught in the wheels or motor.
10. Specifications
| Feature | Specification |
|---|---|
| Product Dimensions (Unfolded) | 125 x 66 x 138 cm |
| Product Dimensions (Folded) | 125 x 21.5 x 54.5 cm |
| Item Weight | 29.5 kg |
| Maximum Supported Weight | 150 kg |
| Motor Power (Nominal) | 500W |
| Motor Power (Peak) | 1600W |
| Maximum Incline | 26% |
| Battery Capacity | 27 Ah |
| Range | 100-110 km |
| Wheel Size | 10 Inches |
| Tire Type | Puncture-proof, Self-repairing |
| Brake Type | Front and Rear Disc Brakes |
| Suspension Type | Dual Suspension |
| Frame Material | Aluminum Alloy |
| Water Resistance Rating | IP54 |
| Special Features | APP, NFC, Foldable, Turn Signals |
11. Warranty and Support
For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official RCB website. Ensure you retain your proof of purchase for warranty claims.
Always respect local laws and regulations when using the electric scooter.
