VIWAT VMS-A03
VIWAT 12x14 FT Outdoor Storage Shed Instruction Manual
Model: VMS-A03
Introduction
This manual provides comprehensive instructions for the assembly, operation, and maintenance of your VIWAT 12x14 FT Outdoor Storage Shed. Designed for durability and spacious storage, this metal shed is an ideal solution for organizing your outdoor tools, equipment, and other necessities. Please read this manual thoroughly before beginning assembly or use to ensure safe and proper installation and long-term performance.
Important Safety Information
WARNING:
- Assembly requires careful handling of heavy components. Always follow the provided instructions.
- Keep children and pets away from the work area during assembly.
- Do not exceed the weight limit of the shed.
- Ensure the shed is anchored securely to the ground to prevent wind damage.
- Wear appropriate personal protective equipment (PPE) during assembly, such as gloves and eye protection.
- Verify all parts are present and undamaged before beginning assembly.
Product Overview
The VIWAT 12x14 FT Outdoor Storage Shed is constructed from superior-grade alloy steel, offering waterproof and UV-resistant capabilities for robust all-weather protection. Its design includes lockable doors for security, a sloped roof for efficient water runoff, and integrated vents for improved airflow. This shed provides a generous 167.7"D x 138.5"W x 86.1"H of storage space.

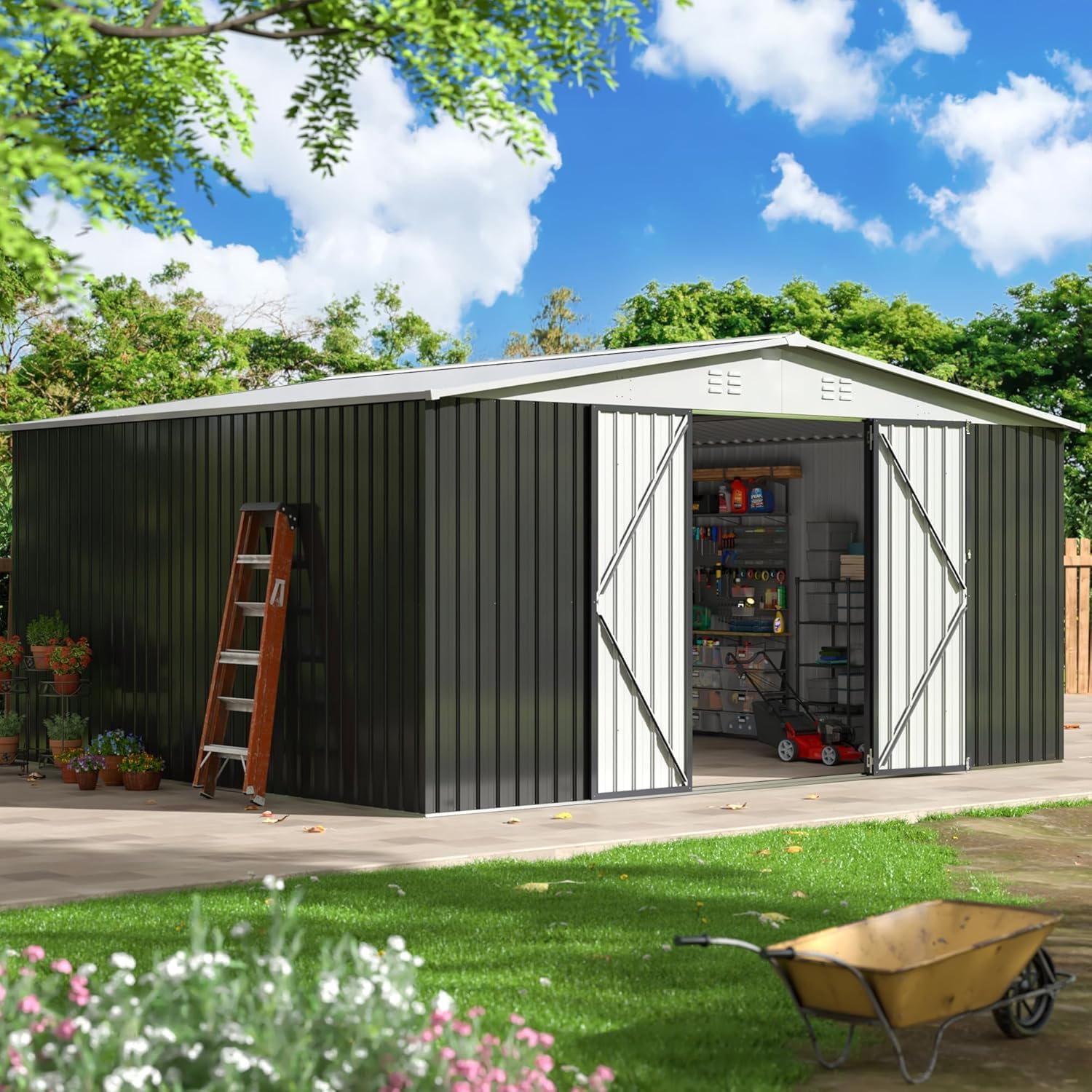

Figure 1: Overview of the VIWAT 12x14 FT Outdoor Storage Shed.
Figure 2: The spacious interior of the shed, suitable for various storage needs.
Figure 3: Detailed product dimensions for planning placement.
Setup and Assembly
The VIWAT storage shed is designed for straightforward assembly. Each part is clearly labeled with a part number to facilitate the process. A detailed step-by-step manual is included with your product to guide you through each stage of construction.
Pre-Assembly Checklist:
- Ensure you have a clear, level area for assembly.
- Unpack all cartons and verify all components against the parts list in the included manual.
- Gather necessary tools (e.g., screwdriver, wrench, level, measuring tape).
- It is recommended to have at least two people for assembly due to the size and weight of components.
Assembly Steps:
- Begin by assembling the base frame on a level surface.
- Attach the wall panels, ensuring correct orientation and secure fastening.
- Install the roof support beams and then the roof panels, paying attention to the sloped design for water runoff.
- Mount the lockable doors and ensure they operate smoothly.
- Install the air vents and corner protectors.
- Securely anchor the shed to the ground using appropriate methods for your terrain.
Refer to the dedicated assembly manual provided in the packaging for detailed diagrams and specific fastening instructions.
Operating Instructions
Your VIWAT storage shed is designed for straightforward operation, providing secure and accessible storage for your outdoor items.
Accessing the Shed:
- The shed features hinged, lockable doors. Use the provided key to unlock the doors.
- Open the doors fully to allow for easy entry and exit, especially when moving large items.
- Always ensure the doors are securely closed and locked when the shed is not in use to protect your belongings.
Ventilation:
- The shed is equipped with vents to promote air circulation. These vents help reduce condensation and maintain a suitable environment inside the shed.
- Ensure vents remain unobstructed for optimal airflow.
Figure 4: Key functional design elements of the shed, including the secure door lock and air vents.
Maintenance
Regular maintenance will extend the lifespan and preserve the appearance of your VIWAT storage shed.
Cleaning:
- Clean the exterior of the shed periodically with mild soap and water. Rinse thoroughly with clean water.
- Avoid using abrasive cleaners or harsh chemicals, as these can damage the finish.
- Remove any debris from the roof and around the base to ensure proper water runoff and prevent accumulation.
Material Care:
- The shed's alloy steel construction is waterproof and UV-resistant. However, inspect the panels and frame annually for any signs of wear, corrosion, or damage.
- Tighten any loose fasteners as needed to maintain structural integrity.
- Lubricate door hinges and locking mechanisms periodically to ensure smooth operation.
Troubleshooting
This section addresses common issues you might encounter with your storage shed.
| Problem | Possible Cause | Solution |
|---|---|---|
| Doors do not close or lock properly. | Misalignment of the frame or hinges; obstruction in the door track. | Check that the shed base is level and square. Adjust hinges if necessary. Clear any debris from the door tracks. |
| Water accumulation inside the shed. | Improper roof panel installation; clogged vents; inadequate sealing at the base. | Ensure roof panels overlap correctly and fasteners are tight. Clear vents. Consider applying sealant around the base if water ingress persists. |
| Shed feels unstable or wobbly. | Insufficient anchoring; loose fasteners; uneven ground. | Verify the shed is securely anchored to the ground. Tighten all bolts and screws. Ensure the ground beneath the shed is firm and level. |
If you encounter issues not listed here or require further assistance, please contact VIWAT customer support.
Specifications
| Feature | Detail |
|---|---|
| Brand | VIWAT |
| Model Number | VMS-A03 |
| Color | White |
| Product Dimensions (D x W x H) | 167.7" x 138.5" x 86.1" |
| Base Material | Alloy Steel |
| Top Material Type | Metal |
| Water Resistance Level | Waterproof |
| Door Style | Hinged, Lockable Doors |
| Assembly Required | Yes |
| Floor Area | 192 Square Feet |
Warranty and Customer Support
VIWAT is committed to providing high-quality products and excellent customer service. If you have any questions or concerns regarding your shed after receiving it, please do not hesitate to contact our professional team.
Our customer support is available 24/7 to assist you with any inquiries, assembly challenges, or product-related issues. Please refer to your purchase documentation for specific warranty details and contact information.
