1. Introduction
Thank you for choosing the MLAY T17 Intelligent Laser Hair Removal Device. This device utilizes advanced IPL (Intense Pulsed Light) technology with an integrated ice cooling function for a comfortable and effective hair removal experience. It is designed for safe and convenient use on various body areas, offering multiple energy levels and intelligent skin tone recognition. Please read this manual thoroughly before first use to ensure proper operation, safety, and optimal results.
Image: The MLAY T17 device, safety goggles, razor, and disinfection base.
2. Safety Information
Your safety is paramount. Please adhere to the following safety guidelines:
- External Use Only: This device is intended for external use on the skin only.
- Eye Protection: Always wear the provided safety goggles during operation to protect your eyes from the intense pulsed light. Do not look directly into the light emission window.
- Skin Contact: Ensure the light emission window is in full contact with the skin before activating a flash.
- Avoid Sensitive Areas: Do not use on eyes, eyebrows, lips, nipples, genitals, or areas with tattoos, dark spots, or moles.
- Skin Tone Suitability: The device is equipped with an intelligent skin tone sensor. It will automatically adjust settings or prevent flashing if your skin tone is too dark for safe treatment. Refer to the skin tone chart in the operating section.
- Medical Conditions: Consult a doctor before use if you have any pre-existing medical conditions, skin disorders, or are taking photosensitizing medications.
- Pregnancy/Breastfeeding: Do not use if pregnant or breastfeeding.
- Children: Keep out of reach of children. This device is not intended for use by persons under 18 years of age.
- Flammable Materials: Keep away from any flame or heat sources. Do not use in the presence of flammable gases or liquids.
- Cleaning: Clean the device according to the maintenance instructions. Do not immerse the device in water or any other liquid.
3. Product Components
The MLAY T17 package includes the following items:
- IPL Device (MLAY T17A)
- Blue Light Disinfection Base
- AC Adapter (12V - 4A)
- Safety Goggles
- User Manual (this document)
- Warranty Card
- Cotton Swab (for cleaning)
Image: Diagram illustrating the components of the MLAY T17 device, including the power button, mode switching button, ice cooling button, ice cooling indicator, light exit window area, personalized smart skin sensing technology, and UV sterilization base.
4. Setup
Follow these steps to prepare your MLAY T17 device for use:
- Unpack: Carefully remove all components from the packaging.
- Inspect: Check the device and accessories for any signs of damage. Do not use if damaged.
- Clean Skin: Ensure the area of skin you intend to treat is clean, dry, and free of any lotions, creams, or deodorants.
- Shave Hair: For best results, shave the hair in the treatment area prior to using the device. Do not wax or pluck, as the IPL targets the hair follicle.
- Connect Power: Plug the AC adapter into the device and then into a power outlet (100V-240V). The device will enter standby mode.
- Wear Goggles: Put on the provided safety goggles before turning on the device.
5. Operating Instructions
The MLAY T17 offers intelligent features for effective hair removal:
5.1 Power On and Energy Levels
- Power On: Long press the Power Button (⑂) to turn on the device.
- Adjust Energy Level: Short press the Power Button (⑂) to cycle through the 3 energy levels. The higher the level, the stronger the intensity (8-14J). For first-time users, it is recommended to start from the lowest level (Level 1) and gradually increase as your skin adapts.
5.2 Intelligent Skin Tone Recognition
The MLAY T17 features an upgraded automatic skin tone sensor. Before each flash, the device measures your skin tone and automatically selects the most suitable light intensity. If your skin tone is too dark for safe treatment, the device will not flash.

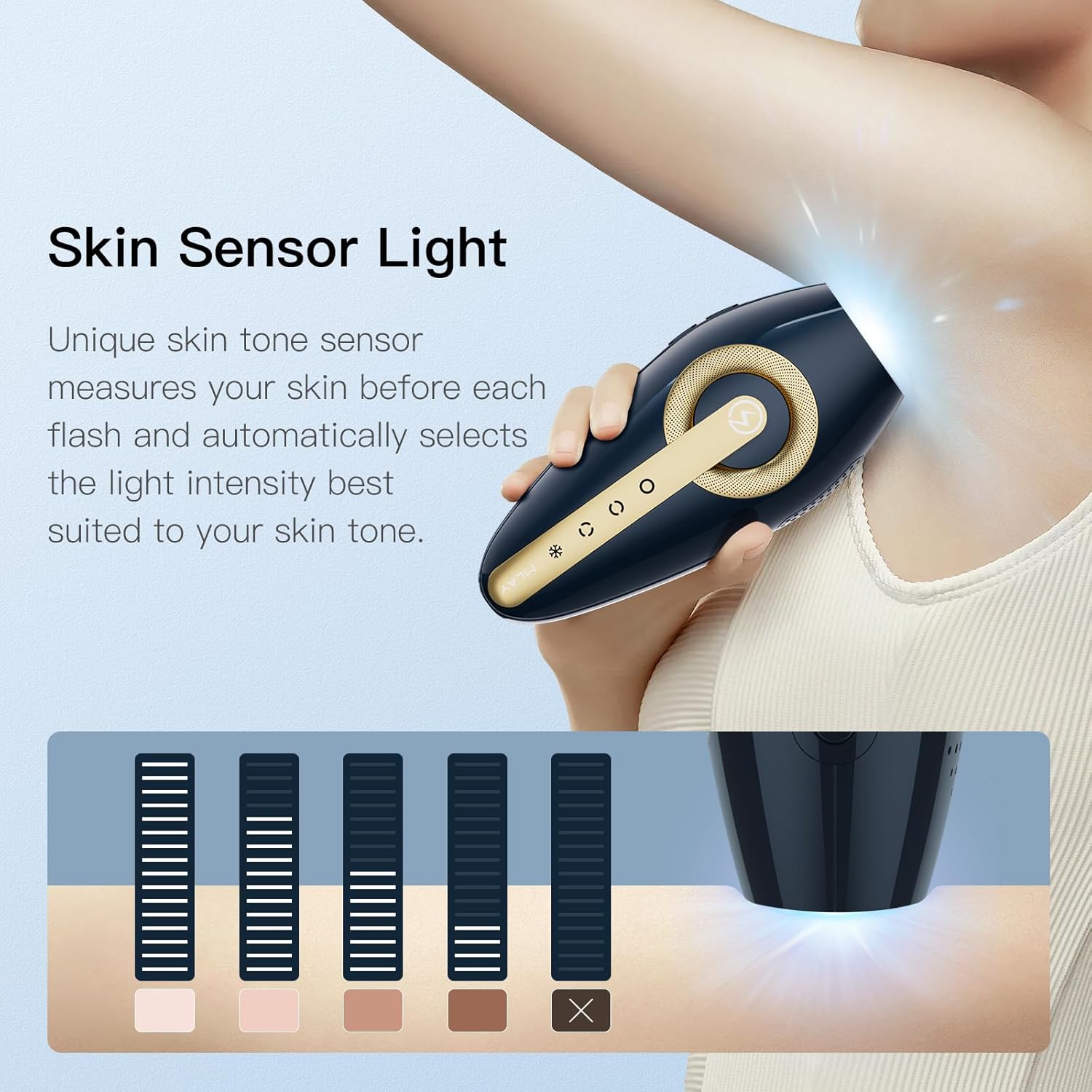

Image: Diagram illustrating the skin sensor light and a chart indicating suitable skin tones for IPL treatment. The device automatically adjusts intensity based on skin tone.
5.3 IPL Cooling Technology
The device features an optional ice cooling function for a painless and comfortable experience. After powering on, the ice chip cools down to 3℃ within 5 seconds. The cold compress surface can reach 0℃-15℃ within 1 minute of activating the function.
- Activate Cooling: Press the Ice Cooling Button (❃) to activate the cooling function. The ice cooling indicator will illuminate.
- Deactivate Cooling: Press the Ice Cooling Button (❃) again to turn off the cooling function.

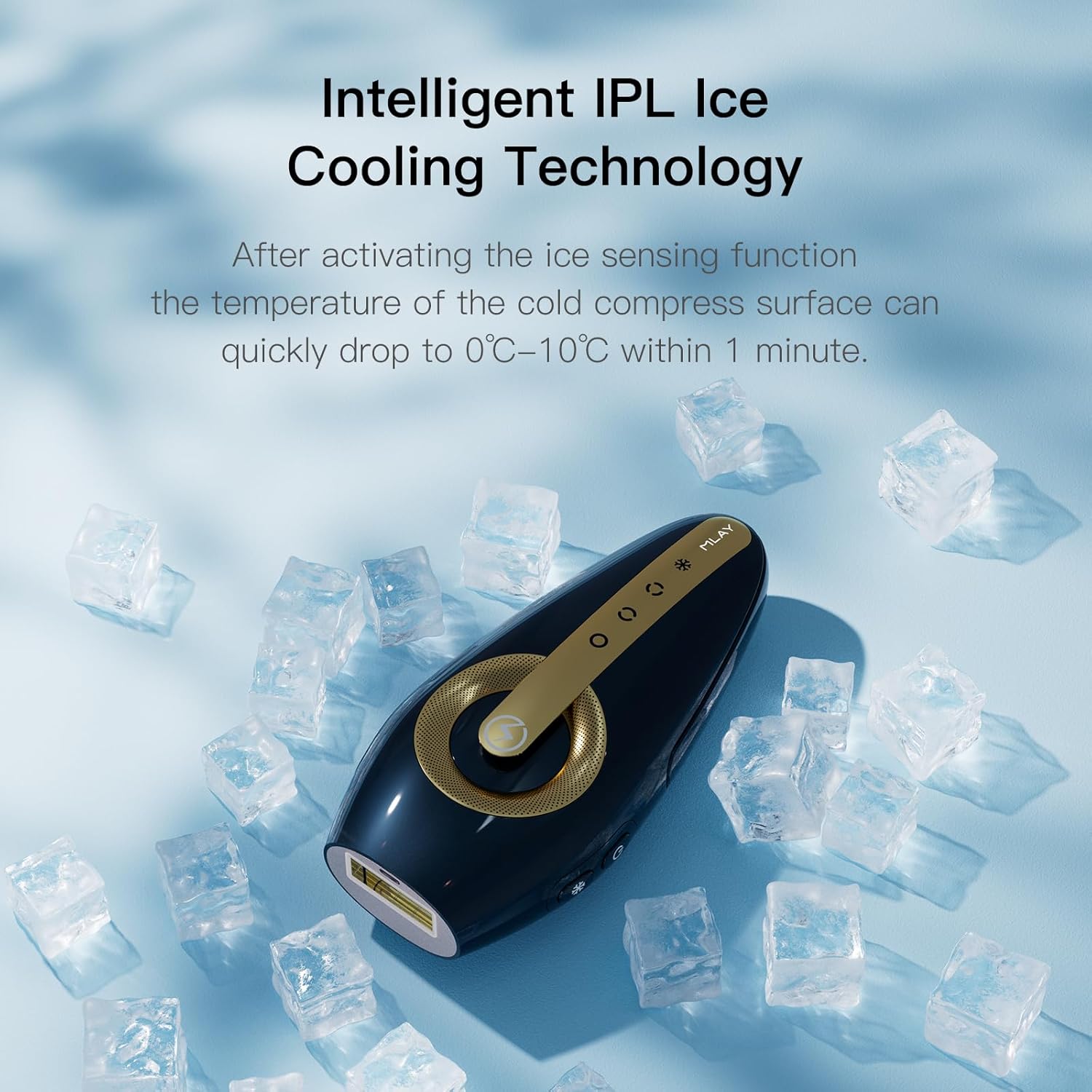

Image: The MLAY T17 device surrounded by ice cubes, illustrating its intelligent IPL ice cooling technology which quickly lowers the temperature of the cold compress surface.
5.4 Auto & Manual Modes
The MLAY T17 offers two flash modes for different body areas:
- Manual Mode: Suitable for small and precise areas like lips, armpits, and facial hair. To activate, short press the mode switching button. Press the flash button for each individual flash.
- Auto Mode: Ideal for large body areas such as arms, legs, and chest. To activate, long press the mode switching button. The device will automatically flash when the light exit window is in full contact with the skin.

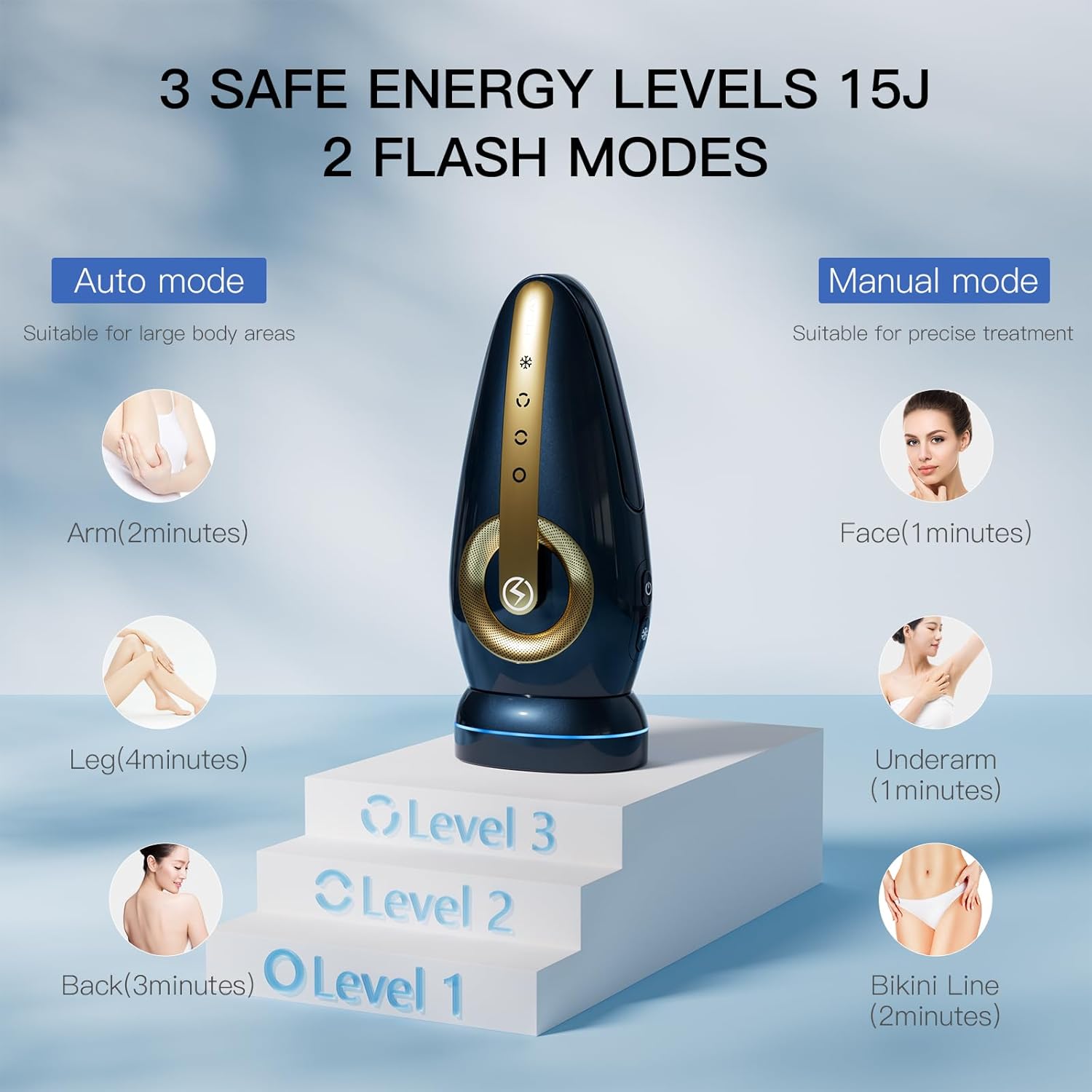

Image: Visual representation of the MLAY T17's Auto and Manual modes, showing recommended treatment times for various body areas like arms, legs, back, face, underarm, and bikini line, along with the three adjustable power levels.
5.5 Treatment Schedule and Results
Consistent use is key for optimal results. The device offers 999,999 flashes for long-term use.
- Initial Phase (Weeks 1-3): Use 2-3 times per week. Visible results may begin to appear.
- Reduction Phase (Weeks 4-5): Use 1-2 times per week. Hair growth should be significantly reduced.
- Maintenance Phase (Week 6-7 onwards): Use once every 2-4 weeks or as needed to maintain results.
Full body treatment can be completed in approximately 8 minutes. Individual results may vary.
Image: Before and after comparison images demonstrating the effectiveness of IPL hair removal, alongside a timeline showing hair growth reduction over several weeks.
6. Maintenance
Proper maintenance ensures the longevity and hygiene of your device:
- Cleaning: After each use, ensure the device is powered off and unplugged. Use the provided cotton swab or a soft, dry cloth to gently wipe the light emission window and the device body. Do not use abrasive cleaners or immerse the device in water.
- UV Sterilization Base: The device comes with a blue light disinfection base. After use, place the IPL device into the base. The blue light will sterilize and disinfect the lens, maintaining cleanliness and hygiene for shared use within a family.
- Storage: Store the device in a cool, dry place, away from direct sunlight and moisture. Keep it in its original packaging or a protective case when not in use.
Image: The MLAY T17 device placed on its UV sterilization base, highlighting its ability to effectively clean the lens from bacteria after hair removal.
7. Troubleshooting
If you encounter any issues with your MLAY T17 device, please refer to the table below:
| Problem | Possible Cause | Solution |
|---|---|---|
| Device does not turn on. | Not properly plugged in; Power outlet issue; Device malfunction. | Ensure the adapter is securely plugged into the device and a working power outlet. Try a different outlet. If problem persists, contact support. |
| Device does not flash. | Light emission window not in full contact with skin; Skin tone too dark; Energy level too low; Device malfunction. | Ensure full contact with skin. Check if your skin tone is suitable (refer to skin tone chart). Increase energy level. If problem persists, contact support. |
| Cooling function not working. | Cooling function not activated; Device malfunction. | Press the Ice Cooling Button (❃). Allow up to 1 minute for the cooling plate to reach optimal temperature. If problem persists, contact support. |
| Skin irritation after use. | Energy level too high; Sensitive skin; Improper pre-treatment. | Reduce energy level for subsequent treatments. Ensure skin is clean and dry before use. Apply a soothing lotion if needed. If irritation persists, discontinue use and consult a dermatologist. |
For issues not listed here, please contact MLAY customer support.
8. Specifications
Detailed technical specifications for the MLAY T17 Intelligent Laser Hair Removal Device:
| Feature | Specification |
|---|---|
| Model Type | Mlay T17A |
| Rated Input | 12V - 4A |
| Rated Power | 48W |
| Rated Voltage | 100V-240V |
| Light Exit Window Area | 3.5 cm² |
| Flashes | 999,999 |
| Energy Levels | 3 Gears (8-14J) |
| Flash Speed | 0.5-2.0 s / flash |
| Ice Cooling Temperature | 0℃-15℃ |
| Device Dimensions | 80 x 53 x 179 mm |
| Device Weight | Approximately 260g |
| Storage Temperature | 0℃-45℃ |
| Working Humidity | 25%-75% |
| Manufacturer | MLAY |
| Country of Origin | China |
9. Warranty and Support
Your MLAY T17 device comes with a warranty. Please refer to the included warranty card for specific terms and conditions regarding coverage and duration. For technical support, troubleshooting assistance, or any inquiries not covered in this manual, please contact MLAY customer service through the details provided on your warranty card or the official MLAY website.
We are committed to providing you with a high-quality product and excellent customer service.
