Introduction and Safety Information
Thank you for choosing the Altas Strength 3036 Adjustable Utility Bench. This manual provides essential information for the safe assembly, operation, and maintenance of your equipment. Please read all instructions carefully before use and retain this manual for future reference.
Important Safety Precautions:
- Always consult with a healthcare professional before starting any new exercise program.
- Ensure all bolts, nuts, and connections are securely tightened before each use.
- Do not exceed the maximum weight capacity of 800 pounds.
- Keep children and pets away from the equipment during operation.
- Use the equipment on a flat, stable surface.
- Inspect the equipment for wear or damage before each workout. Do not use if damaged.
- Wear appropriate athletic footwear and clothing during exercise.
The Altas Strength 3036 is constructed with 2.5mm thick steel, ensuring a sturdy frame for enhanced safety and durability during your workouts.
Setup and Assembly
The Altas Strength 3036 Adjustable Utility Bench is designed for straightforward assembly. An installation video is available to guide you through the process. Please ensure all components are present before beginning assembly.
Assembly Steps Overview:
- Unpack all components and verify against the parts list (not provided in this document, refer to packaging).
- Follow the step-by-step instructions provided in the detailed assembly guide (not provided in this document, refer to packaging) or the official installation video.
- Ensure all fasteners are tightened securely once assembly is complete.
Figure 1: Front view of the assembled Altas Strength 3036 Utility Bench.

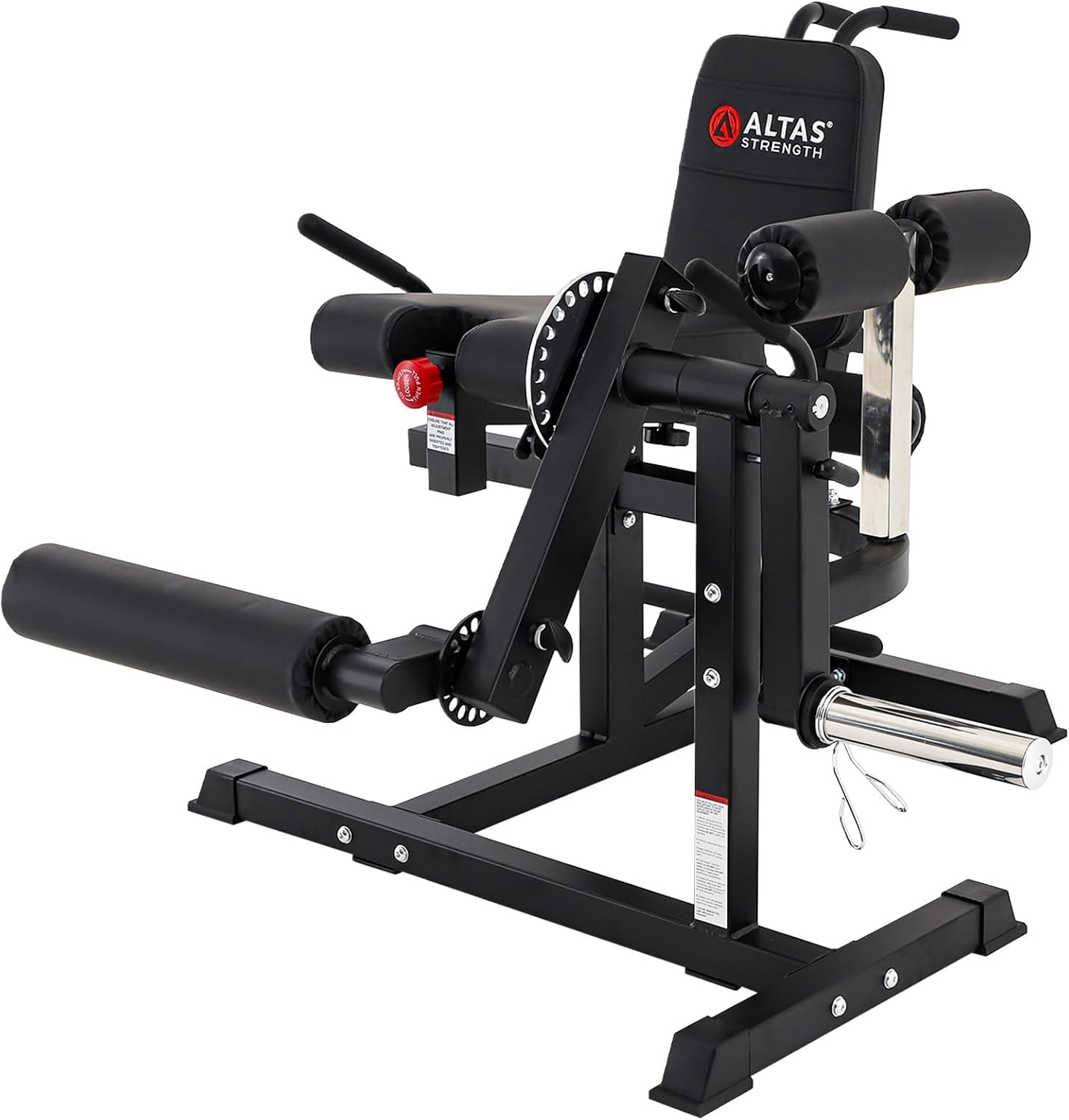

Figure 2: Side view of the Altas Strength 3036 Utility Bench, showing the weight plate holder.
Figure 3: Rear view of the Altas Strength 3036 Utility Bench.
Operating Instructions
The Altas Strength 3036 offers versatile functionality for various strength training exercises, including leg extensions and leg curls. Its adjustable design allows for quick transitions between exercises and user preferences.
Adjusting the Leg Developer/Extension:
- To adjust the angle of the leg developer, locate the adjustment pin or lever.
- Pull the pin/lever, adjust the leg developer to the desired position, and ensure the pin securely locks into place.
- The foot cushion can be positioned for both leg extensions (quadriceps) and prone leg curls (hamstrings). Adjust the cushion to achieve a comfortable and effective range of motion for your exercise.
- When performing leg extensions, ensure your feet are pointed upwards to avoid catching them on the floor support bar.
Figure 4: Leg developer set for leg extension exercise.

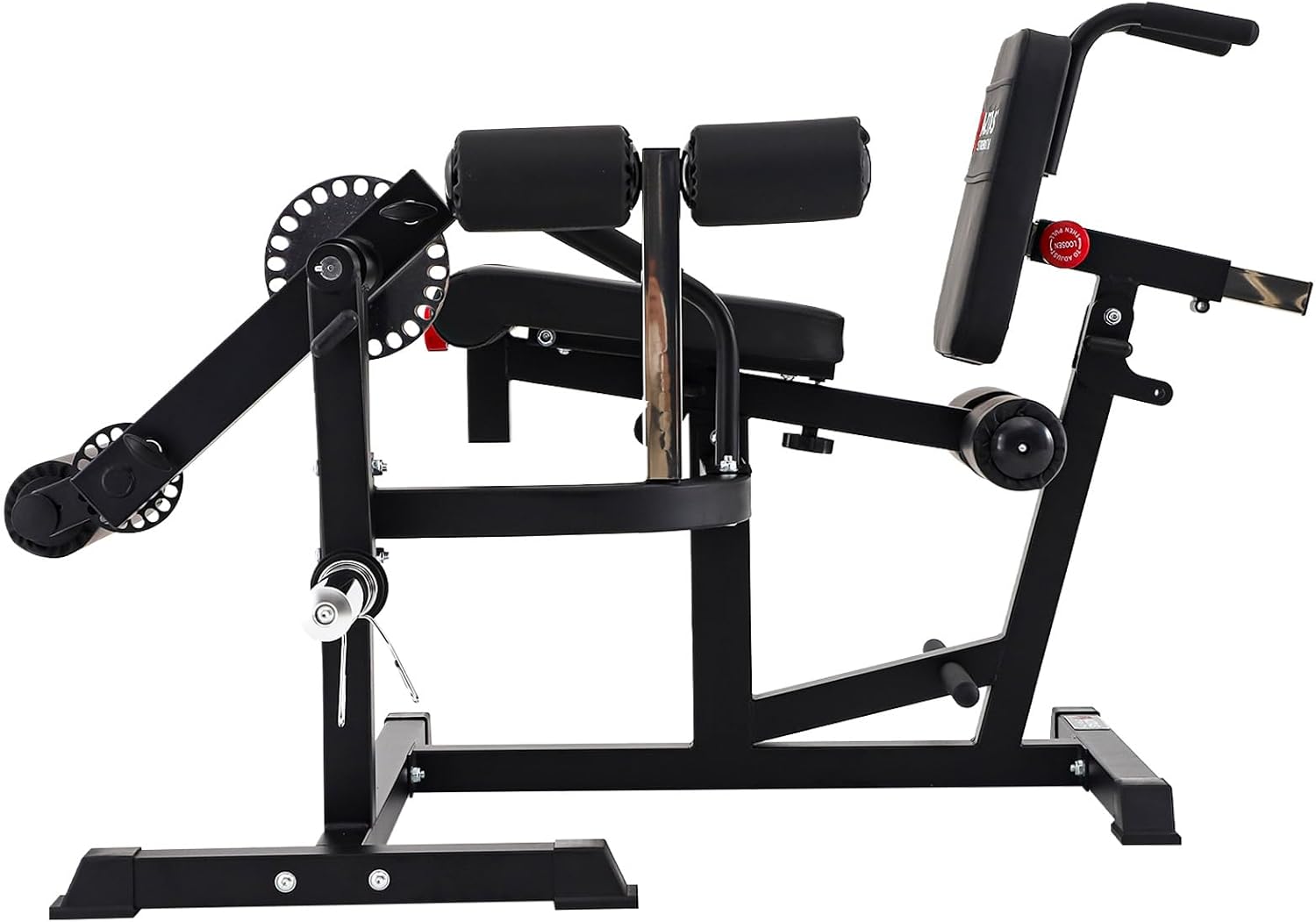

Figure 5: Leg developer in a mid-range adjustment for varied exercises.

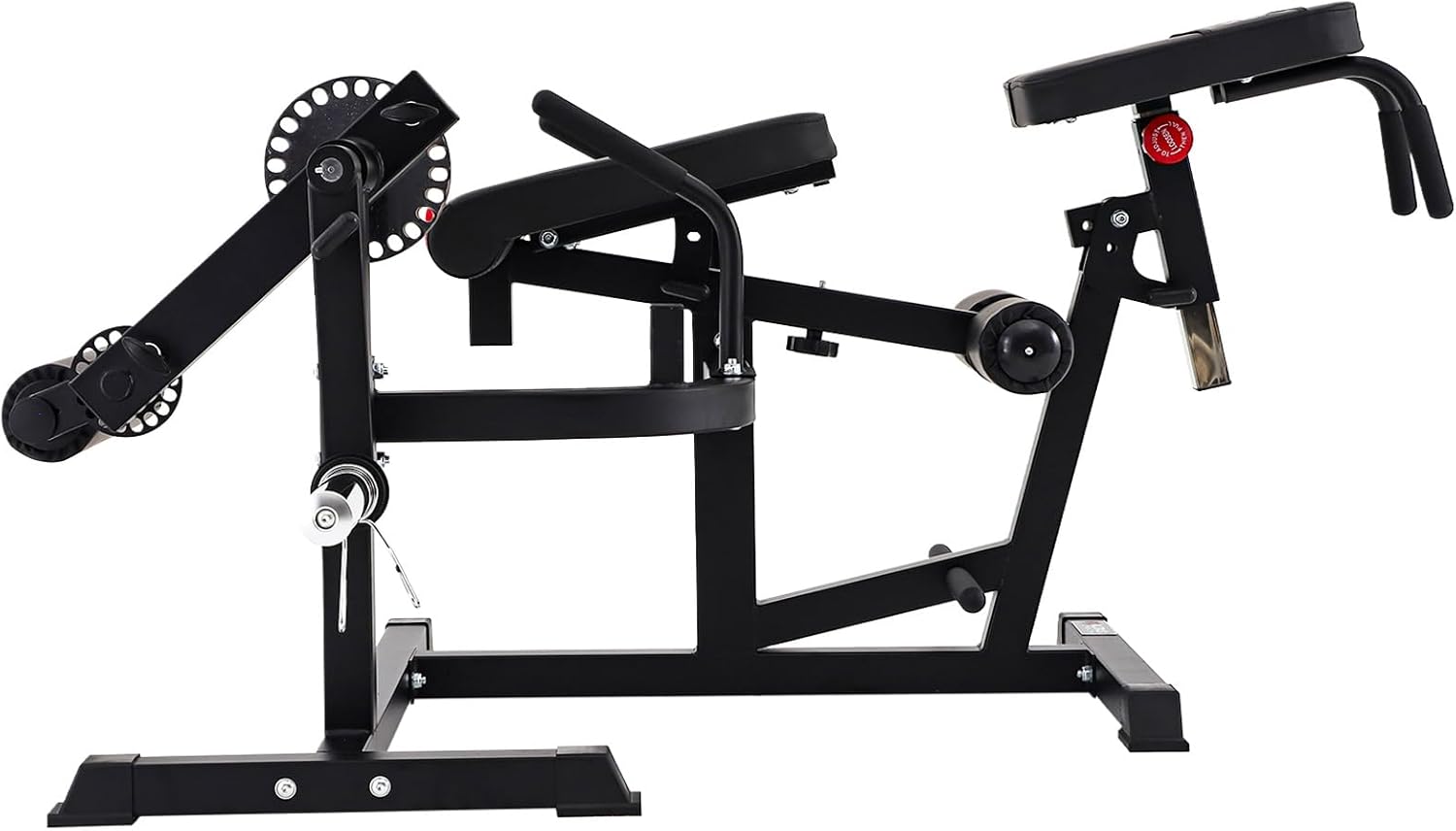

Figure 6: Leg developer adjusted for prone leg curl exercise.
Figure 7: Illustration of the leg developer's range of motion.
Figure 8: Illustration of the leg developer's full range of motion.
Maintenance
Regular maintenance ensures the longevity and safe operation of your Altas Strength 3036 Utility Bench.
Recommended Maintenance Schedule:
- Weekly: Wipe down the frame and upholstery with a damp cloth to remove sweat and dust.
- Monthly: Inspect all bolts, nuts, and moving parts for tightness. Re-tighten as necessary.
- Quarterly: Check for any signs of wear, cracks, or damage on the frame, padding, and moving components. Replace worn parts immediately.
- Lubricate any pivot points or moving parts with a silicone-based lubricant if they begin to squeak or move stiffly.
Troubleshooting
This section addresses common issues you might encounter with your utility bench.
| Problem | Possible Cause | Solution |
|---|---|---|
| Equipment feels unstable or wobbly. | Loose fasteners; uneven floor surface. | Check and tighten all bolts and nuts. Ensure the equipment is on a level surface. |
| Moving parts (e.g., leg developer) are stiff or noisy. | Lack of lubrication; dirt buildup. | Clean the moving parts and apply a silicone-based lubricant. |
| Adjustment pin does not lock securely. | Pin is bent or mechanism is obstructed. | Inspect the pin for damage. Clear any obstructions. If damaged, contact customer support for a replacement. |
If you encounter issues not listed here or require further assistance, please contact Altas Strength customer support.
Product Specifications
| Feature | Detail |
|---|---|
| Model | 3036 |
| Brand | ALTAS STRENGTH |
| Assembled Dimensions (L x W x H) | 47 x 37 x 66 inches (119.4 x 94 x 167.6 cm) |
| Frame Material | 2.5mm thick steel |
| Maximum Weight Capacity | 800 Pounds |
| Item Weight | 55.3 kg (122 Pounds) |
| Handle Type | Fixed |
| Color | Grey |
Warranty Information
Specific warranty details for the Altas Strength 3036 Utility Bench are typically provided with your purchase documentation. Please refer to the warranty card or contact Altas Strength directly for comprehensive information regarding coverage and terms.
This product is eligible for return or refund within 30 days of receipt, as per standard policy. For any warranty claims or inquiries, please retain your proof of purchase.
Customer Support
For assistance with assembly, parts, troubleshooting, or any other product-related questions, please contact Altas Strength Inc. customer support.
Manufacturer: Altas Strength
Contact Information: Please refer to your purchase documentation or the official Altas Strength website for the most current customer service contact details.
