BEAR FLAG EDITION Bobcat 64209-03 Spring Washer Instruction Manual

Introduction

This manual provides essential information for the proper installation and maintenance of your BEAR FLAG EDITION Bobcat 64209-03 Spring Washers. These OEM spring washers are designed for Bobcat equipment, ensuring compatibility and reliable performance. Please read these instructions carefully before use to ensure correct application and to maximize the lifespan of your equipment.

Product Overview

The BEAR FLAG EDITION Bobcat 64209-03 Spring Washer is an OEM replacement part specifically engineered for Bobcat machinery. This spring washer measures approximately .67 inches and is crucial for maintaining secure fastening in various applications. It helps prevent loosening due to vibration and thermal expansion, ensuring the integrity of bolted joints.

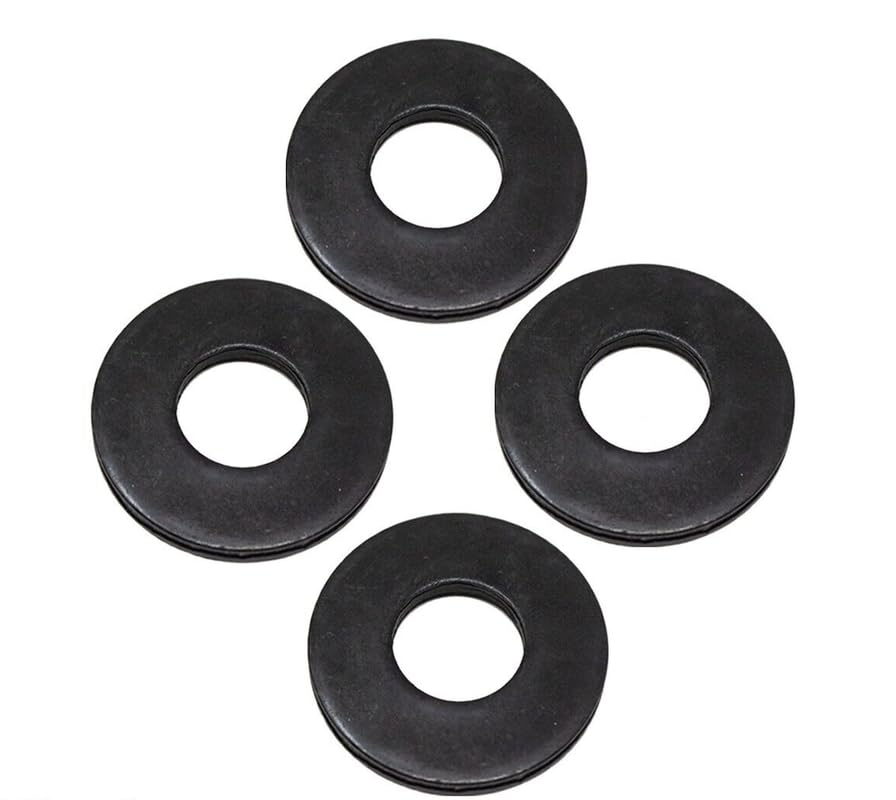

Image: Four black spring washers, each with a circular outer edge and a smaller circular hole in the center, arranged in a square pattern on a white background. These washers are designed to provide tension and prevent loosening of fasteners.

Key Features:

• OEM quality spring washer for Bobcat equipment.
• Compatible with Bobcat part number 64209-03.
• Measures approximately .67 inches in diameter.
• Designed to enhance fastening security and prevent loosening.
• Ideal for maintenance and repair projects.

Installation

Proper installation of the spring washer is critical for its function. Always ensure the washer is placed correctly to provide the intended tension.

1. Safety First: Before beginning any installation, ensure the equipment is turned off, de-energized, and secured to prevent accidental operation.
2. Inspect Components: Verify that the bolt, nut, and mating surfaces are clean, free from damage, and compatible with the washer.
3. Positioning: Place the spring washer directly under the nut or the bolt head (whichever is rotated during tightening) against the component surface. The split ends of the washer should be oriented to provide spring action.
4. Tightening: Tighten the fastener according to the equipment manufacturer's specifications. The spring washer should flatten as the fastener is tightened, providing continuous tension. Do not overtighten, as this can damage the washer or the components.
5. Verification: After tightening, visually inspect the washer to ensure it is properly seated and providing tension.

Note: For specific torque values and detailed assembly instructions, refer to your Bobcat equipment's service manual.

Usage and Application

The Bobcat 64209-03 Spring Washer is designed to be used in conjunction with bolts and nuts to create a more secure fastening. Its primary function is to provide a pre-load and compensate for minor loosening caused by vibration, thermal expansion, or material creep. It is suitable for various applications within Bobcat equipment where a reliable, vibration-resistant connection is required.

Ensure that the washer's material and size are appropriate for the environment and load conditions of your specific application.

Maintenance

Spring washers are generally maintenance-free components. However, periodic inspection is recommended to ensure continued performance.

• Visual Inspection: Regularly check installed washers for signs of corrosion, deformation, or cracking.
• Replacement: If a washer shows any signs of damage, or if a fastener has been disassembled, it is recommended to replace the spring washer with a new one to ensure optimal performance and safety. Spring washers are typically single-use components as their spring action can be compromised after initial compression.
• Storage: Store unused washers in a dry environment to prevent rust and degradation.

Compatibility and Fit

This spring washer is an OEM part compatible with Bobcat equipment requiring part number 64209-03. To ensure a precise fit and proper function, always verify the dimensions and specifications against your equipment's requirements.

• Part Number Verification: Confirm that your equipment requires Bobcat part number 64209-03.
• Dimensional Check: The washer has an approximate .67 inch inner diameter. Ensure this matches the bolt diameter you intend to use it with.
• Visual Confirmation: Compare the physical appearance of the new washer with any existing washers or diagrams in your equipment's service manual.

Using an incorrect size or type of washer can lead to fastener failure and potential equipment damage.

Specifications

Warranty and Support

For specific warranty information regarding BEAR FLAG EDITION products, please refer to the original purchase documentation or contact the retailer. As an OEM replacement part, the warranty may be subject to the terms and conditions of the original equipment manufacturer or the reseller.

For technical support or inquiries regarding the Bobcat 64209-03 Spring Washer, please contact BEAR FLAG EDITION customer service or your authorized Bobcat dealer.
