AngFan Professional Hair Clippers and Trimmer Set Instruction Manual

1. Important Safety Information

Please read all instructions carefully before using this appliance. Keep this manual for future reference.

• Avoid use near water.
• Keep blades clean and dry.
• Supervise children during use or storage to prevent accidents.
• Do not disassemble the unit. For service, contact qualified personnel.
• Use only with the provided charging cable.

2. Package Contents

Your AngFan Professional Hair Clippers and Trimmer Set includes:

• 1x Professional Hair Clipper
• 1x Professional Hair Trimmer
• Multiple N-Lock Hair Clipper Guards (1/16" to 1")
• Charging Cable (USB)
• Cleaning Brush
• Blade Oil
• Hair Cutting Cape
• Combs
• Scissors
• User Manual

Image: The complete AngFan Professional Hair Clippers and Trimmer Set, including both devices, various guide combs, charging cables, cleaning brush, oil, and a hair cutting cape.

3. Product Overview & Features

The AngFan Professional Hair Clippers and Trimmer Set is designed for precision hair cutting and trimming, offering both cordless convenience and powerful performance.

• Cordless Operation: Enjoy the flexibility of cordless use with the power of a corded clipper.
• Lithium Ion Power: Up to 3-hour runtime on a full charge for multiple haircuts.
• Smart Charge Technology: Display light indicates battery status (fully charged, charging, low power).
• Self-Sharpening Blades: Precision-ground blades cut through thick hair and stay sharper longer.
• Adjustable Taper Lever: Easily adjust blade length for blending and fading haircuts.
• N-Lock Attachment Guards: Secure guards for cutting lengths from 1/16" to 1".

Image: Close-up view of the R-type self-sharpening precision-ground blades on the AngFan clipper, designed for smooth cutting.

Image: The AngFan clipper highlighting its lithium battery power, offering up to 270 minutes of runtime, and a high-torque powerful motor.

4. Charging Instructions

1. Ensure the clipper/trimmer is turned off before charging.
2. Plug the USB charging cable into the charging port on the device.
3. Connect the other end of the USB cable to a compatible USB power adapter (not included) or a computer USB port.
4. The smart display light will indicate the charging status:
   • Flashing Red: Low power
   • Solid Red: Charging
   • Solid Green: Fully charged
5. A full charge typically takes approximately 3 hours.
6. To maximize battery health and life, charge the unit fully at least every 6 months.

Image: Diagram illustrating the intelligent charging technology with solid green for fully charged, solid red for charging, and flashing red for low power.

5. Setup

1. Initial Charge: Before first use, fully charge both the hair clipper and trimmer as per the "Charging Instructions" section.
2. Attach Guide Comb: Select the desired N-Lock attachment guard for your preferred hair length. Align the guard with the clipper/trimmer blade and push firmly until it clicks securely into place. Ensure it is properly seated to prevent accidental detachment during use.
3. Adjust Taper Lever (Clipper Only): For the hair clipper, use the adjustable taper lever on the side to fine-tune the blade length for blending and fading. Move the lever up for a shorter cut and down for a longer cut.

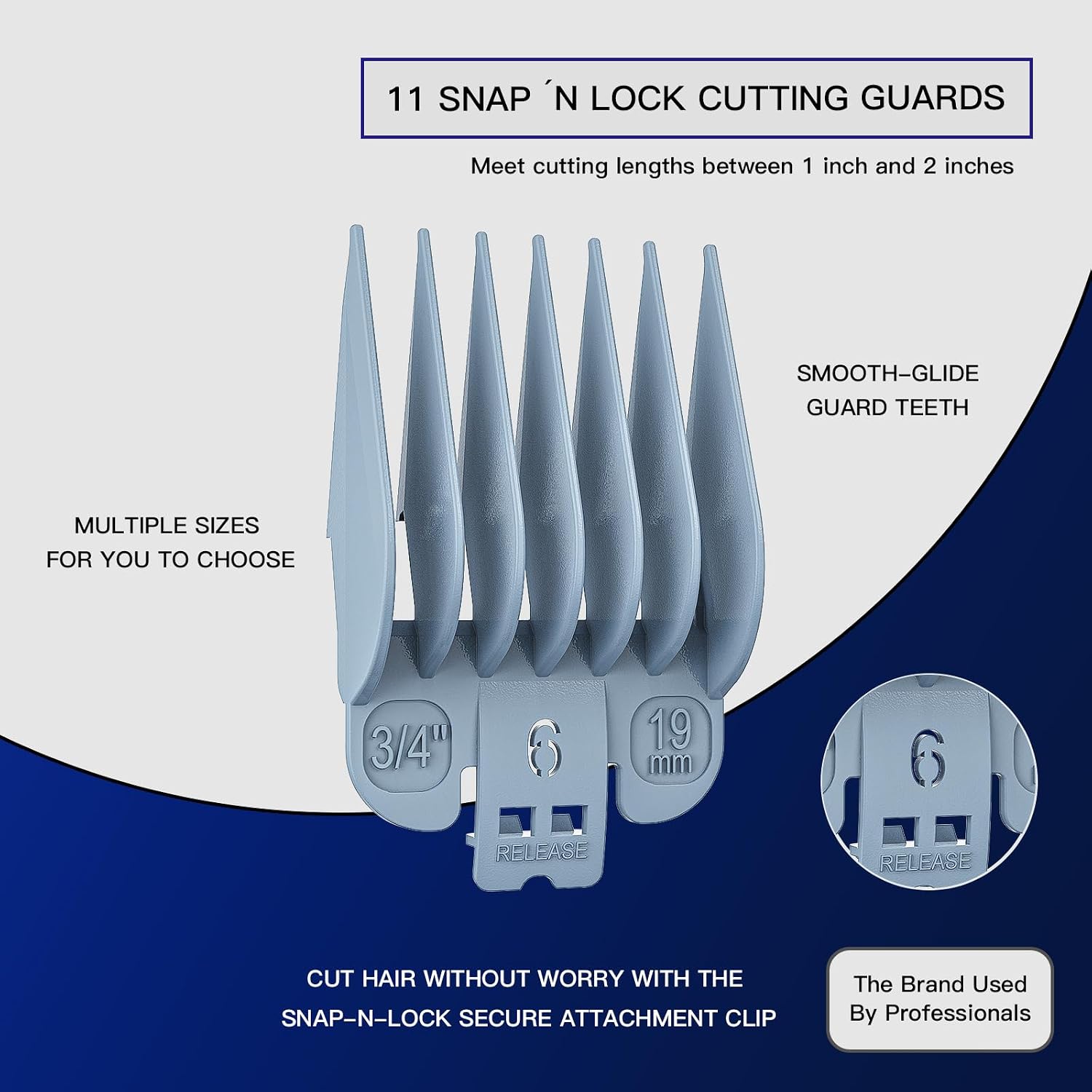

Image: A set of N-Lock cutting guards with smooth-glide teeth and secure attachment clips, designed for various cutting lengths.

6. Operating Instructions

6.1 Using the Hair Clipper

1. Ensure the clipper is fully charged and the desired guide comb is attached.
2. Turn on the clipper by sliding the power switch.
3. For optimal results, cut hair when it is clean and dry.
4. Hold the clipper with the blade flat against the head and move it slowly against the direction of hair growth.
5. Use the adjustable taper lever to achieve desired blending and fading effects.
6. After use, turn off the clipper and clean the blades.

6.2 Using the Hair Trimmer

1. Ensure the trimmer is fully charged.
2. Turn on the trimmer by sliding the power switch.
3. For precise lines and detailing, use the trimmer without a guard.
4. For beard trimming or shorter hair lengths, attach the appropriate guide comb.
5. Move the trimmer gently against the direction of hair growth for an even trim.
6. After use, turn off the trimmer and clean the blades.

Image: A hand holding the AngFan Professional Hair Clipper, demonstrating its ergonomic design for comfortable use during haircuts.

Image: Close-up of the AngFan clipper's adjustable taper lever, allowing for effortless blending and customized cutting lengths.

7. Maintenance

7.1 Cleaning the Blades

1. After each use, turn off the clipper/trimmer.
2. Use the provided cleaning brush to remove any loose hairs from the blades.
3. For a more thorough cleaning, detach the blade assembly (refer to user manual for specific instructions if needed).
4. Keep blades clean and dry to prevent rust and ensure optimal performance.

7.2 Oiling the Blades

1. Regularly oil the blades to maintain sharpness and smooth operation.
2. Apply a few drops of the provided blade oil across the top of the blades while the device is running.
3. Allow the device to run for a few seconds to distribute the oil, then turn it off.
4. Wipe off any excess oil with a soft cloth.

8. Troubleshooting

9. Specifications

• Model Number: AngFan-588
• Product Dimensions: 5 x 1.51 x 1.5 inches
• Item Weight: 1.5 Pounds
• Power Source: Battery Powered (Lithium Ion)
• Runtime: Up to 3 hours on a full charge
• Charging Time: Approximately 3 hours
• Color: Blue+sliver
• Manufacturer: angfan

10. Warranty and Support

For warranty information or technical support, please refer to the contact details provided on the product packaging or visit the official AngFan website.

11. Legal Disclaimer

Statements regarding dietary supplements have not been evaluated by the FDA and are not intended to diagnose, treat, cure, or prevent any disease or health condition.

12. Product Videos
