Generico BL-4C Rechargeable Li-ion Battery User Manual

1. Introduction

This manual provides essential instructions for the safe and effective use of your Generico BL-4C rechargeable Li-ion battery. This battery is designed as a replacement for various mobile phone models that utilize the BL-4C battery code.

Please read this manual thoroughly before installation and use to ensure optimal performance and longevity of your battery. This battery is a recent production from 2024, ensuring fresh stock and optimal performance.

Generico BL-4C battery with 'PRODUZIONE RECENTE 2024' text

Image 1: The Generico BL-4C battery, highlighting its recent production date of 2024, indicating fresh manufacturing.

2. Compatibility and Verification

The BL-4C battery is compatible with a range of mobile phones. Before installation, it is crucial to verify that your device specifically requires a BL-4C battery. This code is typically printed on your original battery.

Compatible Models include:

Nokia: 1661, X2, 6230, 108, 107, 2220 Slide, 3500 Classic, 6300i, 6301, 7270N, N70, 1100, 1101, 6030, 6085, 7200, E50
Brondi: Amico, Amico Semplice +, Amico Sicuro +, W11, W3, Bravo, Sport, Pratico, Vero, Simply, Fox, Amico di Casa, Amico Grande 2, Amico Mio Oyster, President, Magnum 4, Supervoice, Contender, Bigfp800ac, Bigfp600ac, Bigfp800aa, Amico Fedele, Window, King B001
Doro: XYP1110007704, 1350, 1360, 1361, DBC-800B, DBC-800D, DBC-800, DBC-800A, DBP-800
Olympia: LN-4C
Kazam: KAC5, KAC5-HELBE0003594, KALB2, KALB2-MXDB0135
Simvalley: PX-3371-675, PX-3371-912, PX-3446-675, PX-3909-675
Hagenuk: F100
Emporia: AK-C140
Digma: EB-4L
Hyundai: BP-121
Manta: JB-4C
BeaFon: EU001B, S400 EU001W, Blu N4C600
Texet: B111

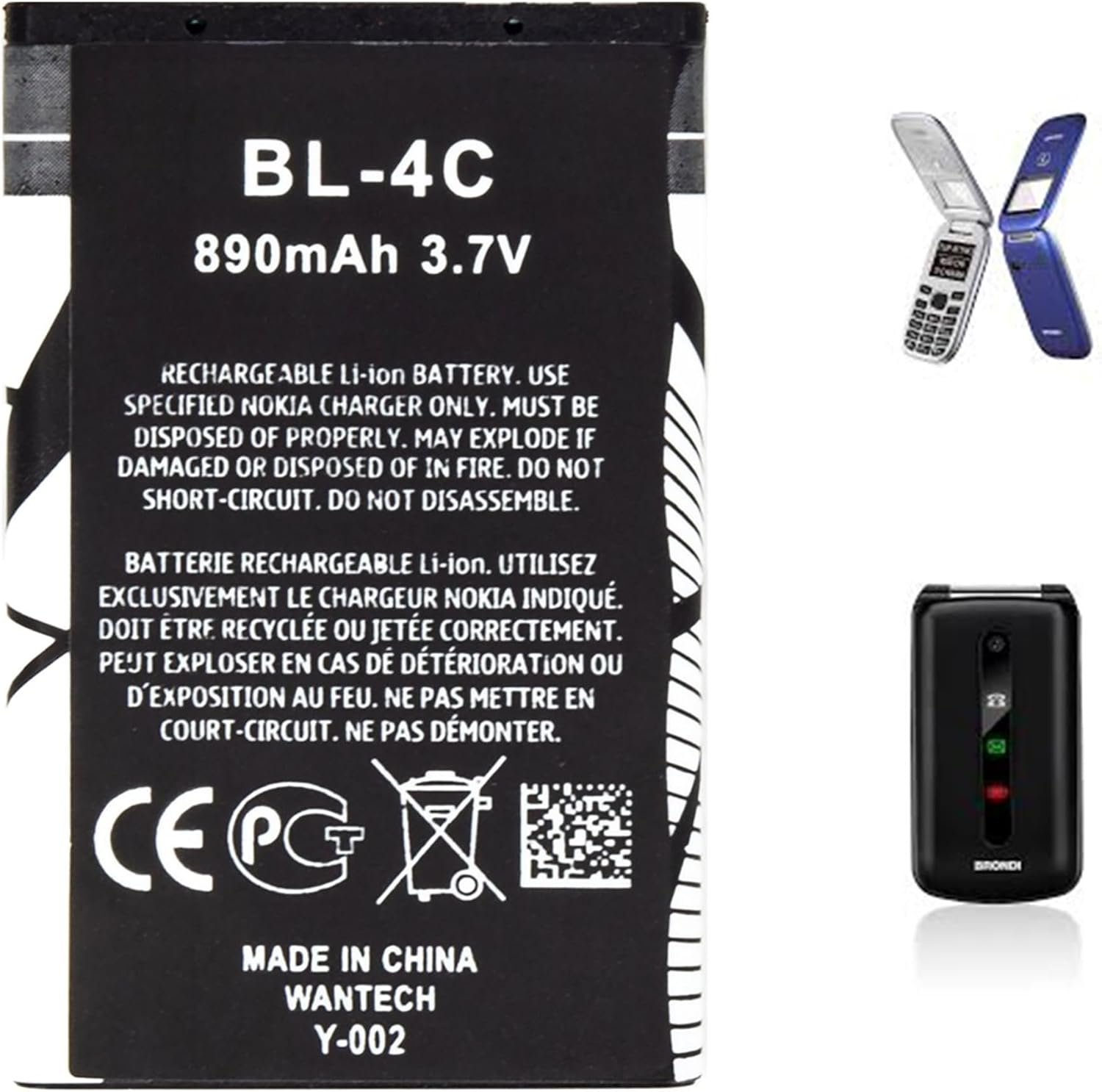

Generico BL-4C battery next to two compatible flip phones

Image 2: The Generico BL-4C battery shown alongside two examples of compatible flip-style mobile phones, illustrating the battery's form factor and typical device it powers.

3. Setup and Installation

Power Off Device: Ensure your mobile phone is completely powered off before attempting to remove or install the battery.
Remove Old Battery: Open the battery compartment cover of your phone. Carefully remove the old battery, if present.
Insert New Battery: Align the Generico BL-4C battery with the contacts inside the battery compartment. Gently press the battery into place until it sits securely. Do not force the battery.
Close Compartment: Replace the battery compartment cover.
Initial Charge: For optimal performance, fully charge the new battery before its first use. Connect your phone to its original charger and allow it to charge until the battery indicator shows 100%.

4. Operating Instructions

The Generico BL-4C battery operates like any standard mobile phone battery. Once installed and charged, your phone should power on normally.

Charging: Always use a compatible charger designed for your mobile phone. Overcharging or using incompatible chargers can damage the battery and device.
Battery Life: Battery life varies depending on phone usage, network conditions, and settings.
Temperature: Avoid exposing the battery to extreme temperatures (below 0°C or above 45°C), as this can degrade performance and shorten its lifespan.

5. Maintenance and Safety

Proper maintenance ensures the longevity and safe operation of your battery.

Storage: If storing the battery for an extended period, keep it partially charged (around 50%) in a cool, dry place.
Cleaning: Keep battery contacts clean. Use a dry, soft cloth to wipe them if necessary.
Avoid Damage: Do not puncture, disassemble, or drop the battery. Avoid short-circuiting the battery terminals.
Disposal: Do not dispose of the battery in household waste. Li-ion batteries must be recycled properly. Look for local recycling centers or return programs for electronic waste. The battery features a crossed-out wheeled bin symbol, indicating it should not be disposed of with general waste.

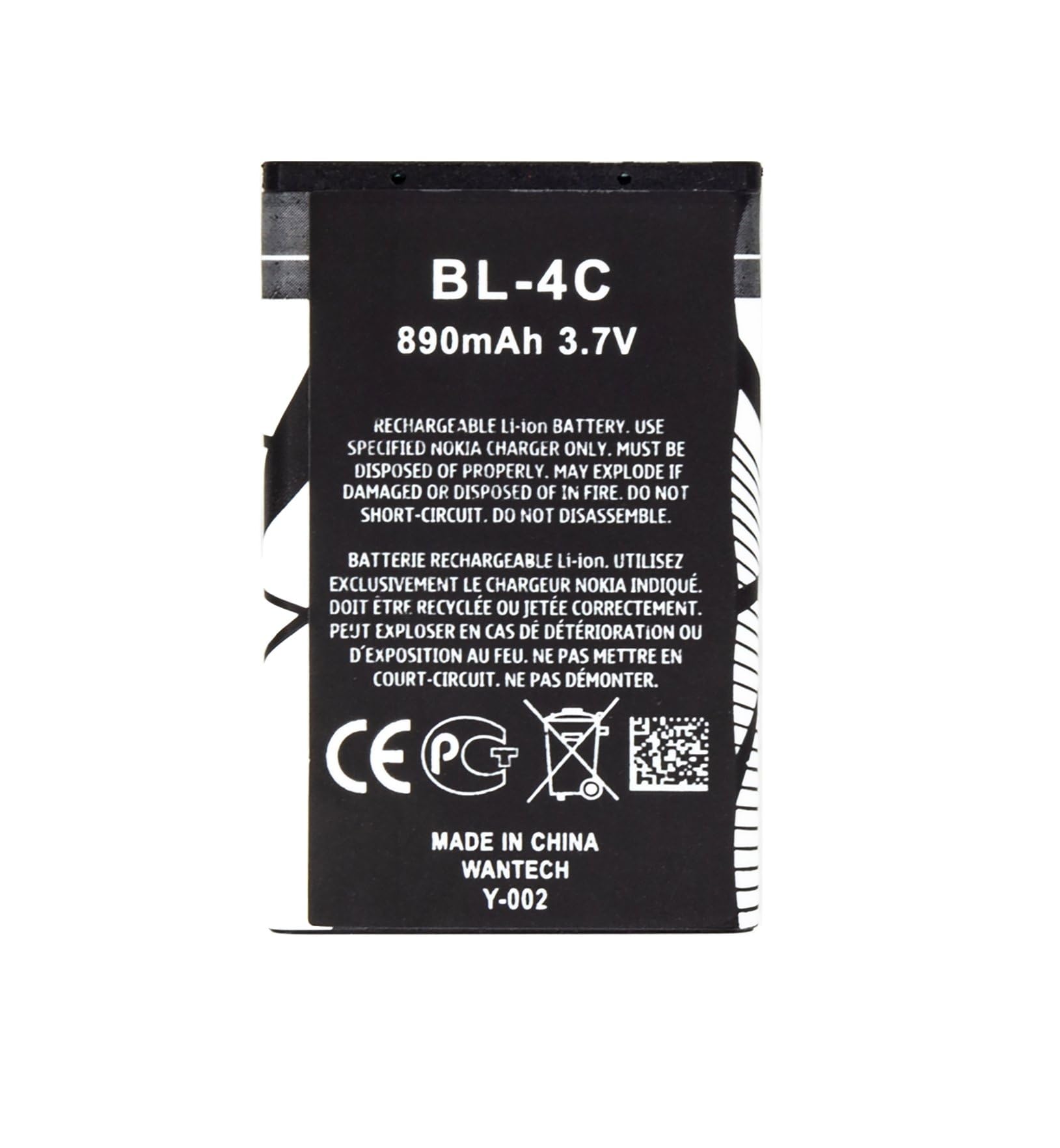

Generico BL-4C battery showing specifications and recycling symbol

Image 3: Close-up of the Generico BL-4C battery, displaying its model number, capacity (890mAh), voltage (3.7V), and important safety and recycling symbols, including the crossed-out wheeled bin.

6. Troubleshooting

Problem	Possible Cause	Solution
Battery not charging	Loose connection Faulty charger Damaged battery	Ensure charger is securely connected to phone and power source. Try a different, known-good charger. If battery is visibly damaged or swollen, replace it immediately.
Short battery life	High phone usage Background apps Battery degradation	Reduce screen brightness, close unused apps. Check phone settings for power-saving options. If battery life significantly decreases over time, consider replacing the battery.
Phone not powering on	Battery not installed correctly Battery completely discharged Faulty battery	Re-install the battery, ensuring proper alignment. Charge the battery for at least 30 minutes before attempting to power on. If issues persist, the battery may be faulty and require replacement.

7. Specifications

Model Number	BL-4C
Battery Type	Rechargeable Li-ion (Lithium-ion)
Capacity	890 Milliamperora (mAh)
Voltage	3.7 Volts
Recommended Use	Mobile Phones
Dimensions (approx.)	20 x 20 x 10 mm
Weight (approx.)	10 Grams
Manufacturer	Outlet Accessori
Production Date	Recent Production (2024)

8. Warranty Information

This Generico BL-4C battery comes with a 2-year manufacturer's warranty. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accident, unauthorized modification, or normal wear and tear.

Please retain your proof of purchase for warranty claims.

9. Support

For further assistance, technical support, or warranty inquiries, please contact the manufacturer, Outlet Accessori, or your retailer. Ensure you have your product model number (BL-4C) and proof of purchase available when seeking support.

For general information regarding battery safety and recycling, please refer to local regulations and guidelines.
