Instruction Manual for Toro 93-1225 Adjustment Lever

Product Overview

This document provides essential information for the ACTIVLIFE replacement adjustment lever, specifically designed for Toro lawn mowers with model number 93-1225. This component is crucial for enabling precise cutting height adjustments on your mower, ensuring optimal grass cutting performance.

The replacement lever is engineered to provide smooth operation and durability, contributing to the longevity and efficiency of your lawn care equipment.

Setup and Installation

Before installation, it is critical to visually inspect the new adjustment lever and compare it with the original part from your Toro mower. Ensure that the dimensions and connection points align correctly to guarantee compatibility and proper function.

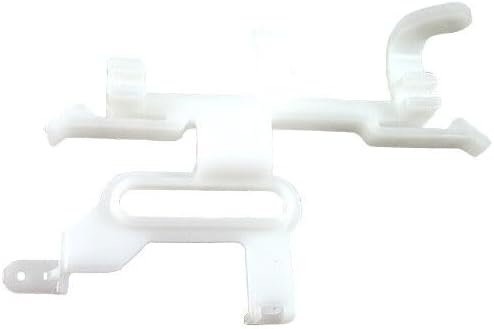

Figure 1: The ACTIVLIFE replacement adjustment lever for Toro 93-1225. This image displays the white plastic adjustment lever, designed for precise cutting height adjustments on compatible Toro lawn mowers. The lever features various connection points and a central elongated opening.

Refer to your specific Toro lawn mower's service manual for detailed instructions on how to safely remove the old adjustment lever and install the new replacement part. Ensure the mower is turned off and spark plug wire is disconnected before beginning any maintenance or installation procedures.

Operating Instructions

Once installed, the adjustment lever allows you to modify the cutting height of your lawn mower. The design ensures precise and consistent height settings. To adjust the cutting height:

1. Ensure the lawn mower is on a flat, stable surface and the engine is off.
2. Locate the adjustment lever on your mower's deck.
3. Move the lever to the desired height setting. The lever's mechanism is designed for smooth engagement and secure positioning at each height increment.
4. Verify that all wheels are set to the same height for an even cut.

The replacement lever is designed to maintain the original equipment's smooth operation, allowing for effortless height changes.

Maintenance

The ACTIVLIFE adjustment lever is constructed for durability. Regular maintenance of your lawn mower, including cleaning around the deck and height adjustment mechanisms, will help ensure the longevity and smooth operation of this part. Periodically check for any debris that might impede the lever's movement.

Troubleshooting

• Lever is stiff or difficult to move: Ensure there is no dirt, grass clippings, or other debris obstructing the lever's path. Clean the area thoroughly.
• Cutting height is uneven: Double-check that all adjustment levers (if your mower has multiple) are set to the same height. Inspect the lever and its connection points for any signs of damage or improper installation.
• Lever does not stay in position: Verify that the lever is correctly seated in its designated notches. If the issue persists, inspect the lever and the mower's height adjustment mechanism for wear or damage.

If you encounter persistent issues, consult a qualified service technician or refer to your mower's original service manual.

Specifications

Warranty and Support

For information regarding warranty coverage or technical support for your ACTIVLIFE replacement part, please refer to the seller's information provided at the time of purchase. It is recommended to retain your purchase receipt for any warranty claims.
