ETA Steam Clean Multifunction Steam Vacuum Cleaner

1. Introduction

Thank you for choosing the ETA Steam Clean Multifunction Steam Vacuum Cleaner. This appliance is designed for deep and gentle cleaning of various surfaces, including carpets, upholstery, car interiors, bathrooms, and kitchens. It effectively removes stains, bacteria, mites, and limescale using powerful steam and suction. Please read this manual carefully before first use to ensure safe and optimal operation.

2. Safety Information

Important Safety Instructions:

• Always ensure the power supply matches the voltage specified on the appliance.
• Do not immerse the appliance, power cord, or plug in water or other liquids.
• Keep the appliance out of reach of children and pets.
• Exercise caution when using steam, as it can cause burns. Do not direct steam at people, animals, or electrical appliances.
• Never open the water tank cap while the appliance is under pressure.
• Unplug the appliance from the power outlet before cleaning, maintenance, or when not in use.
• Do not operate the appliance if it has a damaged cord or plug, or if it has been dropped or damaged.
• Use only manufacturer-recommended accessories and attachments.

3. Package Contents

Verify that all components are present in the package:

• ETA Steam Clean Main Unit
• Spot cleaning brush with suction slot and spray function
• Conical concentration nozzle
• Mini flat scraper
• Curved steam nozzle
• Joint brush
• Nylon round brush
• Brass round brush
• Large window squeegee with fabric cover
• Self-cleaning attachment

Image: Main unit with detachable clean and dirty water tanks.

4. Setup

1. Unpacking: Carefully remove all components from the packaging. Retain packaging for future storage or transport.
2. Filling the Clean Water Tank: Remove the clean water tank (1.6 L capacity). Fill it with clean tap water. For optimal steam cleaning, distilled or demineralized water is recommended to prevent limescale buildup. Do not add cleaning agents to this tank unless specifically designed for steam cleaners and approved by ETA.
3. Attaching Accessories: Select the appropriate cleaning attachment for your task. Securely attach it to the hose handle until it clicks into place.
4. Power Connection: Plug the power cord into a suitable electrical outlet. The appliance has a 5m power cable for extended reach.

5. Operating Instructions

The ETA Steam Clean offers 4 cleaning modes for versatile use:

• Cold Water Aspiration: For vacuuming liquids without heat.
• Hot Water (60°C): For enhanced cleaning power on tough stains.
• Steam: For disinfection and dissolving grease and dirt.
• Steam Cleaning: Combines steam and suction for deep cleaning and drying.

5.1. Powering On and Mode Selection

1. Press the power button on the LED touch screen to turn on the appliance.
2. The LED display will show indicator lights for heating and steam/hot water readiness.
3. Select your desired cleaning mode using the touch controls. Steam generation is very fast, approximately 30 seconds.

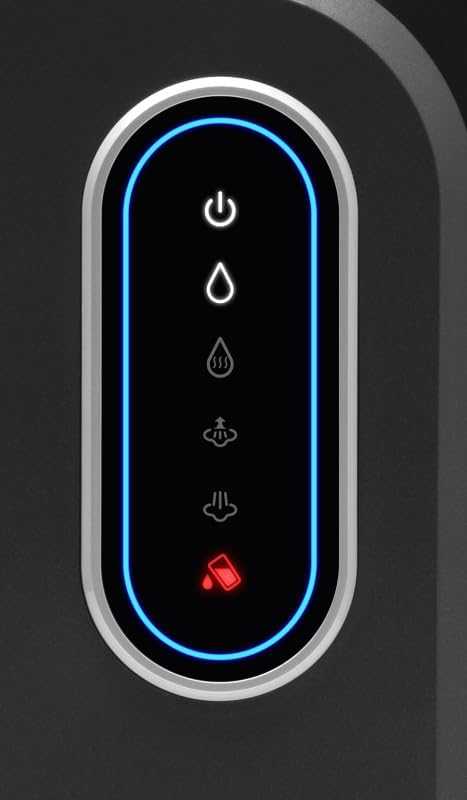

Image: LED touch control panel for mode selection and status indicators.

5.2. Using Specific Attachments

• Spot Cleaning Brush: Ideal for carpets, sofas, cushions, and car interiors. The suction slot ensures simultaneous cleaning and drying.

Image: Using the spot cleaning brush on a sofa.

• Conical Concentration Nozzle & Curved Steam Nozzle: For precise steam application, excellent for cleaning bathroom fixtures, sinks, toilets, and hard-to-reach areas.

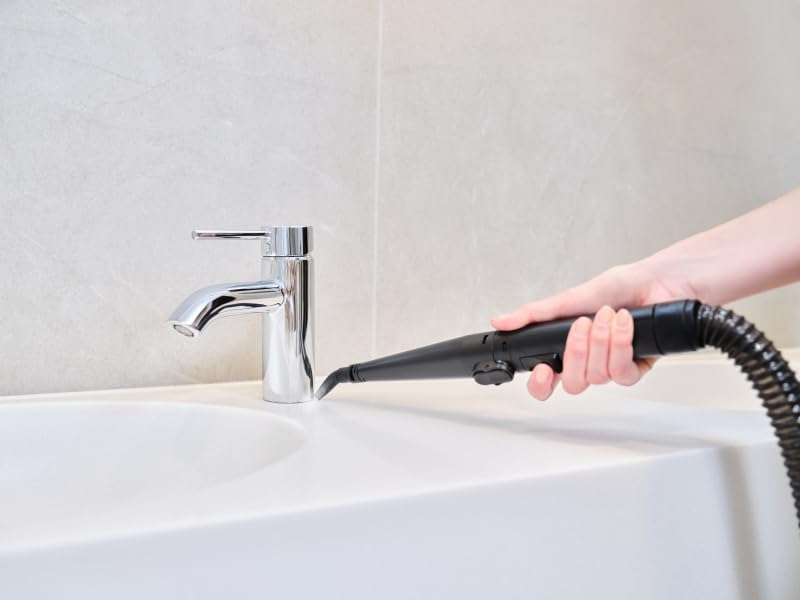

Image: Cleaning a sink faucet with a precision nozzle.

• Joint Brush & Nylon Round Brush: Effective for cleaning grout lines, radiators, and other textured surfaces.

Image: Cleaning a radiator with a brush attachment.

• Brass Round Brush: For heavy-duty cleaning, such as grills and stubborn dirt on robust surfaces.

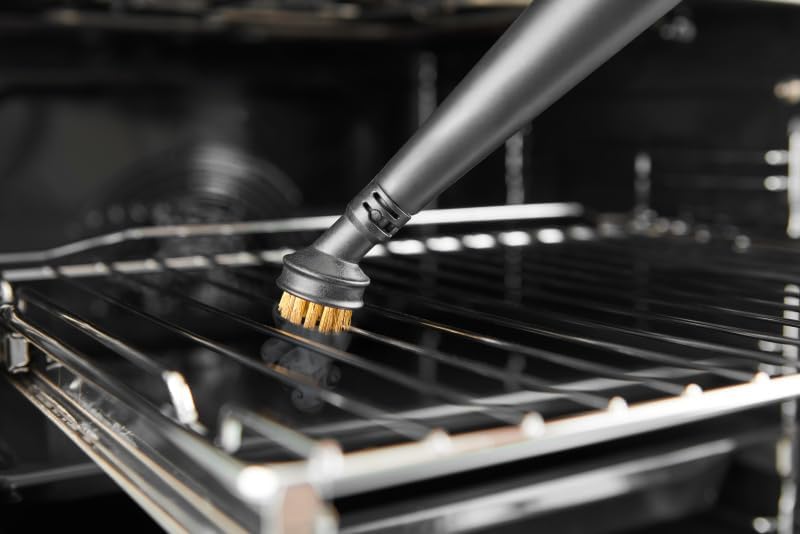

Image: Cleaning an oven rack with the brass round brush.

• Large Window Squeegee: For streak-free cleaning of windows, mirrors, and other flat, smooth surfaces.

Image: Cleaning a glass surface with the window squeegee.

5.3. Continuous Operation

The appliance features a convenient opening for continuous refilling of the clean water tank during operation, minimizing interruptions.

6. Maintenance and Cleaning

6.1. After Each Use

1. Empty Dirty Water Tank: The appliance has a 1.3 L dirty water tank. Empty and rinse it thoroughly after each use to prevent odors and bacterial growth. A safety prevention mechanism protects against overfilling.
2. Clean Clean Water Tank: Empty any remaining water from the clean water tank and rinse it.
3. Self-Cleaning Function: Utilize the integrated self-cleaning function as indicated in the manual to maintain internal components.
4. Clean Accessories: Detach and clean all used accessories with water. Allow them to air dry completely before storage.
5. Wipe Down Unit: Wipe the main unit with a damp cloth. Do not use abrasive cleaners.

6.2. Storage

Store the appliance and its accessories in a dry, safe place. The 5m power cable can be neatly stored using the extractable cable support.

7. Troubleshooting

If you encounter issues with your ETA Steam Clean, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact customer support.

8. Specifications

9. Warranty and Support

For warranty information, technical support, or spare parts availability, please refer to the warranty card included with your product or visit the official ETA website. Information regarding spare parts availability is currently unavailable through this document.
