Yokomo SP-LFGT3BL Lexus RC-F GT3 1/10 Lightweight Body Set User Manual

1. Product Overview

The Yokomo SP-LFGT3BL Lexus RC-F GT3 1/10 Lightweight Body Set is designed for 1/10 scale remote-controlled vehicles. This clear body shell offers a significant weight reduction of approximately 20% compared to standard body sets, which can enhance the performance of your RC machine, particularly on high-grip circuits. This product includes the clear body shell only and does not come with fuel, batteries, paint, glue, oil, grease, or tools required for assembly and finishing.

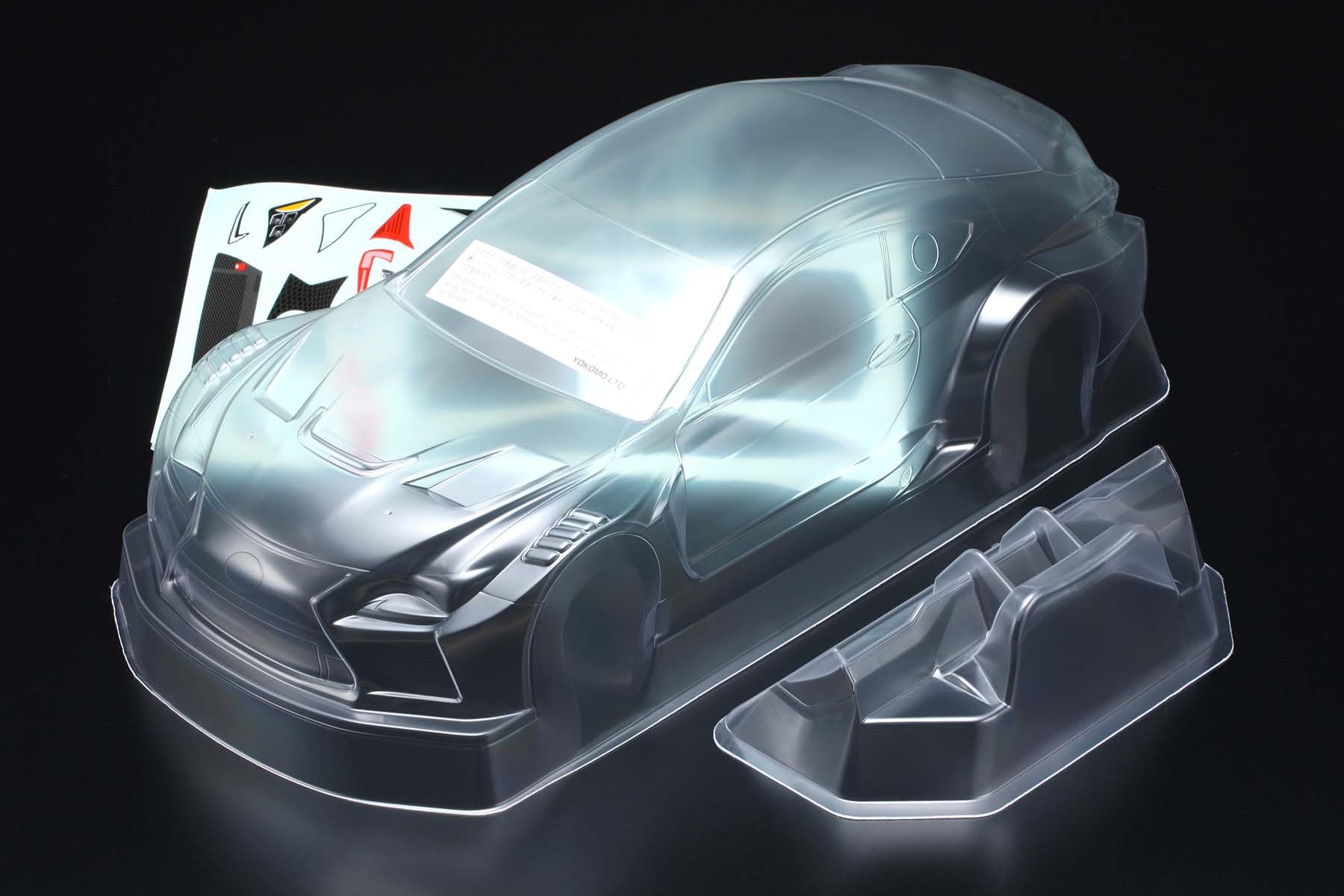

Figure 1: An assembled view of the Yokomo SP-LFGT3BL Lexus RC-F GT3 1/10 Lightweight Body Set, showcasing its sleek design and aerodynamic features.

Figure 2: Front angle view of the Yokomo SP-LFGT3BL Lexus RC-F GT3 1/10 Lightweight Body Set, highlighting the detailed grille and headlight areas.

2. Setup Instructions

Follow these steps to prepare and mount your new lightweight body set:

1. Preparation: Carefully unpackage the clear body set. Inspect for any manufacturing defects or damage.
2. Cutting: Use sharp, curved scissors or a hobby knife to trim the body along the molded cut lines. Pay close attention to wheel arches, window openings, and bumper areas. Ensure smooth, clean cuts for optimal appearance and fit.
3. Painting (Optional): If desired, paint the inside of the clear body using RC-specific polycarbonate paints. Apply thin, even coats and allow adequate drying time between coats. Painting from the inside protects the finish from scratches.
4. Decal Application (Optional): Apply any included decals to the exterior of the body as per your preference or the manufacturer's guide. Ensure the surface is clean and dry before application.
5. Mounting: Secure the finished body onto your RC chassis using body posts and clips. Ensure proper alignment and clearance for wheels, suspension components, and steering at full travel. Adjust body post height as necessary.

3. Operating Considerations

To maximize the performance benefits of your lightweight body, consider the following:

• Weight Distribution: The reduced weight of this body may alter your vehicle's center of gravity and overall weight distribution. Adjust suspension settings, such as spring rates and damper oil, as needed for optimal handling and balance.
• Aerodynamics: The GT3 design provides inherent aerodynamic benefits. Observe how your vehicle performs at speed and in corners. If your chassis allows, minor adjustments to wing angles can fine-tune downforce.
• Clearance: Regularly verify that the body does not rub against tires or chassis components during full suspension travel, steering, or chassis flex. Rubbing can cause damage to both the body and tires.

4. Maintenance

Proper maintenance will extend the life and appearance of your body set:

• Cleaning: After each use, especially in dirty conditions, clean the body with a soft cloth and mild soap and water. Avoid harsh chemicals, abrasive cleaners, or solvents that may damage the paint or polycarbonate material.
• Inspection: Regularly inspect the body for cracks, stress marks, or damage, especially after impacts. Early detection can prevent further damage.
• Repair: Minor cracks or tears can sometimes be repaired using specialized polycarbonate glue or reinforced tape from the inside. For significant damage, replacement may be necessary.
• Storage: Store the body in a cool, dry place away from direct sunlight and extreme temperatures to prevent material degradation, warping, or fading.

5. Troubleshooting

Here are solutions to common issues you might encounter:

• Body Rubbing Tires: If the body rubs against the tires, check the wheel arch trimming. You may need to trim more material from the arches or adjust the body post height to raise the body slightly. Ensure your wheels and tires are within the recommended dimensions for the body.
• Body Not Fitting Chassis: Verify that the body posts are correctly positioned and that the body is designed for your specific chassis's wheelbase and width. Some bodies may require minor modifications to fit certain chassis types.
• Cracks or Damage Appearing: This often occurs due to impacts. Inspect the chassis for any sharp edges that might be pressing against the body. Consider reinforcing high-stress areas with body reinforcement tape from the inside.
• Paint Peeling/Flaking: Ensure the body was thoroughly cleaned before painting and that RC-specific polycarbonate paints were used. Proper surface preparation is crucial for paint adhesion.

6. Specifications

7. Safety Information

Please observe the following safety precautions:

• Proposition 65 Warning: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Handle with care and wash hands after use.
• Sharp Edges: Exercise caution when cutting the body shell, as trimmed edges can be sharp. Use appropriate safety gear, such as gloves, if necessary.
• Ventilation: If painting the body, ensure adequate ventilation to avoid inhaling paint fumes. Work in a well-ventilated area or outdoors.
• Small Parts: Keep small parts, such as body clips, out of reach of young children to prevent choking hazards.

8. Warranty and Support

For specific warranty information, product support, or to inquire about replacement parts, please refer to the official Yokomo website or contact your authorized Yokomo dealer. Keep your purchase receipt as proof of purchase.
