1. Introduction
Thank you for choosing the Luxell V6-04T Vitroceramic Hob. This manual provides essential information for the safe installation, operation, and maintenance of your new appliance. To ensure optimal performance and safety, please read these instructions carefully before using the hob and keep them for future reference. Proper use and care will extend the life of your appliance.
2. Safety Instructions
Your safety and the safety of others are paramount. Please observe the following safety precautions:
- Electrical Safety: Ensure the hob is connected to a properly grounded electrical outlet. Do not use adapter plugs or extension cords. Disconnect the appliance from the power supply before any cleaning or maintenance.
- Hot Surfaces: The hob surface and surrounding areas become extremely hot during use and remain hot for some time after. Avoid touching hot surfaces. Use oven mitts or pot holders.
- Child Safety: Keep children away from the hob during operation and while it is cooling down. Never allow children to operate the appliance.
- Ventilation: Ensure adequate ventilation around the hob. Do not obstruct ventilation openings.
- Proper Use: This appliance is designed for domestic cooking purposes only. Do not use it for space heating or any other unintended purpose.
- Cookware: Use only cookware with flat, smooth bottoms that are suitable for ceramic hobs. Ensure the cookware size matches the heating zone.
- Flammable Materials: Keep flammable materials (e.g., plastic utensils, paper towels, aerosols) away from the hob surface.
- Spills: Clean up spills immediately to prevent them from burning onto the surface, but only after the hob has cooled down.
3. Installation
Installation of the Luxell V6-04T Vitroceramic Hob should only be performed by a qualified technician in accordance with local regulations and electrical codes.
3.1. Dimensions and Cutout
Refer to the diagram below for the hob's dimensions and the required countertop cutout dimensions.
Image: Installation diagram showing the Luxell V6-04T Vitroceramic Hob with overall dimensions of 600mm x 520mm and a required countertop cutout of 560mm x 490mm.
- Overall Hob Dimensions: Approximately 600mm (width) x 520mm (depth).
- Countertop Cutout Dimensions: Approximately 560mm (width) x 490mm (depth).
3.2. General Installation Guidelines
- Ensure the countertop material is heat-resistant.
- Provide adequate clearance around the hob for ventilation.
- Connect the hob to a dedicated electrical circuit with appropriate voltage and amperage as specified on the appliance rating plate.
- Secure the hob in the cutout using the provided clips or brackets.
4. Setup
After professional installation, perform these initial setup steps:
- Initial Cleaning: Before first use, wipe the hob surface with a damp cloth to remove any dust or manufacturing residues. Dry thoroughly.
- First Use Odor: It is normal for a slight odor to be emitted during the first few uses as manufacturing residues burn off. Ensure good ventilation in the kitchen during this period.
5. Operating Instructions
The Luxell V6-04T Vitroceramic Hob features multiple heating zones for versatile cooking.

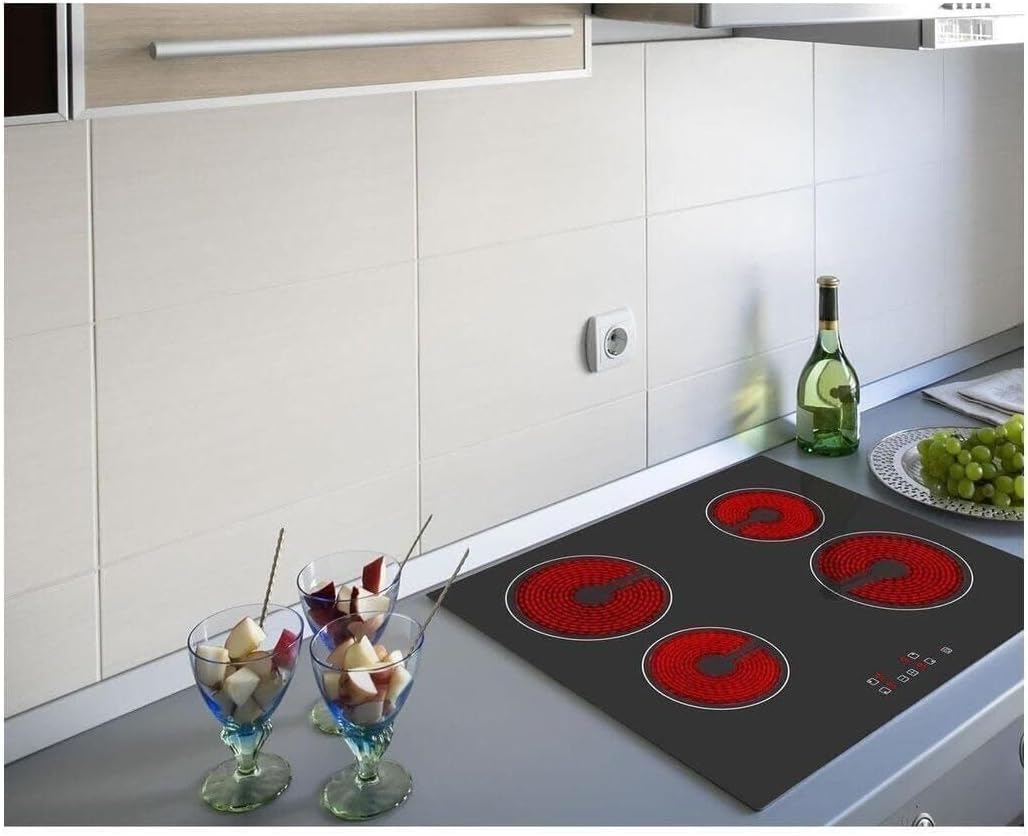

Image: The Luxell V6-04T Vitroceramic Hob installed in a modern kitchen, showing its four radiant heating zones and touch controls.
5.1. Turning On/Off
- To Turn On: Press the main power button (usually indicated by a power symbol). The display will illuminate.
- To Turn Off: Press the main power button again. All active heating zones will turn off.
5.2. Selecting and Adjusting Heating Zones
- Selecting a Zone: Touch the control for the desired heating zone.
- Adjusting Heat Level: Use the '+' and '-' touch controls or a slider (if available) to set the desired heat level from 1 (low) to 9 (high).
- Quick Boil: Some zones may have a 'Boost' function for rapid heating. Refer to the specific symbols on your hob.
5.3. Residual Heat Indicator
After a heating zone is turned off, an 'H' symbol may appear on the display. This indicates that the zone is still hot and caution should be exercised. The 'H' will disappear once the surface has cooled to a safe temperature.
5.4. Cookware Recommendations
- Use flat-bottomed pots and pans made of stainless steel, cast iron, or enamel-coated steel.
- Avoid using cookware with rough bottoms that could scratch the ceramic surface.
- Ensure the diameter of the cookware base is similar to or slightly larger than the heating zone for efficient cooking.
6. Cleaning and Maintenance
Regular cleaning and maintenance will keep your hob in excellent condition.
- Always ensure the hob is cool and disconnected from the power supply before cleaning.
- Daily Cleaning: Wipe the ceramic surface with a soft, damp cloth and a small amount of mild dish soap. Rinse with a clean damp cloth and dry thoroughly with a soft, dry cloth to prevent water spots.
- Stubborn Stains/Spills: For burnt-on food or stubborn stains, use a specialized ceramic hob cleaner and a hob scraper (if necessary). Follow the product instructions carefully.
- Avoid: Do not use abrasive cleaners, scouring pads, steel wool, or harsh chemicals, as these can scratch or damage the ceramic surface.
- Control Panel: Wipe the touch control panel with a soft, damp cloth. Ensure it is dry before operating the hob.
7. Troubleshooting
If you encounter issues with your Luxell V6-04T Vitroceramic Hob, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Hob does not turn on. | No power supply; circuit breaker tripped. | Check if the hob is properly plugged in. Reset the circuit breaker. |
| Heating zone not heating. | Zone not selected; heat level too low; incorrect cookware. | Ensure the correct zone is selected and the heat level is set appropriately. Use suitable cookware. |
| 'H' symbol remains on. | Residual heat. | This is normal. The 'H' indicates the surface is still hot. It will disappear when cool. |
| Hob makes unusual noises. | Expansion/contraction of materials; fan noise (if applicable). | Minor noises are normal during heating and cooling. If loud or persistent, contact service. |
| Error code displayed. | Internal fault. | Note the error code and consult Luxell customer service. |
If the problem persists after attempting these solutions, please contact Luxell customer service or a qualified technician.
8. Specifications
- Brand: Luxell
- Model: V6-04T
- Type: Vitroceramic Hob
- Heating Surface Material: Glass Ceramic
- Number of Heating Zones: 4 (based on product image)
- Power Source: Electric
- Overall Product Dimensions: Approximately 600mm (width) x 520mm (depth) (based on installation diagram)
- Manufacturer: Luxell
- ASIN: B0DH4T6VP6
- Manufacturer Reference: 8694740217457
9. Warranty and Support
Your Luxell V6-04T Vitroceramic Hob comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms, conditions, and duration.
For technical assistance, spare parts, or warranty claims, please contact Luxell customer service. Keep your purchase receipt and model information handy when contacting support.
You can visit the official Luxell website or refer to the contact information provided in your product packaging for the most up-to-date support details.
