1. Introduction
Thank you for choosing the Borosil Prima Pro 30 L Oven Toaster Griller. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read all instructions carefully before use and retain this manual for future reference.
Image 1.1: Borosil Prima Pro 30 L Oven Toaster Griller. This image displays the front view of the oven toaster griller with its door open, revealing the interior rack.
2. Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:
- Read all instructions before operating the appliance.
- Do not touch hot surfaces. Always use oven mitts or gloves when handling hot materials.
- To protect against electric shock, do not immerse the cord, plug, or any part of the appliance in water or other liquids.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause hazards or injury.
- Do not use outdoors.
- Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Do not cover the crumb tray or any part of the oven with metal foil. This may cause overheating.
- Exercise extreme caution when removing the tray or disposing of hot grease.
- Do not store any materials, other than manufacturer's recommended accessories, in this oven when not in use.
- Do not place any of the following materials in the oven: paper, cardboard, plastic, or similar items.
- Do not insert oversized foods or metal utensils into the oven as they may create a fire or risk of electric shock.
- Use only metal or heat-resistant glass containers in the oven.
- Ensure the appliance is placed on a stable, heat-resistant surface.
3. Product Overview
3.1 Key Features
- Versatile Cooking Options: Offers functions for convection, rotisserie, grill, bake, and toast.
- Convection Technology: Ensures faster and more uniform heating for consistent cooking results.
- Motorized Rotisserie: Provides uniform grilling for meats and other items.
- Easy Cleaning: Features a removable crumb tray for convenient maintenance.
- Capacity: 30 Litres, capable of fitting a 9-inch pizza or 3-4 slices of toast.
- Power: 1500W heating power for efficient cooking.
3.2 Included Components
The Borosil Prima Pro 30 L OTG comes with the following accessories:
- 1N Oven Toaster Griller Unit
- 1N Rotisserie Rod Set
- 1N Cooking Tray & Handle
- 1N Grill Rack
- 1N Removable Crumb Tray
- 1N Rotisserie Handle
- 1N User Manual
Image 3.2.1: Borosil Prima Pro 30 L OTG Accessories. This image displays the various accessories included with the OTG, such as the bake pan, oven rack, tray handle, crumb tray, rotisserie rod, and rotisserie handle.
3.3 Control Panel and Indicators
Familiarize yourself with the control panel for optimal operation:
Image 3.3.1: Borosil Prima Pro 30 L OTG Key Features and Controls. This diagram highlights the temperature knob, function knob, 0-60 minutes mechanical timer, power indicator, stylish body, anti-skid rubber feet, and rotisserie rod.
- Temperature Knob: Adjusts the cooking temperature from 100°C to 250°C.
- Function Knob: Selects the desired cooking mode (e.g., Bake, Grill, Toast, Convection, Rotisserie).
- Timer Knob: Sets the cooking time up to 60 minutes. The oven will turn off automatically when the timer reaches zero.
- Power Indicator: Illuminates when the oven is operating.
4. Setup
4.1 Unpacking
- Carefully remove the OTG and all accessories from the packaging.
- Remove any packing materials, stickers, or protective films from the appliance.
- Inspect the appliance for any damage. Do not use if damaged.
4.2 Placement
- Place the OTG on a stable, flat, and heat-resistant surface.
- Ensure there is adequate clearance (at least 10-15 cm) on all sides and above the oven for proper ventilation.
- Do not place the oven near flammable materials or heat sources.
- Ensure the power cord is not kinked or touching hot surfaces.
4.3 Initial Cleaning
Before first use, wipe the interior and exterior of the oven with a damp cloth. Wash all accessories (cooking tray, grill rack, rotisserie rod, etc.) in warm, soapy water, rinse thoroughly, and dry completely. Do not immerse the main unit in water.
4.4 Initial Burn-Off
It is recommended to perform an initial burn-off to eliminate any manufacturing odors. Set the temperature to maximum (250°C) and the timer to 15 minutes. Operate the oven empty in a well-ventilated area. A slight odor or smoke may be present during this process; this is normal.
5. Operating Instructions
5.1 General Operation
- Place food on the appropriate accessory (cooking tray, grill rack, or rotisserie rod).
- Insert the accessory into the desired rack position inside the oven.
- Close the oven door securely.
- Set the Temperature Knob to the desired temperature.
- Set the Function Knob to the desired cooking mode (e.g., Bake, Grill, Convection).
- Set the Timer Knob to the desired cooking time. The power indicator light will illuminate.
- When the cooking time is complete, the timer will chime, and the oven will turn off automatically.
- Carefully remove cooked food using oven mitts and the provided handles.
5.2 Cooking Functions
5.2.1 Baking
Use the cooking tray for baking items like cakes, cookies, or casseroles. Select the appropriate temperature and the 'Bake' function. Preheating is recommended for best results.
5.2.2 Grilling / Toasting
Place items directly on the grill rack for grilling or toasting. Select the 'Grill' or 'Toast' function. Monitor food closely to prevent burning.
5.2.3 Convection Cooking
The convection function circulates hot air within the oven, ensuring faster and more even cooking. This is ideal for baking and roasting. Select the 'Convection' function along with the desired temperature and time.
Image 5.2.3.1: Borosil Prima Pro 30 L OTG Convection and Rotisserie Function. This image illustrates the airflow for convection cooking (top) and the rotation of the rotisserie rod for even grilling (bottom).
5.2.4 Motorized Rotisserie
For uniform grilling of whole chicken, paneer, or vegetables, use the motorized rotisserie function.
- Skewer the food onto the rotisserie rod, securing it with the forks.
- Insert the pointed end of the rotisserie rod into the drive socket on the right side of the oven.
- Rest the square end of the rod on the support bracket on the left side.
- Select the 'Rotisserie' function and set the temperature and timer.
- The rotisserie will rotate automatically during cooking.
6. Maintenance and Cleaning
Regular cleaning ensures optimal performance and extends the life of your OTG.
6.1 General Cleaning
- Always unplug the oven and allow it to cool completely before cleaning.
- Wipe the exterior with a damp cloth and mild detergent. Do not use abrasive cleaners.
- Clean the interior walls with a damp cloth and mild, non-abrasive cleaner. Avoid harsh chemicals.
- The glass door can be cleaned with a glass cleaner.
6.2 Removable Crumb Tray
The crumb tray should be cleaned regularly to prevent grease buildup and potential fire hazards.

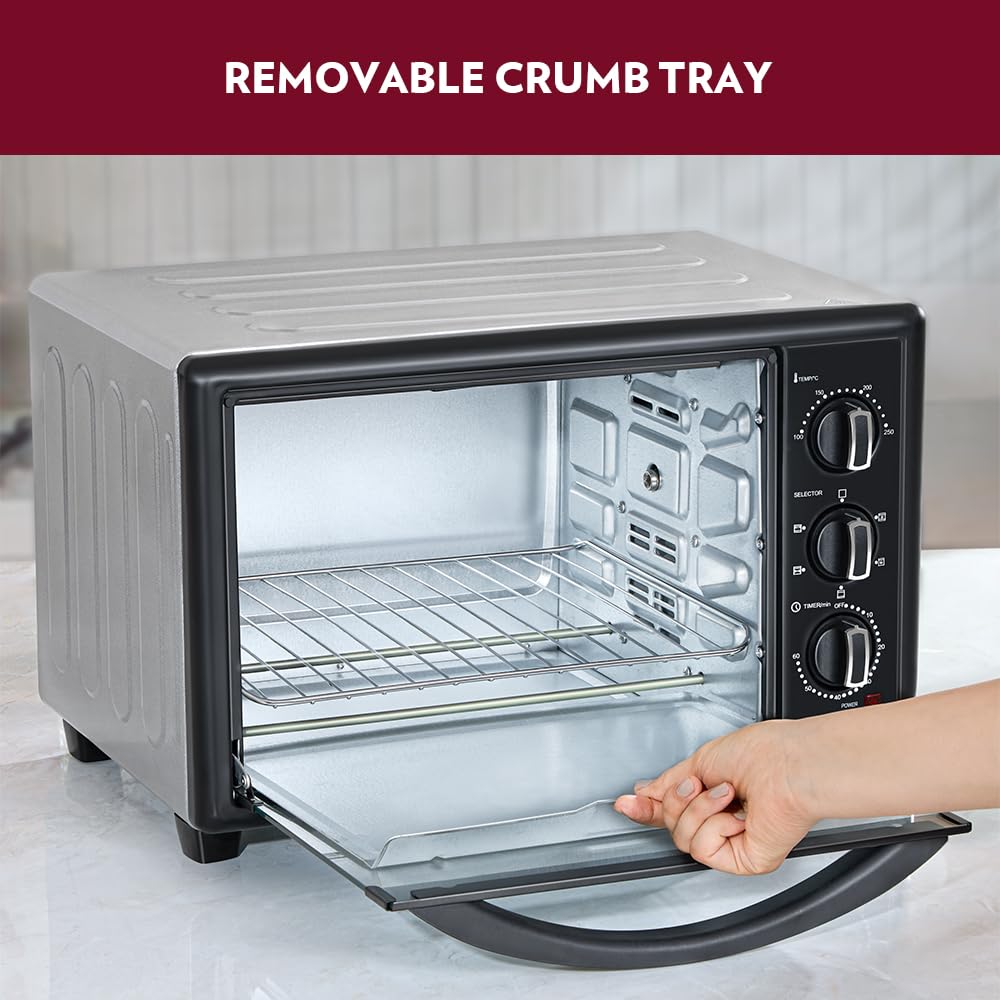

Image 6.2.1: Borosil Prima Pro 30 L OTG Removable Crumb Tray. This image shows a hand easily sliding out the crumb tray from the bottom of the oven for cleaning.
- Pull out the crumb tray from the bottom front of the oven.
- Discard any crumbs or food particles.
- Wash the tray in warm, soapy water, rinse, and dry thoroughly.
- Reinsert the crumb tray before operating the oven.
6.3 Cleaning Accessories
All removable accessories (cooking tray, grill rack, rotisserie rod, handles) can be washed in warm, soapy water. Rinse and dry completely before storing or reusing.
6.4 Storage
Ensure the oven is clean and dry before storing. Store in a cool, dry place away from direct sunlight and moisture. Do not place heavy objects on top of the oven.
7. Troubleshooting
If you encounter issues with your Borosil Prima Pro 30 L OTG, refer to the following table for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Oven does not turn on. | Not plugged in; Power outlet malfunction; Timer not set. | Ensure the plug is securely in the outlet; Check the power outlet with another appliance; Set the timer knob to the desired cooking duration. |
| Food not cooking evenly. | Incorrect rack position; Overcrowding; Heating elements issue. | Adjust rack position for optimal heat distribution; Avoid overcrowding the oven; Ensure the convection fan is operating if selected. |
| Excessive smoke during operation. | Food spills or grease buildup; Crumb tray not cleaned. | Clean the interior of the oven and accessories thoroughly; Empty and clean the crumb tray. |
| Rotisserie not rotating. | Rotisserie rod not properly seated; Function knob not set to Rotisserie. | Ensure the rotisserie rod is correctly inserted into the drive socket and resting on the support bracket; Select the 'Rotisserie' function. |
If the problem persists after attempting these solutions, please contact customer support.
8. Specifications
Detailed technical specifications for the Borosil Prima Pro 30 L Oven Toaster Griller:
| Feature | Detail |
|---|---|
| Brand | Borosil |
| Model Number | Prima Pro |
| Capacity | 30 Litres |
| Power Source | Electric |
| Power Consumption | 1500W |
| Product Dimensions (D x W x H) | 49.5D x 38.5W x 32H Centimeters |
| Item Weight | 6 kg 700 g |
| Special Feature | Motorized Rotisserie, Convection |
| Colour | Silver |

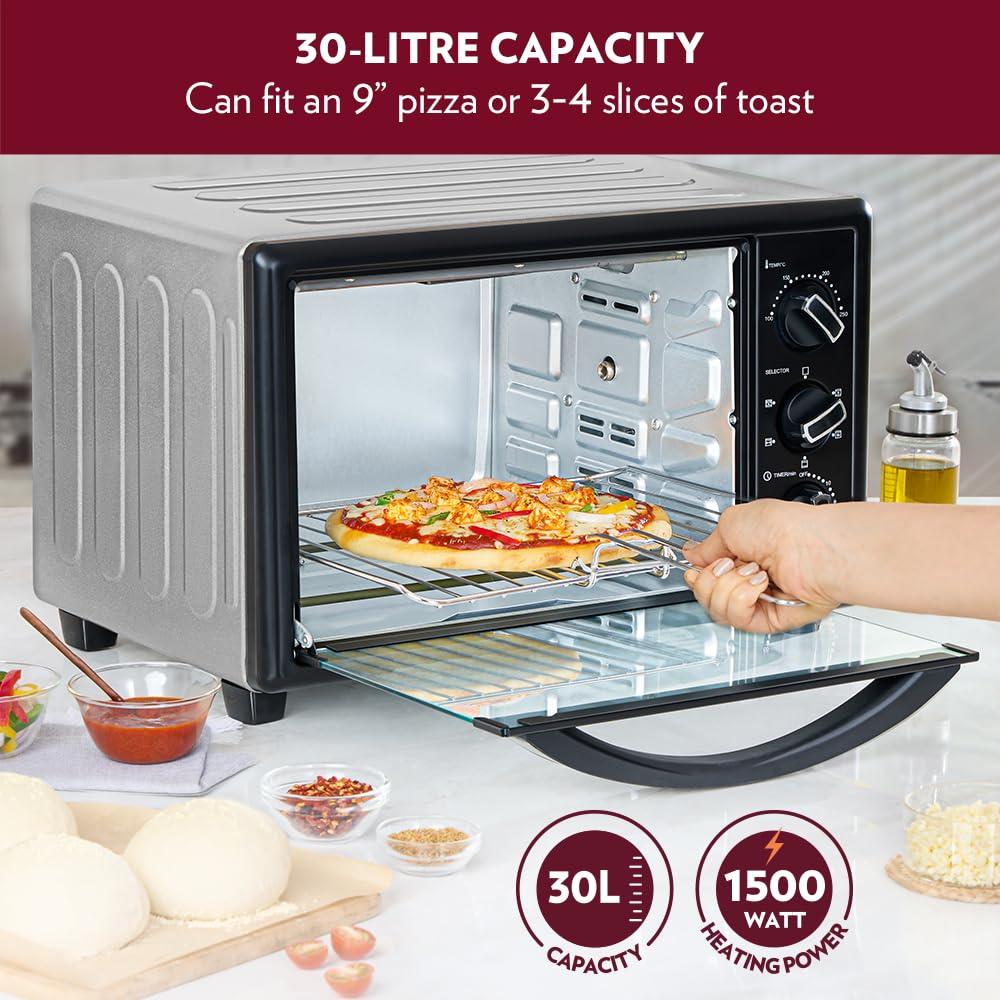

Image 8.1: Borosil Prima Pro 30 L OTG Capacity and Power. This image highlights the 30-litre capacity and 1500-watt heating power of the appliance, showing it can fit a 9-inch pizza.
9. Warranty and Support
9.1 Warranty Information
The Borosil Prima Pro 30 L Oven Toaster Griller comes with a 2-year warranty from the date of purchase. This warranty covers manufacturing defects under normal household use. Please retain your purchase receipt as proof of purchase for warranty claims.
Image 9.1.1: Borosil Prima Pro 30 L OTG with 2-Year Warranty. This image shows the OTG in a kitchen setting with various cooked foods, emphasizing the 2-year warranty.
The warranty does not cover damage resulting from misuse, neglect, unauthorized repairs, commercial use, or normal wear and tear.
9.2 Customer Support
For any queries, service requests, or warranty claims, please contact Borosil customer support. Refer to the contact information provided in your product packaging or visit the official Borosil website for the most up-to-date support details.
