FEIFANKE ARC140 Mini 110V 140A Stick Welder: User Instruction Manual

1. Product Overview

The FEIFANKE ARC140 Mini 110V 140A Stick Welder is a compact and portable 2-in-1 welding machine designed for both MMA (Stick) and Lift TIG welding applications. It features advanced IGBT inverter technology for stable arc performance and is suitable for various home repairs, small projects, and beginner training.

Figure 1: FEIFANKE ARC140 Mini 110V 140A Stick Welder and included accessories.

Key Features:

• Ultra-Mini & Portable: Measures 8.3 x 4.7 x 3.5 inches and weighs 4.63 lbs, with a shoulder strap for easy transport.
• 2-IN-1 ARC Welding: Supports both MMA (Stick) and Lift TIG welding modes.
• 140A Stable Output: Compatible with 1/16''-1/8'' welding rods for iron and carbon steel.
• Beginner-Friendly: Simple control panel with one-button current adjustment, clear digital display, and built-in anti-stick, arc force, and hot start functions.
• Safe & Durable: Equipped with overload, over-current, and over-voltage protection, advanced IGBT inverter technology, and an internal cooling fan.

Figure 2: The compact size of the FEIFANKE ARC140 Mini welder, demonstrating its portability.

2. Safety Information

Always prioritize safety when operating welding equipment. Failure to follow safety guidelines can result in serious injury or property damage.

General Safety Precautions:

• Personal Protective Equipment (PPE): Always wear a welding helmet with appropriate shade, welding gloves, protective clothing, and safety shoes.
• Ventilation: Ensure adequate ventilation to avoid inhaling welding fumes. Work in a well-ventilated area or use fume extraction equipment.
• Fire Hazards: Keep flammable materials away from the welding area. Have a fire extinguisher readily available.
• Electrical Safety: Ensure the welding machine is properly grounded. Do not operate in wet conditions. Inspect cables for damage before each use.
• Eye and Skin Protection: Welding arc can cause severe burns to eyes and skin. Never look at the arc without proper eye protection.

Built-in Safety Features:

The FEIFANKE ARC140 Mini is equipped with multiple safety mechanisms to protect the user and the machine:

• Overload Protection: Automatically shuts down the machine if the current exceeds safe limits.
• Over-current Protection: Prevents damage from excessive current flow.
• Over-voltage Protection: Safeguards against voltage spikes.
• Internal Cooling Fan: Provides rapid cooling to reduce power consumption and extend service life.

Figure 3: Safety features of the FEIFANKE ARC140 Mini, including protection against overload, over-current, and overheating.

3. Setup

Follow these steps to set up your FEIFANKE ARC140 Mini welder for operation.

3.1 Unboxing and Component Check:

Carefully unpack all items and ensure the following components are present:

• 1 x FEIFANKE ARC140 Mini 110V 140A Stick Welder Unit
• 1 x 5ft Ground Clamp
• 1 x 6ft Electrode Holder
• 5 x 2.5mm Welding Rods
• 1 x Basic Welding Mask
• 1 x Wire Brush/Hammer

3.2 Connecting Cables:

1. Electrode Holder: Insert the electrode holder cable connector into the positive (+) socket on the front panel of the welder. Twist clockwise to secure.
2. Ground Clamp: Insert the ground clamp cable connector into the negative (-) socket on the front panel of the welder. Twist clockwise to secure.
3. Workpiece Connection: Attach the ground clamp securely to the workpiece or welding table to ensure a good electrical connection.

3.3 Power Connection:

Connect the welder's power cord to a suitable 110V AC power outlet. Ensure the outlet can provide sufficient current for welding operations. The unit is designed for 110V operation.

4. Operating Instructions

This section details the operation of your FEIFANKE ARC140 Mini welder for both MMA (Stick) and Lift TIG modes.

4.1 Powering On/Off:

Locate the power switch on the rear panel of the welder. Flip the switch to the 'ON' position to power on the machine. The digital display on the front panel will illuminate. To power off, flip the switch to the 'OFF' position.

4.2 Control Panel:

The front panel features a digital display and a single knob for current adjustment. The display shows the welding current (Amps).

4.3 MMA (Stick) Welding Mode:

The ARC140 Mini is primarily designed for MMA (Stick) welding. It supports 1/16''-1/8'' welding rods.

1. Electrode Selection: Choose the appropriate welding rod diameter (1/16'' to 1/8'') based on the material thickness and desired weld.
2. Current Adjustment: Use the knob on the front panel to adjust the welding current (Amps). Refer to the recommended parameters table below for guidance.
3. Hot Start: This function provides an initial boost of current to help ignite the arc easily, preventing the electrode from sticking.
4. Arc Force: Automatically adjusts the current to maintain a stable arc, preventing the electrode from sticking during welding.
5. Anti-Stick: Reduces the current if the electrode sticks to the workpiece, allowing for easier removal without damaging the electrode or workpiece.

Figure 4: The FEIFANKE ARC140 Mini in operation, highlighting its Hot Start, Arc Force, and Anti-Stick features for smooth welding.

Recommended Welding Rod Parameters:

Table 1: Recommended welding current ranges for different electrode diameters. These are reference values and may need slight adjustments based on material and welding technique.

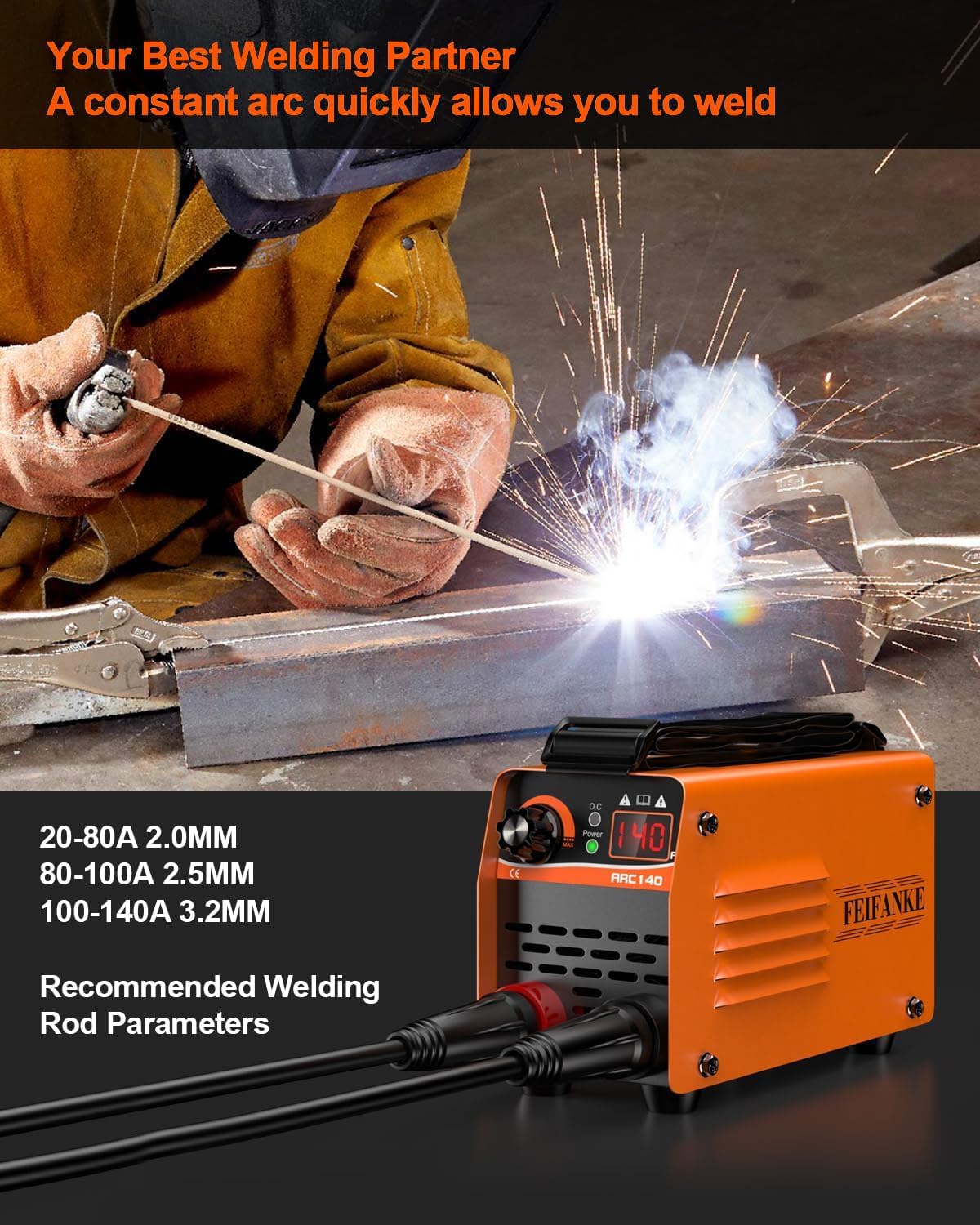

Figure 5: Visual representation of recommended welding rod parameters for optimal performance.

4.4 Lift TIG Welding Mode:

The ARC140 Mini also supports Lift TIG welding. A TIG torch and spool gun need to be purchased separately for this mode.

1. TIG Torch Connection: Connect the TIG torch to the negative (-) socket and the ground clamp to the positive (+) socket.
2. Gas Connection: Connect the appropriate shielding gas (e.g., Argon) to the TIG torch.
3. Mode Selection: Select the Lift TIG mode on the control panel (if available, or follow manual instructions for mode switching).
4. Operating: Initiate the arc by gently touching the tungsten electrode to the workpiece and then lifting it slightly.

Figure 6: The FEIFANKE ARC140 Mini is suitable for welding various materials including cast iron, mild steel, and carbon steel.

Figure 7: Examples of stable and clean weld beads achieved with the FEIFANKE ARC140 Mini welder.

5. Maintenance

Regular maintenance ensures the longevity and optimal performance of your welding machine.

5.1 Cleaning:

• Dust Removal: Periodically clean the internal components of the machine using compressed air. Ensure the machine is unplugged before cleaning.
• Exterior Cleaning: Wipe the exterior with a dry cloth. Avoid using solvents or abrasive cleaners.
• Fan Vents: Keep the cooling fan vents clear of obstructions to ensure proper airflow.

5.2 Inspection:

• Cables and Connectors: Regularly inspect welding cables, electrode holder, and ground clamp for any signs of wear, cuts, or damage. Replace damaged components immediately.
• Power Cord: Check the power cord for fraying or damage.

5.3 Storage:

Store the welder in a dry, clean environment, away from direct sunlight, moisture, and excessive dust. Protect it from physical impact.

6. Troubleshooting

This section provides solutions to common issues you might encounter during operation.

Common Issues and Solutions:

• No Power:
  • Check if the power switch is ON.
  • Ensure the power cord is securely plugged into a functional outlet.
  • Check the circuit breaker for the power outlet.
• Unstable Arc / Difficulty Starting Arc:
  • Ensure the ground clamp has a good connection to the workpiece.
  • Check if the welding current setting is appropriate for the electrode diameter and material.
  • Verify the electrode is dry and free from contaminants.
  • Ensure the electrode holder is making good contact with the electrode.
• Electrode Sticking:
  • Increase the welding current slightly.
  • Adjust your welding technique (maintain a shorter arc length).
  • The built-in Anti-Stick function should help mitigate this issue.
• Overheat Indicator On:
  • The machine has activated its thermal protection. Stop welding and allow the machine to cool down.
  • Ensure cooling vents are not blocked and the fan is operating.

For more detailed troubleshooting or issues not listed here, please refer to the full instruction manual or contact customer support.

7. Specifications

Detailed technical specifications for the FEIFANKE ARC140 Mini 110V 140A Stick Welder.

Figure 8: The FEIFANKE ARC140 Mini incorporates advanced IGBT inverter technology for enhanced welding efficiency and stability.

8. Warranty and Support

FEIFANKE is committed to providing high-quality products and excellent customer service.

Warranty Information:

• 2-Year Warranty: The FEIFANKE ARC140 Mini 110V 140A Stick Welder comes with a 2-year warranty from the date of purchase, covering manufacturing defects.
• 60-Day Replacement: A 60-day replacement policy is offered for defective units.

Customer Support:

For any questions, technical assistance, or warranty claims, please contact FEIFANKE customer support. Our team is available to assist you.

• Online Support: Visit the official FEIFANKE website for FAQs and support resources.
• Email Support: Refer to your product packaging or the official website for contact email addresses.
