Introduction
This manual provides essential information for the installation, operation, and maintenance of your Adviace PU-047040 Auger Motor and PU-UCF204-12 Auger Bearing kit. These components are designed as replacement parts for specific Englander pellet stove models to ensure efficient fuel delivery and reliable performance.
Product Components
The kit includes the following items:
- 2 x PU-047040 Auger Motors
- 2 x PU-UCF204-12 Auger Bearings

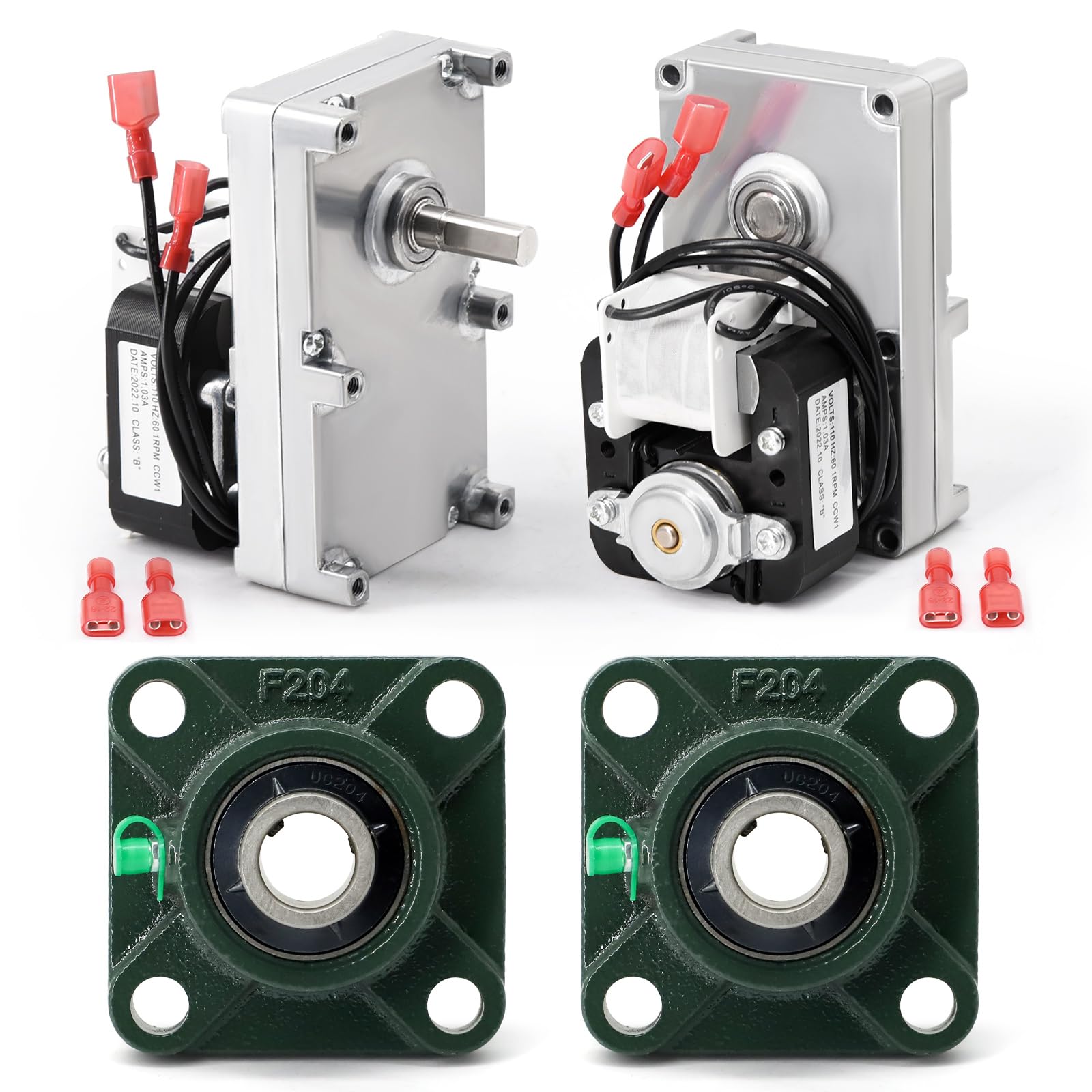

Image showing the two PU-047040 auger motors and two PU-UCF204-12 auger bearings included in the kit.
Product Features
PU-047040 Auger Motor Features
- Needle point ball bearing for strong and quiet operation.
- Improved easy installation with 20-inch wire leads.
- Durable construction for long-lasting and reliable use.
PU-UCF204-12 Auger Bearing Features
- New style bearing with a grease fitting to prolong bearing and motor life.
- Can replace older style bearings without a grease fitting.
Image illustrating the features of the 1 RPM auger motor, highlighting its quiet, strong, and sturdy design.
Image showcasing the quality of the auger bearing, emphasizing ultra-durable solid iron cast housings and ball bearings.
Compatible Pellet Stove Models
This kit is compatible with the following Englander pellet stove models:
- 25-CAB80, 55-SHPCAB80, 55-TRPCAB80
- 25-PAF, 55-SHP25, 55-TRP25
- 25-PDV, 55-SHP22, 55-TRP22, 25PDV
- 25-PDVC, 55-SHP10, 55-SHP10L, 55-TRP10, 25PDVC
- 25-PDVE, 55-SHP22E
- 25-PDVP, 55-SHP15, 55-TRP15
- 25-PFS, 25-PFSP
- 25-PI, 55-SHP20, 55-TRP20
Image displaying various Englander pellet stove models compatible with these replacement parts, including 25-PDVC, 55-SHP10, 55-SHP10L, 55-TRP10, 25-PDV, 55-SHP22, and 55-TRP22.
Technical Specifications
PU-047040 Auger Motor
| RPM | 1 RPM |
| Rotation | Counter-Clockwise (when facing shaft) |
| Voltage | 110 V |
| Frequency | 60 HZ |
| Amperage | 1.03 Amps |
| Shaft Size | 3/8” Diameter x 1-1/8” Length |
PU-UCF204-12 Auger Bearing
| Length | 3 3/8" |
| Width | 3 3/8" |
| Height | 1 1/4" |
| Collar Diameter | 3/4" |
Image detailing the technical specifications of the auger motor, including voltage, cycles, amperage, and RPM.
Setup and Installation
Safety First: Before attempting any installation or maintenance, ensure your pellet stove is completely powered off and unplugged from the electrical outlet. Allow the stove to cool down completely to prevent burns.
Replacing the auger motor and bearing requires basic mechanical skills. If you are unsure about any step, it is recommended to consult a qualified technician.
General Installation Steps (Consult your stove's specific manual for detailed instructions):
- Disconnect power to the pellet stove.
- Locate the existing auger motor and bearing assembly. This typically involves removing access panels on your stove.
- Carefully disconnect the wiring from the old auger motor. Note the connections for reassembly.
- Remove the fasteners securing the old auger motor and bearing.
- Install the new PU-UCF204-12 auger bearing. Ensure it is properly seated and secured.
- Install the new PU-047040 auger motor, aligning the shaft with the auger. Secure the motor with appropriate fasteners.
- Connect the new motor's wiring, ensuring correct polarity and secure connections. The motor operates with a counter-clockwise rotation when facing the shaft.
- Replace all access panels.
- Restore power to the stove and test for proper operation.
Video demonstrating the PU-047040 auger motor, showing its design and features relevant to installation.
Image illustrating the counter-clockwise rotation of the auger motor shaft, important for correct installation.
Operating Instructions
Once installed, the auger motor and bearing work in conjunction with your pellet stove's control system to feed pellets from the hopper into the burn pot. The 1 RPM counter-clockwise rotation of the auger motor ensures a steady and consistent delivery of fuel, which is crucial for maintaining an even burn and optimal heat output. No direct user interaction with these parts is required during normal operation.
Maintenance
The PU-UCF204-12 auger bearing features a grease fitting. Regular lubrication of this fitting is recommended to extend the life of the bearing and ensure smooth operation of the auger system. Consult your pellet stove's maintenance schedule for recommended lubrication intervals.
Periodically inspect the auger motor and bearing for any signs of wear, damage, or unusual noise. Keep the area around the motor and bearing clean from dust and debris.
Image highlighting the new style auger bearing with a grease fitting, designed to prolong its lifespan and the auger motor's performance.
Troubleshooting
Auger Motor Not Turning or Jammed
- Check Power: Ensure the stove is receiving power and the motor's electrical connections are secure.
- Obstruction: Inspect the auger for any foreign objects or compacted pellets that might be causing a jam. Clear any obstructions carefully after disconnecting power.
- Motor Failure: If the motor receives power but does not turn, or makes unusual noises, it may indicate internal motor failure.
Unusual Noises from Auger System
- Bearing Lubrication: If the bearing has a grease fitting, ensure it is adequately lubricated.
- Worn Bearing: A grinding or squealing noise might indicate a worn-out bearing.
- Motor Issues: Unusual noises can also stem from the motor itself, suggesting wear or damage.
For complex issues or if you are uncomfortable performing diagnostics, it is advisable to contact a certified pellet stove technician.
Warranty and Support
This Adviace product kit comes with a 1-year manufacturer replacement warranty. For any questions, technical assistance, or warranty claims, please contact Adviace customer support through the retailer where the product was purchased.
