KENT Instant Drinking Water Heater 2.2L User Manual

1. Introduction

Welcome to the user manual for your new KENT Instant Drinking Water Heater 2.2L. This appliance is designed to provide hot water instantly at your desired temperature and quantity, enhancing convenience in your daily routine. Please read this manual thoroughly before operating the device to ensure safe and efficient use.

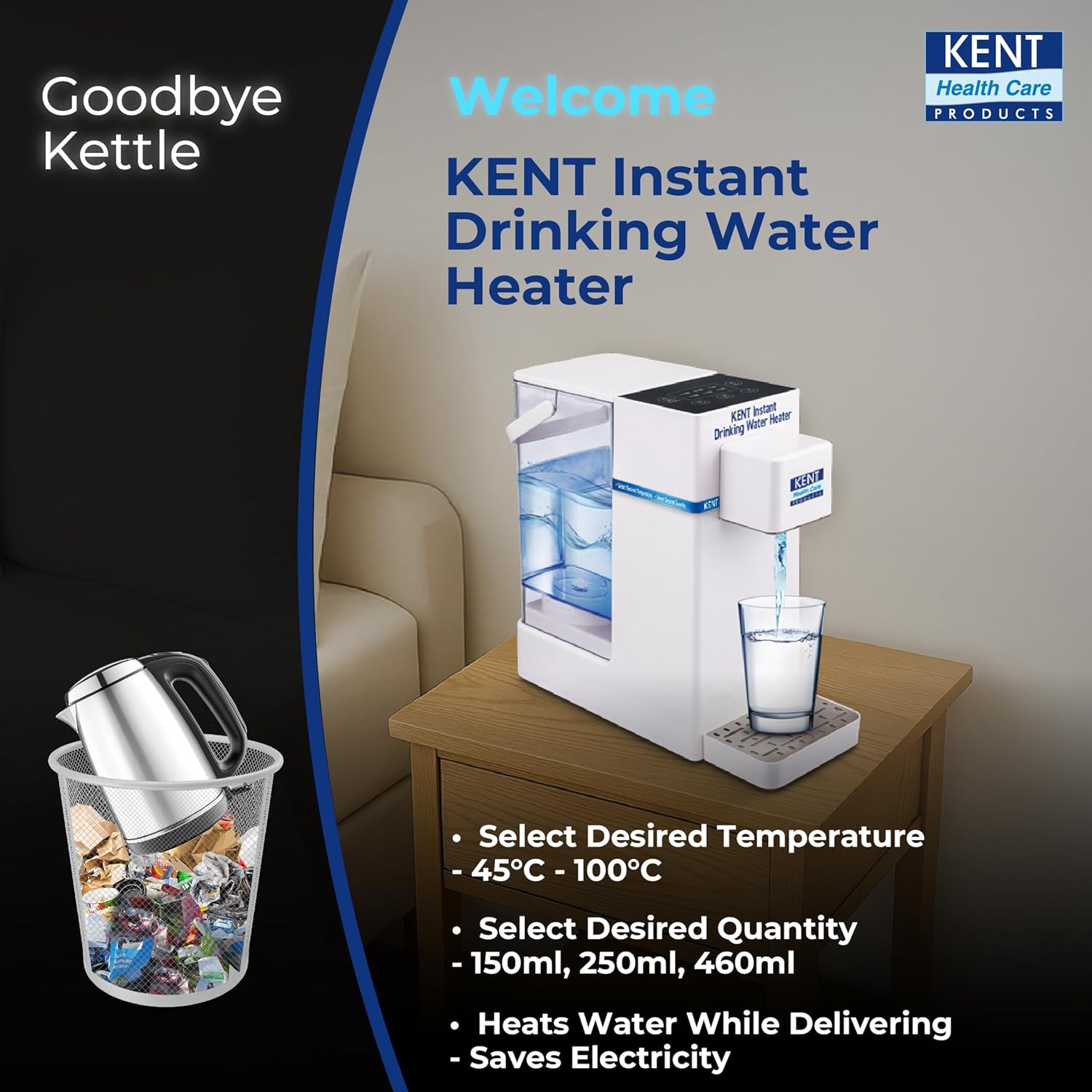

Image: The KENT Instant Drinking Water Heater offers a modern alternative to traditional kettles for instant hot water needs.

2. Product Overview

The KENT Instant Drinking Water Heater is a compact and efficient appliance designed for countertop use. It features a transparent water tank, a digital touch panel for controls, and a dispensing spout.

Image: Front-angled view of the KENT Instant Drinking Water Heater, showing the water tank, digital panel, and dispensing spout with a glass of water.

Image: The removable 2.2L water tank of the KENT Instant Drinking Water Heater, designed for easy refilling and cleaning.

3. Key Features

• Instant Heating for Pure Water: The KENT Instant Drinking Water Heater quickly heats pure water to your desired temperature and desired quantity, ensuring you have hot water available instantly whenever you need it.
• Time-Saving Convenience: This KENT Instant Drinking Water Heater is ideal for preparing hot beverages like tea, coffee, baby food, and instant soups in seconds, saving you valuable time during your busy day.
• Large Capacity Water Tank: Featuring a generous 2.2L water tank, the KENT Instant Drinking Water Heater provides ample hot water for multiple uses without the need for frequent refilling.
• Customisable Temperature and Quantity: Choose your desired water temperature from a range of 45°C to 100°C, allowing for versatile use. Additionally, you can select the water quantity with options of 150ml, 250ml, or 460ml for precise dispensing according to your needs.
• User-Friendly Digital Touch Panel: The easy-to-use digital touch panel makes operation simple and intuitive. Adjust temperature and water quantity settings effortlessly for perfect results every time. It heats water while dispensing, thus saving electricity.
• Enhanced Safety Features: Equipped with a child lock smart feature, this KENT Instant Drinking Water Heater prevents accidental operation, significantly reducing the risk of scalding and ensuring safe use in homes with children.
• Easy Maintenance and Cleaning: Designed for simple cleaning and descaling, the KENT Instant Drinking Water Heater ensures optimal performance and longevity, making maintenance hassle-free.

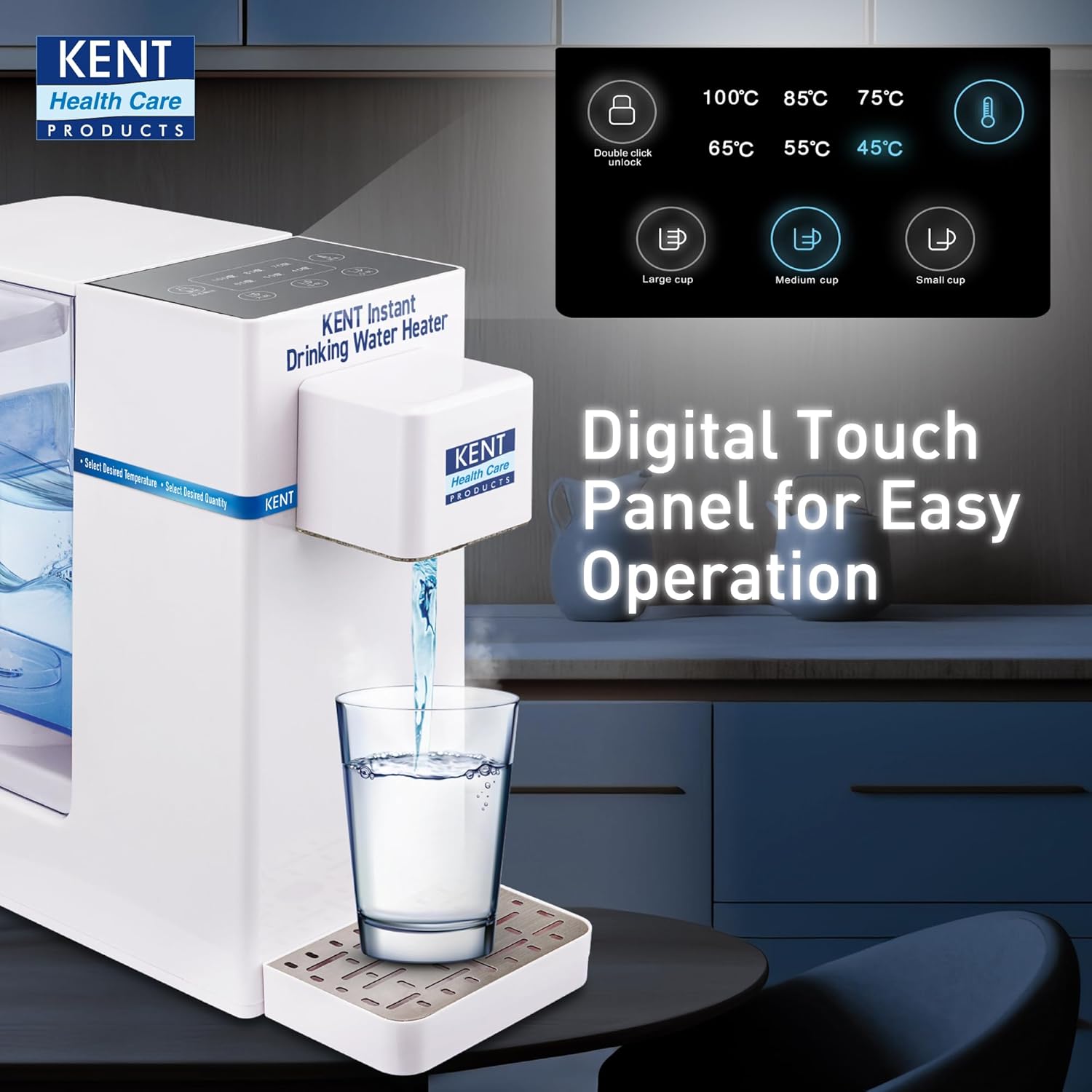

Image: The digital touch panel provides intuitive control over temperature and quantity settings.

Image: The child lock feature enhances safety, preventing accidental hot water dispensing.

4. Setup Instructions

4.1 Unpacking

1. Carefully remove the appliance from its packaging.
2. Remove all packing materials, including any protective films or stickers.
3. Inspect the appliance for any damage. Do not use if damaged.

4.2 Placement

1. Place the water heater on a stable, flat, and heat-resistant surface.
2. Ensure there is adequate ventilation around the unit.
3. Keep the appliance away from direct sunlight, heat sources, and moisture.
4. Ensure the power cord is easily accessible and not obstructed.

4.3 Initial Fill

1. Remove the water tank from the main unit.
2. Fill the water tank with clean, pure drinking water up to the MAX line. Do not overfill.
3. Place the filled water tank back onto the main unit, ensuring it is securely seated.
4. Plug the power cord into a suitable electrical outlet.

5. Operating Instructions

5.1 Power On/Off

Once plugged in, the digital touch panel will illuminate. The appliance is now in standby mode.

5.2 Selecting Temperature

1. Touch the 'Temperature' button on the digital panel to cycle through available temperature settings: 45°C, 55°C, 65°C, 75°C, 85°C, and 100°C.
2. Select your desired temperature.

Image: Temperature selection options on the digital touch panel.

5.3 Selecting Quantity

1. After selecting the temperature, choose the desired water quantity by pressing the corresponding cup icon: Small cup (150ml), Medium cup (250ml), or Large cup (460ml).
2. Place your cup or container under the dispensing spout.
3. The appliance will instantly heat and dispense the selected quantity of water.

Image: Quantity selection options for precise water dispensing.

5.4 Child Lock Feature

1. To activate the child lock, double-click the 'Double click unlock' button. The lock indicator will illuminate.
2. To deactivate, double-click the 'Double click unlock' button again.
3. The child lock prevents accidental dispensing of hot water, enhancing safety.

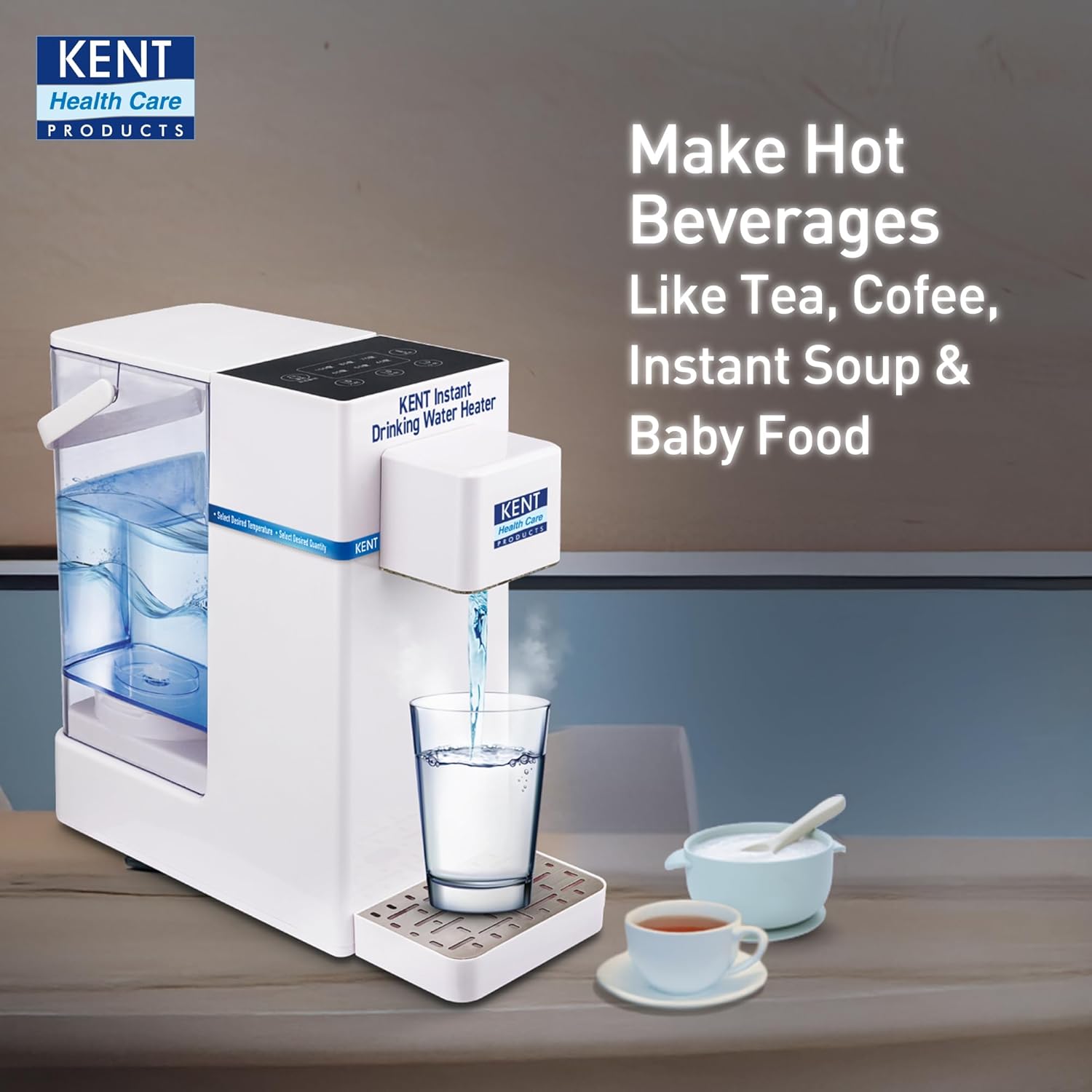

Image: The water heater is suitable for preparing various hot beverages and instant meals.

6. Maintenance

6.1 Cleaning the Exterior

1. Unplug the appliance before cleaning.
2. Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or solvents.
3. Ensure no water enters the electrical components.

6.2 Cleaning the Water Tank

1. Remove the water tank from the unit.
2. Wash the tank with mild soap and warm water. Rinse thoroughly.
3. Dry completely before reattaching to the unit.

6.3 Descaling

Over time, mineral deposits (limescale) may build up inside the heating element. Regular descaling is recommended to maintain performance.

1. Mix a descaling solution according to the manufacturer's instructions (e.g., white vinegar and water).
2. Pour the solution into the water tank.
3. Run a dispensing cycle with the descaling solution (without a cup).
4. Repeat with clean water several times to rinse thoroughly.

7. Troubleshooting

If you encounter any issues, please refer to the following common problems and solutions:

• No Water Dispensing:
  • Check if the water tank is properly seated and filled.
  • Ensure the child lock is not activated.
  • Verify the appliance is plugged in and powered on.
• Water Not Hot Enough:
  • Confirm the correct temperature setting has been selected.
  • Ensure the water tank is filled with room temperature water, not pre-heated water.
• Digital Panel Unresponsive:
  • Unplug the appliance, wait for a few minutes, and then plug it back in to reset.
  • Ensure your fingers are clean and dry when operating the touch panel.

If the problem persists, please contact customer support.

8. Specifications

9. Safety Information

Please observe the following safety precautions to prevent injury or damage to the appliance:

• Do not immerse the main unit in water or any other liquid.
• Always unplug the appliance before cleaning or when not in use.
• Keep out of reach of children. Use the child lock feature when children are present.
• Do not touch hot surfaces. Use handles or knobs.
• Ensure the voltage indicated on the appliance corresponds to your local mains voltage before connecting.
• Do not operate the appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• Only use pure drinking water in the tank.
• Do not open or attempt to repair the appliance yourself. Contact qualified service personnel.

10. Warranty and Support

Your KENT Instant Drinking Water Heater is covered by a manufacturer's warranty against defects in materials and workmanship under normal use. Please refer to the warranty card included with your product for specific terms and conditions.

For technical support, service, or warranty claims, please contact KENT customer service through the details provided on your warranty card or the official KENT website. When contacting support, please have your product model number and purchase date available.
