1. Product Overview
This manual provides instructions for the INGQI 42" Deck Belt, an aftermarket replacement part designed for various lawn tractors. This belt is crucial for the proper operation of your mower deck, ensuring efficient power transfer from the engine to the cutting blades.
1.1 What's Included
- 1 x INGQI 42" Deck Belt
Figure 1: The INGQI 42" Deck Belt, shown coiled on a white background.
2. Product Specifications
The INGQI 42" Deck Belt is engineered to meet specific dimensions and material requirements for reliable performance.
| Specification | Detail |
|---|---|
| Belt Application | Deck |
| Belt Type | Covered |
| Width | 1/2 inch (0.5") |
| Outer Length | 96.5 inches |
| Inner Length | 94 inches |
| Material | Rubber |
| Package Dimensions | 13.39 x 11.42 x 2.05 inches |
| Item Weight | 0.15 Kilograms (5.29 ounces) |

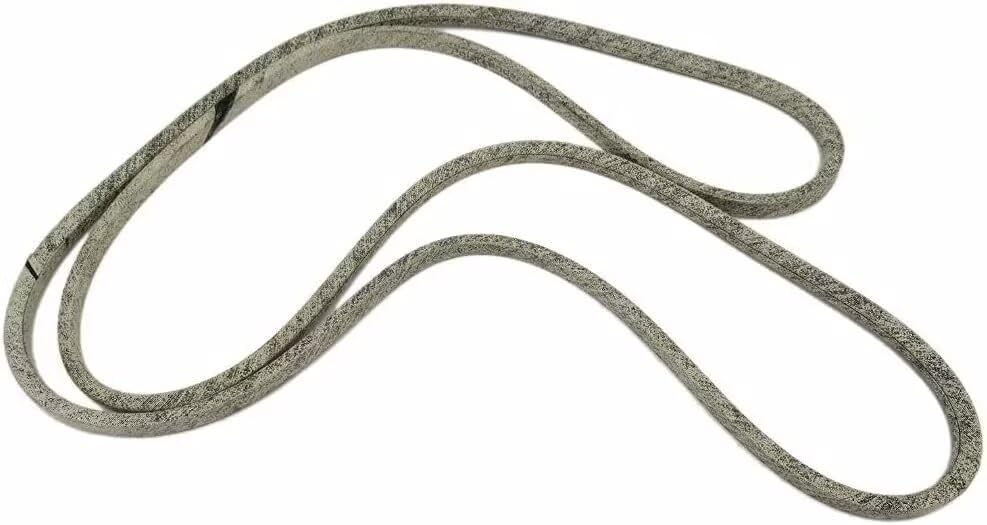

Figure 2: A closer view of the INGQI Deck Belt, highlighting its texture and construction.
3. Compatibility
This INGQI 42" Deck Belt is designed as a replacement for specific OEM part numbers and fits a range of lawn tractor models. Always verify your equipment's required part number before installation.
3.1 Replaces Part Numbers
- Craftsman: SPM201671081
- John Deere: GX10851
- Cub Cadet: 754-04060, 754-04060A, 754-04060B, 954-04060, 954-04060A, 954-04060B, 954-04060C
- MTD: 754-04060, 754-04060B, 954-04060, 954-04060B, 954-04060C
- Rover: 754-04060, 754-04060B, 954-04060, 954-04060B
- Sabre: GX10851
3.2 Compatible Models
- Brands: Troy-Bilt, MTD, Craftsman, MTD Gold, Bolens, White Outdoor, Yard Machines, Yard Man, Huskee
- Cub Cadet: LTX1040, LTX1042KH, LTX1042KW
- Troy-Bilt: Super Bronco 42 Hydro, TB42, Pony 42X, Pony 42T, Horse 42 Hydro, Pony 42, Bronco 42 Auto, TB1942, Pony, Bronco, TB2246, TB42 Hydro, TB2142
- Craftsman: PYT9000, T1000, T1100, T1200, T1300, T1400, T1800, T105, T110, T130, T2100, T3000, LT1500, LT2000
- Huskee: LT 4200
- White Outdoor: LT-2000, LT-542G, LT-542H, LT-942H
- Murray: M155-42, M15542, M175-42, M1642, M195-42
Note: This list is not exhaustive. Always cross-reference with your equipment's owner's manual or existing part number to ensure proper fitment.
4. Installation Instructions
Replacing a deck belt requires careful attention to detail. Always refer to your specific lawn tractor's service manual for detailed, model-specific instructions. The following steps provide a general guide.
4.1 Safety Precautions
- Always turn off the engine and remove the ignition key.
- Disconnect the spark plug wire to prevent accidental starting.
- Engage the parking brake.
- Wear appropriate personal protective equipment, including gloves and eye protection.
- Allow the engine and any hot components to cool down before beginning work.
4.2 Tools Required (Typical)
- Socket wrench set
- Pliers
- Screwdriver set
- Gloves
- Safety glasses
4.3 Step-by-Step Guide
- Prepare the Tractor: Park the tractor on a flat, level surface. Engage the parking brake, turn off the engine, remove the key, and disconnect the spark plug wire.
- Lower the Deck: Lower the mower deck to its lowest position.
- Remove Deck from Tractor: Disconnect any linkages, springs, or pins that attach the mower deck to the tractor frame. Carefully slide the deck out from under the tractor.
- Inspect Belt Routing Diagram: Before removing the old belt, take a photo or draw a diagram of the current belt routing around all pulleys. This is critical for correct reinstallation.
- Remove Old Belt: Loosen any tensioning mechanisms or idler pulleys as needed. Carefully unroute and remove the old deck belt from all pulleys.
- Clean Pulleys: Clean any grass clippings, dirt, or debris from the pulleys and deck area. Inspect pulleys for wear or damage.
- Install New Belt: Route the new INGQI 42" Deck Belt according to your diagram. Ensure the belt is seated correctly in all pulley grooves.
- Tension the Belt: Re-engage any tensioning mechanisms or idler pulleys. The belt should be taut but not overly tight.
- Reattach Deck: Slide the mower deck back under the tractor and reattach all linkages, springs, and pins.
- Test Operation: Reconnect the spark plug wire. Start the engine and engage the mower deck at a low RPM in a safe, open area to ensure the belt operates smoothly without slipping or unusual noises.
Figure 3: The INGQI Deck Belt laid flat, illustrating its full length and shape before installation.
5. Maintenance
Regular maintenance of your deck belt can extend its lifespan and ensure consistent mowing performance.
- Regular Inspection: Periodically inspect the belt for signs of wear, cracks, fraying, glazing, or stretching. Replace the belt if any significant damage is observed.
- Keep Clean: Remove grass clippings, dirt, and debris from the belt and pulleys after each use. Accumulations can cause premature wear and slippage.
- Check Tension: Ensure the belt maintains proper tension. A belt that is too loose will slip, causing poor performance and excessive wear. A belt that is too tight can strain pulleys and bearings.
- Avoid Overloading: Do not attempt to cut excessively tall or wet grass, as this can put undue strain on the belt and other mower components.
- Proper Storage: When storing the tractor for extended periods, especially in cold weather, ensure the belt is not under extreme tension or twisted, which can lead to cracking.
6. Troubleshooting
This section addresses common issues related to deck belts and provides potential solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Belt slips or squeals | Incorrect tension, worn belt, glazed belt, debris on pulleys, worn pulleys | Adjust tension, replace belt, clean pulleys, inspect and replace worn pulleys. |
| Belt breaks frequently | Incorrect belt size, misaligned pulleys, worn pulleys/bearings, excessive load, foreign object damage | Verify correct belt size, check pulley alignment, replace worn components, avoid overloading, inspect for obstructions. |
| Mower deck not engaging | Belt off pulleys, broken belt, engagement mechanism fault | Inspect belt routing, replace broken belt, check engagement lever/cable. |
| Excessive vibration or noise | Worn belt, damaged pulleys, unbalanced blades, debris in deck | Inspect and replace belt/pulleys, check blade balance, clean deck. |
7. Warranty and Support
For specific warranty information or technical support regarding your INGQI 42" Deck Belt, please contact the manufacturer or your point of purchase. Ensure you have your product details and purchase information available when contacting support.
7.1 Contact Information
Refer to the packaging or the seller's information for the most current contact details for INGQI customer support.
