Introduction
Thank you for choosing the InfinaCore MagSafe Battery Pack. This ultra-slim, 5000mAh portable charger is designed to provide fast and convenient power to your iPhone (12 series and newer) and other compatible devices. Its strong magnetic connection ensures a secure fit, allowing for seamless wireless charging on the go. This manual provides essential information for the proper setup, operation, and maintenance of your device.

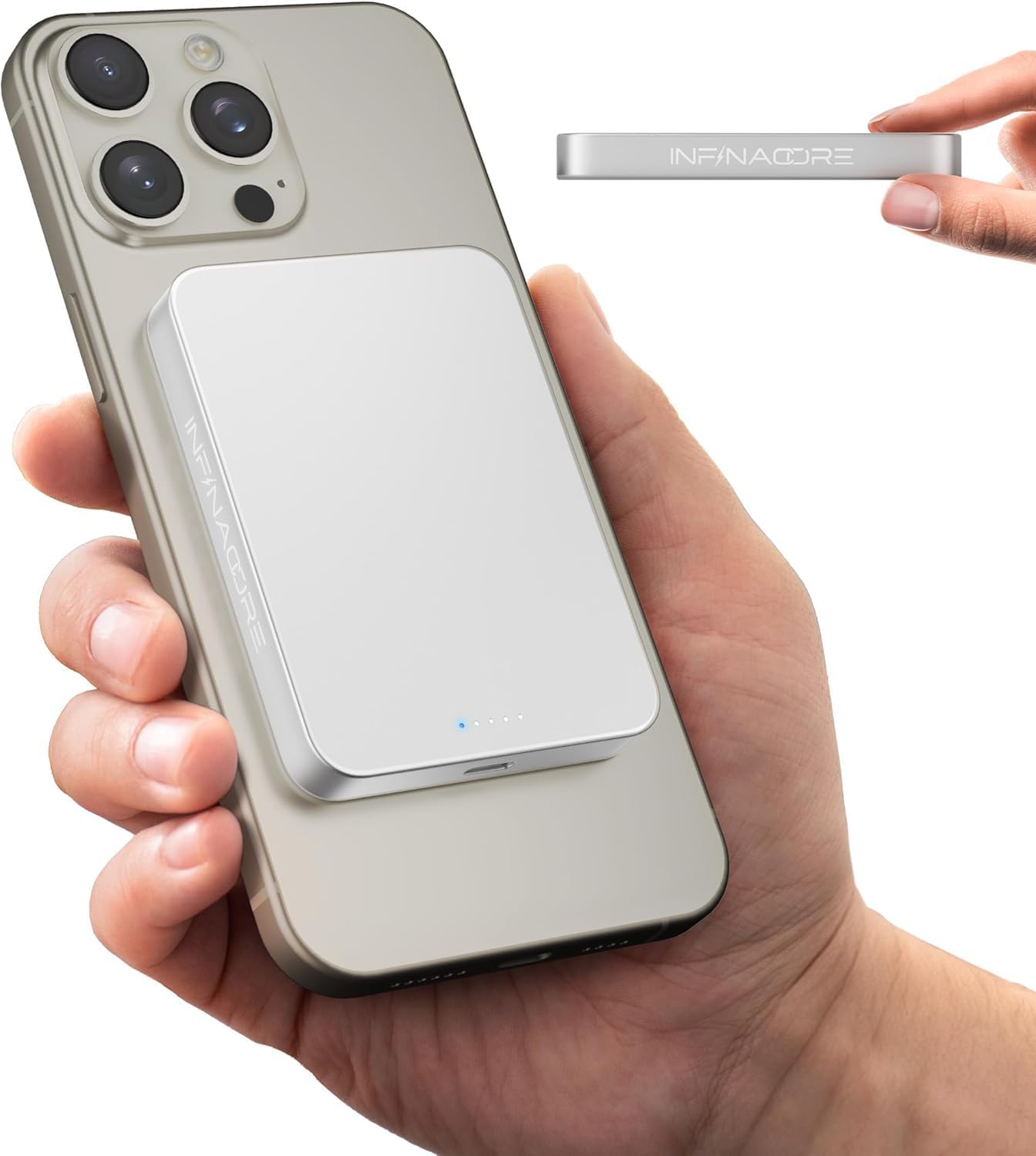

The InfinaCore MagSafe Battery Pack securely attaches to the back of a compatible iPhone, providing portable power.
Key Features
- Ultra-Slim Design: At just 0.42 inches thick, it fits effortlessly in your pocket or bag, ensuring portability without bulk.
- 5000mAh Capacity: Provides substantial power to extend your iPhone's battery life, offering up to 90% charge on an iPhone 15 Pro or 70% on an iPhone 15 Pro Max.
- Strong Magnetic Connection: Equipped with super-strong magnets for a firm and reliable attachment to MagSafe-compatible iPhones (12 series and newer) or MagSafe cases.
- Fast Charging: Supports 15W wireless MagSafe charging and features a 20W USB-C port for rapid input and output.
- Built-in Safety Features: Advanced Li-Polymer battery with multi-protect microchips and daily battery heat checks for over-current and over-heat protection.
- TSA-Approved: Designed for travel, making it an ideal companion for frequent flyers.
The battery pack's ultra-slim profile and 5000mAh capacity make it highly portable and efficient.

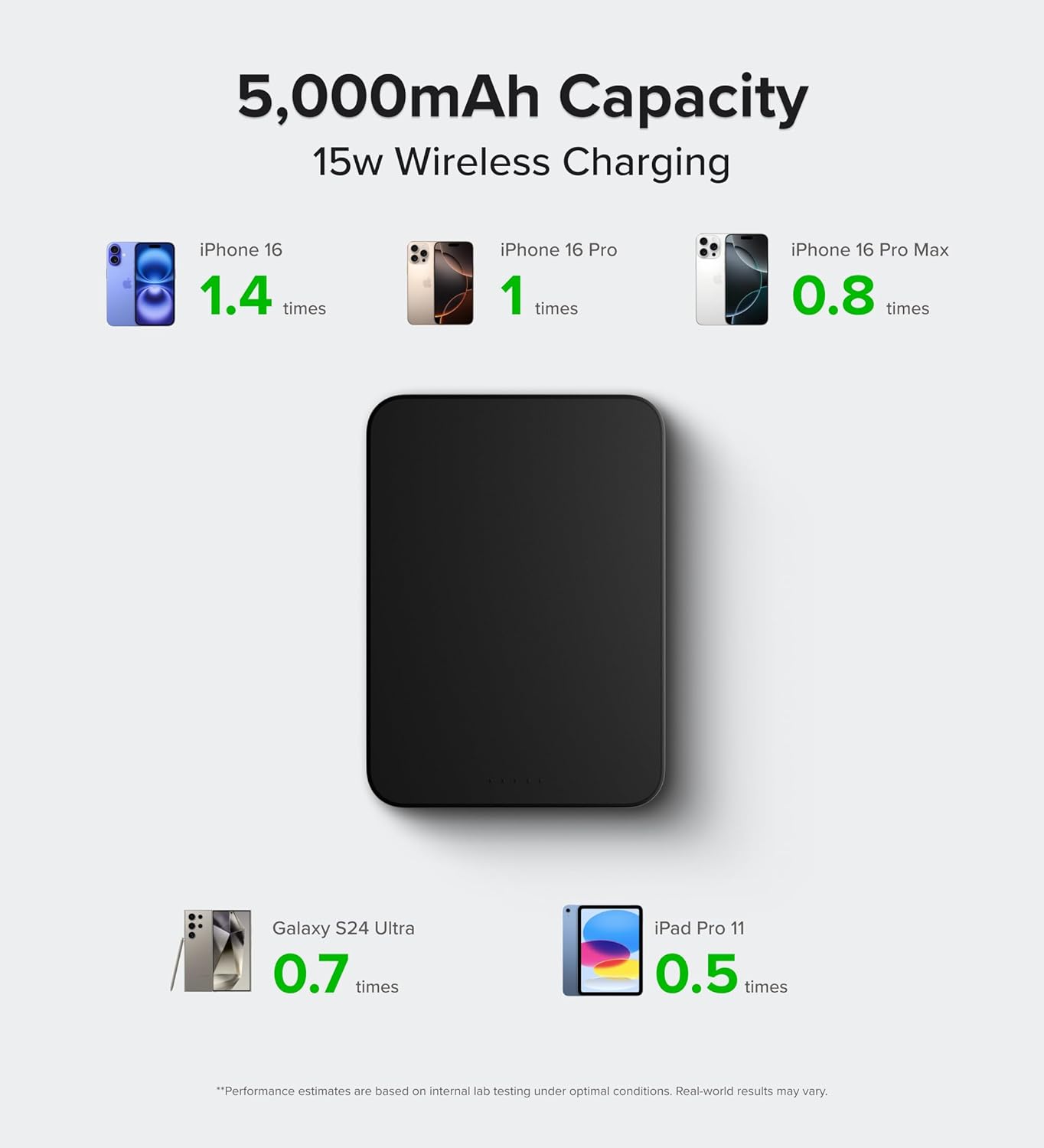

Illustrates the charging capabilities for different iPhone models, including iPhone 16, 16 Pro, and 16 Pro Max.
Setup
- Unboxing: Carefully remove the InfinaCore MagSafe Battery Pack from its packaging. Inspect the device for any signs of damage.
- Initial Charge: Before first use, it is recommended to fully charge the battery pack. Connect the included USB-C cable to the battery pack's USB-C port and plug the other end into a compatible power adapter (not included). The LED indicators on the battery pack will illuminate to show charging progress.
- Device Compatibility: Ensure your iPhone is a MagSafe-compatible model (iPhone 12 series or newer) or is equipped with a MagSafe-compatible case.
This video demonstrates the unboxing process of the M3 Mini MagSafe Battery Pack, showing its compact size and initial presentation.
Operating Instructions
- Attaching to iPhone: Align the InfinaCore MagSafe Battery Pack with the MagSafe area on the back of your iPhone. The strong magnets will snap it firmly into place. No power button is needed; charging begins automatically upon secure attachment.
- Checking Battery Level: Press the small button on the side of the battery pack to illuminate the LED indicators, showing the remaining charge.
- Wired Charging (Input/Output): Use the 20W USB-C port for both recharging the power bank and fast charging other devices that support USB-C.
The image shows the strong MagSafe connection, indicating compatibility with iPhone 12 and newer models or MagSafe-compatible cases.
This video demonstrates the wireless magnetic power bank in action, showing how it attaches and charges an iPhone.
A short video showcasing the 5000mAh fast charging capability of the InfinaCore MagSafe Battery Pack.
Charging the Battery Pack
To recharge your InfinaCore MagSafe Battery Pack, connect a USB-C cable to its USB-C port and plug it into a power source. The LED indicators will show the charging status. For optimal charging speed, use a 20W or higher power adapter.
This video highlights the fast charging capabilities of the portable charger, demonstrating its efficiency.
Maintenance
- Cleaning: Use a soft, dry cloth to clean the surface of the battery pack. Avoid using harsh chemicals or abrasive materials.
- Storage: Store the device in a cool, dry place away from direct sunlight and extreme temperatures.
- Battery Care: To prolong battery life, avoid fully discharging the battery pack regularly. Recharge it when the charge is low.

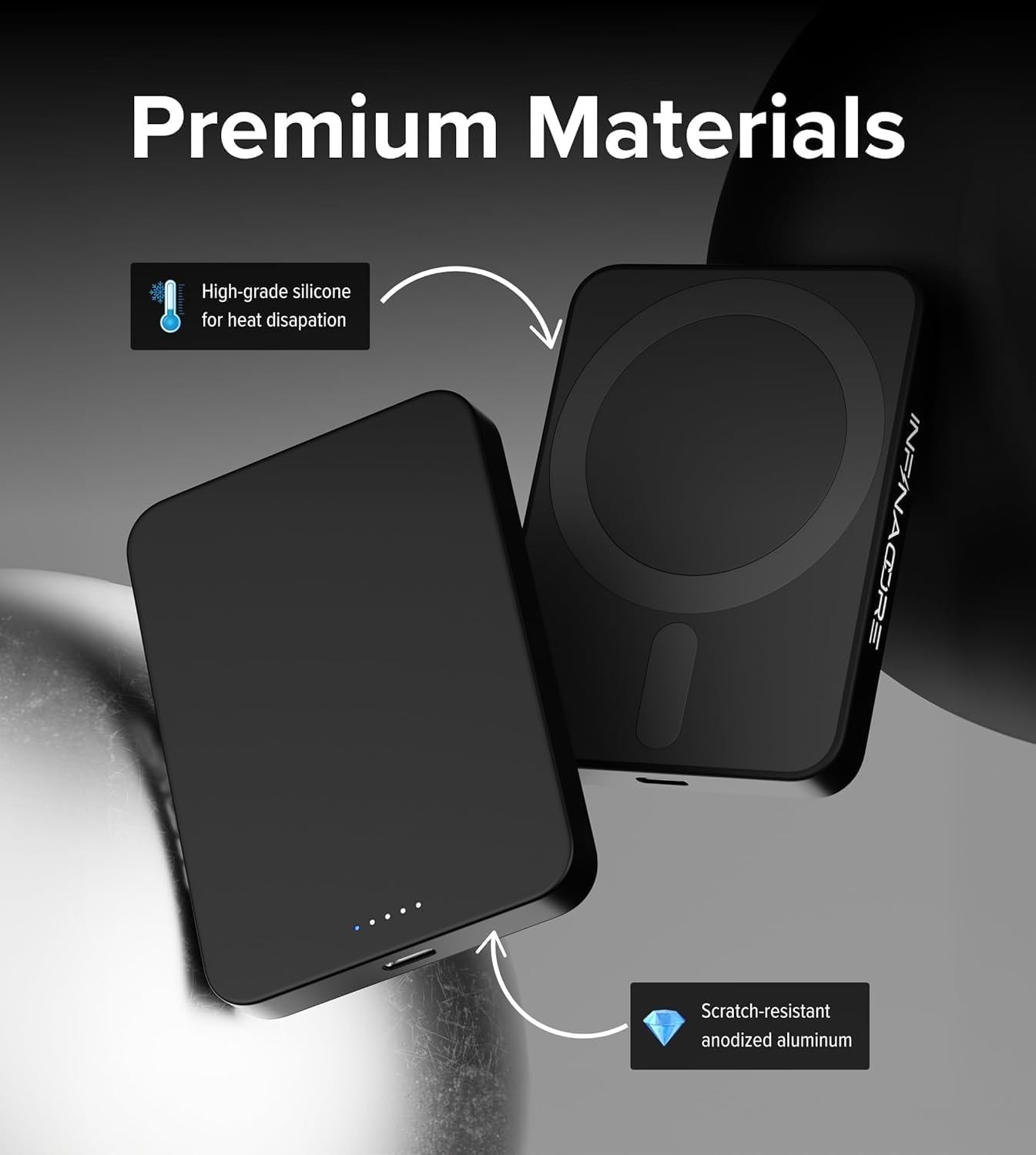

The battery pack is constructed with high-grade silicone for heat dissipation and scratch-resistant anodized aluminum, ensuring durability.
Troubleshooting
| Issue | Possible Cause | Solution |
|---|---|---|
| Device not charging | Incorrect alignment; low battery pack charge; incompatible phone case. | Ensure proper alignment with MagSafe area. Recharge the battery pack. Remove non-MagSafe cases or use a MagSafe-compatible case. |
| Battery pack overheating | Prolonged use; high ambient temperature. | Disconnect the battery pack and allow it to cool down. Avoid charging in direct sunlight or hot environments. The built-in safety features will automatically turn off if it gets too hot. |
| Slow charging | Using a low-power adapter; phone case interference. | Use a 20W or higher power adapter for recharging. Ensure phone case is MagSafe compatible and not too thick. |
Specifications
- Model: L-WP-05A6
- Battery Capacity: 5000 Milliamp Hours (mAh)
- Product Dimensions: 3.27 x 2.36 x 0.42 inches
- Item Weight: 5.9 ounces
- Wireless Charging Output: 15W (MagSafe compatible)
- USB-C Input/Output: 20W
- Battery Type: Lithium Polymer
- Connector Type: USB Type C
- Special Features: TSA Approved, Lightweight, Ultra Slim, Fast Charging, Pocket Size, Wireless Charging
- Manufacturer: InfinaCore
- Country of Origin: China
Warranty & Support
InfinaCore products are designed for durability and reliability. The InfinaCore MagSafe Battery Pack comes with a 99-Year Protection, ensuring long-term support for your product. For any inquiries, technical assistance, or warranty claims, please contact InfinaCore Official customer support. You can find contact information on the official InfinaCore website or through your purchase platform.
InfinaCore offers a 99-Year Protection on its products, emphasizing long-term quality and customer satisfaction.
