Introduction
This manual provides detailed instructions for the safe and efficient operation, maintenance, and troubleshooting of your POXURIO 1800W 3800PSI Airless Paint Sprayer, Model 4600ST. Please read this manual thoroughly before operating the equipment to ensure proper use and to prevent injury or damage. Keep this manual for future reference.
Image: The POXURIO 1800W Airless Paint Sprayer, featuring its portable cart design, high-pressure hose, and spray gun.
Safety Information
WARNING: Failure to follow these safety instructions may result in serious injury or property damage.
- Always wear appropriate safety gear, including gloves, eye protection, and a respirator, when operating the sprayer.
- Keep the sprayer away from heat sources, open flames, and sparks.
- Never point the spray gun at people or animals.
- Ensure the work area is well-ventilated to prevent the accumulation of hazardous fumes.
- Always disconnect the power supply before cleaning, servicing, or performing any maintenance on the unit.
- Dispose of paint residue and cleaning materials according to local environmental regulations.
- Do not operate the sprayer if any part is damaged or malfunctioning.
- Keep children and pets away from the operating area.
Package Contents
Verify that all components are present and undamaged upon unpacking. If any items are missing or damaged, contact customer support immediately.
Image: A visual representation of all included components with the POXURIO Airless Paint Sprayer.
- Airless Paint Sprayer Unit with Cart
- High-Pressure Hose (32.8 FT / 9m)
- Spray Gun
- Extension Rod (20 inch)
- Nozzles (various sizes, typically 4)
- Pressure Gauge
- Suction Tube Snap Ring
- Handle Cover
- Gloves
- Spray O-rings
- Cleaning Brush
- Empty Lube Bottle
- Wrench
- Goggles
Setup
- Assemble the Cart: Attach the wheels and handle to the main sprayer unit if not already assembled. Ensure all connections are secure.
- Connect the High-Pressure Hose: Securely attach one end of the high-pressure hose to the sprayer unit's outlet and the other end to the spray gun. Use the provided wrench to tighten connections to prevent leaks.
- Install the Suction Tube: Insert the suction tube into the paint inlet on the sprayer unit. Ensure the filter end is submerged in the paint container during operation.
- Attach the Spray Gun and Nozzle: Connect the spray gun to the high-pressure hose. Select the appropriate nozzle for your paint and project, then install it onto the spray gun. If using the extension rod, attach it between the spray gun and the nozzle.
- Prepare Paint: For optimal performance, ensure your paint is thoroughly mixed. This airless sprayer is designed for thinning-free operation with various thick pigments, including anti-rust paint, latex paint, and epoxy paint.
Image: The sprayer's portable design with wheels for easy transport.
Operating Instructions
- Prime the Sprayer:
- Place the suction tube into a bucket of water (for water-based paints) or appropriate cleaning solution (for oil-based paints).
- Turn the prime/spray valve to the "Prime" position.
- Turn on the sprayer. Allow the water/solution to circulate until it flows smoothly from the return tube into the bucket, indicating air has been purged.
- Turn off the sprayer.
- Load Paint: Place the suction tube into your paint container.
- Set Pressure: Turn the prime/spray valve to the "Spray" position. Adjust the pressure knob to the desired setting. Start with a lower pressure and gradually increase until you achieve an even spray pattern. The sprayer offers up to 3800 PSI for efficient coverage.
- Test Spray: Before spraying your project, test the spray pattern on a piece of cardboard or scrap material. Adjust pressure and nozzle as needed.
- Spraying Technique:
- Hold the spray gun perpendicular to the surface, maintaining a consistent distance (typically 10-12 inches).
- Move your arm, not just your wrist, to ensure an even coat. Overlap each pass by about 50%.
- Release the trigger at the end of each pass to prevent paint buildup.
- For high or distant areas, utilize the 20-inch extension rod for improved reach.
- Finish Painting: Once your project is complete, turn off the sprayer and proceed to the cleaning section.

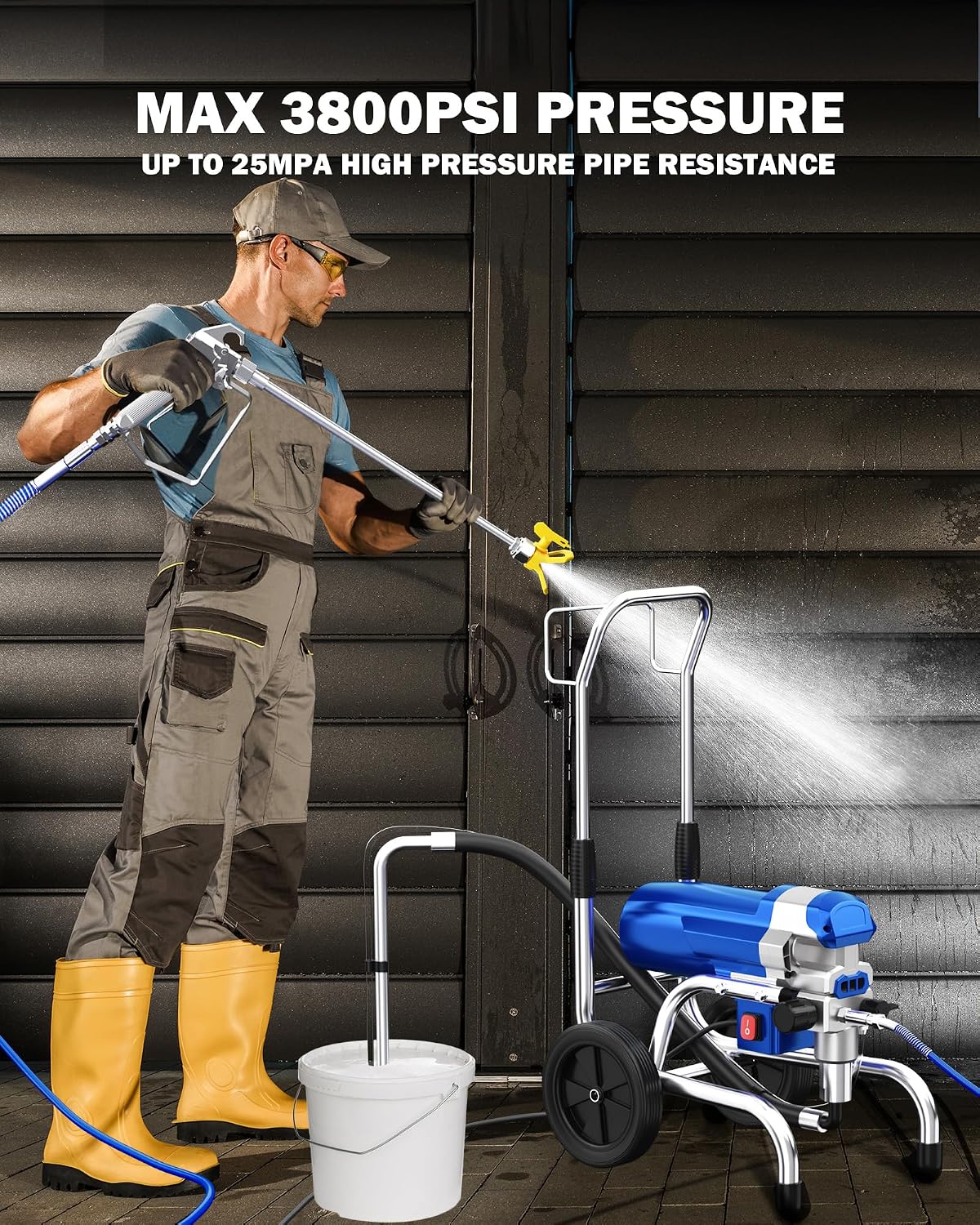

Image: User demonstrating the sprayer's high-pressure operation.
Image: The 20-inch extension rod in use for large-scale spraying.
Official Product Video: Assembly and Operation
Video: This video demonstrates the assembly and basic operation of a POXURIO airless paint sprayer. While the video title mentions a 1200W model, the assembly and operational principles are similar to the 1800W model.
Maintenance
Proper maintenance is crucial for the longevity and performance of your airless paint sprayer.
- Cleaning After Each Use:
- Disconnect power.
- Remove the suction tube from the paint and place it into a bucket of appropriate cleaning solution (water for latex, mineral spirits for oil-based paints).
- Turn the prime/spray valve to "Prime" and run the cleaning solution through the system until it runs clear.
- Turn the valve to "Spray" and spray the cleaning solution through the gun until it runs clear.
- Disassemble the spray gun, nozzle, and filters. Clean all components thoroughly with the cleaning brush and solution.
- Rinse all parts with clean water and allow them to dry completely.
- Lubrication: Apply a few drops of pump protector or light oil (from the empty lube bottle) to the pump's piston after each cleaning or before storage to prevent corrosion and maintain smooth operation.
- Storage: Store the sprayer in a clean, dry, and frost-free environment. Ensure all components are clean and dry before storage.
- Filter Replacement: Regularly inspect and replace filters (in the gun and suction tube) as needed to prevent clogs and maintain spray quality.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No spray or weak spray | Clogged nozzle, clogged filter, insufficient paint, air in system, low pressure setting. | Clean or replace nozzle/filter. Ensure sufficient paint. Prime the sprayer to remove air. Increase pressure setting. |
| Uneven spray pattern | Incorrect pressure, worn nozzle, improper spraying technique, paint too thick. | Adjust pressure. Replace nozzle. Review spraying technique. Ensure paint is suitable for thinning-free operation or consider a different nozzle. |
| Sprayer not priming | Air leaks in suction system, clogged inlet filter, prime/spray valve in wrong position. | Check all connections for tightness. Clean inlet filter. Ensure valve is in "Prime" position. |
| Motor runs but no pressure | Worn pump packing, inlet valve stuck open, air in system. | Contact customer support for pump packing replacement. Clean inlet valve. Prime the system. |
Specifications
- Model Name: Airless Paint Sprayer
- Model Number: 4600ST
- Brand: POXURIO
- Power: 1800W
- Maximum Pressure: 3800 PSI
- Flow Rate: 2.8 L/min
- Nozzle Diameter: 0.15-0.21 mm (Optimal Spraying Distance: 350-400mm)
- High-Pressure Pipe Length: 32.8 FT (9 meters)
- Extension Rod Length: 20 inches
- Material: Metal
- Color: Blue
- Product Dimensions: 16.93"W x 19.88"H
- Power Source: AC
- Recommended Uses: Painting (Home interior and exterior, furniture, fences, decks, garage, etc.)
Warranty & Support
For warranty information, technical support, or to order replacement parts, please contact POXURIO customer service. Refer to your purchase documentation for specific warranty terms and contact details. Always provide your model number (4600ST) and purchase date when contacting support.
