Introduction
This manual provides essential information for the safe and efficient use of your Nikai NGH3001G 60cm 4-Burner Built-in Gas Cooktop. Please read these instructions carefully before installation, operation, or maintenance. Keep this manual for future reference.
Safety Information
WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Refer to this manual. For assistance or additional information, consult a qualified installer, service agency, or the gas supplier.
- Ensure proper ventilation in the kitchen area.
- Do not store flammable materials near the cooktop.
- Always supervise cooking, especially when using high heat.
- Keep children away from the appliance during operation.
- In case of a gas leak, immediately turn off the gas supply, open windows, and do not operate any electrical switches or appliances. Contact your gas supplier.
- Only use the cooktop with the specified gas type (Natural Gas).
Product Overview
The Nikai NGH3001G is a 60cm built-in gas cooktop featuring four European burners, including a powerful triple-ring burner, set on an 8mm tempered safety glass surface with metal control knobs.
Key Components:
- Burners: Four gas burners, including one triple-ring burner for intense heat.
- Pan Supports: Durable cast iron pan supports for stability.
- Control Knobs: Metal knobs for precise flame adjustment.
- Surface: 8mm tempered safety glass surface.
- Ignition: Automatic ignition system.

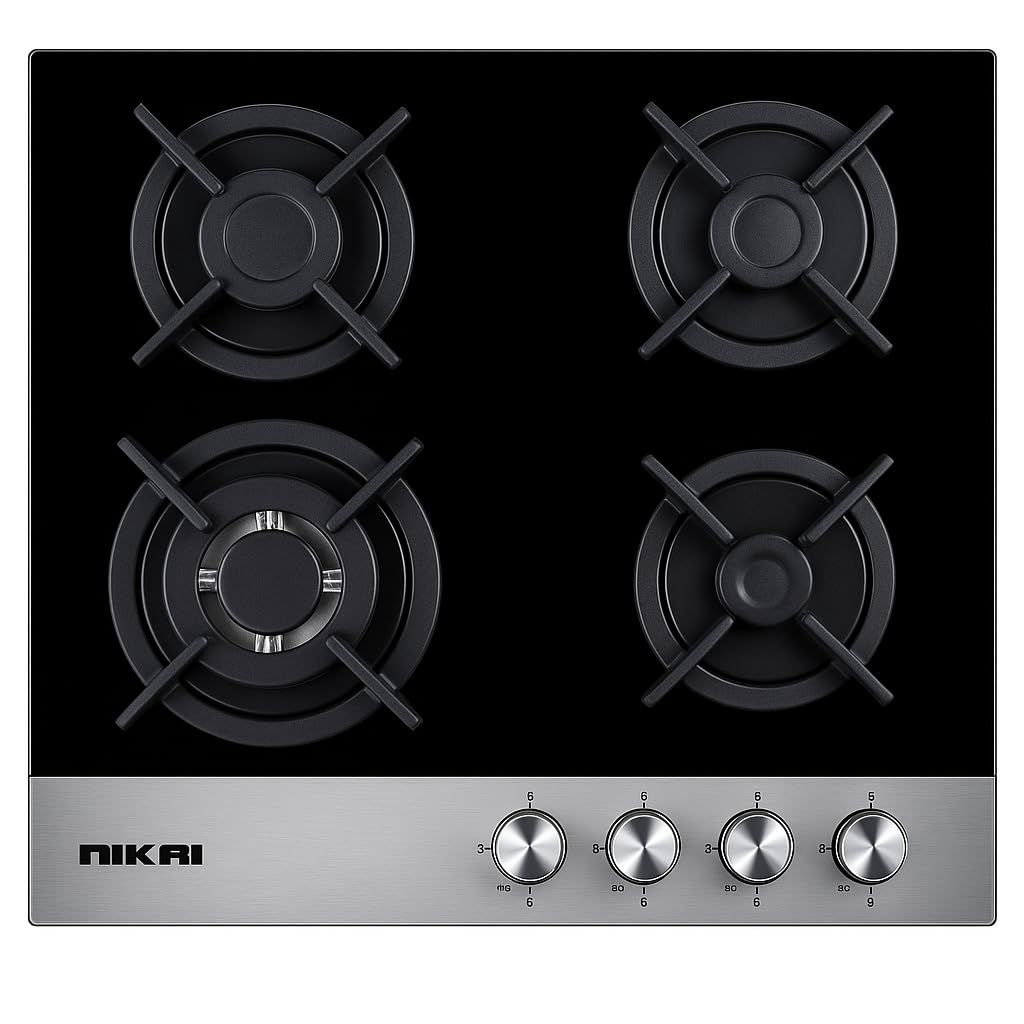

Image: Nikai NGH3001G 60cm 4-Burner Built-in Gas Cooktop. This image shows the cooktop with its four burners, cast iron pan supports, and front-mounted control knobs on a black tempered glass surface.
Setup and Installation
Installation of this gas cooktop must be performed by a qualified and certified technician in accordance with local regulations and standards. Incorrect installation can lead to serious hazards.
General Guidelines:
- Ensure the cutout dimensions in your countertop match the cooktop's specifications.
- Connect the cooktop to a suitable gas supply line.
- Verify all gas connections are leak-free using a soapy water solution.
- Ensure adequate ventilation is provided in the kitchen.
- The electrical connection for ignition should be 220V.
Operating Instructions
Igniting a Burner:
- Place a suitable cooking utensil on the pan support over the desired burner.
- Push down and turn the corresponding control knob counter-clockwise to the maximum flame position (large flame symbol).
- Hold the knob down for a few seconds to allow the thermocouple to heat up and activate the flame failure device.
- Once the burner ignites, release the knob. If the flame goes out, repeat the process.
- Adjust the flame size by turning the knob between the maximum and minimum flame positions (small flame symbol).
Turning Off a Burner:
- Turn the control knob clockwise until it clicks into the 'OFF' position (dot symbol).
- Ensure the flame is completely extinguished.
Cleaning and Maintenance
Regular cleaning and maintenance will ensure the longevity and optimal performance of your cooktop. Always ensure the cooktop is cool and disconnected from the power supply before cleaning.
Cleaning the Glass Surface:
- Use a soft cloth and a non-abrasive cleaner specifically designed for glass or ceramic surfaces.
- Wipe spills immediately after the surface has cooled to prevent staining.
- Avoid harsh chemicals or abrasive pads that can scratch the glass.
Cleaning Burner Components:
- Remove the pan supports, burner caps, and burner rings.
- Wash them in warm soapy water. For stubborn residue, use a non-abrasive brush.
- Ensure all components are completely dry before reassembling them.
- Periodically check burner ports for blockages and clean if necessary.
Troubleshooting
If you encounter issues with your cooktop, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Burner does not ignite | No gas supply, power outage, clogged burner port, wet burner components. | Check gas supply, verify power, clean burner ports, ensure components are dry. |
| Flame is uneven or yellow | Clogged burner ports, incorrect gas pressure. | Clean burner ports. Contact a qualified technician to check gas pressure. |
| Gas smell detected | Gas leak. | Immediately turn off gas supply, open windows, do not operate electrical switches. Contact gas supplier and a qualified technician. |
| Knob is stiff or hard to turn | Food residue or debris under the knob. | Carefully remove the knob and clean the area underneath. |
If the problem persists after attempting these solutions, contact a qualified service technician.
Specifications
| Feature | Detail |
|---|---|
| Brand | Nikai |
| Model Number | NGH3001G |
| Product Type | Built-in Gas Cooktop |
| Number of Burners | 4 |
| Special Features | Automatic Ignition, Beveled Edge, Adjustable Temperature |
| Cooktop Surface Material | Tempered Glass (8mm thick) |
| Material | Metal |
| Fuel Type | Natural Gas |
| Power Source | Gas Powered |
| Control Type | Knob |
| Installation Type | Drop-in |
| Voltage | 220 Volts |
| Color | Black |
| Product Dimensions (D x W x H) | 52 cm x 60 cm x 11 cm |
| Item Weight | 4 kg |
| Country of Origin | China |
Warranty and Support
This Nikai NGH3001G gas cooktop comes with a manufacturer's 2-year warranty from the date of purchase. This warranty covers manufacturing defects under normal use conditions.
For warranty claims, technical support, or service inquiries, please contact your retailer or the authorized Nikai service center. Keep your purchase receipt as proof of purchase.
Note: The warranty may be voided by improper installation, unauthorized repairs, or misuse of the appliance.
