CLEANmaxx Automatic Shirt Ironing Pro User Manual

1. Introduction

The CLEANmaxx Automatic Shirt Ironing Pro is an innovative appliance designed to efficiently smooth and dry shirts, blouses, and other suitable garments using hot air technology. This device offers a convenient alternative to traditional ironing, steaming, and tumble drying, saving time and effort. Please read this manual thoroughly before first use to ensure safe and optimal operation.

2. Safety Instructions

• Always read all instructions before operating the appliance.
• Keep the appliance away from water and do not immerse it in liquids.
• Do not operate the appliance if the power cord or plug is damaged. Contact qualified service personnel for repairs.
• Ensure the appliance is placed on a stable, heat-resistant surface during operation.
• Unplug the appliance from the power outlet when not in use and before cleaning.
• This appliance is intended for household use only.
• Do not allow children to operate the appliance without supervision.
• Only use the appliance for textiles suitable for tumble drying, such as cotton, linen, polyester, and denim.
• Do not use on delicate textiles like wool or silk, as these may shrink or be damaged by heat.
• The hot air temperature can reach up to 45°C. Avoid direct contact with the hot air outlet during operation.

3. Package Contents

Verify that all items are present in the package:

• CLEANmaxx Automatic Shirt Ironing Pro Base Unit
• Inflatable Balloon Body (Garment Form)
• Telescopic Rod
• 5 Weight Clips
• User Manual (this document)

4. Product Components

Illustration of the CLEANmaxx Automatic Shirt Ironing Pro components, showing the inflatable balloon body and the garment form.

• Base Unit: Contains the motor, heating element, and control dial.
• Telescopic Rod: Adjustable rod for varying garment lengths.
• Inflatable Balloon Body: The garment form that inflates with hot air to dry and smooth clothes. Features a zip extension for size adjustment.
• Weight Clips: Used to secure the garment's hem for optimal smoothing.
• Control Dial: For turning the device on/off and setting the timer.

5. Setup

The CLEANmaxx Automatic Shirt Ironing Pro set up and ready for use, demonstrating its ease of operation.

1. Unpack: Carefully remove all components from the packaging.
2. Position: Place the base unit on a flat, stable, and heat-resistant surface. Ensure there is adequate space around the device for air circulation.
3. Assemble Rod: Insert the telescopic rod into the designated opening on the base unit.
4. Attach Balloon Body: Securely attach the inflatable balloon body to the top of the telescopic rod. Ensure it is properly seated.
5. Power Connection: Plug the power cord into a standard electrical outlet.

6. Operating Instructions

A shirt being smoothed by the device, with an indicator showing a typical 10-minute operation time.

1. Prepare Garment: Ensure the garment (shirt, blouse, T-shirt, sweater) is machine-spun and damp, not dripping wet.
2. Place Garment: Carefully pull the damp garment over the inflatable balloon body.
3. Adjust Size: Use the zip extension on the balloon body to adjust its circumference to fit the garment snugly (suitable for sizes S to XXL). Adjust the telescopic rod to match the garment's length.

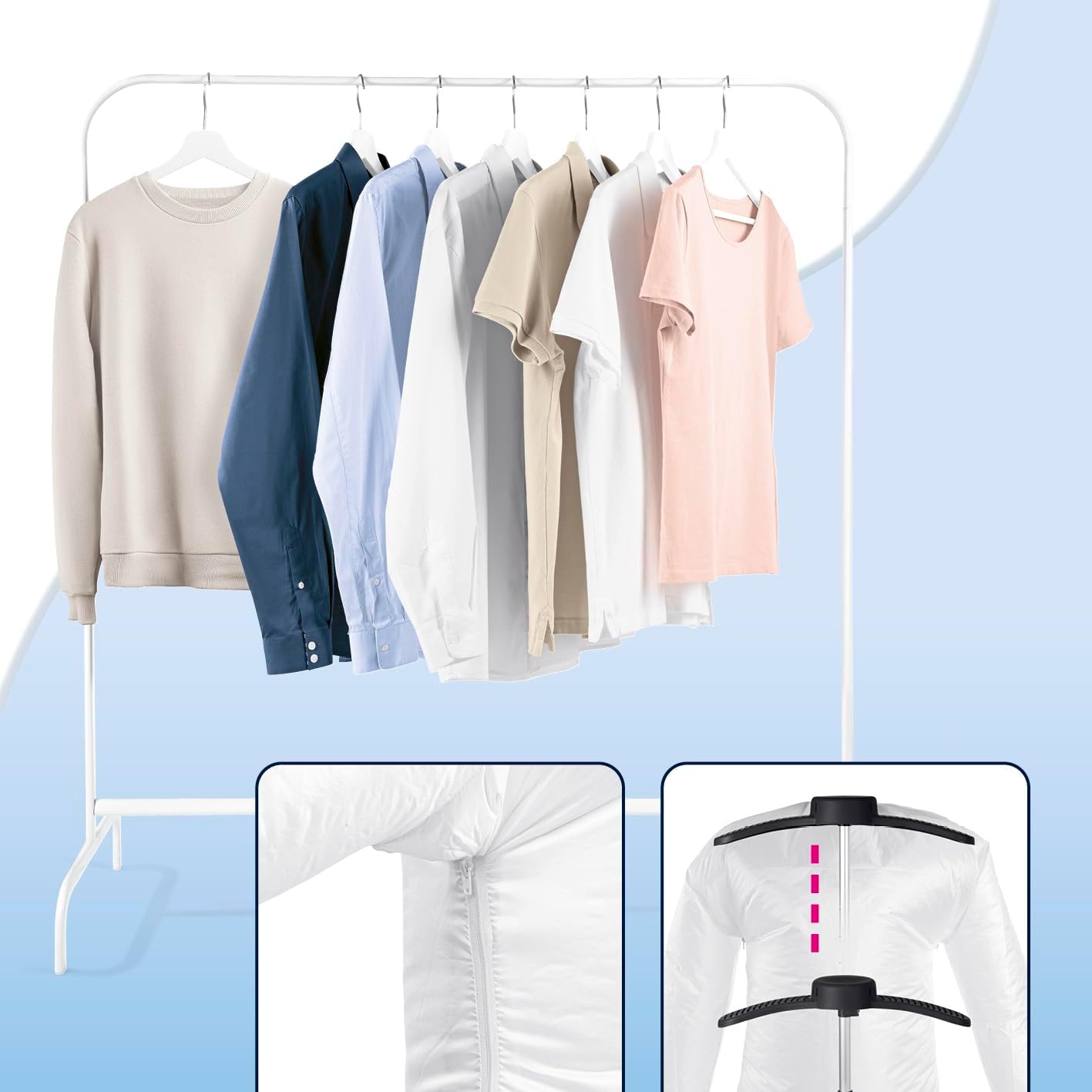

Detail of the zip extension for size adjustment and the adjustable telescopic rod, allowing the device to accommodate various garment sizes.

4. Secure Hem: Attach the 5 provided weight clips evenly to the hem of the garment. This helps to pull the fabric taut and ensures optimal smoothing.
5. Power On & Set Timer: Turn the control dial on the base unit to activate the device and set the desired operating time. A typical shirt may require approximately 10 minutes. The timer can be set from 5 to 30 minutes.
6. Drying & Smoothing: The balloon body will inflate with hot air (up to 45°C), drying and smoothing the garment simultaneously.
7. Completion: The device will automatically switch off once the set time has elapsed. Carefully remove the dry and smooth garment.

Collage of various fabric types suitable for the device, including cotton, linen, polyester, and denim.

7. Maintenance and Care

The CLEANmaxx Automatic Shirt Ironing Pro stored compactly in a cabinet, demonstrating its space-saving design.

• Cleaning the Base Unit: Always unplug the appliance before cleaning. Wipe the exterior of the base unit with a soft, damp cloth. Do not use abrasive cleaners or immerse the unit in water.
• Cleaning the Balloon Body: The inflatable balloon body can be wiped clean with a damp cloth. Ensure it is completely dry before storing or reusing.
• Storage: Store the appliance in a dry, cool place when not in use. Its compact design allows for easy storage in cabinets or closets.

8. Troubleshooting

9. Specifications

• Brand: CLEANmaxx
• Model Name: Modello 14911
• Wattage: 1800 watts
• Item Weight: 4.3 Kilograms
• Special Features: Telescopic Rod, Hot Air Technology, Drying Function
• Care Instructions: Hot air technology ensures results in approximately 10 minutes.
• Suitable Textiles: Tumble-drying textiles such as jeans, linen, cotton, polyester.
• Unsuitable Textiles: Delicate textiles like wool or silk that can shrink or be damaged by heat.
• Base Material: Stainless Steel
• ASIN: B0DG2CDD3Q

10. Warranty and Support

For detailed warranty information, product registration, or customer support, please refer to the documentation included with your purchase. You may also visit the official CLEANmaxx website or contact their customer service department directly for assistance with your Modello 14911 Automatic Shirt Ironing Pro.
