MERITLINE Queen Murphy Bed with Couch Instruction Manual

1. Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your MERITLINE Queen Murphy Bed with Couch. This product is designed to offer a versatile solution for living spaces, combining a comfortable queen-sized bed with a functional sofa. Please read all instructions carefully before beginning assembly or operation to ensure safe and correct usage.

2. Safety Information

• Weight Capacity: Do not exceed the maximum weight limit of 600 lbs (272 kg) on the bed.
• Assembly: Ensure all components are assembled correctly and securely tightened according to the instructions. Improper assembly can lead to instability and injury.
• Children and Pets: Keep children and pets away from the unit during assembly and operation. Recommended age for independent use is over 6 years old. Adult supervision is required for younger children.
• Wall Mounting: This Murphy bed must be securely anchored to a wall. Use appropriate hardware for your wall type. Failure to properly anchor the unit can result in serious injury.
• Clearance: Ensure sufficient clear space around the unit when opening and closing the bed to prevent obstructions or damage.
• Mechanism: The bed features a dual piston metal folding mechanism. Exercise caution when operating the bed to avoid pinching or crushing injuries.

3. Package Contents

Your MERITLINE Queen Murphy Bed with Couch is shipped in multiple packages. Please verify that all parts are present before beginning assembly. Refer to the included parts list in your separate assembly guide for a complete inventory.

Typical components include:

• Murphy Bed Cabinet Panels
• Bed Frame Components (slats, supports)
• Sofa Frame and Cushions
• Dual Piston Metal Folding Mechanism
• Hardware Kit (screws, bolts, connectors, wall anchors)
• Assembly Instruction Guide

4. Setup and Assembly

Assembly of the MERITLINE Queen Murphy Bed with Couch is required. It is highly recommended to have at least two adults for assembly due to the size and weight of the components. The process can be complex; patience and attention to detail are crucial.

Required Tools (Not Included):

• Power screwdriver with hex bits
• Rubber mallet
• Drill (for wall mounting and potentially for non-pre-drilled holes)
• Level
• Measuring tape

Assembly Steps:

1. Unpack and Organize: Carefully unpack all boxes and lay out components. Group similar parts and hardware.
2. Review Instructions: Thoroughly read the separate assembly instruction guide provided with your product. Pay close attention to diagrams and part orientations.
3. Assemble Cabinet Frame: Begin by assembling the main cabinet structure. Ensure all connections are tight and square.
4. Install Bed Mechanism: Integrate the dual piston metal folding mechanism into the cabinet frame. Follow the instructions precisely for correct alignment and function.
5. Attach Bed Frame: Secure the bed frame to the mechanism. Test the folding action before proceeding.
6. Assemble Sofa: Construct the sofa frame and attach the cushions.
7. Wall Mounting: This is a critical step. Position the assembled unit against the desired wall. Use a level to ensure it is plumb. Mark and drill pilot holes for the wall anchors. Securely fasten the unit to the wall using the provided hardware. Failure to properly anchor the unit can result in tipping and severe injury.
8. Final Checks: Verify all screws and bolts are tightened. Ensure the bed mechanism operates smoothly.

Figure 1: Dimension diagram of the MERITLINE Queen Murphy Bed with Couch, illustrating key measurements for planning and assembly.

5. Operating Instructions

The MERITLINE Queen Murphy Bed with Couch is designed for easy transformation between a sofa and a bed.

To Open the Bed:

1. Ensure the area in front of the cabinet is clear of obstructions.
2. Grasp the handles located on the front panel of the bed.
3. Gently pull the bed downwards. The dual piston mechanism will assist in the lowering process.
4. As the bed lowers, flip the support legs down onto the floor to provide stability.
5. Once fully extended, ensure the support legs are locked into position.

Figure 2: The Murphy bed in a partially open position, transitioning from sofa to bed.

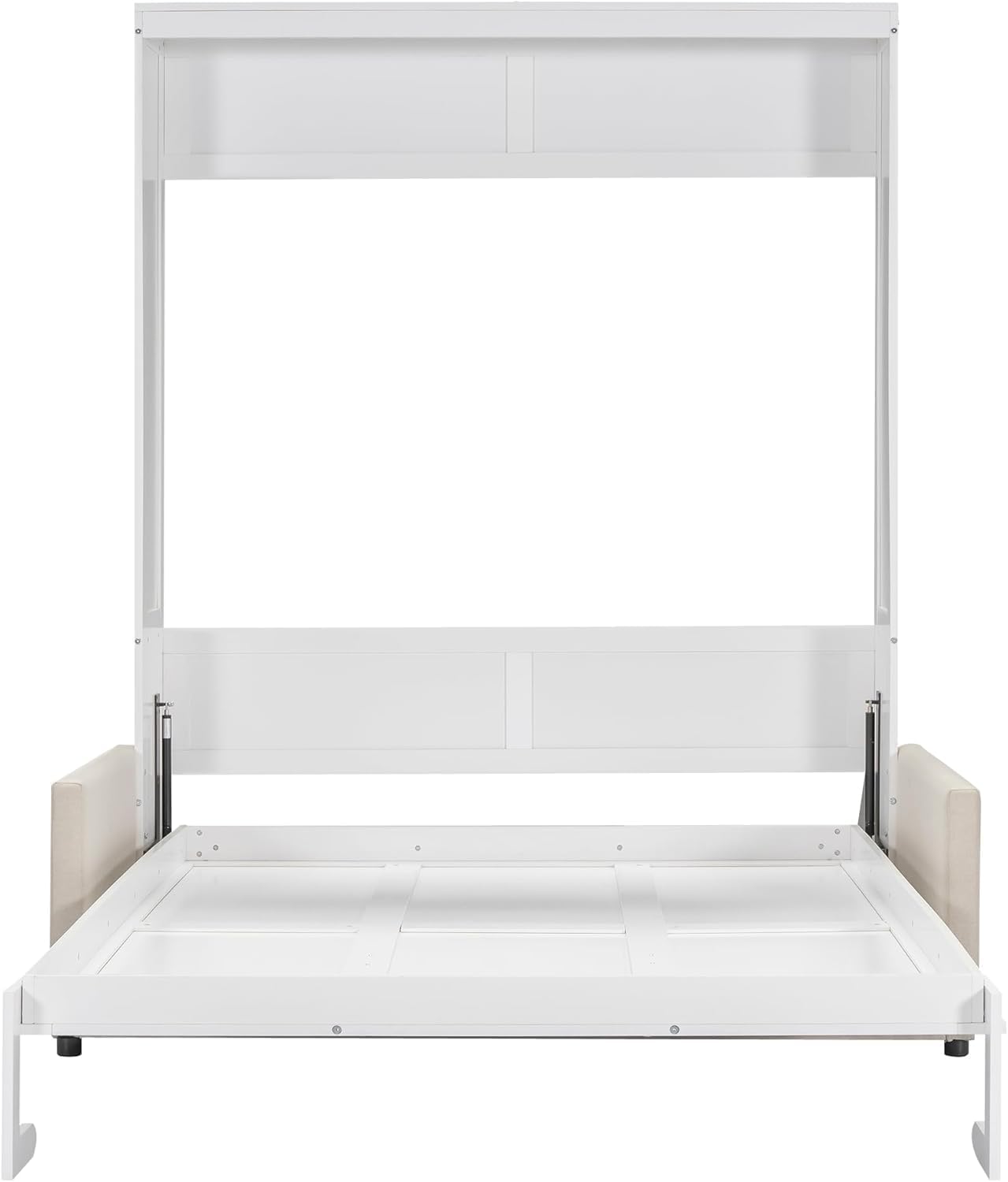

Figure 3: The Murphy bed fully extended, showcasing the sleeping surface.

To Close the Bed:

1. Remove any bedding or items from the bed surface.
2. Fold the support legs back into their stored position.
3. Grasp the handles and gently lift the bed upwards. The piston mechanism will assist in lifting.
4. Continue lifting until the bed is fully vertical and securely latched within the cabinet.

Figure 4: The Murphy bed in its closed position, presenting as a compact cabinet with an integrated sofa.

Using the Sofa:

When the bed is in the closed position, the integrated sofa is ready for use. The sofa cushions are designed for comfort and can be adjusted as needed.

Figure 5: Detail of the sofa cushions and armrests.

6. Maintenance

• Cleaning: Wipe surfaces with a dry cloth. Avoid harsh chemicals or abrasive cleaners that may damage the finish. For sofa fabric, spot clean with a mild detergent and water, or follow specific fabric care instructions if provided.
• Hardware Check: Periodically inspect all screws, bolts, and connections to ensure they remain tight. Re-tighten as necessary to maintain structural integrity and safety.
• Mechanism Inspection: Check the dual piston folding mechanism for smooth operation. Do not lubricate unless specifically instructed by the manufacturer.
• Mattress: Ensure your mattress is within the recommended thickness (8 inches) to allow for proper closing of the bed.

7. Troubleshooting

If you encounter issues with your MERITLINE Queen Murphy Bed with Couch, consider the following common solutions:

• Bed Does Not Open/Close Smoothly:
  • Check for any obstructions in the path of the bed frame.
  • Verify that the mattress is not too thick or heavy for the mechanism.
  • Inspect the dual piston mechanism for any visible damage or misalignment.
• Unit Feels Unstable:
  • Ensure the unit is securely anchored to the wall. Re-check wall mounting hardware.
  • Verify all assembly screws and bolts are tightened.
• Missing Parts or Damaged Components:
  • Refer to your assembly guide's parts list. Contact customer support for replacements.

If these steps do not resolve the issue, please contact MERITLINE customer support for further assistance.

8. Specifications

Note: Manual measurements have been used; reasonable error may occur. Slight chromatic aberration may occur due to lighting or display conditions.

9. Warranty Information

Specific warranty details for the MERITLINE Queen Murphy Bed with Couch are not provided in this document. Please refer to your purchase documentation, retailer's policy, or contact MERITLINE customer support for information regarding warranty coverage.

10. Support

For further assistance, questions, or to report missing/damaged parts, please contact MERITLINE customer service. You can also visit the official MERITLINE store for more product information and support resources:

Visit the MERITLINE Store on Amazon
