DBEIXIWEI Tool Storage Rack Instruction Manual

1. Product Overview

The DBEIXIWEI Tool Storage Rack is a durable and versatile metal organizer designed to keep your screwdrivers, tools, screws, wire cutters, pliers, scissors, and other small items neatly organized. Constructed from high-quality aluminum alloy, this rack is resistant to stripping and breaking, ensuring long-lasting use. Its unassembled design allows for a DIY assembly process, providing a satisfying experience in setting up your tool organization solution.

Figure 1: Fully assembled DBEIXIWEI Tool Storage Rack, showcasing its multi-tiered design and various storage slots.

This storage solution is ideal for hobbyists, DIY enthusiasts, and professionals seeking an efficient way to manage their small tools and accessories, particularly suitable for RC model friends.

2. Package Contents

Before beginning assembly, please verify that all components listed below are present in your package. If any parts are missing or damaged, please contact customer support.

Figure 2: All components included in the unassembled package. Screwdrivers and pliers shown in product images are for reference only and are not included.

• 1 x Base Plate (large rectangular piece with various cutouts)
• 2 x Upper Shelves (rectangular pieces with multiple circular holes)
• 1 x Side Organizer Plate (smaller rectangular piece with slots and a circular hole)
• 8 x Short Support Pillars (cylindrical, black)
• 4 x Long Support Pillars (cylindrical, black)
• 12 x Screws (for securing components)

Note: Screwdrivers and pliers shown in some product images are for demonstration purposes only and are not included with the storage rack.

3. Assembly Instructions

The DBEIXIWEI Tool Storage Rack is designed for easy self-assembly. Follow these steps carefully to ensure proper construction.

1. Prepare the Base: Place the large rectangular base plate on a flat, stable surface. This will be the foundation of your storage rack.
2. Attach Long Support Pillars: Identify the four long support pillars. Secure them to the four corner holes on the base plate using four of the provided screws. Ensure they are firmly tightened but do not overtighten.
3. Install the First Upper Shelf: Take one of the upper shelf plates (the ones with many circular holes). Align its corner holes with the top of the four long support pillars. Secure it in place using four more screws. This forms the lower tier of the main tool storage area.
4. Install the Second Upper Shelf: Take the remaining upper shelf plate. Align its corner holes with the top of the four long support pillars, directly above the first upper shelf. Secure it in place using the final four screws for this section. This completes the main two-tiered tool storage area.
5. Assemble the Side Organizer: Identify the side organizer plate and the eight short support pillars. Attach four short support pillars to the four corner holes of the side organizer plate.
6. Attach Side Organizer to Base: Secure the assembled side organizer to the designated area on the base plate using the remaining four short support pillars. These pillars will connect the side organizer plate to the base, forming a separate compartment for larger tools or items.

Figure 3: Angled view of the assembled rack, illustrating the connection points and overall structure.

Once all components are securely fastened, gently test the stability of the rack. It should be firm and stable.

4. Usage Instructions

The DBEIXIWEI Tool Storage Rack is designed for versatile organization of various tools and accessories.

• Screwdriver Slots: Utilize the numerous circular holes on the two upper shelves to store screwdrivers of various sizes. The different hole diameters accommodate a range of shaft sizes.
• Pliers/Scissors Slots: The side organizer section features larger slots ideal for holding pliers, wire cutters, scissors, or other bulkier hand tools.
• Small Parts Tray: The recessed rectangular area on the base plate is perfect for holding small screws, nuts, bolts, or other tiny components, preventing them from rolling away.
• General Storage: The open areas on the base and shelves can be used for larger tools or containers.

Figure 4: Detail of the side organizer, designed for larger tools like pliers or scissors.

Always ensure tools are placed securely in their designated slots to prevent accidental falls or damage.

5. Maintenance

To ensure the longevity and appearance of your DBEIXIWEI Tool Storage Rack, follow these simple maintenance guidelines:

• Cleaning: Wipe the rack regularly with a soft, dry cloth to remove dust and debris. For stubborn marks, a slightly damp cloth can be used, followed by immediate drying. Avoid abrasive cleaners or solvents.
• Inspection: Periodically check all screws and connections to ensure they remain tight. Retighten if necessary to maintain stability.
• Environment: Store the rack in a dry environment to prevent any potential moisture damage, although the aluminum alloy is rust-resistant.

6. Troubleshooting

This product is simple in design, and issues are rare. However, if you encounter any problems, consider the following:

• Rack is Wobbly:
  • Ensure all screws are fully tightened.
  • Verify that the rack is placed on a flat, even surface.
• Parts Don't Fit:
  • Double-check the assembly instructions to ensure you are using the correct parts for each step (e.g., long vs. short pillars).
  • Ensure parts are oriented correctly before attempting to fasten them.

If problems persist, please refer to the customer support section.

7. Specifications

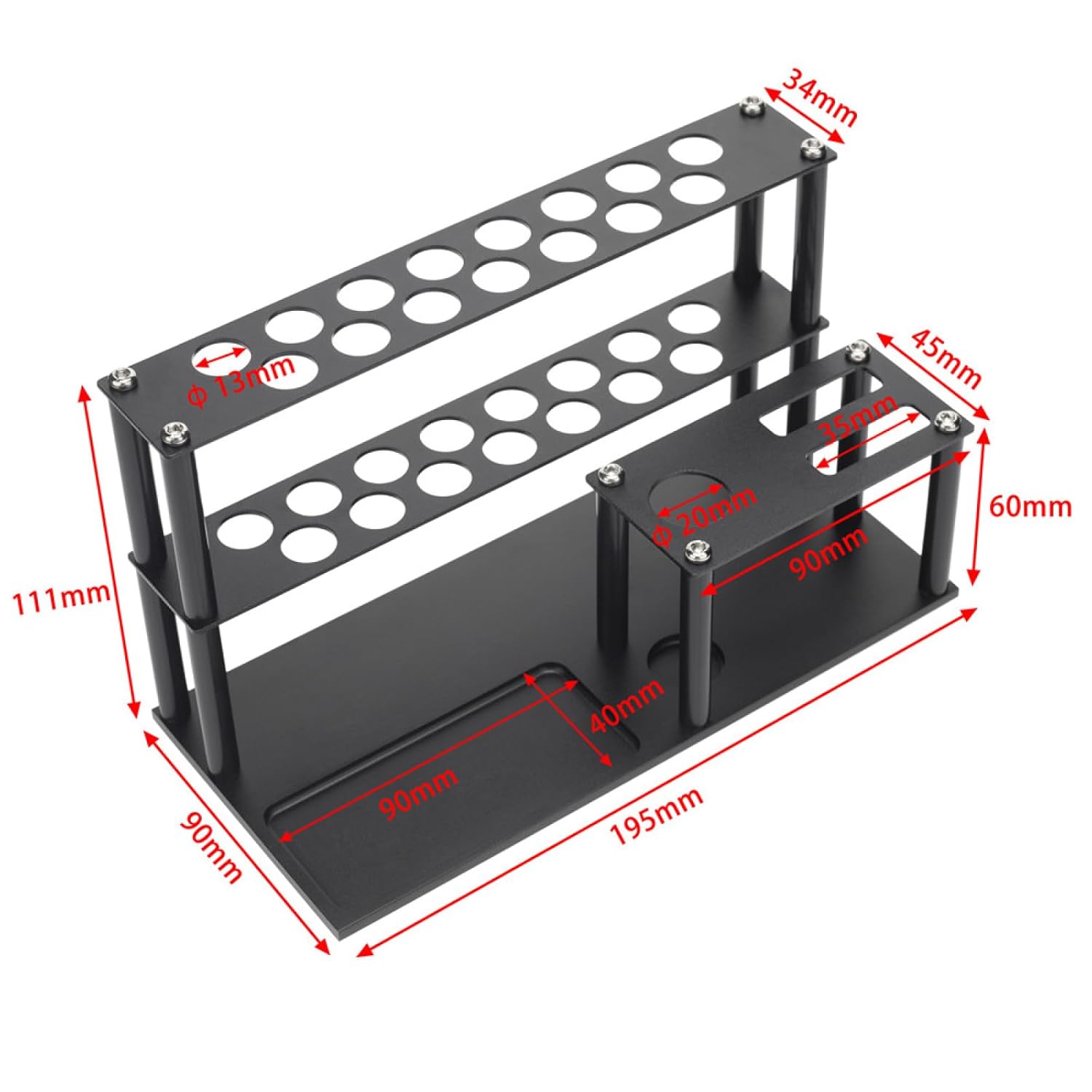

Figure 5: Detailed dimensions of the assembled tool storage rack. Overall length is 195mm, width 90mm, and height 111mm.

8. Warranty and Support

DBEIXIWEI products are manufactured to high standards. Specific warranty details are not provided in this manual. For any inquiries regarding warranty, returns, or technical support, please contact the seller directly through the platform where you purchased the product.

When contacting support, please provide your order number and the product model number (B0DFQH54YQ) to facilitate a quicker resolution.
