Introduction
This manual provides essential information for the safe and efficient use of your FrigeluX FRD190XBI French Door Refrigerator. Please read these instructions carefully before installation and operation, and retain them for future reference.
Setup and Installation
Unpacking
Carefully remove all packaging materials. Inspect the refrigerator for any damage incurred during transit. Report any damage to your retailer immediately.
Placement

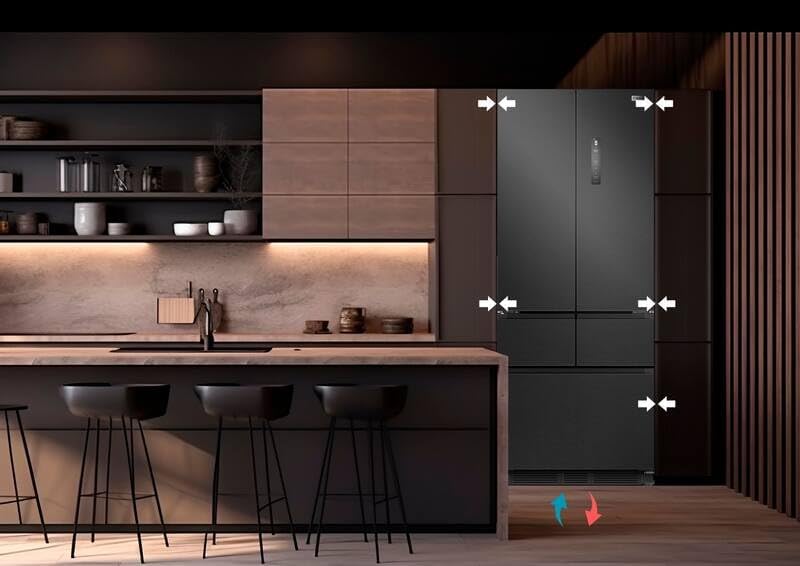

The FrigeluX FRD190XBI refrigerator is designed for both freestanding and built-in (Niche 190) installation. Ensure adequate ventilation around the appliance, especially at the rear and sides, to allow for proper heat dissipation and efficient operation.
- Avoid direct sunlight and heat sources.
- Maintain a minimum clearance of 5 cm on the sides and 10 cm at the rear for optimal airflow.
- Ensure the floor is level and strong enough to support the refrigerator's weight (approximately 103 kg).
Dimensions and Niche Requirements
For built-in installation, ensure your niche meets the following dimensions:
- Net Width: 770 mm
- Net Height: 1935 mm
- Net Depth: 600 mm
The product dimensions are approximately 60 cm (depth) x 77 cm (width) x 193 cm (height).
Electrical Connection
Connect the refrigerator to a grounded electrical outlet. The appliance operates on 240 Volts and consumes 130 Watts. Ensure the electrical supply matches these requirements.
Initial Cleaning
Before first use, clean the interior and exterior of the refrigerator with a mild detergent and warm water. Dry thoroughly.
Operating Instructions
Digital Thermostat
The refrigerator features a digital thermostat with a white display for precise temperature control. Refer to the control panel for adjusting settings. Allow several hours for the refrigerator to reach the set temperature after initial power-on or after adjusting settings.
No-Frost Technology
This appliance incorporates No-Frost technology, which prevents ice build-up in both the refrigerator and freezer compartments. This ensures uniform cooling and eliminates the need for manual defrosting.
Fast Freezing Function
Activate the fast freezing function when adding a large quantity of fresh food to the freezer. This rapidly lowers the temperature to preserve food freshness and nutrients. Deactivate the function once the food is frozen.
Variable Zone Drawer
The refrigerator includes a variable zone drawer that can be adjusted between -4°C and +4°C. This allows for optimal storage conditions for different types of food, such as meat, fish, or delicate produce.
LED Lighting
The interior is illuminated with white LED lighting, providing clear visibility even in deep compartments and enhancing energy efficiency.
90° Door Opening
Specific hinges allow the doors to open at a 90° angle without obstruction, even when installed close to furniture or walls. This facilitates easy access to the interior and removal of shelves.
Maintenance and Care
Cleaning
Regularly clean the interior and exterior surfaces of your refrigerator. Use a soft cloth with a mild, non-abrasive detergent. Avoid harsh chemicals or abrasive cleaners that can damage surfaces. For the No-Frost system, no manual defrosting is required.
Door Seals
Periodically check the door seals for cleanliness and proper sealing. Clean them with warm water and a soft cloth. A tight seal is crucial for energy efficiency.
Reversible Doors
The doors of this refrigerator are reversible, allowing for flexible installation to suit your kitchen layout. Consult a qualified technician for door reversal procedures to avoid damage.
Troubleshooting
Before contacting customer service, review the following common issues and solutions:
- Refrigerator not cooling: Check if the power cord is securely plugged in, the circuit breaker is not tripped, and the temperature settings are correct. Ensure doors are fully closed.
- Unusual noises: Minor noises from the compressor or refrigerant flow are normal. Ensure the refrigerator is level and not touching walls or cabinets.
- Excessive frost in freezer: While No-Frost, ensure the freezer door is not left open frequently or for extended periods. Check door seals for proper closure.
- Water on floor: Check if the drain hole is blocked or if the water collection tray is overflowing.
If the problem persists after checking these points, disconnect the appliance from the power supply and contact customer support.
Specifications
| Feature | Detail |
|---|---|
| Brand | FrigeluX |
| Model Number | FRD190XBI |
| Total Capacity | 413 Litres |
| Refrigerator Volume | 271 Litres |
| Freezer Volume | 142 Litres |
| Dimensions (L x W x H) | 60 x 77 x 193 cm |
| Weight | 103 Kilograms |

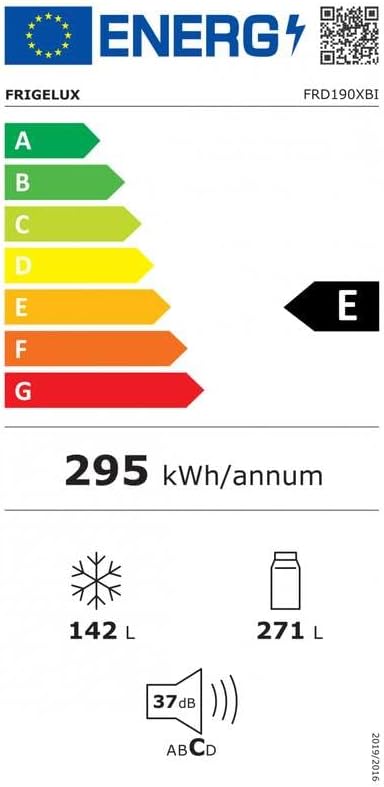

| Energy Efficiency Class | E |
| Annual Energy Consumption | 295 kWh/annum |
| Noise Level | 37 dB |
| Defrost System | Automatic (No-Frost) |
| Installation Type | Freestanding / Built-in (Niche 190) |
| Color | Dark Inox |
| Material | Stainless Steel |
| Voltage | 240 Volts |
| Wattage | 130 Watts |
| Number of Shelves | 8 |
| Number of Drawers | 6 |
| Door Reversibility | Yes |
| Spare Parts Availability | 10 Years |
Warranty Information
Your FrigeluX FRD190XBI refrigerator comes with a standard manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms, conditions, and duration. Keep your proof of purchase for warranty claims.
Spare parts for this model are available for a period of 10 years from the date of purchase.
Customer Support
For technical assistance, service requests, or questions regarding your FrigeluX FRD190XBI refrigerator, please contact FrigeluX customer support. Contact details can typically be found on the FrigeluX official website or on your warranty documentation.
You can also visit the FrigeluX Brand Store on Amazon for additional product information and support resources.
