1. Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your Creality Ender 3 V3 SE 3D Printer. Please read this manual thoroughly before operating the printer to ensure proper usage and optimal performance.
1.1 Package Contents
The Creality Ender 3 V3 SE 3D Printer bundle includes:
- Creality Ender 3 V3 SE 3D Printer
- 2 Packs of 3D Printer Filament (Grey and Black)
- Necessary tools and accessories for assembly and operation
Figure 1.1: Creality Ender 3 V3 SE 3D Printer with included filament spools.
2. Setup and Assembly
The Ender 3 V3 SE 3D printer is designed for quick and straightforward assembly, typically completed in three main steps within approximately 20 minutes.
2.1 Initial Assembly
Follow the included quick start guide for the physical assembly of the printer components. This typically involves attaching the gantry to the base and connecting necessary cables.
2.2 Automatic Leveling
The printer features an automatic leveling system using a CR Touch sensor for multi-point bed leveling and a strain sensor for auto Z-offset. This eliminates the need for manual calibration cards or knob adjustments, ensuring a precise first layer.

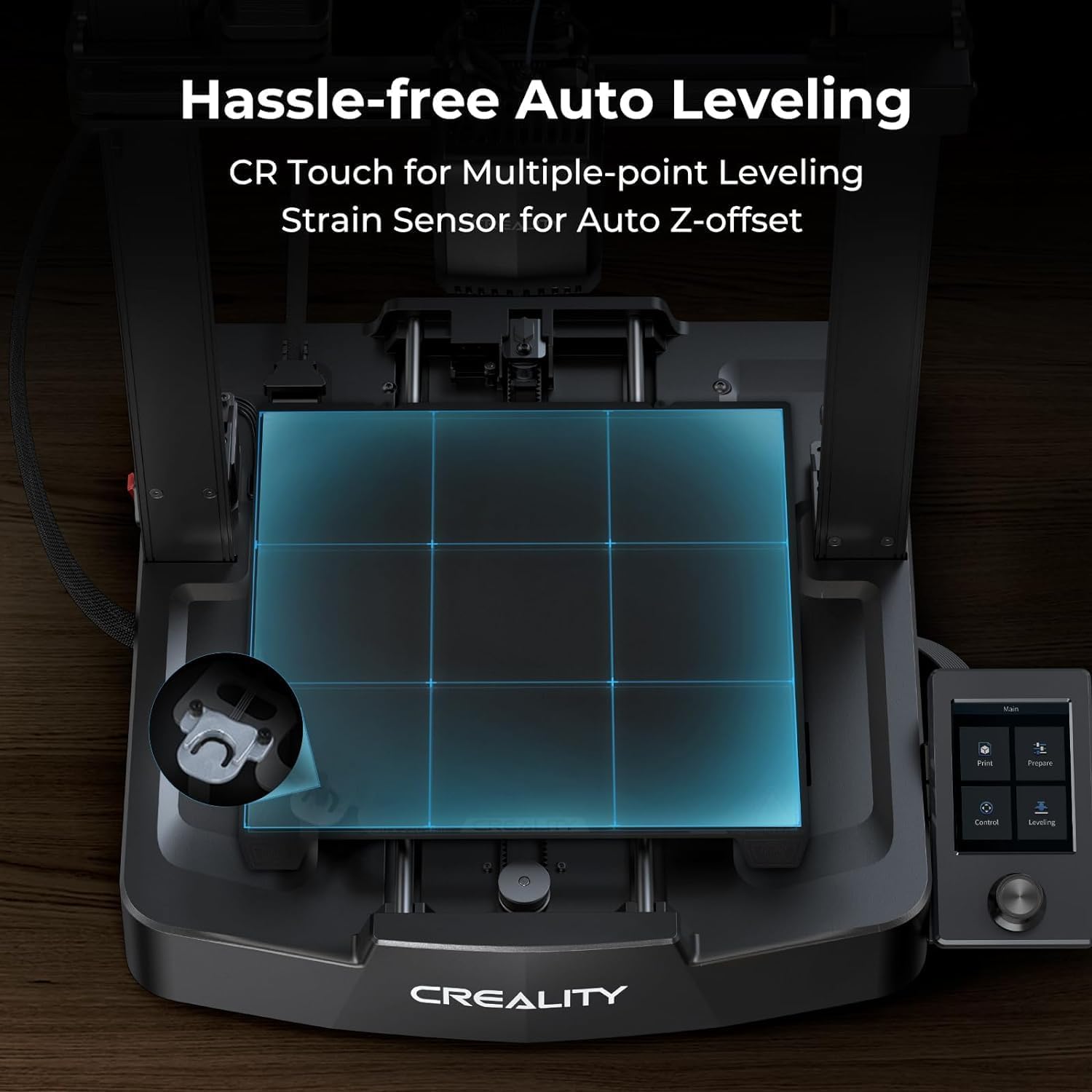

Figure 2.1: Automatic bed leveling in progress, highlighting the CR Touch sensor.
2.3 Filament Loading
The printer allows for easy loading and unloading of filament with a single tap on the user interface. Ensure the filament is fed smoothly into the extruder.
Figure 2.2: Overview of the quick setup process, including assembly, auto-leveling, and filament loading.
3. Operation
3.1 Printing Speed and Efficiency
The Ender 3 V3 SE is capable of printing at speeds up to 250mm/s with an acceleration of 2500mm/s², facilitating efficient completion of print models.
Figure 3.1: Printing speed comparison demonstrating the efficiency of the Ender 3 V3 SE.
3.2 Sprite Direct Drive Extruder
The printer is equipped with a "Sprite" direct drive extruder, which ensures smooth and consistent feeding of various filament types, including PLA, PETG, and flexible TPU.
Figure 3.2: The "Sprite" direct drive extruder for versatile filament compatibility.
3.3 32-bit Silent Mainboard
The integrated 32-bit silent mainboard utilizes advanced stepper motor drives for precise control across all axes, resulting in reduced operational noise during printing.
3.4 User Interface (UI)
The optimized user interface displays motion graphics for processes like leveling and other parameters, providing clear visual feedback on the printer's status.
3.5 Printer Stability
The printer's design incorporates dual Z-axis lead screws and Y-axis dual linear shafts to enhance stability and precision during printing, contributing to consistent print quality.
Figure 3.3: Structural components ensuring printer stability.
4. Filament Handling and Maintenance
4.1 Filament Quality and Storage
The included filament is manufactured with a clog-free design to ensure smooth and stable printing. It is dried for 24 hours before packaging and vacuum-sealed with desiccants in a PC bag to prevent moisture absorption and maintain quality.
4.2 Filament Winding and Toughness
Filament spools undergo mechanical winding and manual inspection to ensure tidy, less-tangled lines, minimizing the risk of snaps or breaks. The larger spool inner diameter facilitates smoother feeding. The raw material is designed for enhanced toughness, making it suitable for printing functional parts.
Figure 4.1: Filament diameter accuracy and consistency.
5. Specifications
| Feature | Detail |
|---|---|
| Brand | Creality |
| Model | Ender 3 V3 SE |
| Material (Filament) | Polylactic Acid (PLA) |
| Color (Filament) | Black, Grey |
| Compatible Devices | Personal Computer |
| Supported File Format | STEP |
| First Available Date | September 4, 2023 |
6. Troubleshooting
If you encounter any issues with your Creality Ender 3 V3 SE 3D Printer, consider the following general troubleshooting steps:
- Check Connections: Ensure all cables (power, data) are securely connected.
- Filament Issues: Verify that the filament is loaded correctly, not tangled, and free from clogs. Check for proper extrusion.
- Bed Leveling: Re-run the automatic bed leveling process if you experience first layer adhesion problems.
- Software/Slicer Settings: Confirm that your slicing software settings (temperature, speed, retraction) are appropriate for the filament type and model.
- Firmware: Ensure your printer's firmware is up to date.
For more specific issues, refer to the official Creality support resources or community forums.
7. Warranty and Support
For information regarding product warranty, technical support, and service, please refer to the official Creality website or contact their customer service directly. Keep your purchase receipt as proof of purchase for warranty claims.
Official Creality Store: Visit Creality Store on Amazon
