1. Introduction
This instruction manual provides essential information for the proper installation, operation, and maintenance of your CAARLA Disc Slip Ring, model JSR-PS025-6P10-SP. Please read this manual thoroughly before using the product to ensure safe and efficient performance. Retain this manual for future reference.
2. Product Overview
The CAARLA Disc Slip Ring is an electrical rotary joint designed for transmitting power and signals across a rotating interface. This specific model, JSR-PS025-6P10-SP, features an ID of 38.1mm, 3-way gold-plated contacts, and an ultra-thin 5mm pancake design. It is primarily used in manufacturing and process control equipment, particularly for motors requiring 360° continuous rotation.
Key Features:
- Simplified Design: Engineered to prevent conductor damage during rotation, simplifying system integration.
- 360° Continuous Rotation: Facilitates uninterrupted transmission of electrical signals and power.
- Gold-Gold Contacts: Ensures high stability, reliability, and extended service life.
- Portable and Lightweight: Designed for easy installation and maintenance.
- Durable Performance: Offers long working life, small torque, smooth running, and extremely low dynamic resistance values.

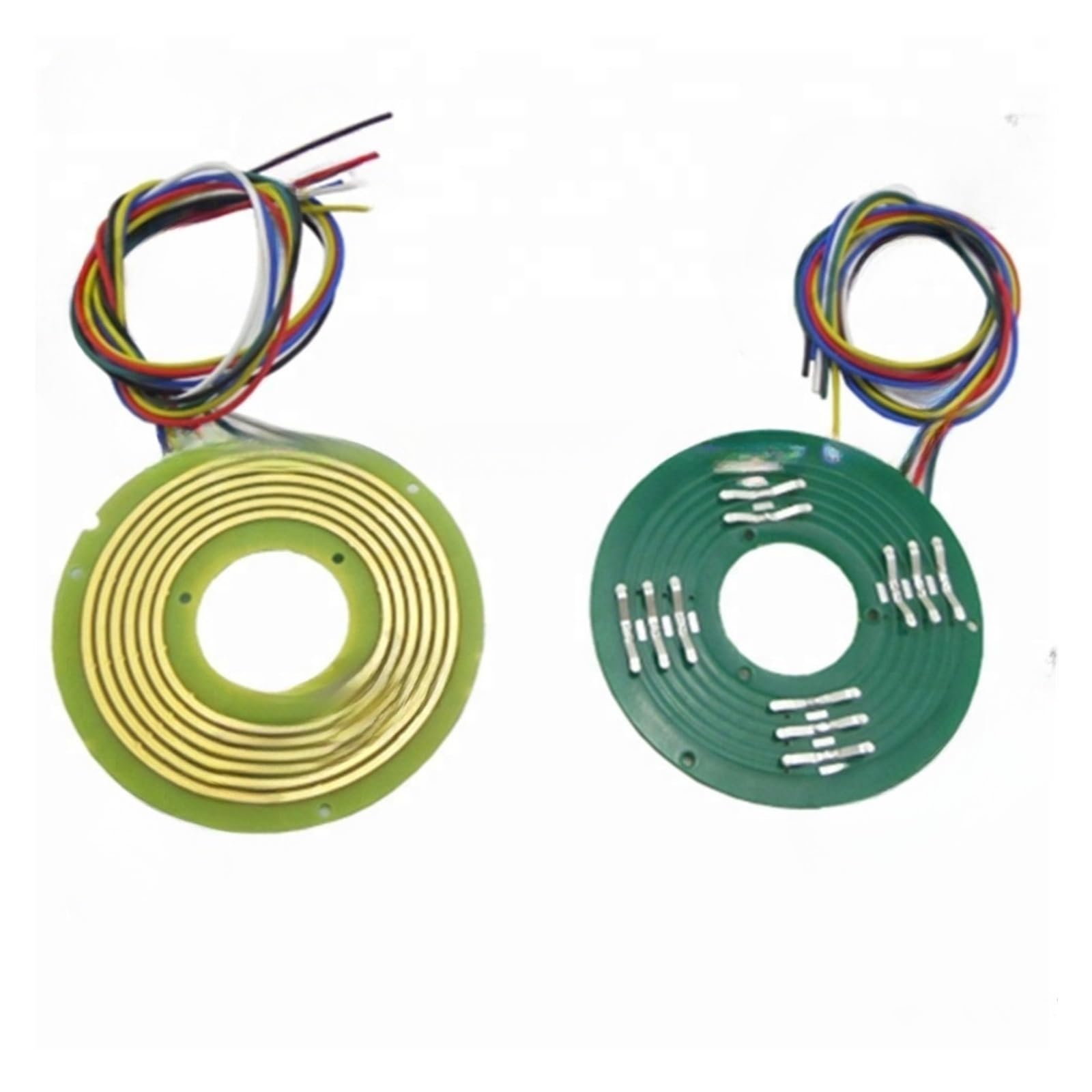

Image 1: Front and back view of the CAARLA Disc Slip Ring. The left side displays the gold-plated concentric rings for signal transmission, while the right side shows the connection points for wiring. Multi-colored wires are visible, indicating electrical connections.
3. Safety Information
Observe the following safety precautions to prevent injury and damage to the product or associated equipment:
- Always disconnect power before installation, maintenance, or troubleshooting.
- Ensure proper grounding to prevent electrical shock.
- Installation should be performed by qualified personnel familiar with electrical systems.
- Do not exceed the specified current and voltage ratings.
- Avoid exposing the slip ring to excessive moisture, dust, or corrosive environments.
- Handle the unit with care to avoid damaging the delicate internal components and contacts.
4. Setup and Installation
Proper installation is crucial for the optimal performance and longevity of the slip ring. While specific installation steps may vary based on your application, the general guidelines are as follows:
- Mounting: Securely mount the stationary part of the slip ring to a stable surface. Ensure it is aligned correctly with the rotating component.
- Wiring: Connect the input and output wires according to your system's electrical diagram. Ensure all connections are secure and insulated. The gold-plated contacts are designed for reliable signal and power transmission.
- Clearance: Verify that there is adequate clearance around the slip ring to prevent interference with other components during rotation.
- Testing: Before full operation, perform a continuity test and a low-speed rotation test to confirm proper electrical connection and mechanical function.
5. Operating Instructions
Once installed, the CAARLA Disc Slip Ring operates automatically as part of your electrical system. It facilitates continuous electrical connection between stationary and rotating parts.
- Ensure the power supply to the connected equipment is stable and within the specified voltage and current limits.
- Monitor the system for any unusual noise, vibration, or heat during operation, which could indicate an issue.
- The slip ring is designed for 360° continuous rotation. Avoid sudden jerks or excessive forces that could damage the internal structure.
6. Maintenance
Regular maintenance helps ensure the longevity and reliable performance of your slip ring.
- Inspection: Periodically inspect the slip ring for any signs of wear, corrosion, or damage to the contacts and wiring.
- Cleaning: If necessary, gently clean the exterior of the slip ring with a dry, lint-free cloth. Do not use abrasive cleaners or solvents. Avoid direct contact with the internal gold-plated contacts unless specifically instructed by a qualified technician.
- Environmental Control: Maintain a clean and dry operating environment to prevent dust and moisture accumulation.
7. Troubleshooting
If you encounter issues with your CAARLA Disc Slip Ring, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Intermittent signal/power loss | Loose wiring, worn contacts, debris | Check all wiring connections. Inspect contacts for wear; clean if necessary. Ensure operating environment is clean. |
| Excessive noise or vibration | Misalignment, damaged bearings (if applicable), foreign objects | Verify proper mounting and alignment. Inspect for any obstructions. |
| Overheating | Overcurrent, poor ventilation, high friction | Ensure current draw is within specifications. Improve ventilation. Check for mechanical binding. |
If the problem persists after attempting these solutions, contact customer support or a qualified technician.
8. Specifications
| Attribute | Detail |
|---|---|
| Brand | CAARLA |
| Model Number | JSR-PS025-6P10-SP |
| Product Type | Disc Slip Ring / Pancake Slip Ring |
| Inner Diameter (ID) | 38.1mm |
| Number of Ways/Circuits | 3-Way |
| Contact Material | Gold Plated (Precious Metal) |
| Current Rating | 10A |
| Speed | Up to 250 RPM |
| Thickness | 5mm (Ultra-thin) |
| Application | Manufacturing and process control equipment, Motors |
| Item Weight | 1.1 pounds |
| Package Dimensions | 1.18 x 0.79 x 0.39 inches |
| Number of Pieces | 1 |
9. Warranty and Support
For warranty information or technical support, please refer to the product packaging or contact your point of purchase. Keep your purchase receipt as proof of purchase.
