VEVOR Automatic Sliding Gate Opener User Manual
Model: Automatic Sliding Gate Opener
Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your VEVOR Automatic Sliding Gate Opener. Please read this manual thoroughly before installation and use to ensure proper function and safety.
The VEVOR Automatic Sliding Gate Opener is designed for residential and commercial sliding gates weighing up to 1400 lbs (635 kg) and moving at a speed of 43 ft/min (13.1 m/min). It features a powerful pure copper motor, remote control operation, and advanced safety features.
Safety Information
WARNING: Improper installation or use can lead to serious injury or death. Always follow all safety precautions and instructions.
- Ensure all power is disconnected before performing any installation or maintenance.
- Keep children and pets away from the gate area during operation.
- Do not operate the gate if any part is damaged or malfunctioning.
- Regularly inspect the gate and opener for signs of wear or damage.
- This product is designed for sliding gates only. Do not use for other applications.
Package Contents
Verify that all components listed below are included in your package:
- 1 x Sliding Gate Opener
- 1 x 20 ft. of Chain (Can be split into 2 x 10 ft. Chains)
- 2 x Remote Controls (Batteries not included)
- 2 x Manual Release Keys
- 1 x Set of Mounting Hardware
- 1 x Set Installation Parts
- 1 x Manual (This document)

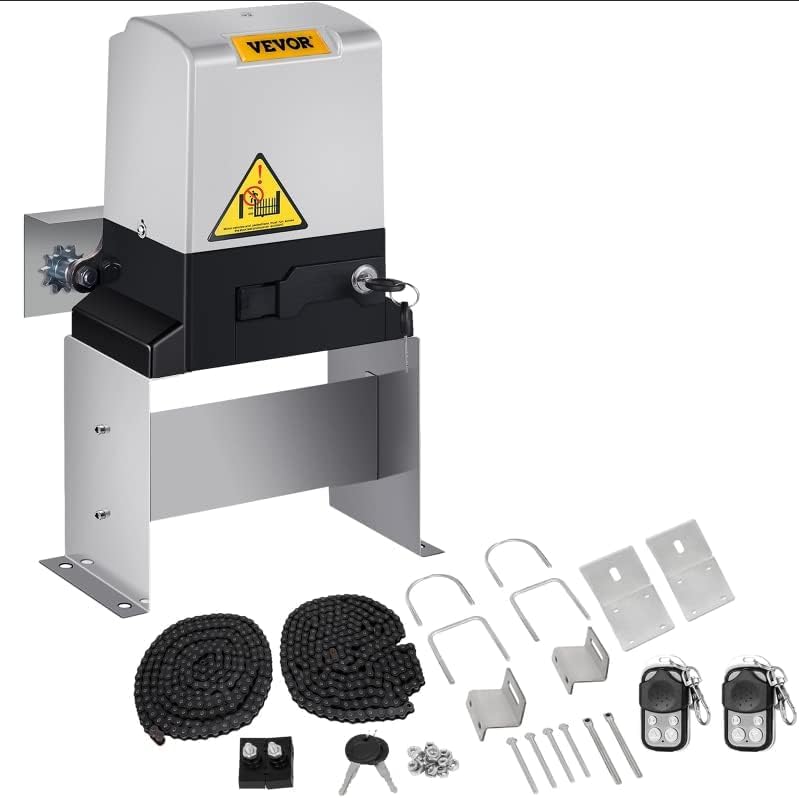

Image: VEVOR Automatic Sliding Gate Opener and its complete set of accessories, including the main unit, chains, remote controls, manual release keys, and various mounting hardware.
Specifications
| Feature | Detail |
|---|---|
| Model Number | Automatic Sliding Gate Opener |
| Max Gate Weight | 1400 lbs (635 kg) |
| Move Speed | 43 ft/min (13.1 m/min) |
| Motor Power | 370W Pure Copper Motor |
| Remote Control Range | Up to 100 ft (30.5 m) |
| Product Dimensions | 19.3 x 12.6 x 10.6 inches (49 x 32 x 27 cm) |
| Item Weight | 42.3 pounds (19.2 kg) |
| Included Chain Length | 20 ft (6.1 m) |
| Safety Features | Obstruction Detection, Over-heat Protector, Over-load Protector |
| Weather Resistance | Waterproof shell, 9-inch height base |

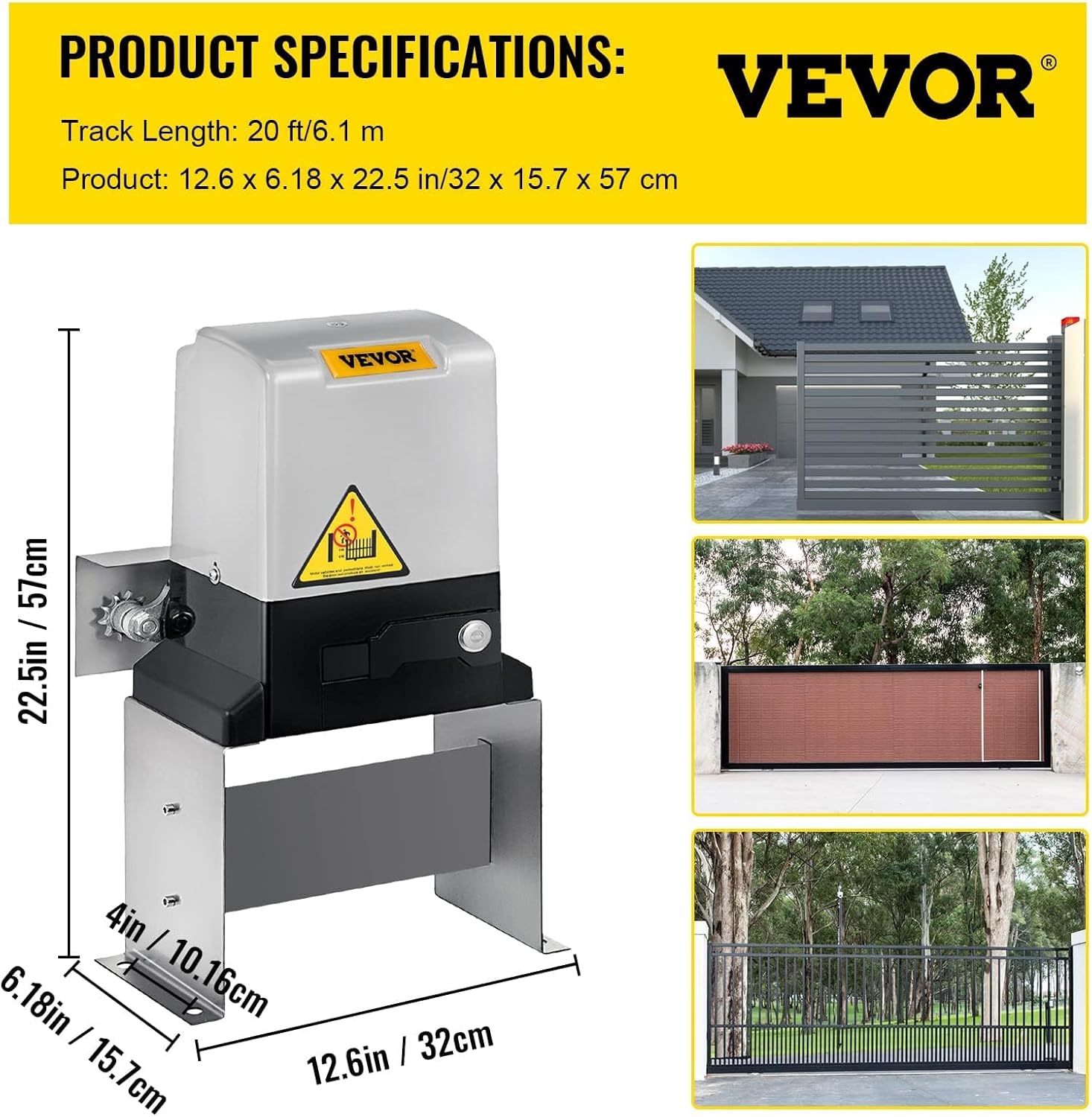

Image: Detailed product specifications including dimensions and track length for the VEVOR Automatic Sliding Gate Opener.
Image: Illustration of the powerful pure copper motor, highlighting its low noise operation, working temperature range, and overload/overheat protection features.
Installation Guide
1. Site Preparation
Ensure the gate is properly installed, moves freely, and is level. The area around the gate opener installation point should be clear of obstructions and have adequate drainage.
2. Mounting the Gate Opener
- Determine the optimal mounting position for the gate opener, ensuring it is level and securely anchored to a concrete pad or sturdy base. The 9-inch height base helps prevent submersion during heavy rain.
- Use the provided mounting hardware to secure the opener to the prepared base.
Image: Close-up view of the VEVOR Gate Opener's internal components, showing stainless steel gears, a rainproof cover, and the elevated base designed for outdoor use.
3. Installing the Chain
The kit includes 20 ft of chain, which can be split into two 10 ft sections. Attach the chain securely to the gate, ensuring it is taut but not overly tight, allowing for smooth movement.
Image: The VEVOR Automatic Sliding Gate Opener positioned next to a gate, illustrating the inclusion of two 10 ft chains for installation.
4. Electrical Connection
Connect the gate opener to a suitable power source according to local electrical codes. It is recommended to have a qualified electrician perform this step.
5. Limit Switch Adjustment
Adjust the open and close limit blocks to define the gate's full travel path. Refer to the detailed installation diagram for proper placement.
Image: A comprehensive DIY installation diagram showing the placement of the gate operator, chain, open and close limit blocks, chain bracket, and power input relative to a sliding gate and wall.
Operating Instructions
1. Remote Control Operation
The gate opener comes with two wireless remote controls. Each remote has buttons for opening, closing, and stopping the gate.
- Press the Open button to open the gate.
- Press the Close button to close the gate.
- Press the Stop button to halt the gate at any point during its travel.
The remote controls have an operating range of up to 100 ft (30.5 m).
Image: A user operating the VEVOR Gate Opener with a wireless remote control, highlighting the emergency release keys and the stop & reverse mode for obstacle detection.
2. Manual Release
In case of a power failure or malfunction, use the provided manual release keys to disengage the motor and operate the gate manually.
- Insert the manual release key into the lock on the gate opener.
- Turn the key to disengage the motor.
- The gate can now be moved by hand.
- To re-engage, turn the key back and remove it.
3. Obstruction Detection
The gate opener is equipped with obstruction detection technology. If the gate encounters an obstacle during opening or closing, it will automatically stop and reverse direction to prevent injury or damage.
Maintenance
Regular maintenance ensures the longevity and safe operation of your VEVOR Automatic Sliding Gate Opener.
- Monthly: Inspect the gate and opener for any signs of wear, damage, or loose connections. Check the chain tension and lubricate if necessary.
- Quarterly: Clean the gate opener housing and ensure no debris is obstructing the chain or gears. Test the obstruction detection feature.
- Annually: Have a qualified technician inspect the entire system, including electrical connections and motor performance.
Do not use harsh chemicals for cleaning. A damp cloth is sufficient for external cleaning.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Gate does not move. | No power; Remote control battery low; Manual release engaged; Obstruction. | Check power supply; Replace remote battery; Disengage manual release; Remove obstruction. |
| Gate stops unexpectedly. | Obstruction detected; Motor overheating; Limit switch issue. | Clear obstruction; Allow motor to cool; Check limit switch settings. |
| Remote control not working. | Battery dead; Out of range; Remote not paired. | Replace battery; Move closer to opener; Refer to remote pairing instructions (not in this manual, but implied). |
| Gate is noisy during operation. | Lack of lubrication; Worn chain or gears; Misalignment. | Lubricate chain and moving parts; Inspect and replace worn components; Check gate and opener alignment. |
Warranty and Support
For warranty information and technical support, please contact VEVOR customer service. Keep your purchase receipt as proof of purchase.
For further assistance, visit the official VEVOR store: VEVOR Store on Amazon
