1. Introduction
Thank you for choosing the cysum Speedy-27.5 Electric Mountain Bike. This manual provides essential information for the safe assembly, operation, and maintenance of your e-bike. Please read it thoroughly before your first ride to ensure optimal performance and safety.
The cysum Speedy-27.5 is a 27.5-inch electric mountain bike designed for adults, featuring a powerful 75 Nm motor, a removable 48V 14Ah (672Wh) lithium battery offering a range of 75-85 km with pedal assist, and hydraulic disc brakes for reliable stopping power. It comes equipped with a 7-speed drivetrain, front suspension, front and rear lights, fenders, and a rear rack.
Image: The cysum Speedy-27.5 Electric Mountain Bike, showcasing its overall design and features.
2. Setup and Initial Assembly
Your cysum Speedy-27.5 e-bike arrives approximately 90% pre-assembled. The remaining assembly typically involves attaching the front wheel, handlebars, seat post, pedals, and checking all pre-installed components.
2.1 Unpacking
- Carefully remove the bicycle and all components from the packaging.
- Inspect for any shipping damage. Contact customer support immediately if damage is found.
- Retain packaging for future transport or returns.
2.2 Attaching the Handlebars
Insert the handlebar stem into the fork steerer tube. Ensure the handlebars are centered and aligned with the front wheel. Tighten the stem bolts securely. Refer to the specific torque specifications in the full manual if available.
2.3 Installing the Front Wheel
Carefully lift the front of the bike and align the front wheel with the fork dropouts. Ensure the disc brake rotor is correctly seated within the brake caliper. Secure the wheel using the quick-release skewer or axle nuts, ensuring it is tight and centered.
2.4 Attaching the Pedals
Identify the left (L) and right (R) pedals. The left pedal has a left-hand thread (tightens counter-clockwise), and the right pedal has a standard right-hand thread (tightens clockwise). Apply a small amount of grease to the threads and screw them into the crank arms. Tighten firmly with a wrench.

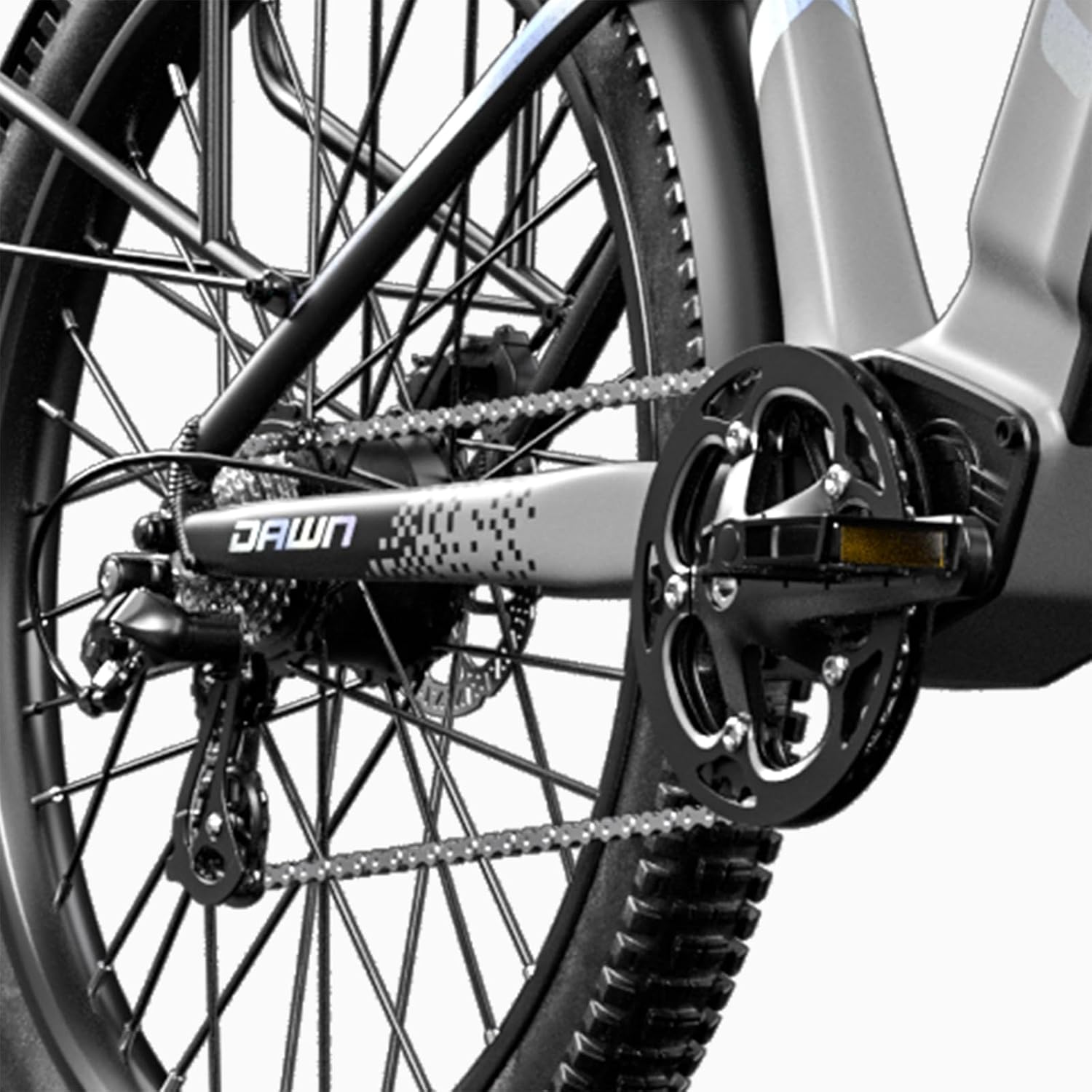

Image: Close-up view of the pedals and chainring, illustrating the drive system.
2.5 Adjusting the Seat Post
Insert the seat post into the frame's seat tube. Adjust the seat height to a comfortable riding position where your leg is slightly bent at the knee when the pedal is at its lowest point. Secure the seat post with the quick-release lever or bolt. Ensure the minimum insertion mark on the seat post is not visible.
2.6 Pre-Ride Checks
- Brakes: Test both front and rear brakes for proper function. Ensure levers are firm and stop the wheels effectively.
- Tires: Check tire pressure. The recommended pressure is usually indicated on the tire sidewall.
- Bolts & Fasteners: Double-check all bolts and quick releases for tightness, including wheels, handlebars, seat, and rack.
- Battery: Ensure the battery is securely installed and charged.

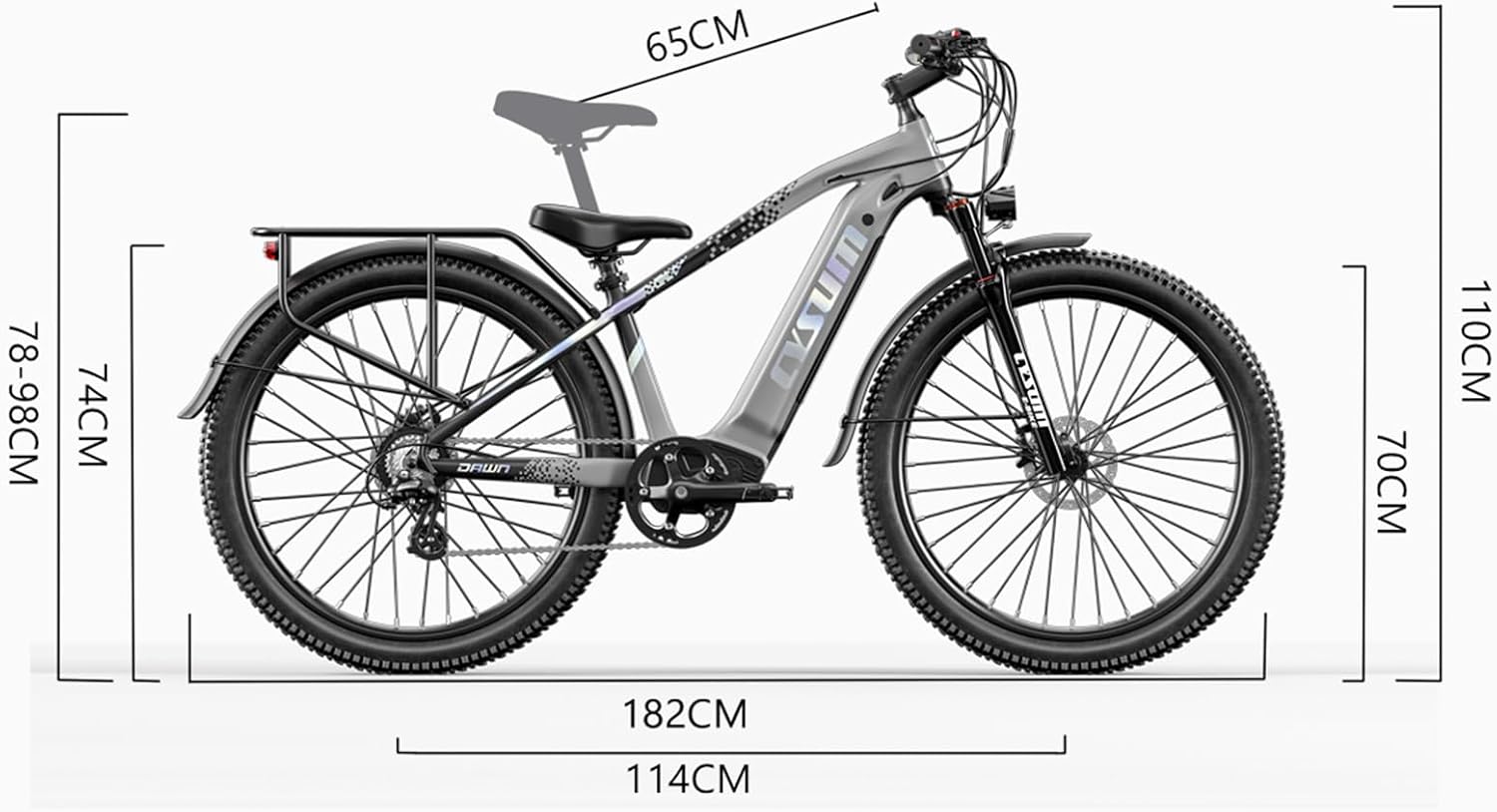

Image: Diagram showing the dimensions of the cysum Speedy-27.5 Electric Mountain Bike, useful for setup and fit.
3. Operating Instructions
3.1 Battery Installation and Charging
The 48V 14Ah (672Wh) lithium battery is removable for convenient charging. To install, slide the battery into its compartment on the frame until it clicks securely into place. To remove, unlock it with the provided key and slide it out.
To charge, connect the charger to the battery's charging port and then to a standard power outlet. The indicator light on the charger will show charging status (e.g., red for charging, green for fully charged). A full charge provides an assisted range of 75-85 km. Always use the original charger provided.
Image: Close-up of the removable battery integrated into the frame of the cysum electric bike.
3.2 Powering On/Off and Display Usage
To power on the e-bike, press and hold the power button on the handlebar display. The display will illuminate, showing information such as speed, battery level, and assist level. To power off, press and hold the power button again.
Use the buttons on the display unit to cycle through assist levels (e.g., Eco, Normal, Sport) or to activate/deactivate lights. Consult the display's specific manual for detailed functions.

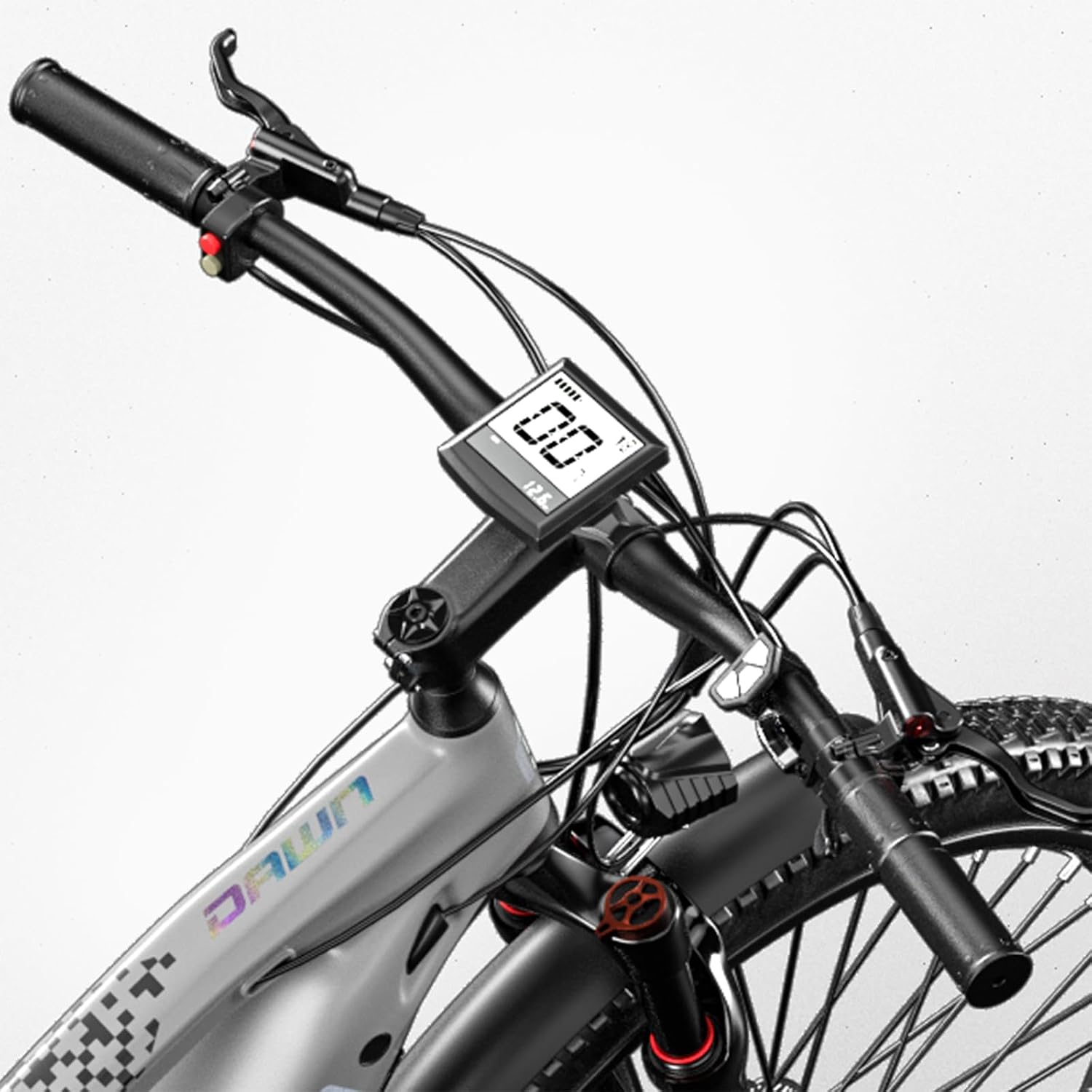

Image: View of the handlebar, showing the digital display and control buttons for the electric assist system.
3.3 Pedal Assist System (PAS)
The cysum Speedy-27.5 features a pedal assist system. The motor provides assistance only when you are pedaling. The level of assistance can be adjusted via the handlebar display. Higher assist levels provide more power and reduce your effort, while lower levels conserve battery life.
3.4 Gear Shifting
This e-bike is equipped with a 7-speed rear derailleur system. Use the trigger shifters on the handlebars to change gears. Shift to a lower gear for climbing hills and a higher gear for flat terrain or descents. Shift smoothly and avoid shifting under heavy load to prolong drivetrain life.

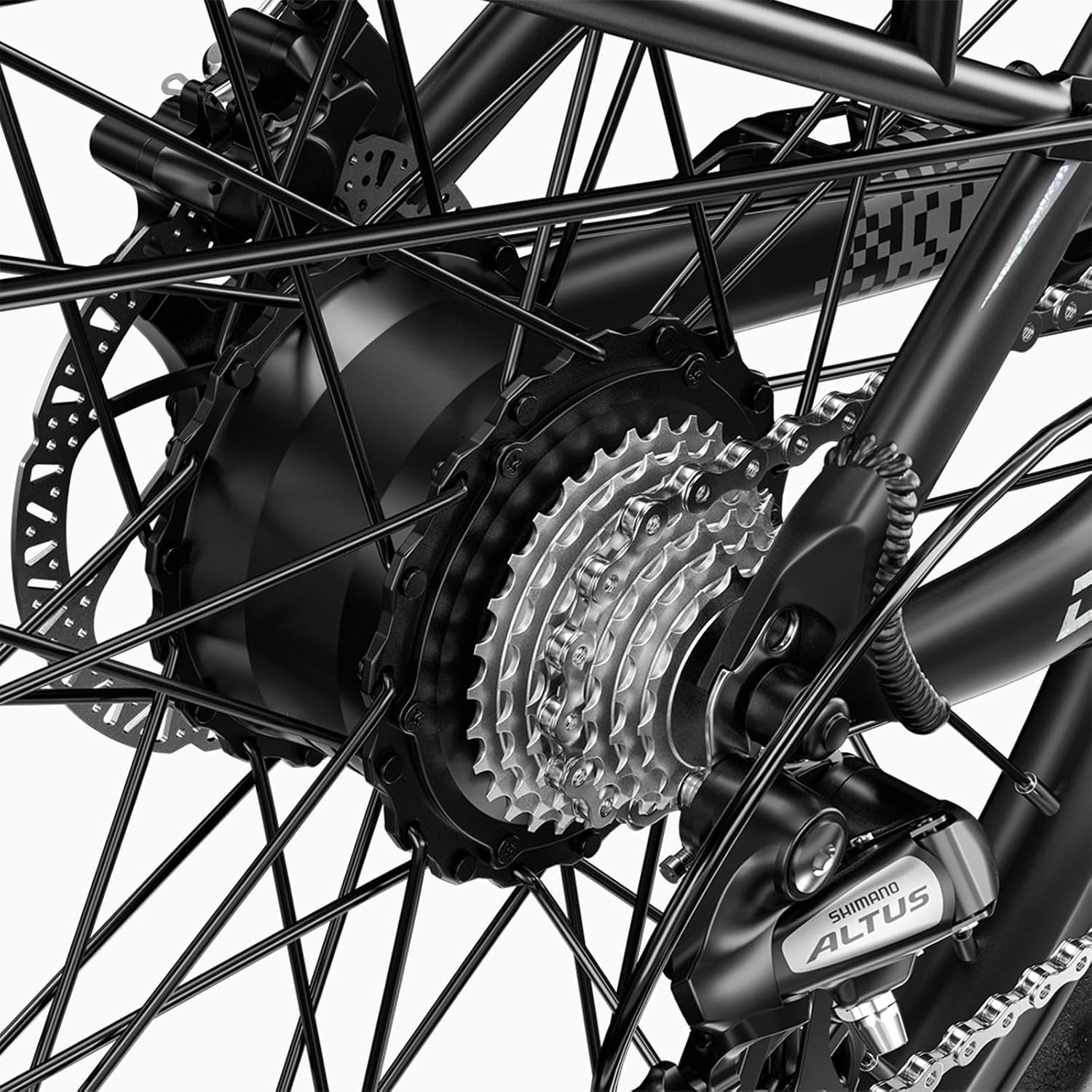

Image: Close-up of the 7-speed rear cassette and Shimano Altus derailleur, part of the bike's drivetrain.
3.5 Braking System
The bike is fitted with hydraulic disc brakes for powerful and consistent stopping. Apply both front and rear brakes simultaneously for effective and controlled braking. Avoid sudden, hard braking, especially with the front brake, to prevent loss of control.
3.6 Lights and Accessories
The e-bike includes integrated front and rear lights for improved visibility. These can typically be controlled via the handlebar display. The rear rack provides utility for carrying items.
Image: Rear view of the cysum electric bike, highlighting the integrated rear rack and taillight.
4. Maintenance
Regular maintenance is crucial for the longevity and safe operation of your cysum e-bike.
4.1 Battery Care
- Charge the battery regularly, even if not in use, to maintain its health.
- Avoid completely draining the battery before recharging.
- Store the battery in a cool, dry place, away from direct sunlight and extreme temperatures.
- Do not expose the battery to water or excessive moisture.
4.2 Tire Maintenance
- Check tire pressure before each ride. Maintain pressure within the range indicated on the tire sidewall.
- Inspect tires for wear, cuts, or embedded objects.
4.3 Brake System
- Regularly check brake pads for wear and replace them when necessary.
- Ensure brake levers are firm and responsive. If they feel spongy, the hydraulic system may need bleeding or adjustment by a professional.
- Keep disc rotors clean and free from oil or grease.
4.4 Drivetrain Care
- Clean and lubricate the chain regularly, especially after riding in wet or dirty conditions.
- Inspect the chain, cassette, and chainring for wear. Replace worn components to ensure smooth shifting and prevent damage.
4.5 General Cleaning and Inspection
- Clean the bike with a damp cloth and mild soap. Avoid high-pressure washing, especially near electrical components.
- Periodically check all bolts, nuts, and quick releases for tightness.
- Inspect the frame for any cracks or damage.
5. Troubleshooting
This section addresses common issues you might encounter with your cysum e-bike. For problems not listed here, please contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| E-bike does not power on. | Battery not charged or not properly installed. Loose electrical connection. | Ensure battery is fully charged and securely seated. Check all visible cable connections. |
| Motor assist not working. | Pedal Assist System (PAS) level set to zero. Brake levers engaged. Sensor issue. | Increase PAS level on the display. Ensure brake levers are fully released. Check for obstructions around pedal sensor. |
| Brakes feel weak or noisy. | Worn brake pads. Contaminated rotors. Air in hydraulic lines. | Inspect and replace brake pads if worn. Clean rotors with disc brake cleaner. Consult a bike mechanic for hydraulic system issues. |
| Gears are not shifting smoothly. | Derailleur out of adjustment. Dirty or dry chain. Worn drivetrain components. | Clean and lubricate the chain. Adjust derailleur indexing. If components are worn, replacement may be necessary. |
6. Specifications
| Feature | Detail |
|---|---|
| Model Name | Speedy-27.5 |
| Brand | cysum |
| Wheel Size | 27.5 inches (27.5*2.2 inch tires) |
| Motor Power | 250 Watts (75 Nm torque) |
| Battery Type | Removable Lithium-ion |
| Battery Capacity | 48V 14Ah (672 Wh) |
| Assisted Range | 75-85 km (Pedal Assist) |
| Gears | 7-speed (Shimano Altus rear derailleur) |
| Brake System | Hydraulic Disc Brakes |
| Suspension Type | Front Suspension |
| Frame Material | Steel Alloy |
| Bike Weight | 31 kg |
| Maximum Recommended Weight | 180 kg |
| Minimum User Height | 160 cm |
| Included Components | Fenders, Rear Rack, Front Light, Rear Light |
