Scheppach GWS08 Workshop Module System

1. Introduction

This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your Scheppach GWS08 Workshop Module System. Please read these instructions carefully before beginning assembly or use. Keep this manual for future reference.

The Scheppach GWS08 is a comprehensive workshop storage solution designed for organizing tools and equipment. It includes a tall cabinet, wall cabinets, a perforated panel with hooks, a sturdy workbench, and two mobile workshop trolleys.

2. Safety Instructions

Always observe the following safety precautions to prevent injury and damage to the product:

• Read all instructions: Familiarize yourself with the assembly and operation procedures before use.
• Proper assembly: Ensure all components are correctly assembled and tightened according to the instructions. Incorrect assembly can lead to instability.
• Stable surface: Place the workshop system on a flat, stable, and level surface to prevent tipping.
• Weight limits: Do not exceed the maximum load capacity for shelves, drawers, or the workbench. Overloading can cause structural failure.
• Secure items: Always store heavy items on lower shelves or in drawers to maintain stability.
• Locking mechanisms: Utilize the locking mechanisms on cabinets and trolleys to secure contents and prevent unauthorized access.
• Children and pets: Keep children and pets away from the assembly area and the workshop system during use to prevent accidents.
• Maintenance: Regularly inspect the system for loose fasteners, damage, or wear. Tighten or replace components as needed.

3. Product Overview

The Scheppach GWS08 Workshop Module System offers a robust and modular solution for workshop organization. Key features include:

• Robust Construction: Built with durable materials for long-lasting use in a workshop environment.
• Lockable Cabinets: Provides secure storage for valuable tools and equipment.
• Space-Saving Design: Efficiently organizes your workspace.
• Modular System: Components can be arranged to suit various workshop layouts.
• Integrated Workbench: A sturdy work surface for various tasks.
• Perforated Panel: Includes 12 hooks for convenient hanging storage of frequently used tools.
• Mobile Workshop Trolleys: Two trolleys provide flexible storage and easy movement of tools.

Image 3.1: Overview of the Scheppach GWS08 system highlighting its robust, lockable, space-saving, and modular features.

4. Setup and Assembly

The Scheppach GWS08 Workshop Module System requires assembly. Follow these general steps. Refer to the detailed assembly instructions provided in the product packaging for specific diagrams and fastener details.

1. Unpack Components: Carefully unpack all parts and check against the packing list to ensure all components are present and undamaged.
2. Assemble Frame: Begin by assembling the main frame structures for the tall cabinet, workbench, and wall cabinets. Ensure all bolts and screws are securely tightened.
3. Install Panels and Shelves: Attach side panels, back panels, and internal shelves to the cabinet frames.
4. Mount Perforated Panel: Secure the perforated panel to the main frame or wall as indicated in the specific instructions.
5. Assemble Workbench: Attach the workbench top to its supporting frame. Ensure it is level and stable.
6. Assemble Workshop Trolleys: Assemble the two mobile trolleys, including attaching the wheels. Ensure wheels are securely fastened and can swivel freely.
7. Install Doors and Drawers: Attach cabinet doors and install drawers into their respective runners. Adjust hinges and runners for smooth operation.
8. Attach Hooks: Place the 12 supplied hooks onto the perforated panel in your desired configuration.
9. Final Check: Verify that all connections are tight and the entire system is stable before loading with tools.

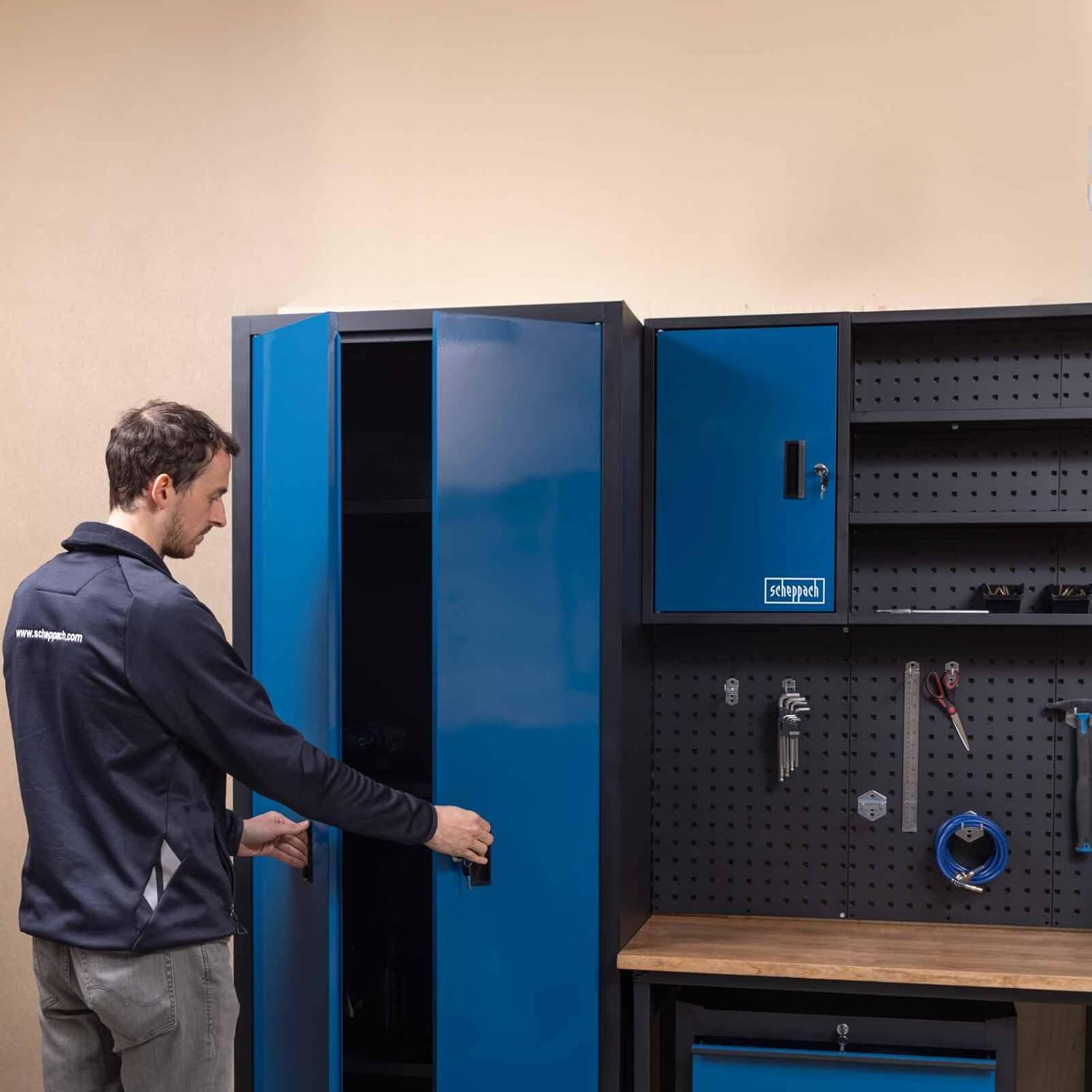

Image 4.1: A person opening the tall cabinet, demonstrating its accessibility and storage capacity.

5. Operating Instructions

Using your Scheppach GWS08 system effectively will enhance your workshop organization.

5.1. Cabinets and Drawers

• Loading: Distribute weight evenly within cabinets and drawers. Place heavier items on lower shelves or in the bottom of drawers to maintain stability.
• Locking: Use the provided keys to lock the cabinets and drawers for secure storage of tools and valuables. Ensure the lock mechanism engages fully.

Image 5.1: Detail of a hand using a key to lock a cabinet, illustrating the secure storage feature.

Image 5.2: A hand opening a drawer, showcasing the smooth operation and storage access.

5.2. Perforated Panel

• Tool Organization: Utilize the 12 supplied hooks to hang frequently used tools on the perforated panel for easy access. Arrange tools logically for efficiency.

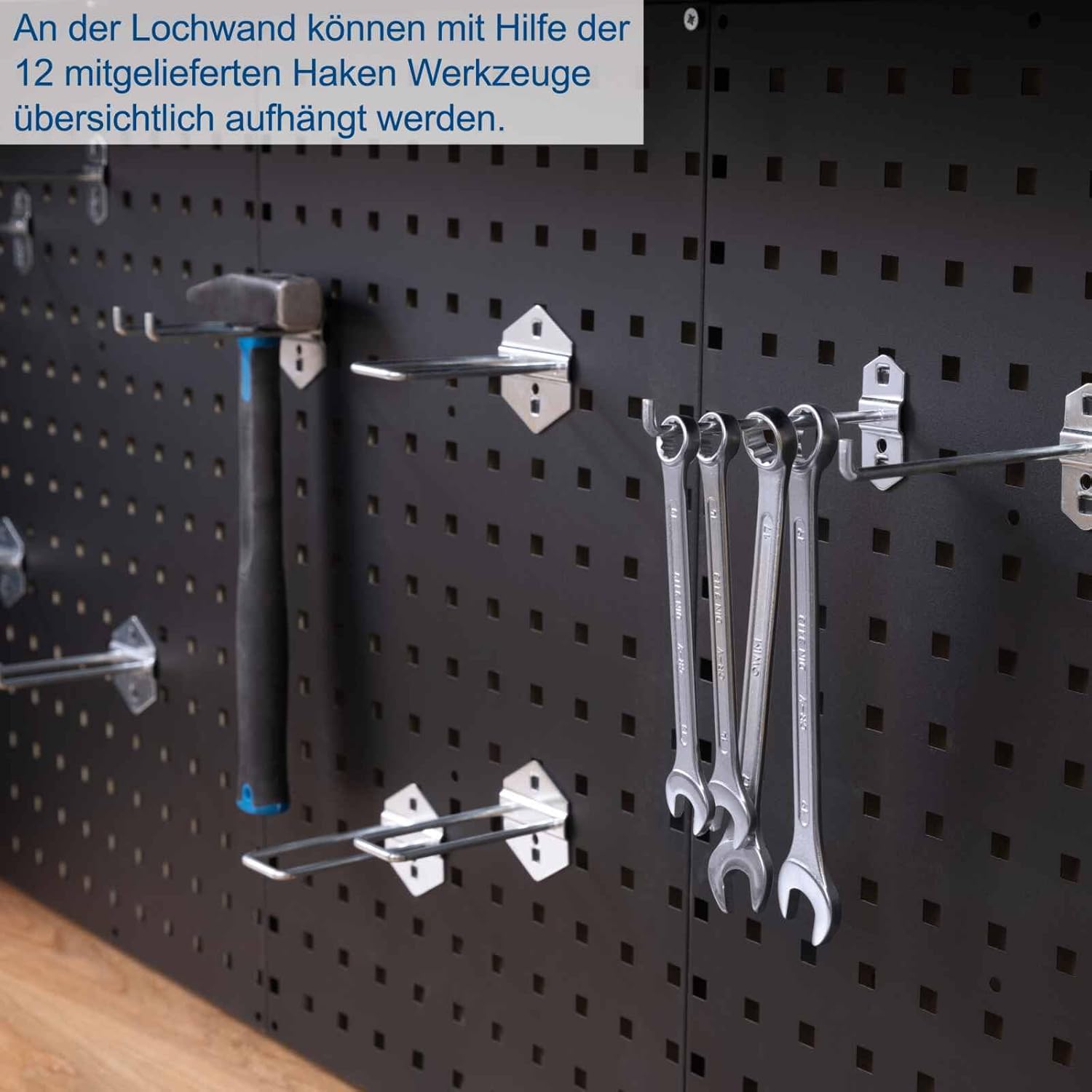

Image 5.3: Tools organized on the perforated panel using the included hooks.

5.3. Workshop Trolleys

• Mobility: The trolleys are equipped with wheels for easy movement around your workshop. Ensure the path is clear before moving.
• Brakes: If equipped, engage the wheel brakes when the trolley is in a stationary position to prevent unintended movement.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your workshop system.

• Cleaning: Wipe down surfaces with a damp cloth and mild detergent. Avoid abrasive cleaners that could damage the finish.
• Fastener Check: Periodically check all bolts, screws, and fasteners for tightness. Retighten any loose connections to maintain structural integrity.
• Lubrication: Apply a small amount of lubricant to drawer runners and door hinges if they become stiff or noisy.
• Damage Inspection: Inspect the system for any signs of damage, such as dents, cracks, or bent components. Replace damaged parts immediately to prevent further issues.
• Lock Care: Keep lock mechanisms clean and lubricated to ensure smooth operation.

7. Troubleshooting

This section addresses common issues you might encounter with your workshop module system.

• Issue: Cabinet doors or drawers do not close properly.
  Solution: Check for obstructions. Ensure hinges or runners are clean and lubricated. Verify that the cabinet frame is square and level. Adjust hinges or runners if necessary.
• Issue: System feels unstable or wobbly.
  Solution: Ensure the system is placed on a flat, level surface. Check all assembly fasteners and tighten any that are loose. Redistribute heavy items to lower sections.
• Issue: Keys are difficult to turn in locks.
  Solution: Apply a small amount of graphite powder or a specialized lock lubricant into the keyhole. Do not force the key.
• Issue: Workshop trolley wheels do not roll smoothly.
  Solution: Check wheels for debris or obstructions. Clean the wheel axles and apply a lubricant if needed. Ensure wheel brakes are disengaged.

8. Specifications

9. Warranty and Support

For warranty information and customer support, please refer to the documentation included with your purchase or visit the official Scheppach website. Keep your proof of purchase for any warranty claims.
