KAIWEETS KGM01H Metal Detector User Manual

1. Introduction

Thank you for choosing the KAIWEETS KGM01H Metal Detector. This professional-grade metal detector is designed for both adults and children, featuring 6 distinct detection modes, a high-precision pinpoint function, and an IP68 waterproof search coil. Equipped with a high-tech DSP chip and a color display, it offers accurate target identification and a user-friendly experience. This manual provides essential information for the proper setup, operation, and maintenance of your device.

2. Safety Information

• Read all instructions before operating the metal detector.
• Do not operate the detector near live electrical wires or in areas with potential explosive gases.
• Always obtain permission before searching on private property.
• Exercise caution when digging to avoid injury or damage to underground utilities.
• Dispose of batteries responsibly according to local regulations.
• Keep the device away from extreme temperatures and direct sunlight.

3. Package Contents

Verify that all items are present in your package:

• KAIWEETS KGM01H Metal Detector Main Unit
• IP68 Waterproof Search Coil
• Adjustable Stem and Armrest
• Headphones
• Folding Digger Shovel
• 2 x 9V Batteries
• User Manual

4. Product Overview

Familiarize yourself with the components of your KAIWEETS KGM01H Metal Detector.

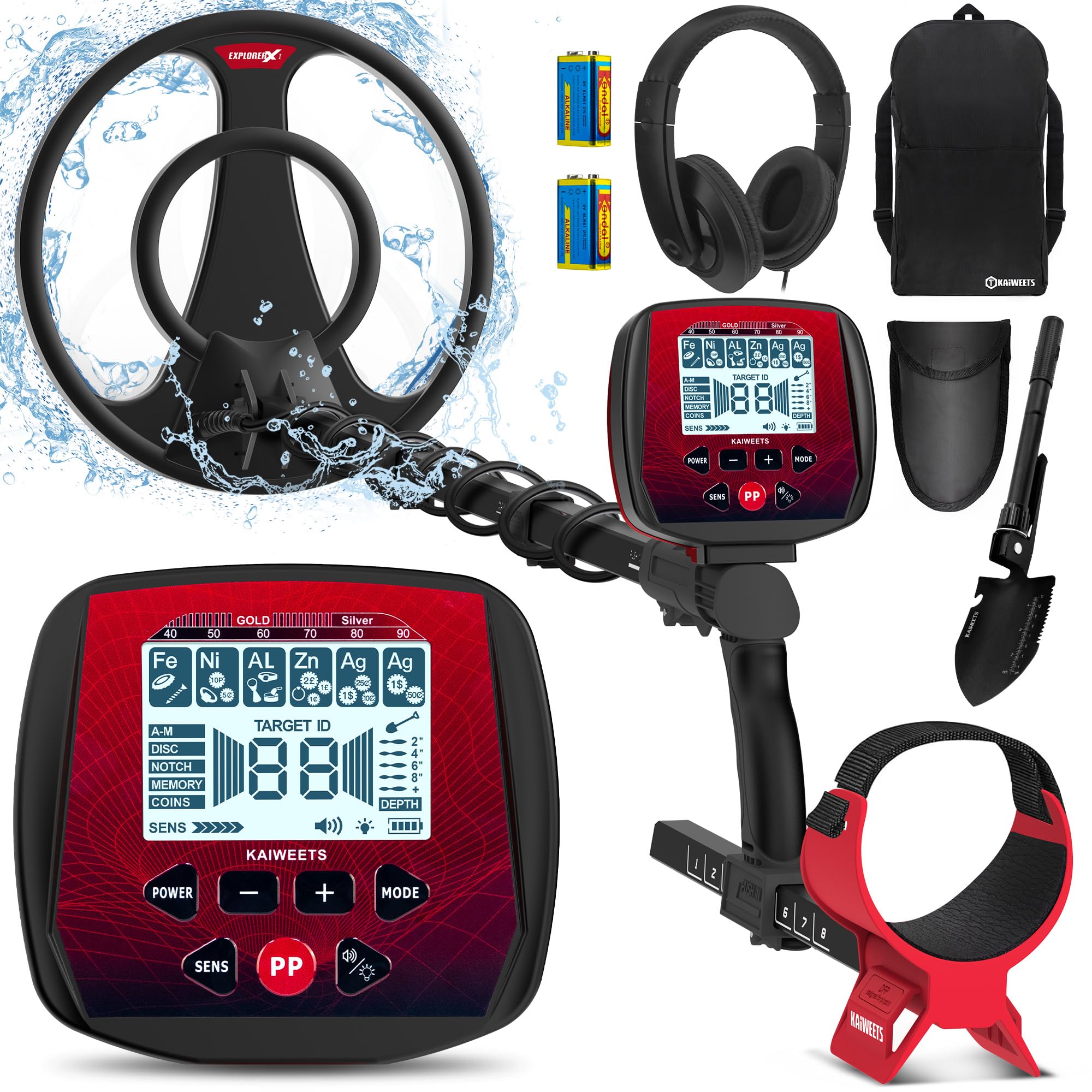

This image displays the assembled KAIWEETS KGM01H Metal Detector, showing its main components including the adjustable stem, control unit with a color display, the waterproof search coil, and the ergonomic armrest.

Key Components:

• Control Panel: Houses the color display, mode selection buttons, sensitivity controls, and pinpoint button.
• Adjustable Stem: Allows for length adjustment to suit different user heights.
• Armrest: Provides comfort and stability during use.
• Search Coil: The IP68 waterproof coil detects metal objects.
• Battery Compartment: Located on the control panel or armrest, for 9V batteries.

5. Setup

5.1 Assembly

1. Attach the search coil to the lower stem using the provided bolt and nut. Ensure it is securely fastened but allows for slight angle adjustment.
2. Connect the lower stem to the middle stem, and then the middle stem to the upper stem (which includes the control panel and armrest).
3. Adjust the stem length to a comfortable position where the search coil is parallel to the ground when standing upright. Secure the adjustment locks.
4. Wrap the search coil cable around the stem, ensuring it is not taut and does not interfere with movement. Plug the cable connector into the corresponding port on the control panel.

5.2 Battery Installation

1. Locate the battery compartment on the control panel or armrest.
2. Open the compartment cover.
3. Insert two 9V batteries, ensuring correct polarity (+/-).
4. Close the battery compartment cover securely.

6. Operating Instructions

6.1 Power On/Off

• To power on, press and hold the Power button (usually marked with an ⚡ symbol) for a few seconds until the display illuminates.
• To power off, press and hold the Power button again until the display turns off.

6.2 Mode Selection

The KGM01H features 6 detection modes. Use the 'MODE' button to cycle through the available modes. Each mode is optimized for different search conditions and target types:

• All Metal: Detects all types of metal.
• Discrimination: Allows you to filter out unwanted metals (e.g., iron).
• Custom: User-defined discrimination settings.
• Pinpoint: For precise location of detected targets.
• (Other modes may include specific ground balance or sensitivity presets)

6.3 Sensitivity Adjustment

Adjusting sensitivity is crucial for optimal performance. Use the '+' and '-' buttons (often labeled 'SENS' or 'Sensitivity') to increase or decrease sensitivity. Higher sensitivity increases detection depth but may also increase false signals in mineralized ground.

6.4 Pinpointing

Once a target is detected, press the 'PINPOINT' button. Move the search coil slowly over the target area. The detector will provide a continuous tone or visual indicator when the coil is directly over the center of the target, allowing for precise excavation.

6.5 Target Identification

The color display provides visual information about the detected target, often including a target ID number or icon indicating the probable metal type (e.g., iron, foil, nickel, gold, silver). Audio tones will also vary based on the detected metal, providing an audible cue.

7. Maintenance

• Cleaning: Wipe the detector with a damp cloth after each use. Do not use abrasive cleaners or solvents. The search coil can be rinsed with fresh water due to its IP68 rating, but ensure the control panel and connectors remain dry.
• Storage: Store the detector in a cool, dry place when not in use. If storing for extended periods, remove the batteries to prevent leakage.
• Battery Care: Replace batteries when the low battery indicator appears. Use high-quality 9V alkaline batteries for best performance.
• Coil Protection: Avoid striking the search coil against hard objects.

8. Troubleshooting

• No Power: Check battery installation and ensure batteries are fresh.
• False Signals: Reduce sensitivity. Ensure the search coil cable is securely connected and not loose. Avoid highly mineralized ground or areas with strong electromagnetic interference.
• Poor Detection Depth: Increase sensitivity. Ensure the search coil is parallel to the ground and swept at a consistent height. Check battery level.
• Inaccurate Pinpointing: Ensure the pinpoint function is activated correctly. Sweep slowly and methodically over the target.

9. Specifications

10. Warranty and Support

KAIWEETS products are manufactured to high-quality standards. For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official KAIWEETS website. Please have your model number (KGM01H) and purchase date available when contacting support.
