Chtoocy 600W Dog House Heater with Thermostat (Model HT06)

1. Introduction

This manual provides essential instructions for the safe and efficient operation, installation, and maintenance of your Chtoocy 600W Dog House Heater, Model HT06. Please read this manual thoroughly before use and retain it for future reference.

2. Safety Information

Your Chtoocy pet heater is designed with multiple safety features to ensure the well-being of your pets. Adhere to the following guidelines:

• Overheat Protection: The heater includes automatic overheat protection to prevent excessive temperatures.
• Insulated Surface: The exterior surface is insulated to prevent burns upon contact, making it safe for pets.
• Chew-Resistant Cord: Equipped with a steel-reinforced, chew-resistant power cord to protect against pet damage.
• Sturdy Metal Baffle: Features a robust metal baffle for enhanced safety and durability.
• Low Noise Operation: Operates at less than 50dB, contributing to a peaceful environment for your pet.
• UL Test Passed: This product has passed UL safety testing.

WARNING: Do not cover the heater. Ensure proper ventilation around the unit. Do not immerse the unit in water or any other liquid. Always unplug the heater before cleaning or maintenance.

Image: The Chtoocy pet heater showcasing its safe-touch surface and chew-proof cord, designed for pet safety.

3. Product Features

The Chtoocy 600W Dog House Heater (Model HT06) offers advanced features for optimal pet comfort:

• Powerful Heating: 600W PTC heating system for rapid and efficient warmth.
• Precise Temperature Control: Touch screen controller allows setting temperatures from 77°F to 113°F (25°C to 45°C).
• External Temperature Probe: A 6.5-foot external probe ensures accurate temperature monitoring within the pet's enclosure.
• Integrated Timer: Features 2, 4, and 8-hour timer settings for controlled heating durations.
• LED Display: Easy-to-read LED screen for temperature and timer settings.
• Air Circulation: Built-in fan circulates warm air, heating up to 150 ft³ of space.
• Versatile Placement: Suitable for wall-mounted or floor-standing use in various pet shelters.

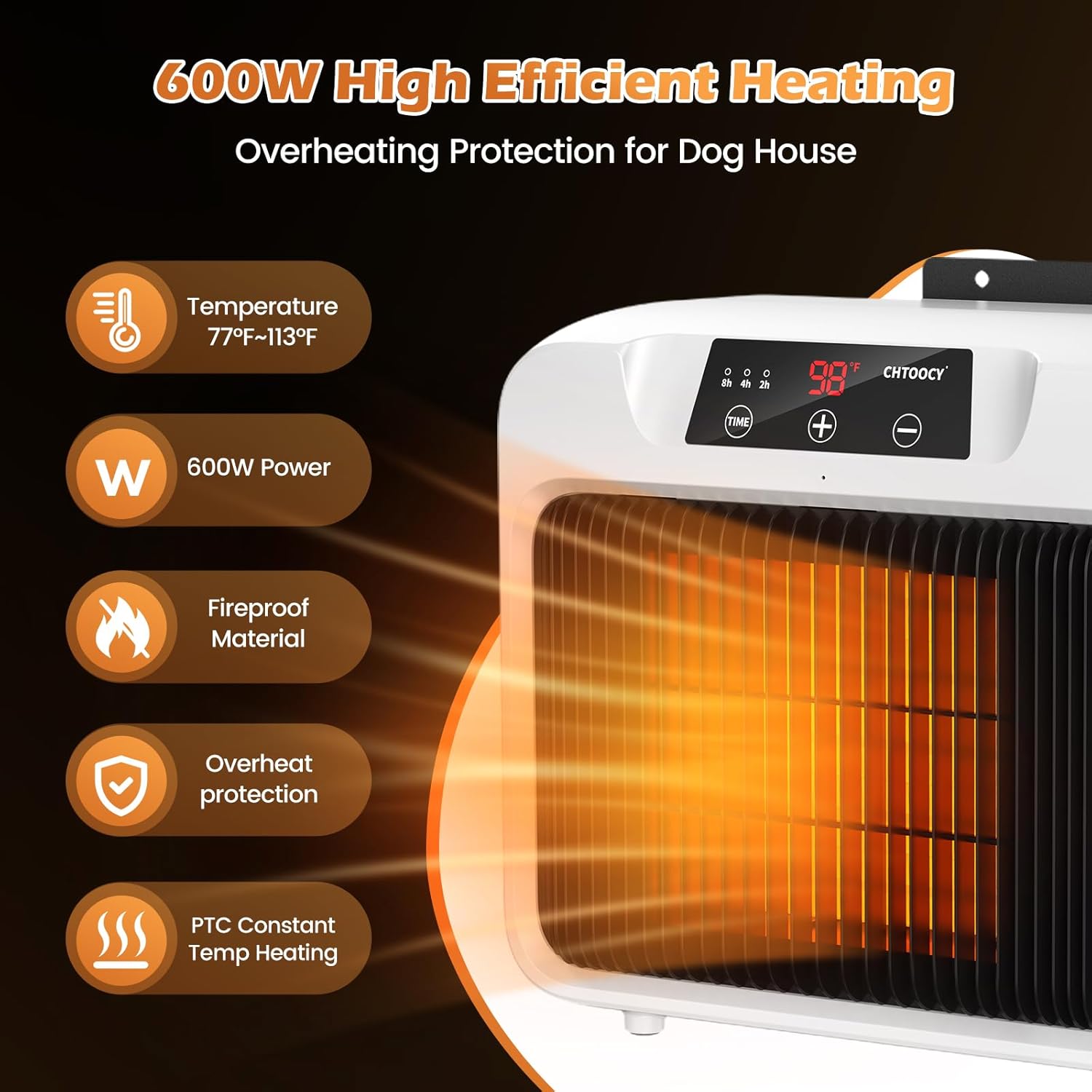

Image: Key features of the Chtoocy 600W pet heater, including power, fireproof material, overheat protection, and PTC heating.

4. Setup and Installation

The Chtoocy pet heater can be installed as a wall-mounted unit or used as a floor-standing heater. Mounting hardware is included for wall installation.

Wall Mounting Steps:

1. Attach Brackets: Secure the mounting brackets to the back of the heater using the provided screws.
2. Mark Wall Position: Choose a suitable location on the wall within the pet enclosure, ensuring it is away from flammable materials and within reach of a power outlet. Mark the screw positions.
3. Secure to Wall: Drill pilot holes if necessary, then attach the heater (with brackets) to the wall using the appropriate screws. Ensure the heater is securely fastened.

Image: Step-by-step guide for wall mounting the Chtoocy pet heater.

Floor Standing Use:

For floor-standing use, simply place the heater on a stable, flat surface within the pet's area. Ensure the heater is not easily tipped over by pets and that the power cord is routed safely.

Image: The Chtoocy pet heater demonstrating both wall-mounted and floor-standing usage.

5. Operating Instructions

The heater features a user-friendly touch screen controller for managing temperature and timer settings.

Power On/Off:

Plug the heater into a standard 120V outlet. Press the power button on the touch screen to turn the unit on or off.

Setting Temperature:

1. The LED display shows the current temperature.
2. Use the '+' and '-' buttons on the touch screen to adjust the desired temperature. The adjustable range is 77°F to 113°F (25°C to 45°C).
3. The heater will automatically maintain the set temperature using the external temperature probe for accurate readings.

Image: A hand adjusting the temperature on the Chtoocy pet heater's digital display.

Setting the Timer:

1. Press the 'TIME' button on the touch screen.
2. Cycle through the available timer settings: 2 hours, 4 hours, or 8 hours.
3. The heater will operate for the selected duration and then automatically turn off. The unit retains memory settings for consistency.

Image: The Chtoocy pet heater with its timer function activated, providing warmth to a pet.

6. Maintenance

Regular maintenance ensures the longevity and efficient operation of your heater.

• Cleaning: Ensure the heater is unplugged and completely cool before cleaning. Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or submerge the unit in water.
• Detachable Hair Net: The heater features a detachable hair net on the back. Regularly remove and clean this net to prevent dust and pet hair buildup, which can impede airflow and heating efficiency.
• Storage: When not in use, store the heater in a cool, dry place, away from direct sunlight and moisture.

Image: Rear view of the Chtoocy pet heater, highlighting the detachable hair net for maintenance.

7. Troubleshooting

If you encounter issues with your Chtoocy pet heater, refer to the following common problems and solutions:

8. Specifications

9. Warranty and Support

For warranty information and customer support, please refer to the warranty card included with your product. For further assistance, contact Chtoocy customer service through the retailer where the product was purchased.
