POSEIDON Wireless Rotary Tattoo Gun Kit User Manual

Introduction

Thank you for choosing the POSEIDON Tattoo Kit. This comprehensive kit is designed for beginners, starters, and apprentices, providing all necessary tools for a complete tattooing experience. This manual will guide you through the setup, operation, maintenance, and troubleshooting of your new tattoo kit.

Kit Contents Overview

The POSEIDON Tattoo Kit includes:

• 1 x Battery Tattoo Pen
• 20 x Tattoo Cartridges Needles (1205RL*5, 1207RL*5, 1209RS*5, 1007CM*5)
• 1 x Self Cohesive Tattoo Grip Cover
• 1 x TYPE-C Charging Cable
• 40 x Ink Caps
• 2 x Practice Skin
• 2 x Transfer Paper
• 10 x 5ml Tattoo Ink
• 2 x 30ml Black Tattoo Ink
• 1 x Tattoo Gloves
• 1 x Tattoo sticker
• 4 x Tattoo Table Mat
• 1 x Instruction Manual (this document)

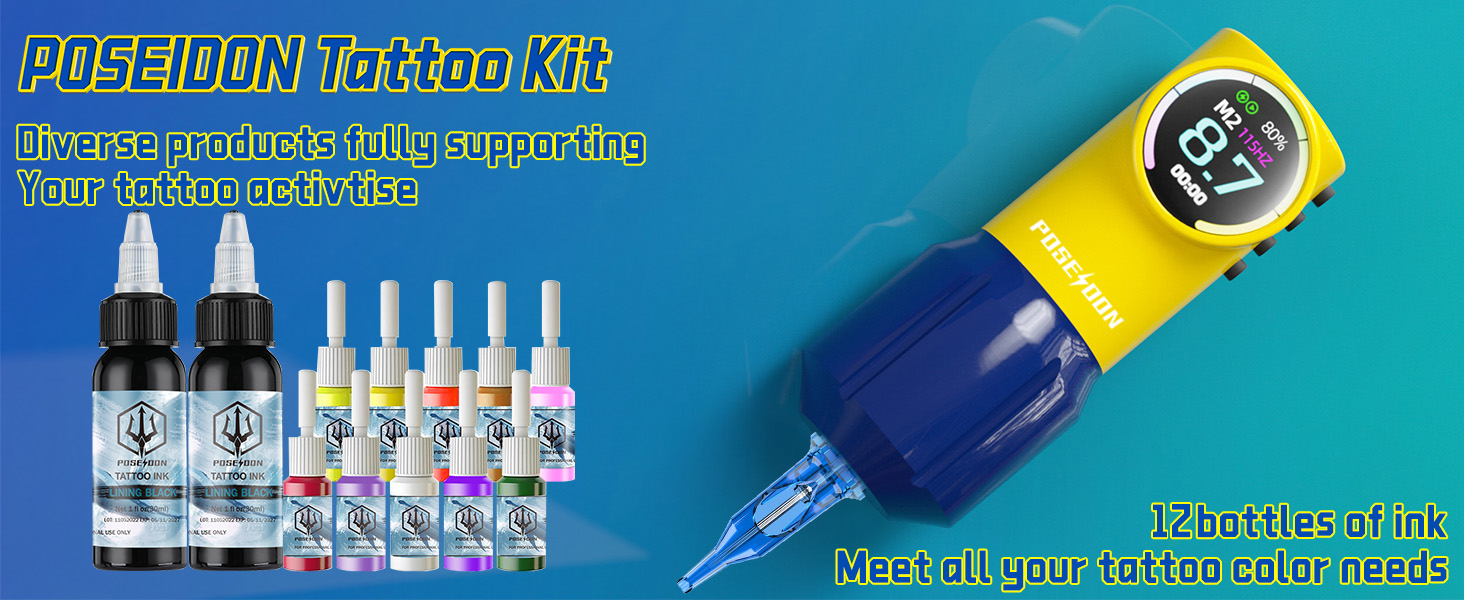

Image: All components included in the POSEIDON Tattoo Kit, featuring the tattoo pen, various needle cartridges, ink bottles, practice skin, and accessories.

1. Setup Guide

1.1 Unboxing and Component Identification

Carefully unbox all components and verify that all items listed in the "Kit Contents Overview" are present. Familiarize yourself with each part of the kit.

1.2 Charging the Tattoo Pen Battery

The tattoo pen is equipped with a 1600mAh battery. Before first use, fully charge the battery.

1. Connect the TYPE-C Charging Cable to the charging port on the tattoo pen.
2. Connect the other end of the cable to a compatible USB power adapter (not included).
3. The LED screen on the pen will indicate charging status. A full charge typically takes 1.5 to 3 hours.
4. Once fully charged, the pen can operate for approximately 4-6 hours.

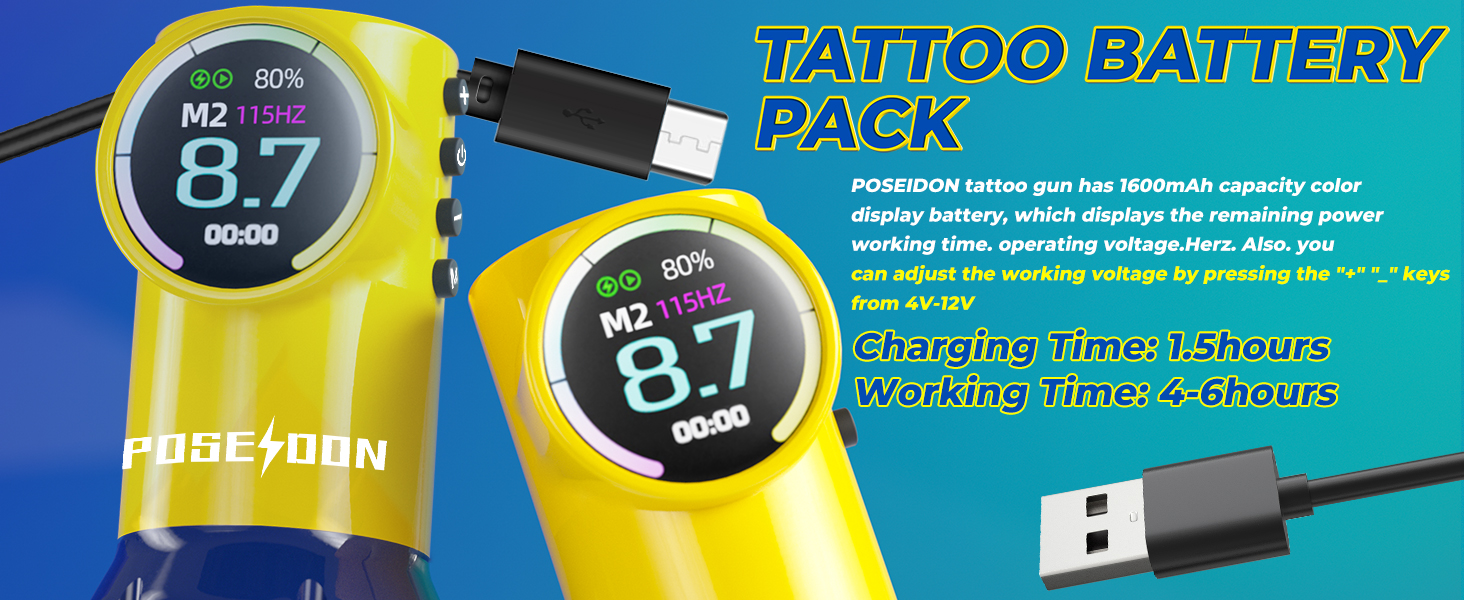

Image: The POSEIDON Tattoo Pen connected to its TYPE-C charging cable, illustrating the charging process and battery display.

1.3 Preparing the Workspace

Ensure your workspace is clean, well-lit, and organized. Use the provided Tattoo Table Mats to maintain hygiene.

2. Operating Instructions

2.1 Installing a Needle Cartridge

POSEIDON tattoo cartridge needles are sterilized and individually packed. Always use a new, sterile needle for each session.

1. Carefully open the sterile packaging of the desired tattoo cartridge needle.
2. Insert the needle cartridge into the front end of the tattoo pen. Twist gently until it clicks securely into place.
3. Ensure the needle is firmly seated and does not wobble.

Image: Various types of POSEIDON Pro Needles with plastic shells, including Round Liners, Round Shaders, Round Magnum, and Magnum Softedge, illustrating their distinct configurations.

2.2 Powering On and Adjusting Settings

The tattoo pen features an intelligent LED color screen for easy control.

1. Power On/Off: Press and hold the power button (usually located near the screen) for a few seconds to turn the pen on or off.
2. Voltage Adjustment: Use the "+" and "-" buttons to adjust the working voltage. The voltage can be adjusted by 0.1V increments within a range of 4V to 12V.
3. Monitoring Display: The LED screen displays key information including:
   • Remain Power: Battery charge level.
   • Frequency (Hz): Operating frequency.
   • Voltage (V): Current working voltage.
   • Mode: Current operating mode (e.g., M1, M2).
   • Working Time: Elapsed time of the current session.
4. Special Functions: The pen supports features like Dot Tattoo Function, Strong Start Function, and Four Speed Memory Mode. Refer to the on-screen prompts or specific button combinations for activation.

Image: Detailed view of the POSEIDON Tattoo Pen's large color LED screen, highlighting indicators for Voltage Protection, Remaining Power, Frequency, Voltage, Mode, and Working Time.

2.3 Applying Ink

Use the provided ink caps for holding tattoo ink. Never dip the tattoo pen directly into the ink bottle.

1. Pour a small amount of desired tattoo ink into an ink cap.
2. Gently dip the tip of the needle cartridge into the ink cap to draw ink into the reservoir.

2.4 General Operation

Hold the tattoo pen firmly and comfortably. The pen's coreless motor provides stable and low-noise operation. Practice on the provided practice skin before working on actual skin.

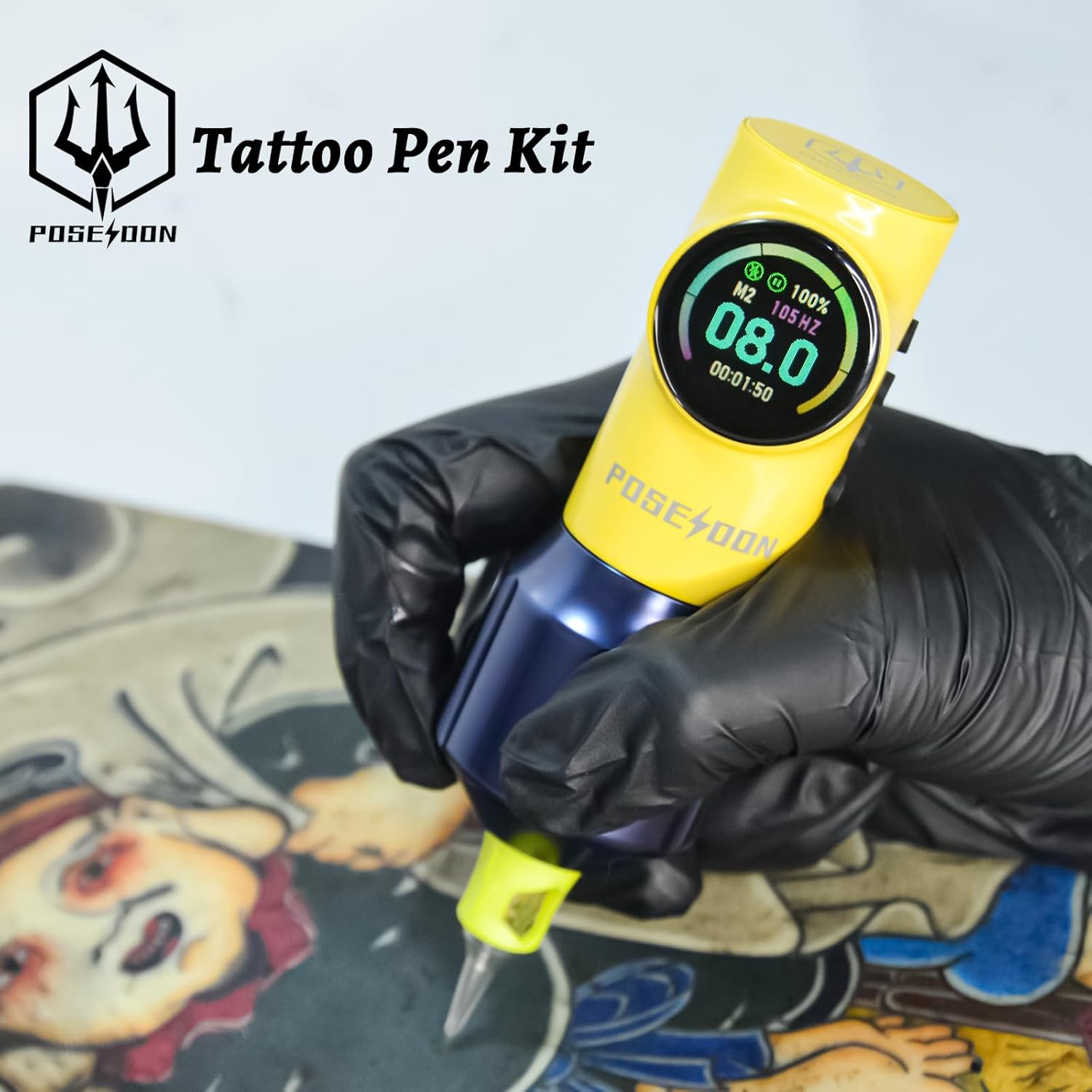

Image: A user wearing gloves holding the POSEIDON Tattoo Pen, demonstrating its ergonomic design during a tattooing session on practice skin.

3. Maintenance

3.1 Cleaning the Tattoo Pen

After each use, it is crucial to clean the tattoo pen to ensure hygiene and longevity. Always disconnect the power before cleaning.

1. Remove the needle cartridge and dispose of it safely in a sharps container.
2. Wipe down the exterior of the tattoo pen with a clean, damp cloth. For disinfection, use an alcohol wipe or a suitable non-abrasive disinfectant spray on the exterior surfaces.
3. Do not submerge the tattoo pen in water or any cleaning solution.
4. Ensure the charging port and LED screen are kept dry.

3.2 Storage

Store the POSEIDON Tattoo Kit in a cool, dry place, away from direct sunlight and extreme temperatures. Keep all components organized in their original packaging or a dedicated storage case to prevent damage.

4. Troubleshooting

This section addresses common issues you might encounter with your POSEIDON Tattoo Kit.

5. Specifications

Detailed technical specifications for the POSEIDON Wireless Rotary Tattoo Gun Kit:

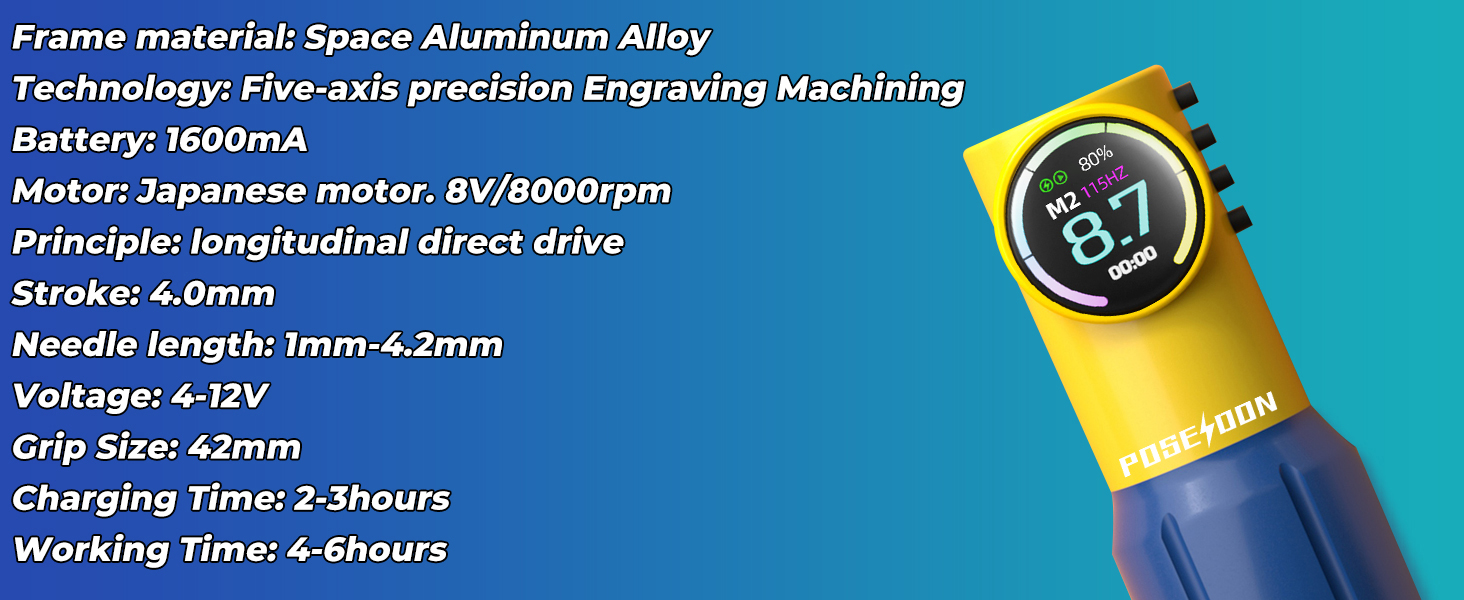

Image: A graphic displaying key specifications of the POSEIDON Tattoo Pen, including frame material, battery, motor, stroke, voltage, and charging/working times.

6. Safety Information

WARNING: Keep away from children.

Always follow proper hygiene and safety protocols when using tattoo equipment. This includes wearing gloves, using sterile needles, and disposing of sharps correctly. Consult with a professional or refer to local regulations for safe tattooing practices.

7. Warranty and Customer Support

Vidattx provides a replacement or refund for ALL products. If you encounter any issues or have questions regarding your POSEIDON Tattoo Kit, please contact customer service for support. No reason needed, smooth and simple!

For assistance, please refer to the contact information provided with your purchase or visit the official Vidattx support website.
