Dawnice 20KW Hybrid Solar Power System User Manual

1. Introduction

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Dawnice 20KW Hybrid Solar Power System. Please read this manual thoroughly before attempting any installation or operation. Keep this manual for future reference.

2. Safety Information

Warning: Installation and maintenance of this solar power system involve high voltage and heavy components. Improper handling can result in serious injury or death. It is strongly recommended that installation and major maintenance be performed by qualified and certified professionals.

• Always disconnect all power sources (solar panels, battery, grid) before performing any service or maintenance.
• Ensure proper grounding of all components.
• Wear appropriate personal protective equipment (PPE), including insulated gloves and safety glasses.
• Do not attempt to open or repair the inverter or battery components yourself. Refer to qualified service personnel.
• Keep children and unauthorized personnel away from the system components.

3. Product Overview

The Dawnice 20KW Hybrid Solar Power System is a comprehensive solution for generating and storing electricity. It includes high-efficiency solar panels, a powerful hybrid inverter with MPPT technology, and robust LiFePO4 lithium batteries for energy storage.

3.1 System Components

• Solar Panels: 36 pieces of 550W monocrystalline solar panels.
• Hybrid Inverter: 3 sets of 48V 10KW Split Phase Inverter with built-in MPPT solar controller.
• LiFePO4 Batteries: 6 sets of 51.2V 314Ah (16 kWh) whole house storage batteries.

3.2 Key Features

• High-efficiency current transmission with 99% maximum tracking efficiency and 98% peak conversion efficiency for the inverter.
• Integrated battery storage for uninterrupted power supply, even during grid outages or at night.
• Advanced LiFePO4 batteries with over 8000 deep cycles, WiFi/Bluetooth connectivity, and IP54 waterproof rating.
• Smart LED touchscreen for monitoring and control.
• Support for multi-machine parallel connection and parallel SOC equalization control.

Figure 1: Overview of the Dawnice Hybrid Solar Power System Kit.

Figure 2: The Dawnice 48V 10KW Split Phase Inverter with MPPT controller.

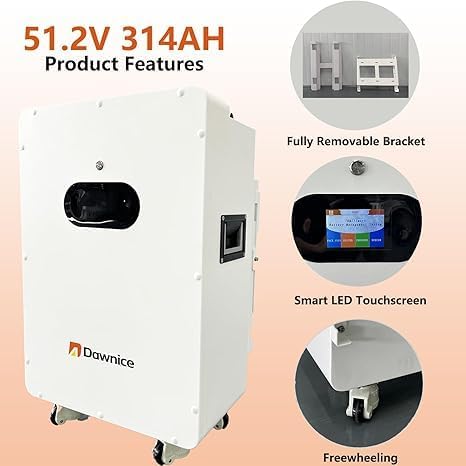

Figure 3: Key features of the Dawnice 51.2V 314Ah LiFePO4 Battery, including 16.07 kWh capacity and LED touchscreen.

4. Setup

The installation of a 20KW hybrid solar power system is complex and requires specialized knowledge. It is highly recommended to engage certified solar installers for the entire setup process to ensure safety, compliance with local regulations, and optimal system performance.

4.1 Site Selection

• Solar Panels: Choose a location with maximum sun exposure throughout the day, free from shading. Ensure the roof structure can support the weight of the panels.
• Inverter & Batteries: Install in a cool, dry, well-ventilated area, protected from direct sunlight, moisture, and extreme temperatures. Ensure sufficient clearance for air circulation and maintenance.

4.2 Mounting Solar Panels

Mount solar panels securely using appropriate racking systems. Ensure correct tilt and orientation for your geographical location to maximize energy harvest. Follow all manufacturer guidelines for panel mounting.

4.3 Wiring Diagram and Connections

All electrical connections must comply with national and local electrical codes. This includes connecting solar panels to the inverter, batteries to the inverter, and the inverter to your home's electrical panel and the grid (if applicable). Use appropriately sized cables and circuit breakers.

Figure 4: Simplified wiring diagram for the Dawnice Hybrid Solar Power System. This diagram illustrates the connection flow from solar panels and AC input to the inverter, battery, and AC output for various loads.

4.4 Initial Power-Up

After all physical and electrical connections are complete and verified by a professional, follow the inverter's specific power-up sequence. This typically involves connecting the battery first, then solar input, and finally the AC grid connection.

5. Operating Instructions

Once installed and powered up, the Dawnice Hybrid Solar Power System operates largely automatically. The inverter manages power flow between solar panels, batteries, and the grid to optimize energy usage and ensure continuous power supply.

5.1 Monitoring System Status

The inverter features a smart LED touchscreen display that provides real-time information on system performance, battery status, energy production, and consumption. Refer to the inverter's specific manual for detailed navigation and interpretation of display information.

5.2 Power Modes

Your hybrid inverter supports various operating modes, such as self-consumption, time-of-use, and backup mode. These modes can typically be configured via the inverter's display or a dedicated monitoring application. Consult the inverter manual for configuration details.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your solar power system. Always follow safety precautions before performing any maintenance.

6.1 Solar Panels

• Cleaning: Periodically clean solar panels to remove dust, dirt, leaves, or snow that can reduce efficiency. Use soft brushes and water; avoid abrasive materials.
• Inspection: Annually inspect panels for any physical damage, loose connections, or signs of corrosion.

6.2 Inverter

• Ventilation: Ensure the inverter's ventilation openings are clear and free from obstructions.
• Connections: Periodically check all wiring connections for tightness and signs of overheating.
• Firmware: Keep the inverter firmware updated as recommended by the manufacturer.

6.3 Batteries

• Visual Inspection: Check batteries for any physical damage, swelling, or corrosion on terminals.
• Temperature: Ensure batteries are operating within their specified temperature range.
• Monitoring: Regularly monitor battery state of charge and health via the inverter display or dedicated app.

7. Troubleshooting

This section provides basic troubleshooting steps for common issues. For complex problems, contact Dawnice customer support or a qualified technician.

7.1 No Power Output

• Check Breakers: Ensure all AC and DC circuit breakers are in the ON position.
• Inverter Status: Check the inverter's display for error codes or status indicators.
• Battery Connection: Verify battery connections are secure and the battery is sufficiently charged.
• Solar Input: Confirm solar panels are receiving sunlight and connections are secure.

7.2 Low Power Production

• Panel Cleanliness: Clean solar panels if they are dirty or covered.
• Shading: Check for any new shading sources (trees, buildings) on the solar panels.
• Weather Conditions: Cloudy or rainy weather will naturally reduce solar production.

7.3 Inverter Error Codes

Refer to the specific inverter manual for a comprehensive list of error codes and their corresponding troubleshooting steps. Do not attempt to bypass safety features or force operation if an error persists.

8. Specifications

Detailed technical specifications for the Dawnice 20KW Hybrid Solar Power System components.

9. Warranty and Support

Dawnice is committed to providing reliable products and customer satisfaction.

9.1 Warranty Information

This Dawnice Hybrid Solar Power System comes with a 10-Year Limited Warranty. Please retain your proof of purchase for warranty claims.

9.2 Technical Support

Lifetime technical support is provided for this product. If you have any questions, concerns, or require assistance with installation, operation, or troubleshooting, please contact the Dawnice support team. You can typically reach support through the seller's contact information on the platform where the product was purchased.
